Zhiyun WEEBILL-3 S Handheld Gimbal Stabiliser with Built-In Fill Light

Zhiyun WEEBILL-3 S Handheld Gimbal Stabiliser with Built-In Fill Light

The WEEBILL-3 S Handheld Gimbal Stabiliser from Zhiyun improves on the features of its predecessor by adding wireless shutter capabilities, better fill light, and Sling Mode 2.5 to produce a high-performing gimbal for your upcoming run-and-gun shoot. With an optimised sling structure and built-in fill light, the gimbal's design is streamlined for a lightweight and small footprint. The 0.96" touchscreen lets you view your settings, Bluetooth 50 lets you operate your camera's shutter, and the numerous buttons let you switch between modes or parameters.

While maintaining the device's small and lightweight, an improved stabilisation algorithm from the 10th generation enhances movement quality. 340° of rolling, 360° of panning, and 310° of tilting are all controlled by motors.

The quick-release plate has a simple landscape/portrait switch control with the camera mounted. This makes it simple to record videos in both horizontal and vertical orientations for use on various social media platforms, such as TikTok and vlogs.

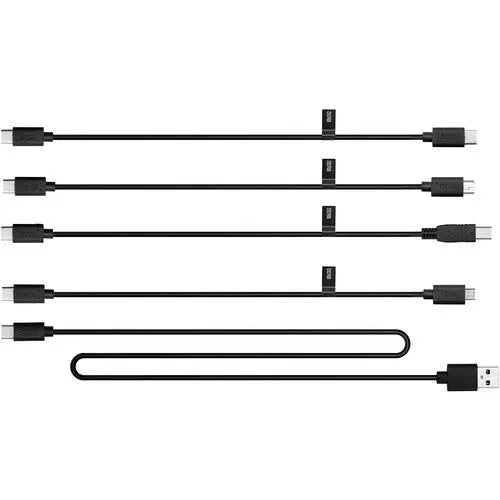

Utilising onboard buttons, wireless Bluetooth 5.0 technology enables remote shutter control for cameras. Connecting one of the provided Canon, Sony, or Panasonic control cords will allow you to control the gimbal and your mounted camera. The gimbal's 2.4 GHz Wi-Fi capability is used to connect to the ZY Play mobile app.

Your WEEBILL-3 is powered by two integrated 2600mAh batteries for up to 11.5 hours. Both 5V at 1A real-time charging for your camera and PD fast charging for the gimbal, which can fully recharge the device in under two hours, is supported by a single USB-C port.

Grip Design

Single Handgrip (Slanted)

Number of Axes

3-Axis (Pitch (Tilt), Roll, Yaw (Pan))

Rotation Range

Mechanical Range
Yaw (Pan): 360° Unlimited
Pitch (Tilt): 310° (-130 to 180°)
Roll: 340° (-280 to 60°)
Controllable Range
Yaw (Pan): 360°
Pitch (Tilt): 250° (-90 to 160°)
Roll: 65° (-30 to 35°)

Stabilisation Accuracy

±0.01 to 0.04° (Motionless)
±0.05 to 0.3° (Motion)

Camera Control

On Compatible Models (See Full Compatibility List)

Camera Mounting Screw

1 x 1/4"-20 Male

Inputs/Outputs

1 x USB-C (Power) Input
1 x USB-C (Power / Control) Output

Wireless Frequency

2.4 GHz

Wireless Protocol

Bluetooth 5.0, Wi-Fi (Unspecified Type)

Mobile App Compatible

Yes: Android & iOS
App Name: ZY Play
Functionality: Adjust Settings, Remote Control

Battery Type

2 x 18650

Battery Capacity

2600 mAh

Battery Runtime

11.5 Hours

Battery Charging Time

2 Hours

Battery Chemistry

Lithium-Ion

Operating Voltage

6.5 to 8.4 VDC

Operating Current

150 to 5300 mA

Display Type

Fixed Touchscreen OLED

Mounting

1 x 1/4"-20 Female
1 x 1/4"-20 Male

Dimensions

712 x 8.3 x 2.9" / 305 x 210 x 72.5 mm (Folded)
12.1 x 7.1 x 6.36" / 306.4 x 181.4 x 161.63 mm (without Tripod)

Weight

2.4 lb / 1.1 kg
