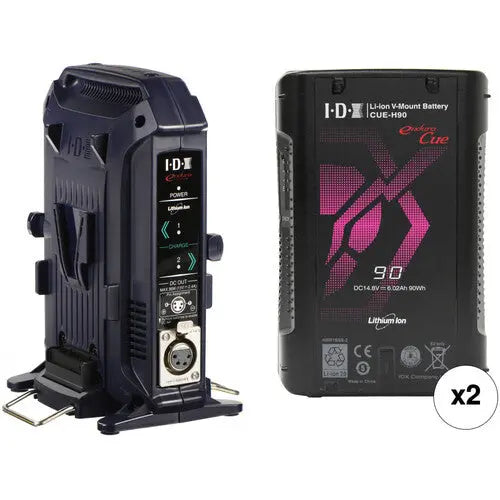

IDX 2x CUE-H90 90Wh V-Mount Batteries with VL-2X 2-Bay Compact V-Mount Charger Kit

IDX 2x CUE-H90 90Wh V-Mount Batteries with VL-2X 2-Bay Compact V-Mount Charger Kit

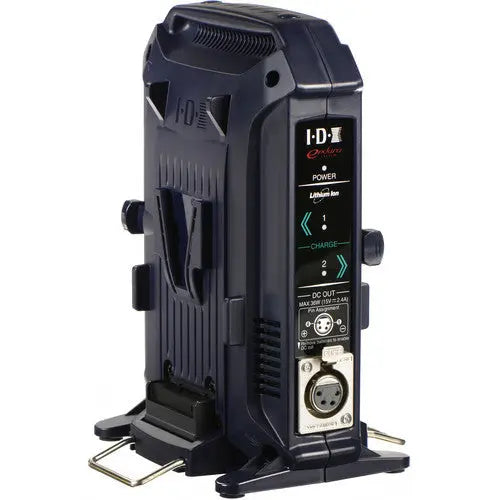

• The VL-2X 2-Channel V-Mount Charger & Power Supply from IDX provides sequential charging for lithium-ion and NiCad batteries, automatically switching to the second battery after fully charging the first. It delivers up to 2.7A of quick-charge current without the noise of a typical charger thanks to a fanless design. It also features a 4-pin XLR power output that offers up to 36W of DC power when the charger is connected to a wall outlet and your batteries are removed. (The DC output is disabled when a battery is charging.)

  This portable desktop charger is designed with reliable internal safety features that protect both the battery and charger from damage should faulty or misused batteries be placed on the charger. It will automatically stop charging if any attached battery reaches an overvoltage condition.


  Charge Times

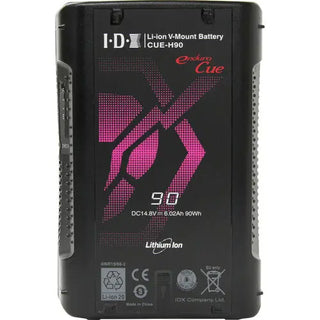

• Power your camera or other pro video equipment with the CUE-H90 90Wh Compact Li-Ion V-Mount Battery from IDX System Technology. The battery can supply up to 16.8 VDC to the plate, and it can also provide up to 80W to power accessories through the integrated D-Tap output. CUE-H90 batteries feature a nominal voltage of 14.8 VDC, a maximum output voltage of 16.8 VDC, and a maximum 7A draw.

  CUE-H-series batteries feature an even higher capacity than their CUE-D predecessor while maintaining the same internal pack design that isolates it for reliability and safety. There is also built-in prevention of overcharging, over-discharging, or overcurrent. IDX CUE-H90 batteries should be charged using IDX-branded chargers; third-party chargers may not charge CUE-H90 batteries correctly.

• Mount Type     2 x V-mount
  Supported Chemistries     Lithium-ion and Ni-Cad
  Charging Type     Sequential
  Input Voltage     100-240 VAC, 50/60 Hz
  Power Consumption     140 VA max.
  Quick Charge Current     2.7 A max.
  DC Output     4-pin XLR (36 W max.)
  Operating Temperature     23 to 104°F (-5 to 40°C)
  Dimensions     3.4 x 4.2 x 5" (9 x 11 x 13 cm)
  Weight     Approx. 0.95 lb (430 g)

• Mount / Series Type V-Mount

  Chemistry Lithium-Ion

  Capacity (Wh) 90 Wh

  Output Voltage 14.4 VDC

  Maximum Load 7 A

  (Peak) Accessory Port 1 x D-Tap Output 80W

  Storage Temperature -4 to 113°F / -20 to 45°C

  Charging Temperature 32 to 104°F / 0 to 40°C

  Discharging Temperature -4 to 113°F / -20 to 45°C

  Dimensions (W x H x D) 5.75 x 3.82 x 1.54" / 146.05 x 97.03 x 39.12 mm

  Weight 1.34 lb / 0.61 kg
