RGBlink TAO 1mini 4K Pro Streaming Node

RGBlink TAO 1mini 4K Pro Streaming Node

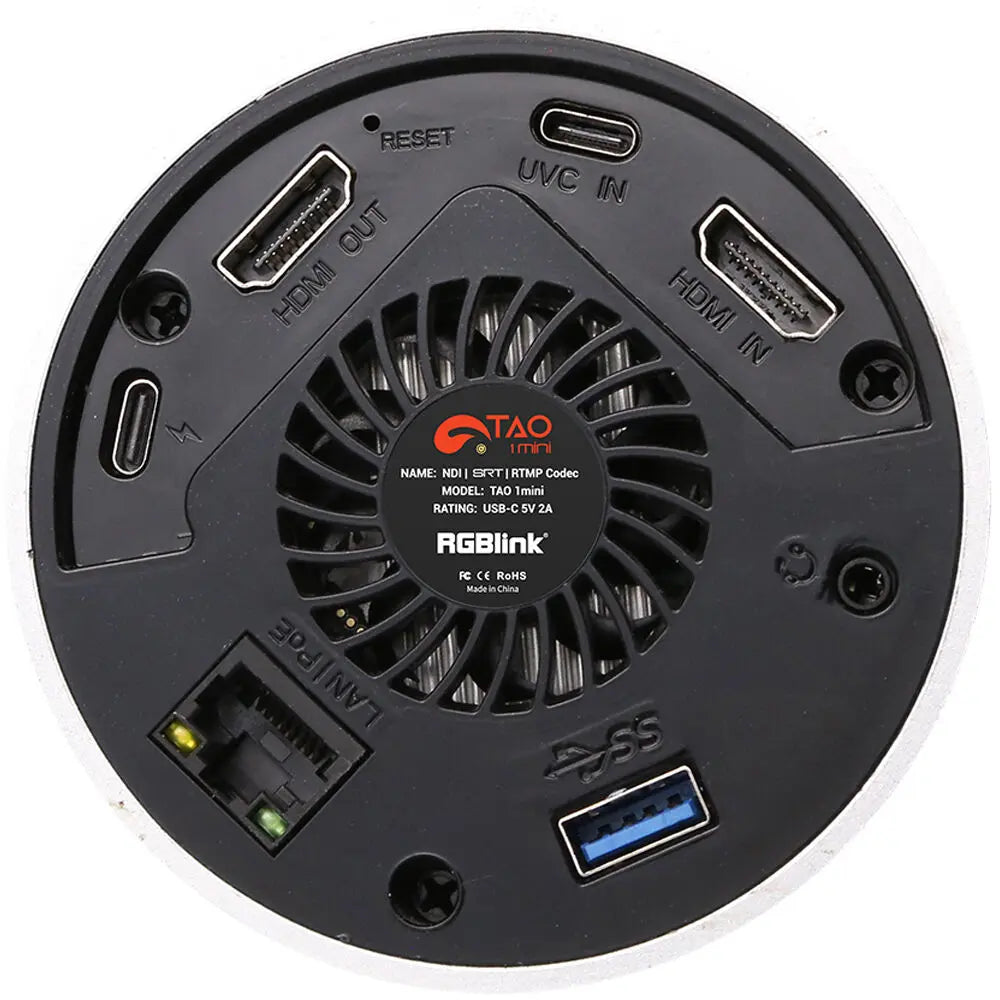

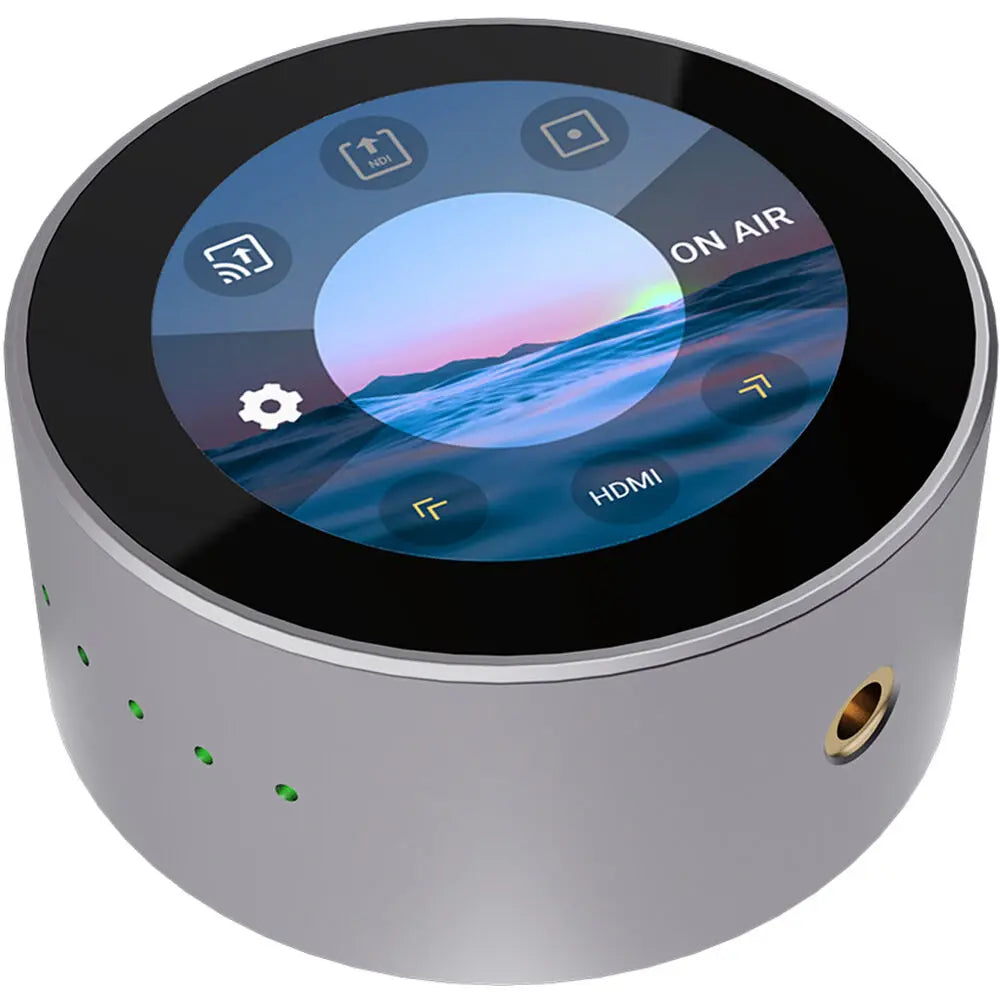

Livestream from your PTZ camera, webcam, or DSLR camera to platforms like YouTube, Facebook, and Twitch using this TAO 1mini 4K Pro Streaming Node from RGBlink. Its ultracompact, circular form factor with integrated 1/4"-20 threads allows you to mount it to the top of your camera of choice with your choice of 1/4"-20 mount, or simply place it on your desk without taking up valuable real estate. The 2.1" touchscreen can monitor and control your LAN or NDI streaming signal. One HDMI and one USB-C UVC input up to DCI 4K60 video signals and transmit it to an HDMI output or LAN port.

A 3.5mm audio jack input can also connect a microphone for improved audio quality. For video transmission from your computer's webcam, use the USB-A 3.0 port. You can easily stream to 32 different destinations simultaneously using the separately available TAO app for mobile devices. The 1mini 4K supports both PoE and PD power via a USB-C port for easy integration into your preexisting livestreaming setup.

Multi-Input Video Processing

The single-channel TAO 1mini can encode one live input source via either HDMI or UVC, or mix video from the HDMI and UVC inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays, including text, images, and a clock can be applied to the output profile.

Flexible Formats and Protocols

The TAO 1mini supports multiple video encoding formats, including H.264, H.265 (HEVC), NDI|HX 2, NDI|HX3, and full NDI and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, and HLS. Up to eight channels of audio can be encoded in AAC format.

Powerful Encoding & Streaming Capabilities

In Encoding mode, video can be encoded at resolutions up to DCI 4K 4096 x 2160p60 frames per second from HDMI sources, or up to 4096 x 2160p30 frames per second from the UVC input. The TAO 1mini can stream to up to 32 different target destinations simultaneously at bitrates up to 32 Mb/s per stream, with TAO APP connection.

Leading Decoding Capabilities

In Decoding mode, the TAO 1mini will automatically adapt the Full NDI, NDI|HX2, and NDI|HX3 format as your end needs. The TAO 1mini will take care of your 4K60 video transmission.

Versatile Recording and Streaming

The TAO 1mini supports streaming and recording simultaneously. Inputs can be recorded as files to an external, USB-connected storage device, or networked storage (NFS, CIFS, or SMB).

USB Extension

TAO 1mini has both USB-A 3.0 and USB-C 3.0 interfaces for you to: Access a Web Camera via USB 3.0 Type-A as a video input source for encoding; connect to your computer via USB-C 3.0 as a USB video input. With USB extensions available, you can achieve unlimited possibilities by seamlessly bringing NDI technology to your applications such as video conferencing, image processing, and more.

NDI|HX3 Support

For IP production workflows and AV-over-IP signal distribution architectures, the TAO 1mini supports NDI|HX3, the latest version of the high-efficiency, low-bandwidth option in the popular NDI IP media transport technology platform. The TAO 1mini also supports the earlier NDI|HX2 and full NDI for broad compatibility.

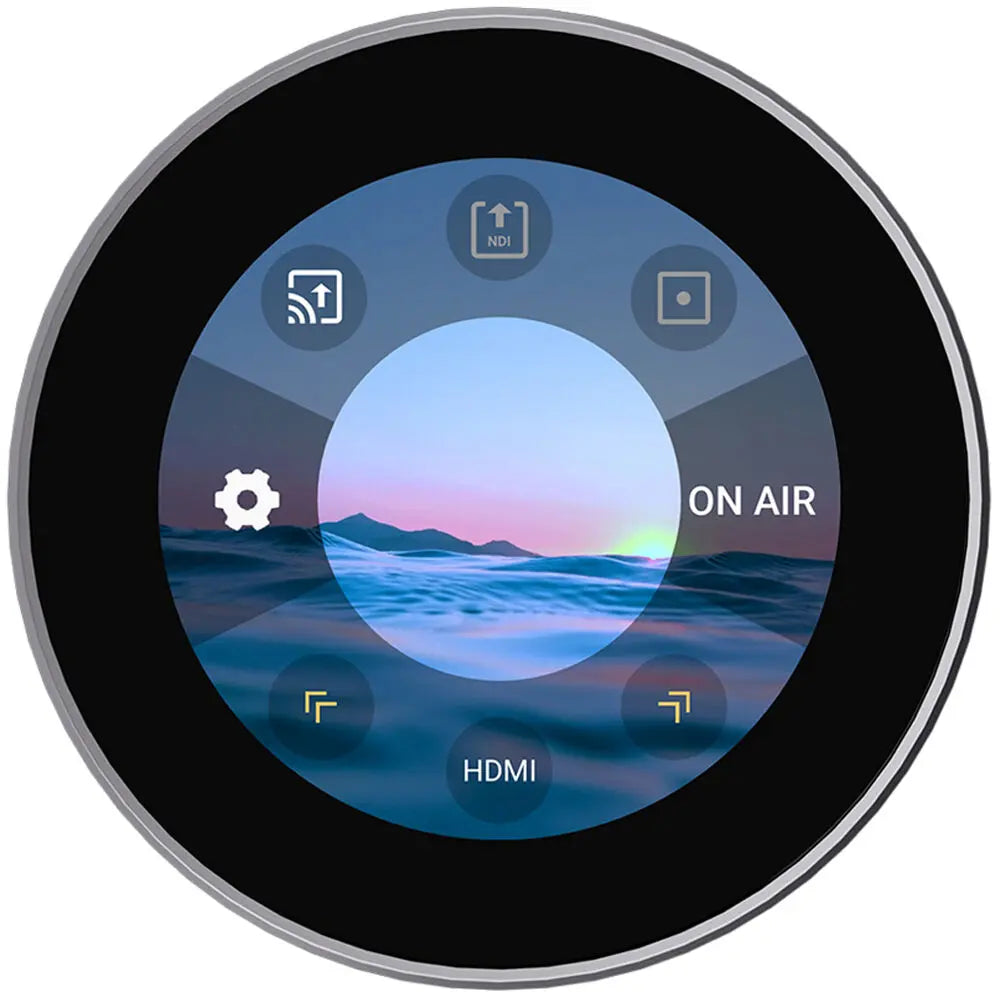

Large Touchscreen

A large 2.1" color LCD touchscreen enable you to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease. LCD is also a built in preview monitor for the dedicated input selected.
