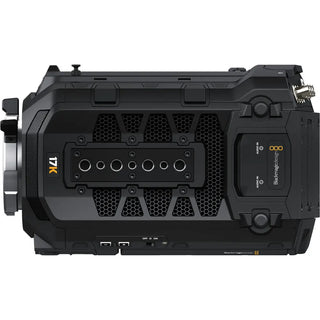

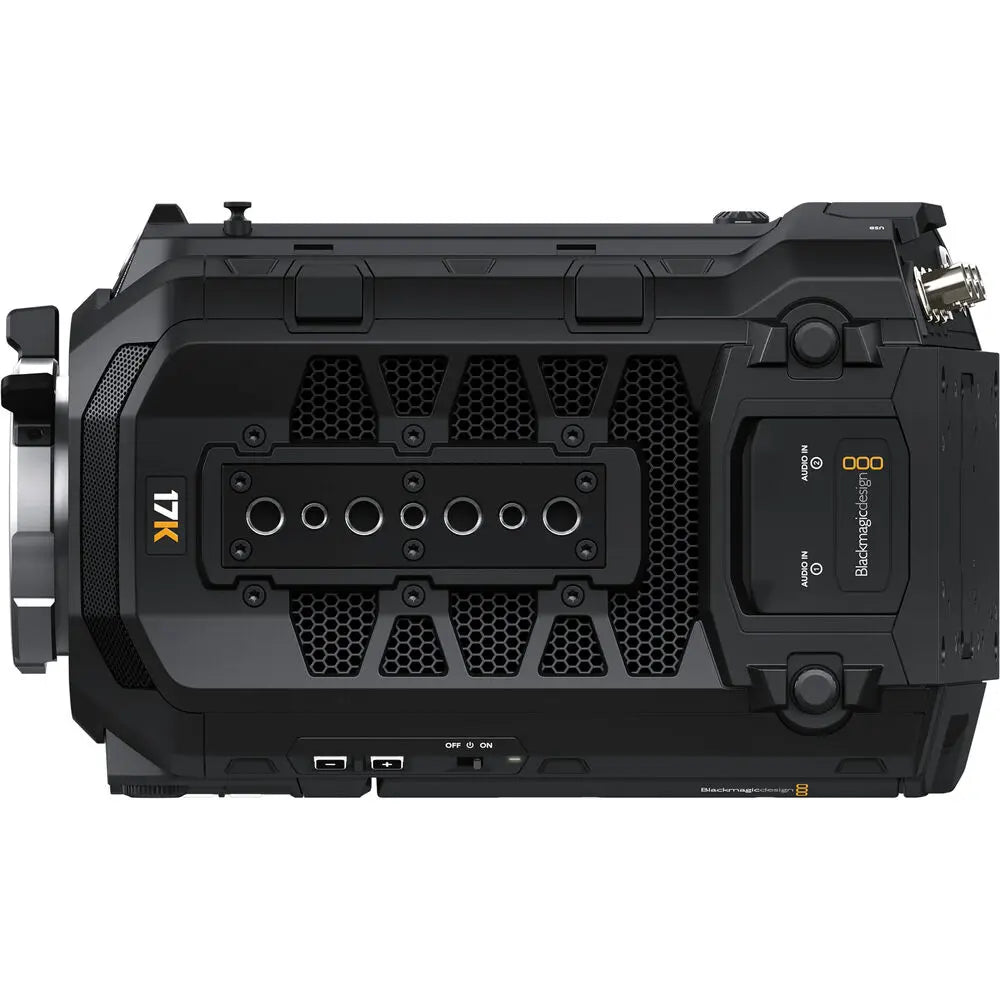

Blackmagic Design URSA Cine 17K 65 (Body Only)

Blackmagic Design URSA Cine 17K 65 (Body Only)

The Blackmagic Design URSA Cine 17K 65 is a revolution in digital film with a substantial format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model includes interchangeable lens mounts, a dedicated assist station, a second 5″ HDR LCD touchscreen, and industry-standard Lemo and Fischer connections. Blackmagic URSA Cine 17K 65 has a massive 8TB of removable high-performance media storage built in and also includes high-speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.

Camera Features

• Effective Sensor Size: 50.81 mm x 23.32 mm (65mm Format)
• Pixel Pitch: 2.9 microns

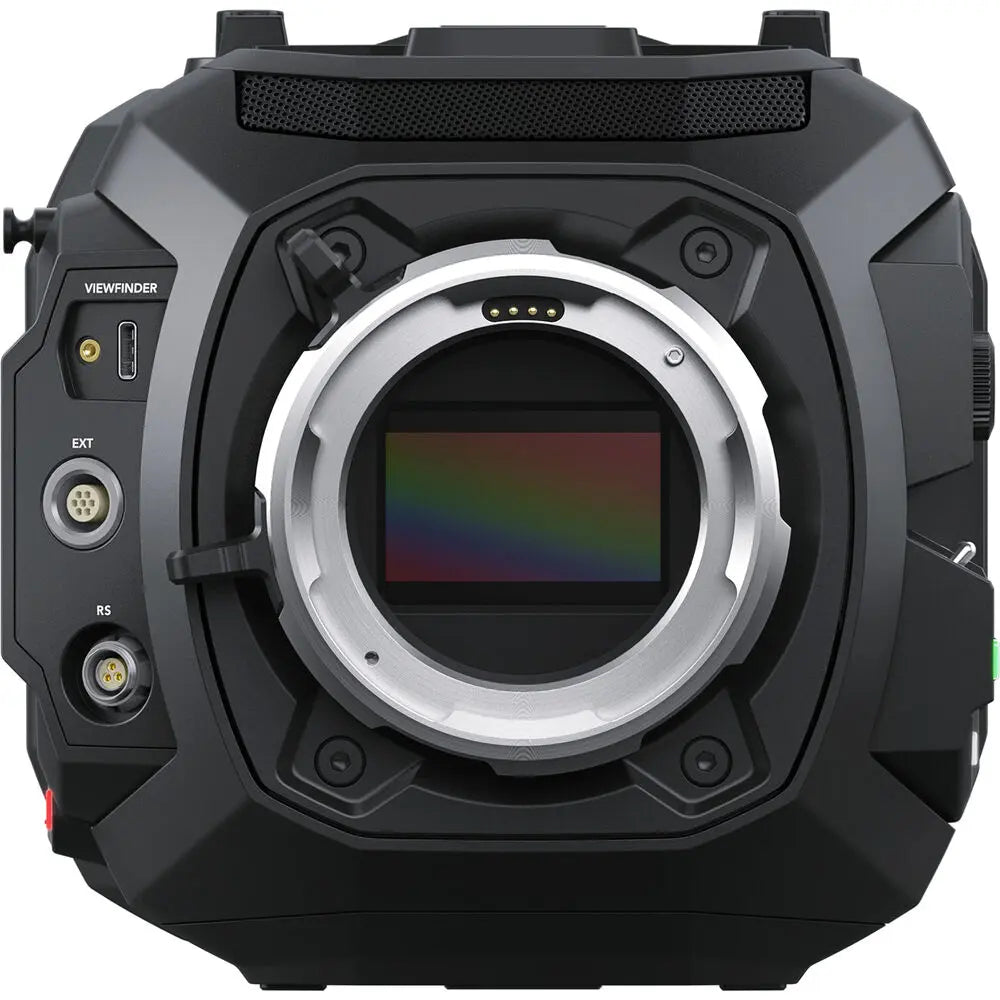

• Lens Mount: PL mount. Interchangeable with URSA Cine Mount LPL included.
• Lens Control: Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses.
• Dynamic Range: 16 Stops
• Shooting Formats:
  • 17,520 x 8040 (17K 2.2:1 open gate)
  • 16,128 x 8040 (17K 2:1)
  • 15,360 x 8040 (17K 17:9)
  • 14,304 x 8040 (17K 16:9)
  • 17,520 x 7296 (17K 2.4:1)
  • 12,288 x 8040 (12K 3:2)
  • 12,288 x 6912 (12K 16:9)
  • 12,288 x 6480 (12K 17:9)
  • 12,288 x 5112 (12K 2.4:1)
  • 9648 x 8040 (12K 6:5)
  • 11,680 x 5360 (8K 2.2:1 open gate)
  • 10,752 x 5360 (8K 2:1 full height)
  • 8192 x 5360 (8K 3:2)
  • 8192 x 4608 (8K 16:9)
  • 8192 x 4320 (8K 17:9)
  • 8192 x 3408 (8K 2.4:1)
  • 5840 x 2680 (4K 2.2:1 open gate)
  • 5376 x 2680 (4K 2:1 full height)
  • 4096 x 2680 (4K 3:2)
  • 4096 x 2304 (4K 16:9)
  • 4096 x 2160 (4K 17:9)
  • 4096 x 1704 (4K 2.4:1)
• Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps are supported. The maximum sensor frame rate is dependent on the resolution selected.
• High-Speed Frame Rates:
  • 17K 2.2:1 open gate up to 60 fps
  • 12K 2.4:1 up to 90 fps
  • 8K 2.2:1 open gate up to 100 fps
  • 8K 2.4:1 up to 170 fps
• Built-in ND Filters: None
• Focus: Focus button turns on peaking, auto focus available using compatible lenses.
• Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
• Screens:
  • 2 x Monitoring Screens
  • 1 x Camera Status Screen
• Monitoring Screen Dimensions: 5 inches.
• Monitoring Screen Resolution: 1920px x 1080px
• Monitoring Screen Brightness: 1500 nits.
• Monitoring Screen Type: LCD capacitive touchscreen
• Metadata Support: Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
• Controls: Touchscreen menus on a 5-inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
• Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

• Total Video Outputs: 2
• SDI Rates: 1.5G, 3G, 6G, 12G
• Analog Audio Inputs: 2 x XLR analog switchable between mic, line, and AES audio. Phantom power support.
• Analog Audio Outputs: 1 x 3.5mm headphone jack
• Reference Inputs: Tri-Sync/Black Burst and Timecode
• Viewfinder: 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
• USB-C Monitor Outputs: 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
• Accessories: 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop.
• Computer Interface: 2 x USB-C side expansion ports for camera accessories.
• Software Updates: Using side USB-C closer to rear.
• Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control, and streaming.

Audio

• Microphone: Integrated stereo microphone.
• Built-in Speaker: 1 x mono speaker.

Standards

• SD Video Standards: None
• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
• SDI Audio Sampling: 48 kHz and 24-bit

Media

• Media: 1 x Blackmagic Media Module
• Media Format: Blackmagic
• Supported Codecs: Blackmagic RAW Constant Bitrate 3:1, 5:1, 8:1, 12:1, 18:1, Constant Quality Q0, Q1, Q3, Q5. H.264 Proxy in 1920 x 1080, 8-bit 4:2:0.

Control

• External Control: Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp, and Record buttons. External Camera Control is supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run/Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control are supported. Blackmagic Zoom Demand and Blackmagic Focus Demand control cameras and compatible lenses.
• Streaming: Direct Streaming via Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using Ethernet or WiFi, or global live streaming via Ethernet, WiFi or USB-C cellular data.
• Network Management: NTP, FTP, Web Media Manager, SMB

Storage Features

• Storage Type: 1 x Blackmagic Media Module 8TB
• Storage Rates: Storage rates are based on 24 frames per second for various resolutions and Blackmagic RAW compression ratios.

Software

• Software Included: URSA Cine Blackmagic OS, DaVinci Resolve Studio for Mac and Windows including activation key, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK
• Operating Systems: macOS 14.0 Sonoma, macOS 15.0 Sequoia or later, Windows 10 and 11

Power Requirements

• Power Supply: A +24V DC external power supply is 100 - 240 AC 50/60Hz compatible with an IEC C14 socket.
• Power Input: 1 x 8-pin Lemo compatible socket for external power or battery use. B-Mount battery plate.
• Power Output: 1 x 7-pin connector with +24V DC power output when the camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when the camera is powered by +24V DC batteries or power supply.

Optional Accessories

• Blackmagic URSA Cine EVF
• Blackmagic PYXIS Monitor
• Blackmagic PYXIS Monitor Kit
• Blackmagic URSA Cine Mount PL
• Blackmagic URSA Cine Mount EF
• Blackmagic URSA Cine Mount HC

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 45°C (-4° to 113°F)
• Relative Humidity: 0% to 90% non-condensing
