Deity Microphones SPD Mini Compact Modular Power Distro System

Deity Microphones SPD Mini Compact Modular Power Distro System

Compact Power Distro: Maximize Your Bag Space and Stay Powered

Stay ahead of your power needs with the Deity Microphones SPD Mini Compact Modular Power Distro System, a compact, advanced power management solution designed specifically for audio professionals. Ideal for use in audio bags, the SPD-Mini combines reliability with intelligent functionality. Its vibrant color display delivers real-time telemetry data from SMbus-enabled smart batteries, providing precise information on remaining battery life in hours, calculated in real time, based on your current amp draw.

Seamlessly adapting to any workflow, the SPD-Mini is compatible with both TA4 Smart Battery cups and USB-C inputs. It also features five 4-pin push-pull power ports that can be turned on/off with a top mounted switch.

Colour Screen and More

• The SPD-Mini utilizes a bright color screen that can be flipped upside down with flick of a switch.
• This, combined with the two belt-clip mounting points allow you to rig the SPD-Mini however you need to in your sound bag.

Smart Pass-Thru

• Next to the inputs is the #1 output. This output is unique in that it passes along the smart battery data to audio recorders that can decode the telemetry data.
• The #1 output can handle demanding devices like the Sound Devices 888, making it indispensable for high-amp-draw audio setups.

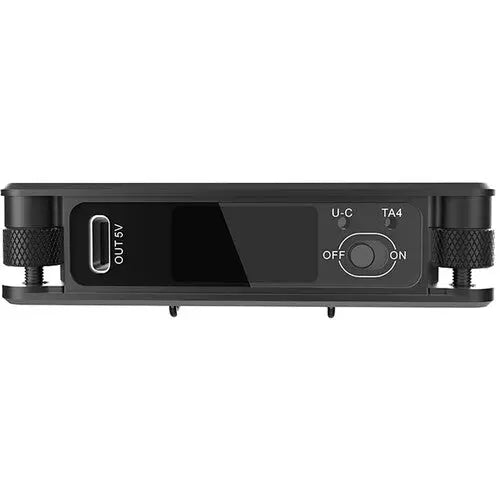

USB-C Output

• The top of the SPD-Mini features a 5V USB-C output with support for 10W of power delivery.
• Perfect for keeping a tablet or phone topped off that's running the Sidus Audio app.

Deity Modular Regional Power System

• The SPD-Mini is a part of the Deity modular Regional Power System. This allows the SPD-Mini to lock together with other compatible devices using 4 threaded mounting points and share power between the devices.
• This gives you an additional cable-free output, streamlining your setup and reducing clutter.

Display

• Panel Type: TFT LCD
• Display Size: Not specified by manufacturer
• Touchscreen: No

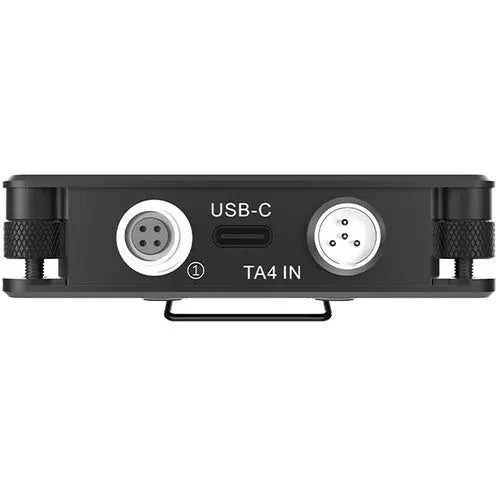

Inputs/Outputs

• Power Input:
  • 1 x TA4F
  • 1 x USB-C
• Power Output:
  • 1 x 4-Pin Push-Pull Aviation Connector (passes smart battery data)
  • 4 x 4-Pin Push-Pull Aviation Connectors
  • 1 x USB-C

Power Source

• Battery, USB

Physical Specifications

• Mounting Options:
  • 2 x Belt Clips
• Colour: Black
• Material: Aluminium
• Dimensions: 105.3 x 78 x 20.7 mm
• Weight: 185 g
