Shure SLXD14/SM35 Digital Wireless Cardioid Performance Headset Microphone System (L57: 650 - 694MHz)

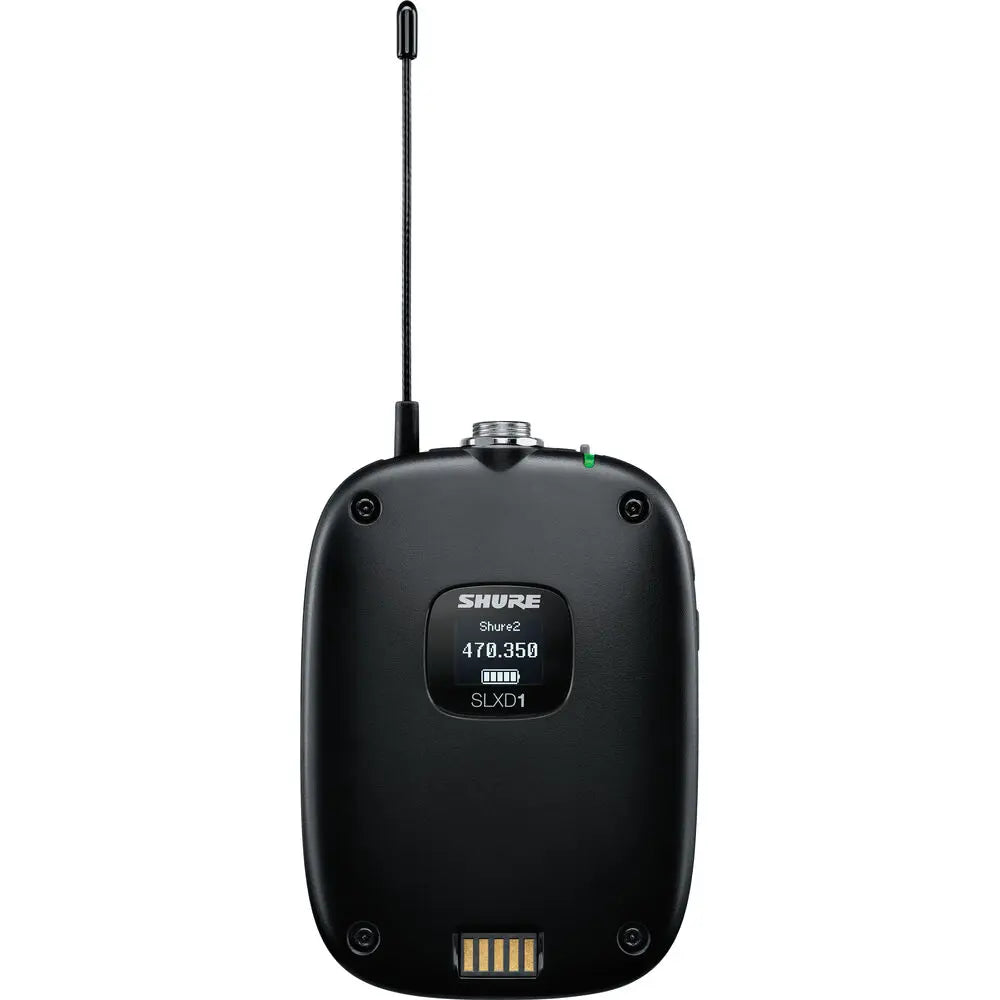

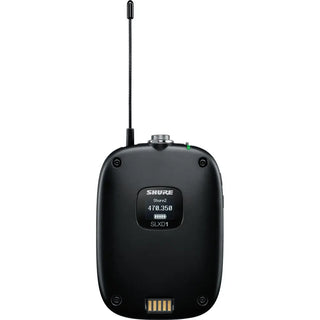

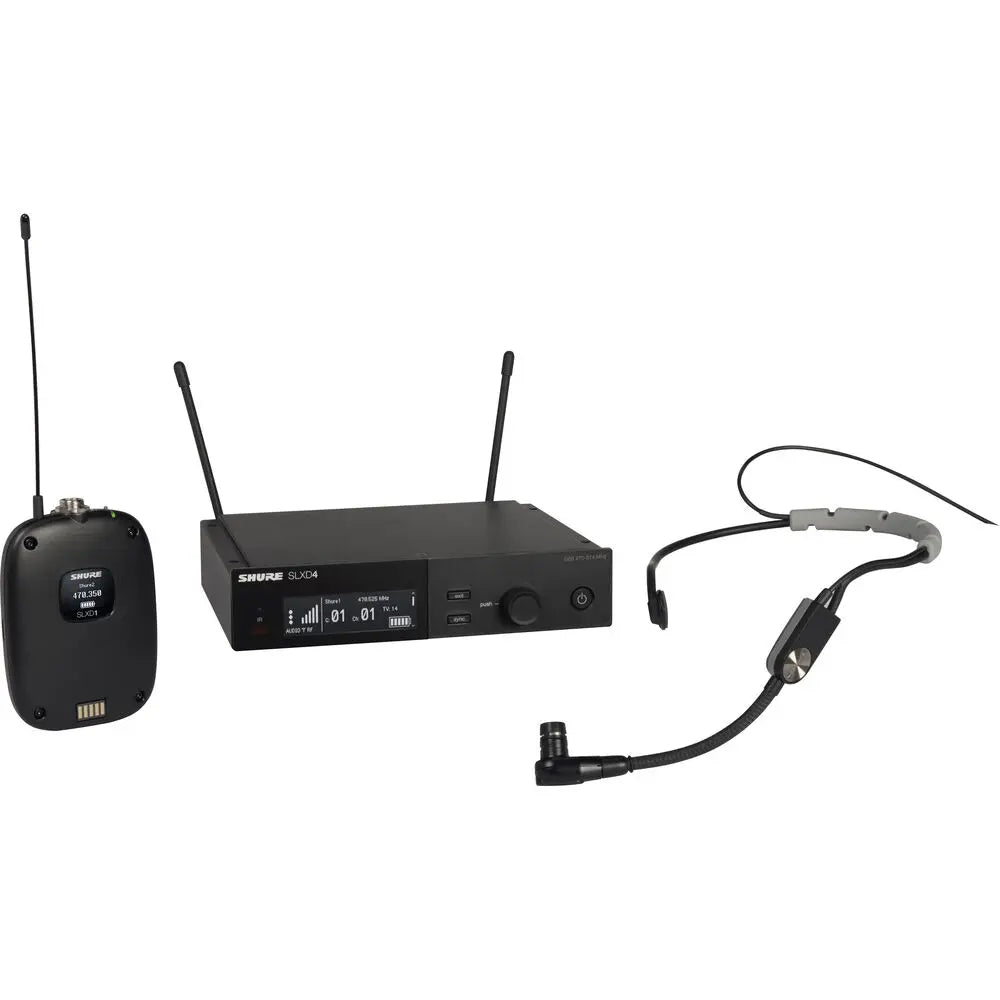

The Shure SLXD14/SM35 Digital Wireless Cardioid Performance Headset Microphone System (L57: 650 - 694MHz) features an SM35 Performance Headset Condenser Microphone, SLXD1 Digital Wireless Bodypack Transmitter and SLXD4 Digital Wireless Receiver.

The SM35 Performance Headset Condenser Microphone gives multi-instrumentalists the freedom to express themselves without sacrificing sound quality. A tight, unidirectional cardioid polar pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed onstage, whether in use in small clubs, large installations, or arena tours.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock-solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to night time performances.

Shure SLXD24 Digital Wireless System

General Specifications

• Wireless Technology: Digital UHF
• Diversity: True Diversity
• RF Frequency Band: L57: 650 to 694MHz
• Number of RF Channel Frequencies: 1760
• Max Operating Range: 328' / 100 m
• Max Transmitters per Band: 32
• Dynamic Range: 120 dBA (Typical)
• Latency: 3.2 ms
• Encryption: No
• Built-In Recorder: No
• Timecode Support: No
• Mobile App Compatible: Yes (Android & iOS)
• App Name: ShurePlus Channels
• Functionality: Remote Control

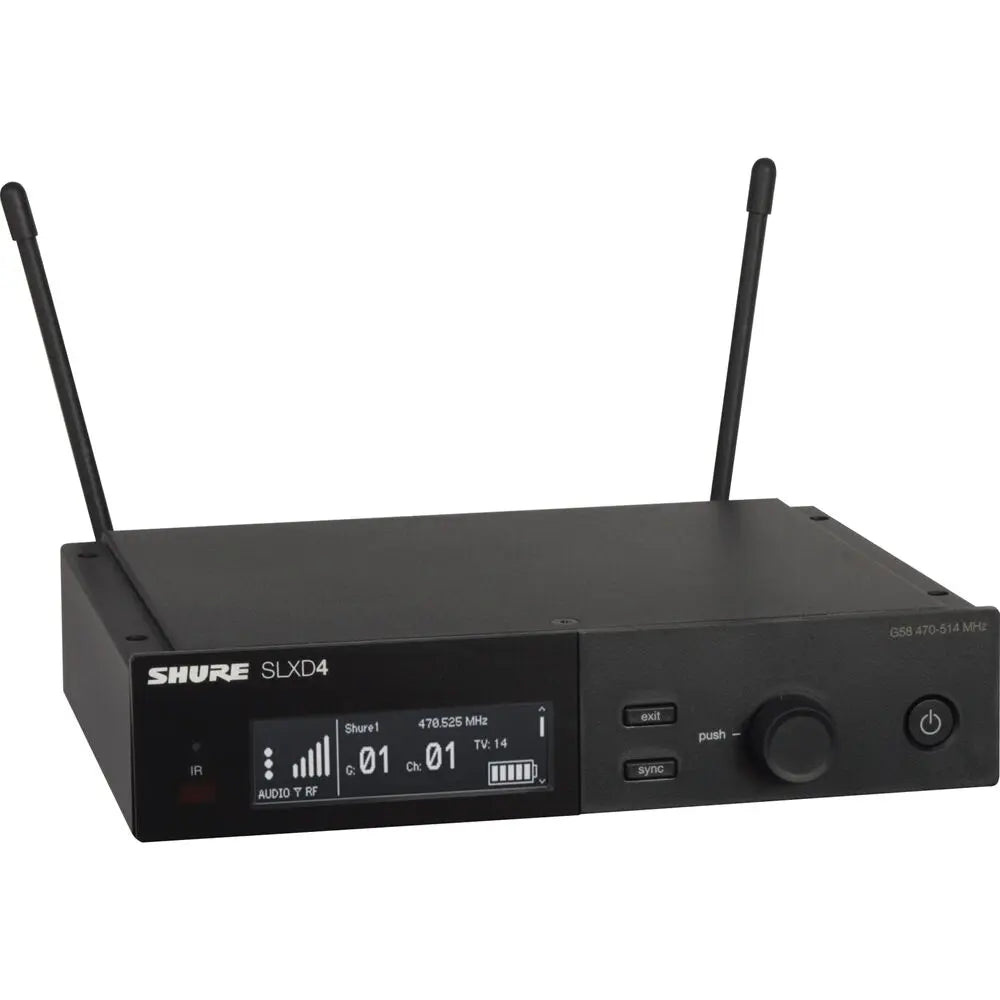

Receiver

• Type: Tabletop / Rack-Mountable

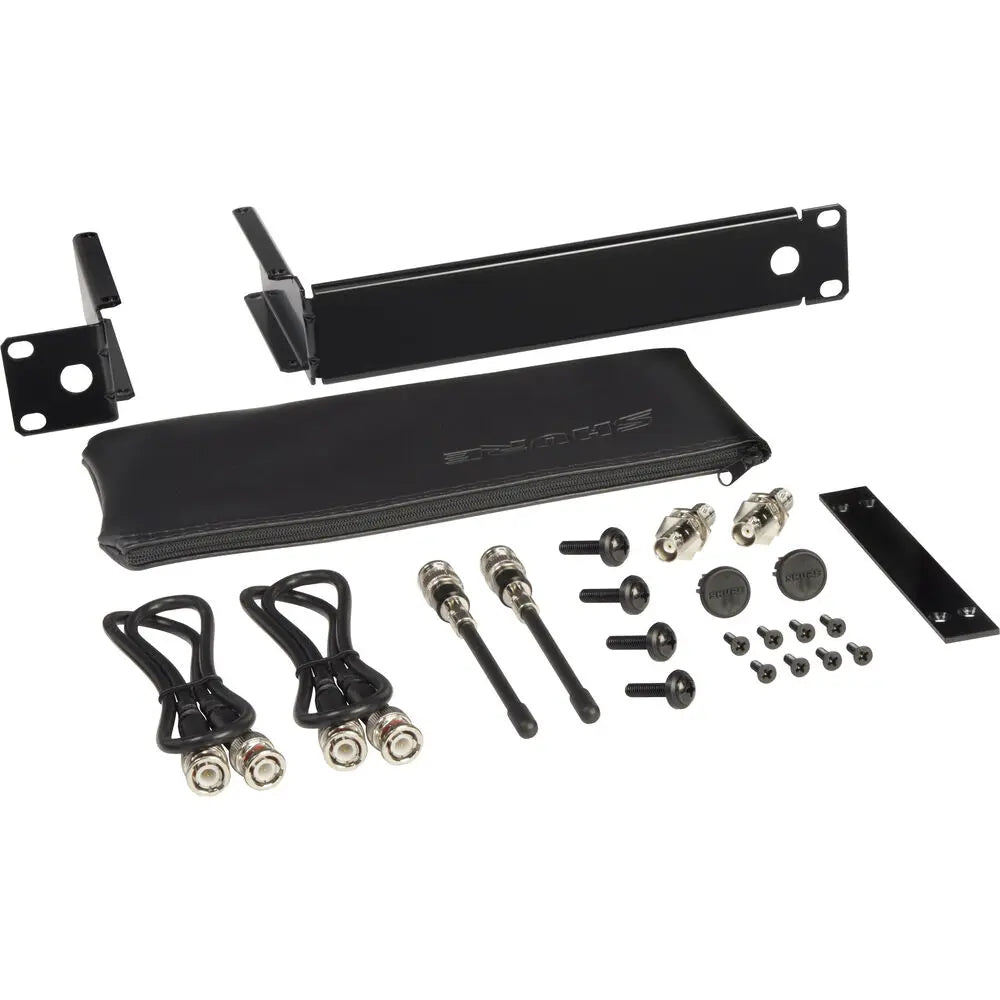

• Mounting Options: Rackmount (with Included Hardware, 1 U Half-Rack)

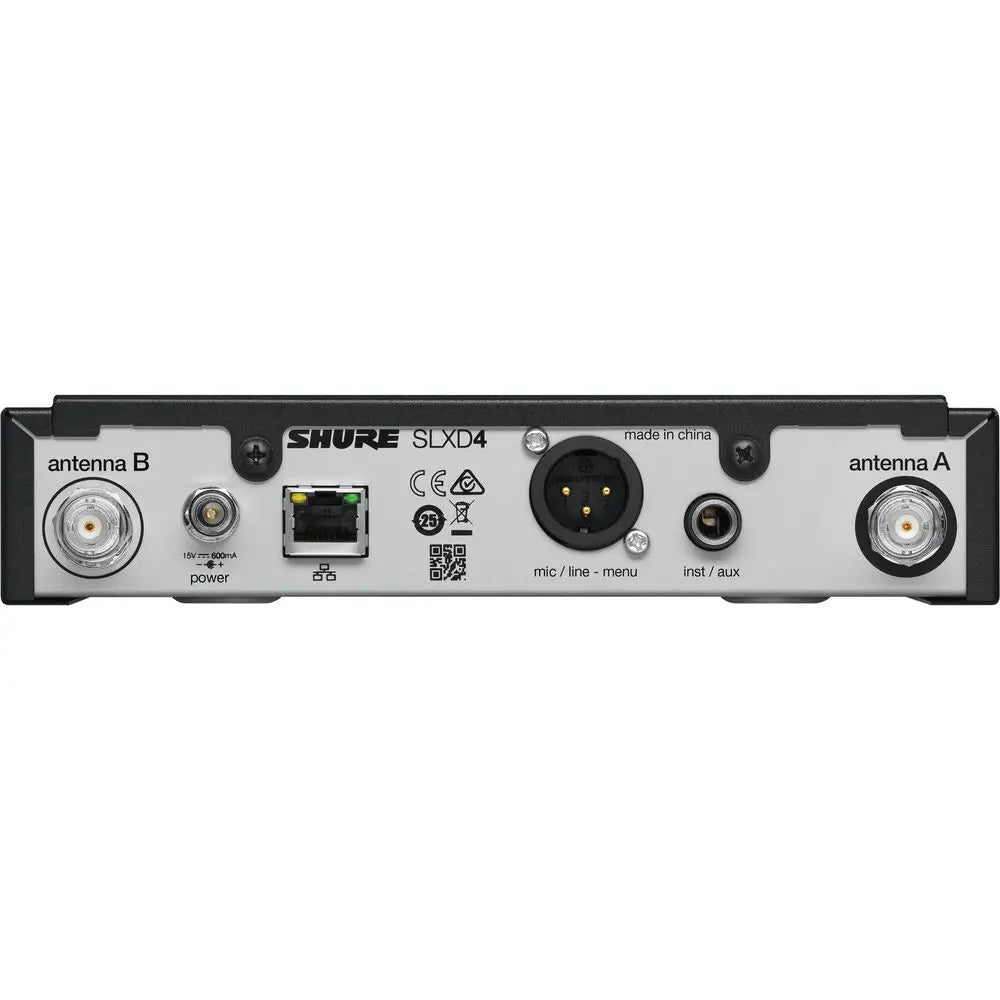

• Antenna: 2x Removable BNC 1/4 Wave External (Rear-Mount)
• Number of Audio Channels: 2
• Audio Outputs:
  • 2x XLR 3-Pin Balanced Mic/Line Output
  • 2x 1/4" TRS Balanced Output
• Network I/O: 1x RJ45 (Manual IP, DHCP)
• USB/Lightning Connectivity: No
• Gain Range: 0 to +21 dB (3 dB Steps)
• Frequency Response: 20 Hz to 20 kHz (+1/-2 dB, Dependent on Mic)

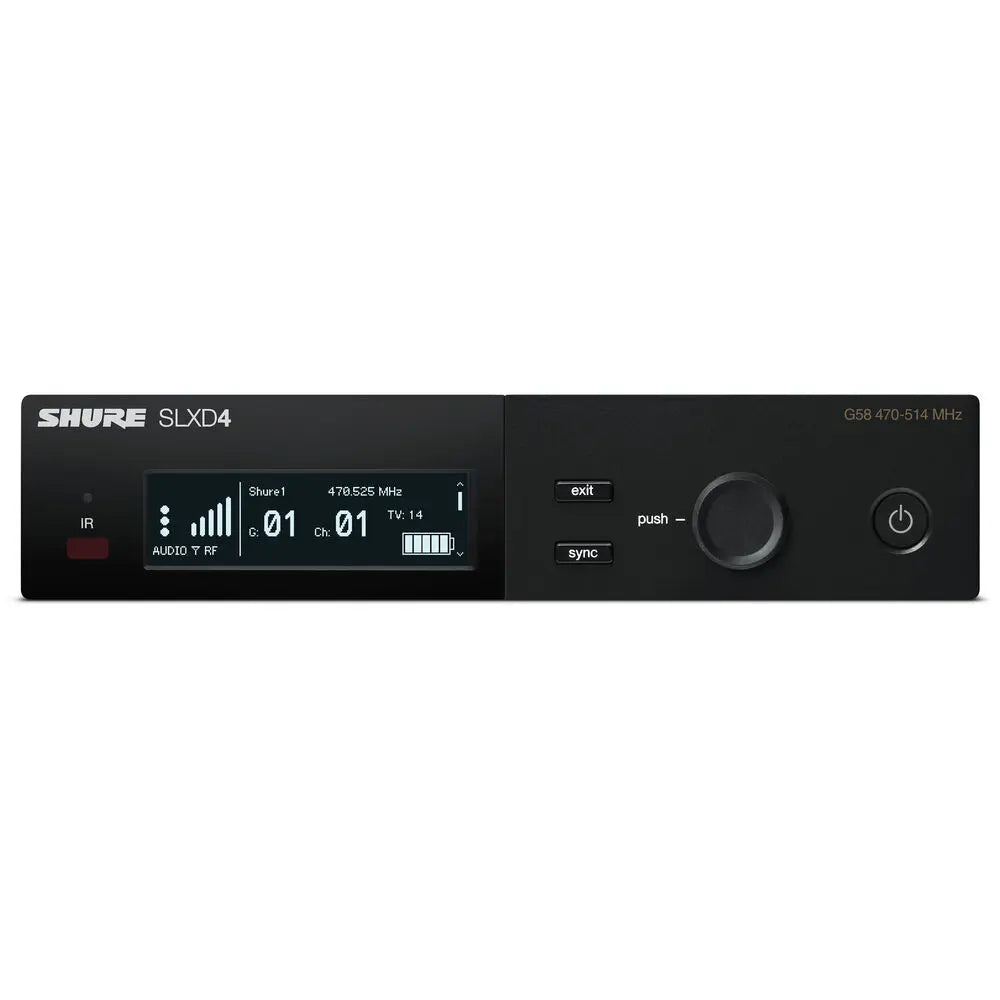

• Display: Backlit LCD
• Power Requirements: AC/DC Power Adapter

Transmitters

• Included Transmitters: 1x Bodypack
• RF Output Power: 10 / 1 mW (Selectable)
• Antenna: Fixed 1/4 Wave External
• Input Level: Microphone / Instrument
• Audio I/O: 1x TA4M/Mini-XLR 4-Pin Male Input
• USB I/O: No
• Muting: Off/On Switch
• Gain Range: 0 to +21 dB
• Auto-Level/Gain: No
• Sync Method: IR
• Display: OLED

Microphone

• Microphone Type: 1x Headset
• Polar Pattern: Cardioid
• Frequency Response: 40 Hz to 20 kHz
• Maximum SPL: 153 dB
• Sensitivity: -59 dBV/Pa
• Output Connector: 1x TA4F/Mini-XLR 4-Pin Female
• Cable Length: 1.22 m
• Colour: Black

Power

• Transmitter Battery Type: 2x AA (Included) or 1x Shure SB903 (Optional)
• Transmitter Battery Life: 8 Hours (Lithium Shure SB903) / 8 Hours (Alkaline)
• Battery Charging Time: 1.25 to 5.5 Hours
• AC/DC Power Adapter: 15 VDC at 600 mA, Center-Positive (Included)
• Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

• Environmental Resistance: No
• Housing: Aluminum (Transmitter), Metal (Receiver)
• Dimensions:
  • Receiver: 7.8 x 1.7 x 6" / 197 x 42 x 152 mm
  • Transmitter: 1.5 x 6.9" / 37.1 x 176 mm
  • Mic Capsule: 2.0" / 50 mm
• Weight:
  • Receiver: 3.1 lb / 1.4 kg (without Antenna)
  • Transmitter: 5.2 oz / 147 g
