Your Workflow Expanded and Secured

Boost the performance of your Mac Studio with the xMac Studio Pro 3U Rackmount Enclosure with Echo III Module from Sonnet. Designed for professional audio and video applications, this versatile enclosure transforms your Mac Studio into a robust rackmount workstation with advanced PCIe expansion and efficient thermal management.

The system integrates your Mac Studio within a compact 3U rackmount chassis, providing Echo III PCIe expansion for non-GPU Thunderbolt-compatible cards. This setup allows seamless connection to professional I/O and storage hardware, making it ideal for post-production, broadcast, and on-set environments.

Please note, PCIe cards are available separately.

Versatile PCIe Card Expansion

The Echo III Module provides substantial flexibility for creative professionals requiring PCIe connectivity. It supports:

• One full-length, full-height, double-width PCIe card and one single-width card, or

• Three full-length, full-height, single-width cards.

Compatible with a wide range of Thunderbolt-compatible non-GPU PCIe cards, it’s perfectly suited for expansion cards used in workflows such as:

• Avid Pro Tools | HDX

• AJA Kona 5

• Blackmagic DeckLink 4K Extreme 12G

• Bluefish444 Epoch and KRONOS SDI cards

400W of Integrated Power

An internal 400W power supply delivers ample headroom for power-hungry PCIe cards. The enclosure powers on and off automatically with the connected Mac Studio, ensuring synchronized startup and shutdown behavior without manual intervention.

Quiet and Efficient Cooling

The xMac Studio maintains optimal performance with dual temperature-controlled Noctua fans rated at 17 dBA, providing variable-speed, whisper-quiet operation. These fans deliver efficient airflow across all installed components, protecting your investment under continuous load.

High-Speed Thunderbolt 3 Connectivity

Connect the xMac Studio to your Mac Studio using two Thunderbolt 3 ports, offering up to 2800 MB/s bandwidth to installed PCIe cards.
Additional ports include:

• 4× USB-A for external peripherals

• 2× USB-C (Thunderbolt 3) for direct Thunderbolt expansion

This configuration ensures maximum flexibility for professional interfaces, external drives, and other high-bandwidth devices.

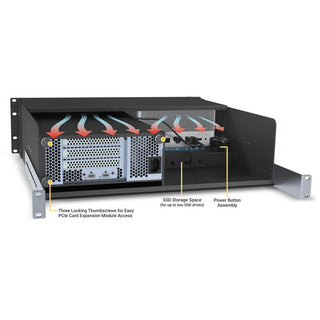

Professional Rackmount Design

• 3U rackmount form factor with included extension rails for easy installation

• Adhesive SSD mounting magnets simplify SSD installation without tools

• Integrated 400W PSU for a clean and consolidated setup

• Dual Noctua fans ensure quiet, reliable cooling in studio or server environments

Compatible NVMe Drives

The xMac Studio supports NVMe SSD expansion via the PCIe interface. Sonnet has validated a broad range of SSDs for compatibility; however, please note that full compatibility cannot be guaranteed.

Tested and validated NVMe drives include (but are not limited to):
ADATA (XPG) IM2P33E8 / SX6000 Lite / SX6000 Pro / SX8100 / SX8200 PRO / SX8800
Addlink S68 / S70 / S72 / S90 / S92
Corsair Force Series MP300 / MP400 / MP510 / MP600
Crucial P1 / P5
Gigabyte AORUS NVMe Gen4 / RGB NVMe
HP EX950
Intel 600p / 760p / Optane H10
Kingston A1000 / A2000 / KC2000 / NV1
KIOXIA EXCERIA / EXCERIA PLUS / XG5 / XG6
KLEVV CRAS C720 / C920
Micron 2300 / 7300 MAX
Mushkin PILOT / PILOT-E / Alpha
OWC Aura P12
PNY CS3030 / CS3040 / CS3140
Sabrent Rocket / Rocket Q / Rocket 4
Samsung 960 EVO / 970 EVO / 970 EVO Plus / 980 / 980 Pro / PM981 / PM9A1
Seagate FireCuda 510 / 520
Silicon Power P34A80 / UD70 / XD80
SK Hynix Gold P31
Solidigm 660p / 670p
Transcend 220S / 240S
WD Blue SN550 / WD Black SN750 / SN850
WD SanDisk Extreme Pro

(Refer to Sonnet’s official compatibility chart for the latest updates.)
