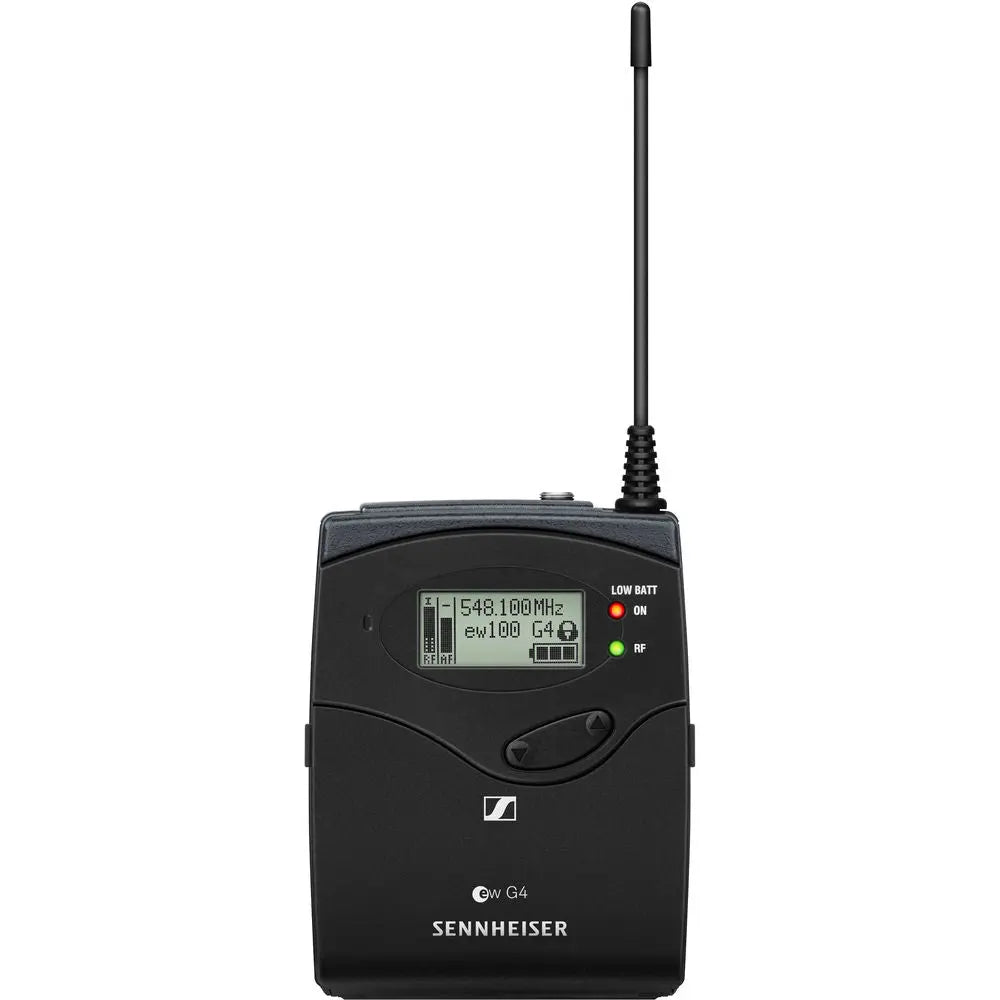

Sennheiser EK 100 G4 Wireless Portable Receiver G: 566 - 608 MHz
- Unit price
- / per
Main Features
- For EW Series Wireless Systems
- Diversity Camera-Mount Receiver
- 1680 Auto-Scan Frequencies
- Typically 8 Hours on AA Batteries
- Daylight-Readable LCD Display
- Up to 12 Mics per Band / 330' Range
Sennheiser EK 100 G4 Wireless Portable Receiver G: 566 - 608 MHz
- Unit price
- / per
4 x
$99.75from
$10- Sennheiser EK 100 G4 Frequency Band Options : G: 566 - 608 MHz
- AS: 520 - 558 MHz
- G: 566 - 608 MHz
- B: 626 - 668
Try these products
Adding product to your cart
Main Features
- For EW Series Wireless Systems
- Diversity Camera-Mount Receiver
- 1680 Auto-Scan Frequencies
- Typically 8 Hours on AA Batteries
- Daylight-Readable LCD Display
- Up to 12 Mics per Band / 330' Range
You may also like
You may also like
-
What's in the box
- EK 100 G4 Receiver
- CA2 Shoemount Adapter
- CL1 Mini to Mini Cable for EK100
- CL-100 1/8"-M Mini to XLR-M
- 2 x AA Batteries
- Limited 2-Year Warranty
Sennheiser EK 100 G4 Wireless Portable Receiver G: 566 - 608 MHz
The EK 100 G4 Wireless Camera-Mount Receiver from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. Featuring an updated high-contrast LCD display, blue sync LED, and a dedicated escape button, it can be used when paired with a microphone and transmitter (sold separately) for capturing audio in live sound, broadcast, film, business, and educational applications.
The EK 100 G4 wireless receiver is lightweight and built with an all-metal housing. It is equipped with 1680 tunable UHF frequencies and synchronizes with G4 transmitters at the touch of a button. A 3.5mm audio-output jack delivers a clean output signal using the included adapter output cables. The receiver operates on 2 standard AA batteries, and an optional 12 VDC adapter is also available. The included shoe-mount adapter allows you to mount the receiver on a camera for convenient portable use.
Updated Features
The evolution wireless G4 retains all of G3's best features
Quicker setup
High-contrast LCD display
Dedicated escape button -
Modulation
Wideband FMFrequency Band G
(566 to 608 MHz)Receiving Frequency Maximum
1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channelsSwitching Bandwidth
Up to 42 MHzNominal/Peak Deviation
±24 kHz / ±48 kHzPrinciple of Operation Adaptive
DiversitySensitivity
< 1.6 μV for 52 dBA eff S/N (with HDX, peak deviation)Adjacent Channel Selectivity
≥ 65 dBIntermodulation Attenuation
Typically ≥ 65 dBBlocking
≥ 70 dBSquelch
Low: 5 dBµV Middle: 15 dBµV High: 25 dBμV Pilot Tone
Squelch Can be switched off Antenna Inputs 2 x BNC socketsCompander Sennheiser
HDXSignal to Noise Ratio
≥ 110 dBA (1 mV, peak deviation)Total Harmonic Distortion (THD)
≤ 0.9%Maximum AF Output Voltage
1/8" /3.5 mm Jack: +12 dBu (mono, unbalanced)Output Level Range
42 dB, adjustable in steps of 6 dBTemperature Range
14 to 131°F (-10 to 55°C)Max Operating Range
330' / 100.6 m (Line of Sight)Power Supply
2 x AA 1.5 V batteries, or BA 2015 accupack (Not Inc.)Nominal Voltage
3 V battery / 2.4 V rechargeable batteryCurrent Consumption Nominal Voltage
Typical 180 mA With Receiver Switched Off: ≤ 25 µAOperating Time
Typically 8 hoursDimensions (L x W x H)
3.2 x 2.5 x 0.9" / 82 x 64 x 24 mmWeight
5.6 oz / 160 g -
-
