SmallRig 4826B CB75 Camera Base Battery (73.8Wh)

SmallRig 4826B CB75 Camera Base Battery (73.8Wh)

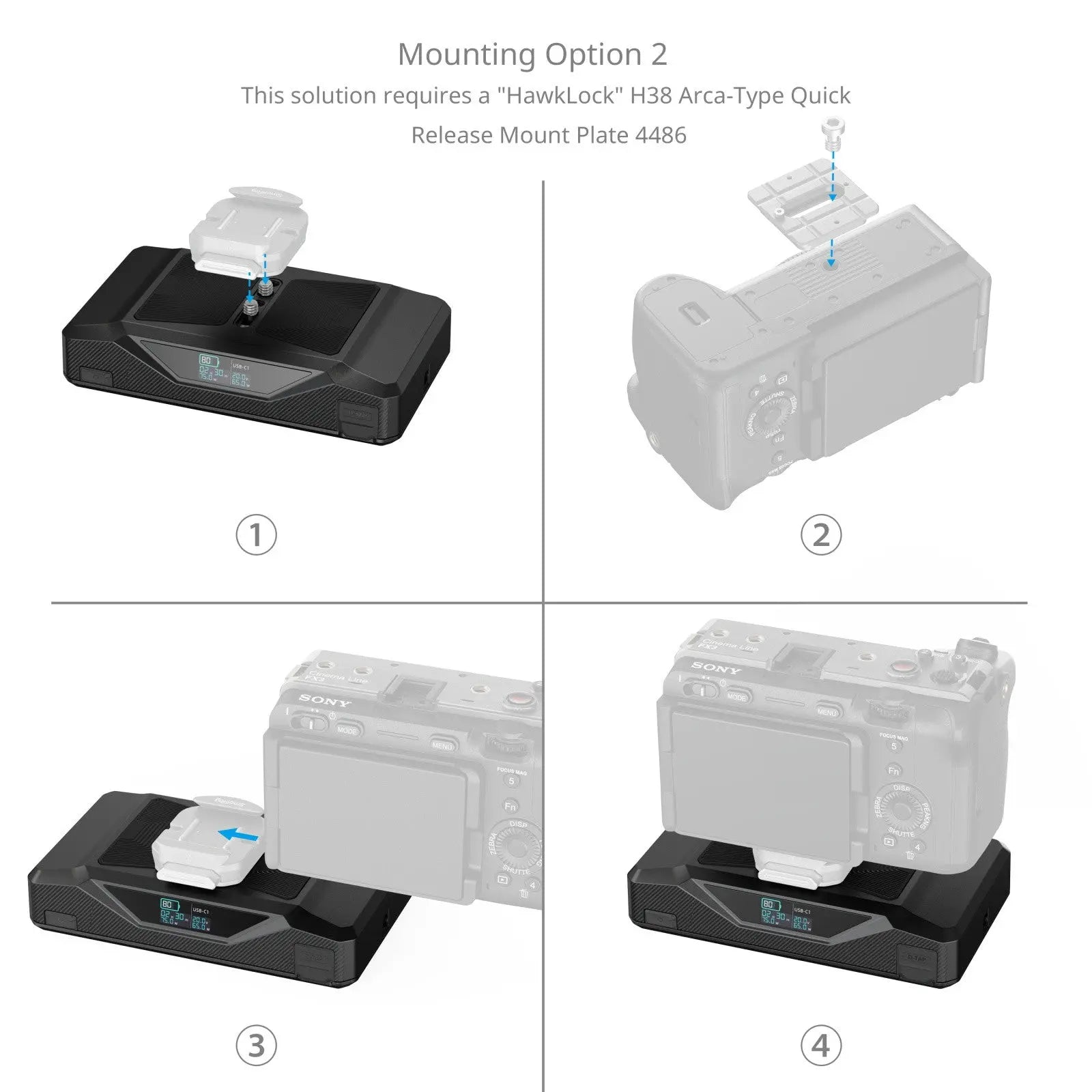

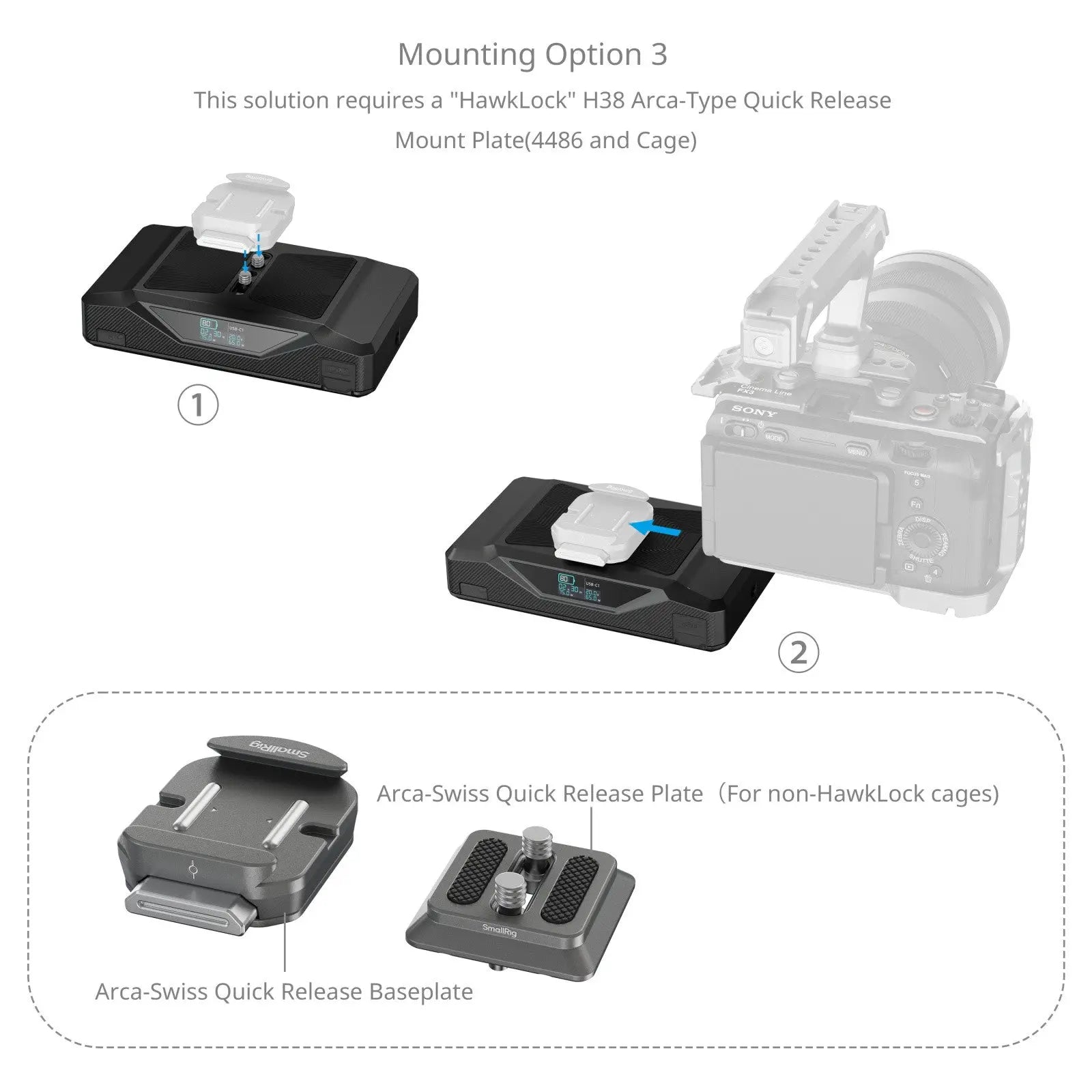

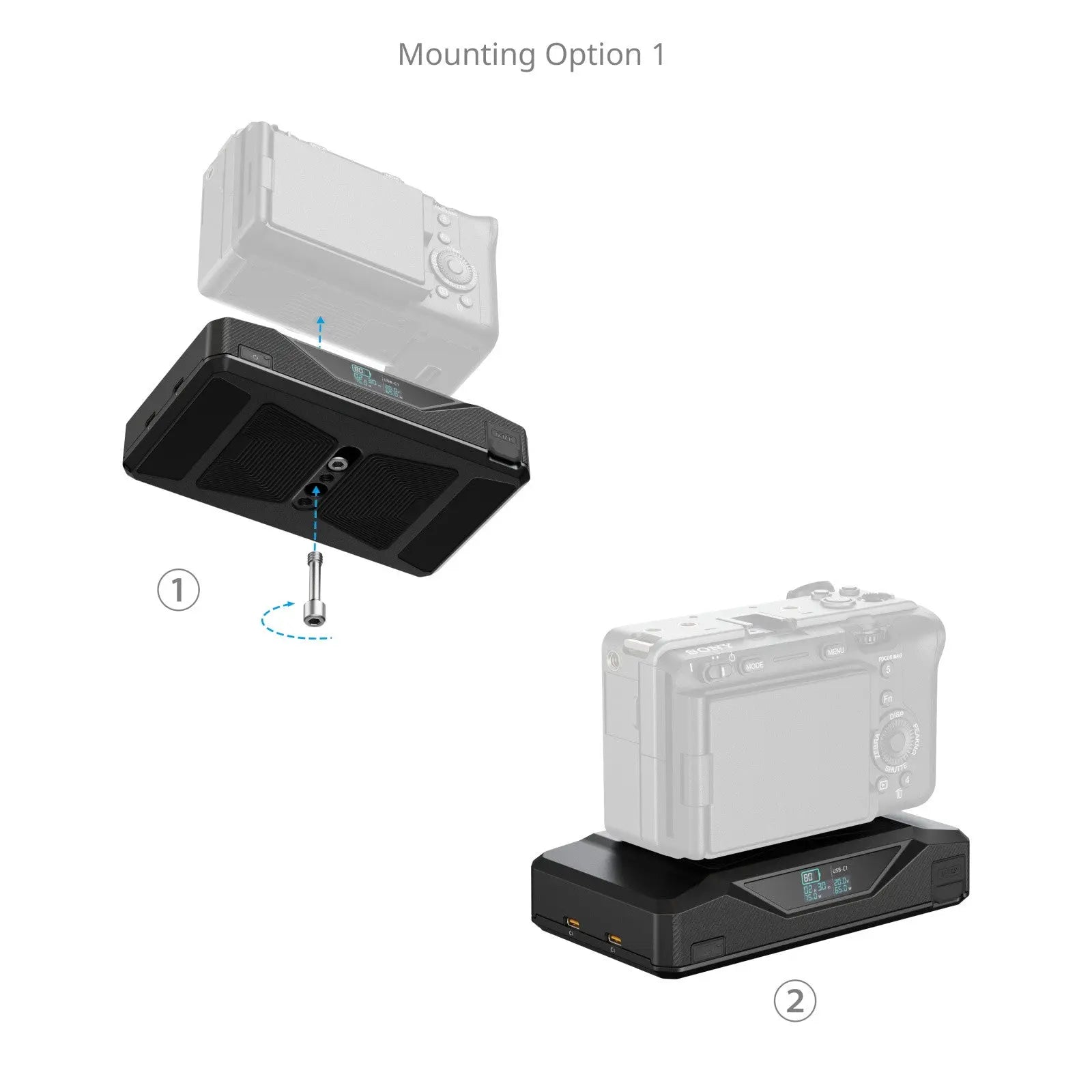

SmallRig CB75 Camera Base Battery 4826B seamlessly combines high-efficiency power delivery with instant mounting functionality, serving as both a battery and a baseplate. Its dual-sided mounting system includes a top 1/4"-20 screw for direct attachment to cameras or cages, and a bottom 1/4"-20 threaded hole for tripod mounting, eliminating the need for adapters and creating a streamlined power solution. When used with Arca-Swiss quick release mount plates (ID 4486) and compatible cages, it facilitates smooth slide-in installation with one-click auto-locking, significantly enhancing setup efficiency.

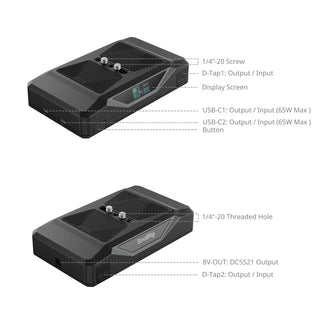

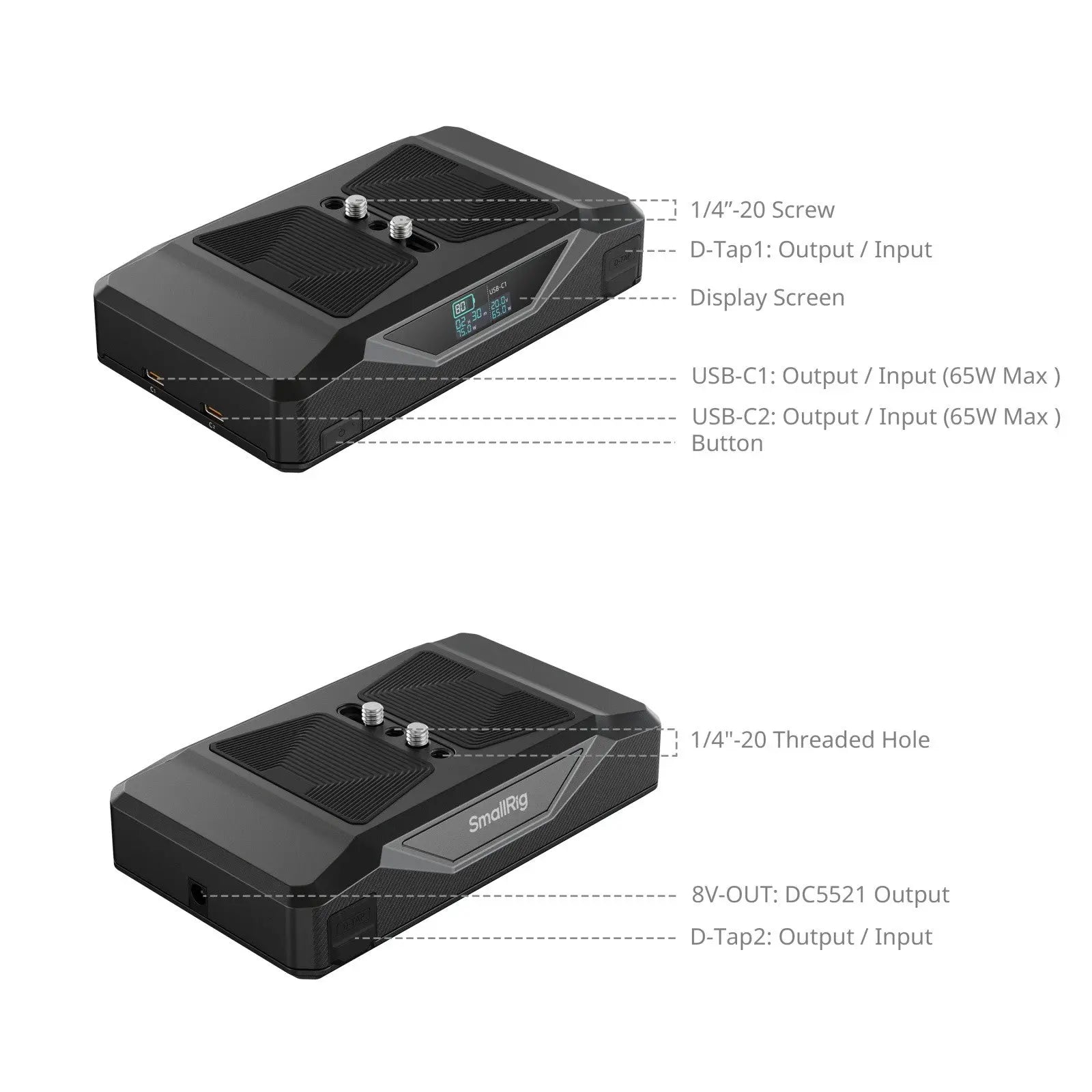

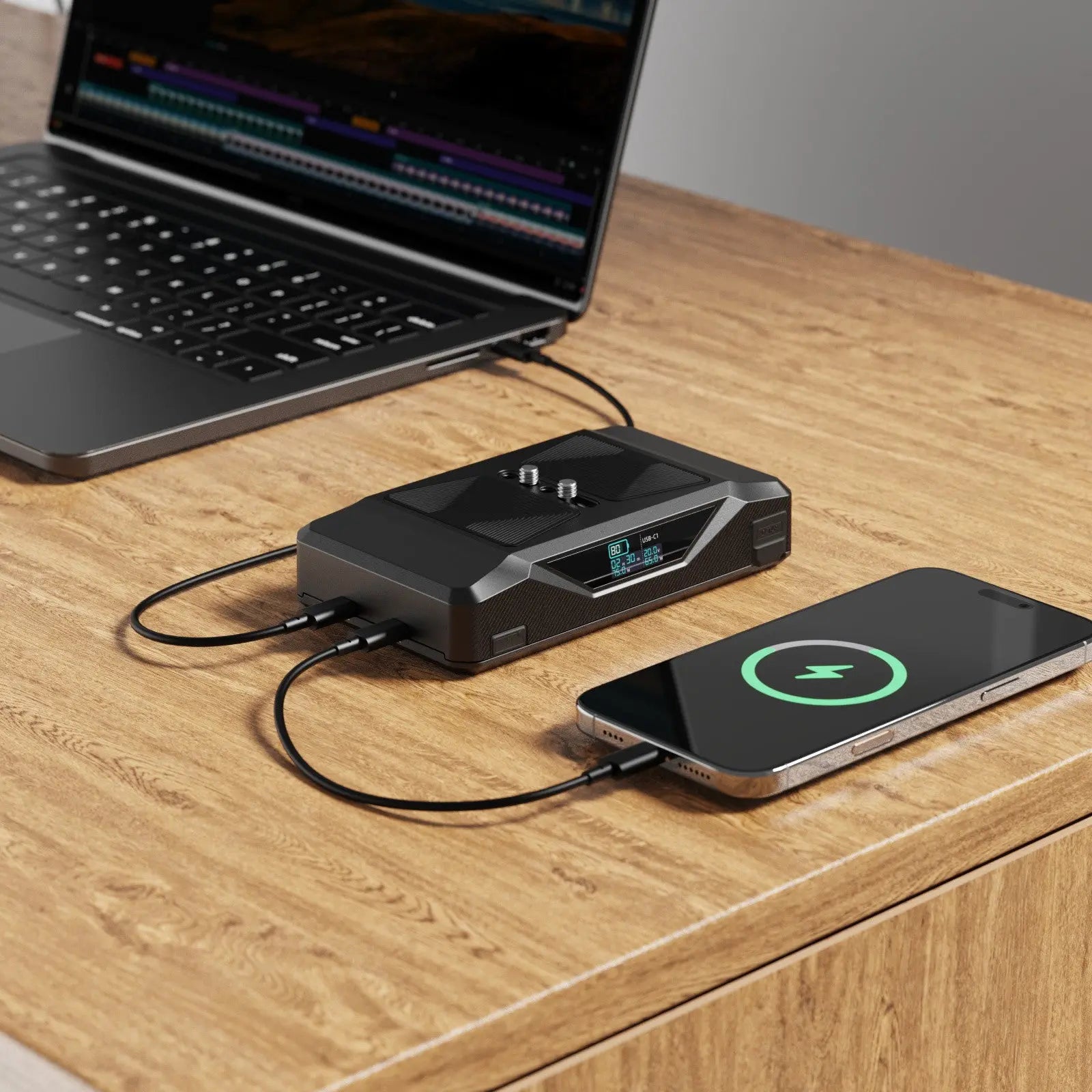

Equipped with versatile power outputs—including two D-Tap ports, two 65W USB-C ports, and one 8V DC5521 DC port—the unit can simultaneously power multiple devices, making it ideal for demanding production scenarios. The 65W fast-charging technology allows for a full recharge in only 2 hours, ensuring uninterrupted shooting schedules. Despite its slim 3cm / 1.2in profile, the battery boasts a substantial 73.8Wh capacity, capable of supporting professional equipment throughout all-day shooting.

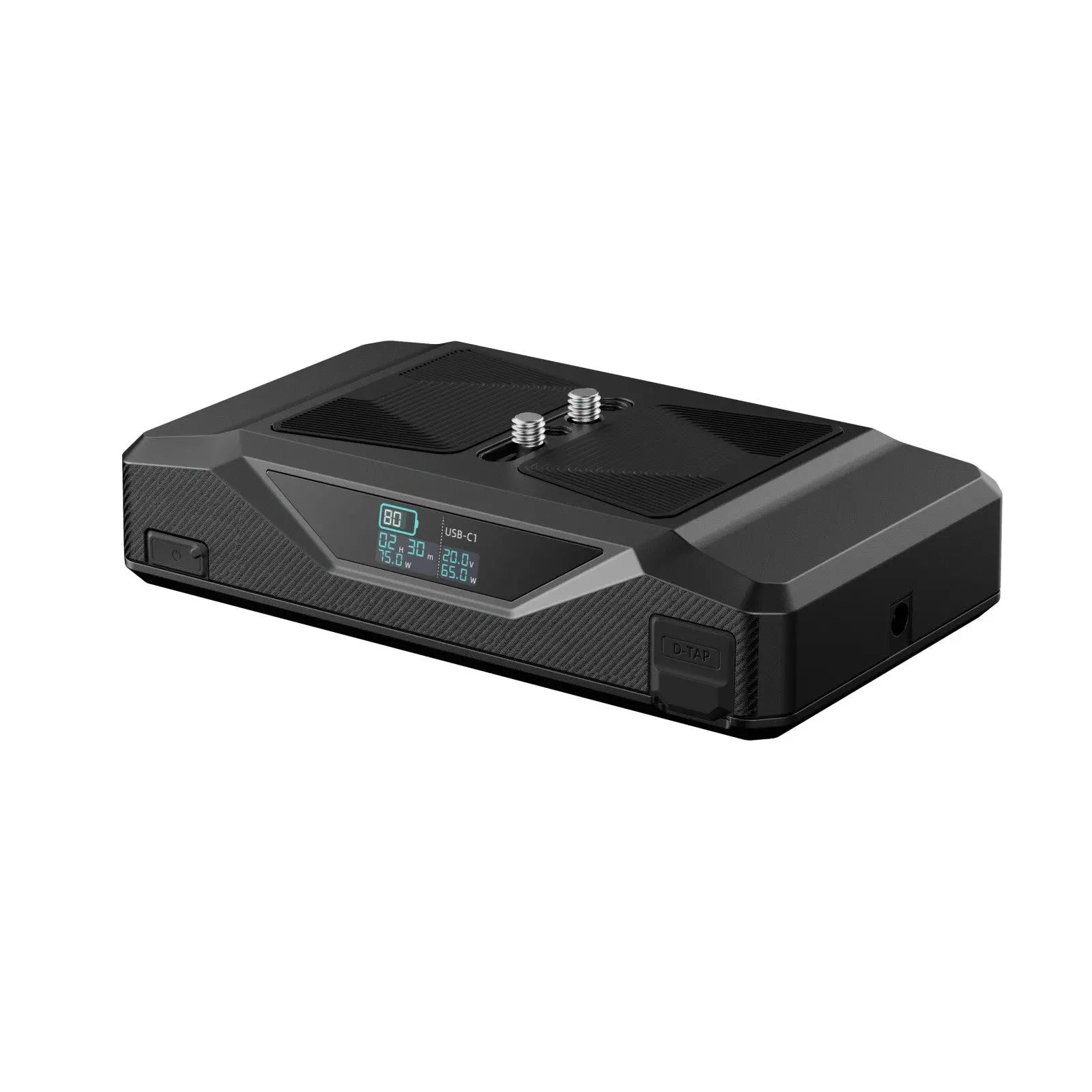

Premium LG battery cells integrate with robust protection circuitry to deliver stable, reliable power with enhanced safety. The full-color HD display provides real-time power monitoring for effective energy management. This professional-grade power solution comprehensively addresses core needs—from instant mounting and multi-device power delivery to rapid recharge capability—making it the ideal power foundation for cinematographers.

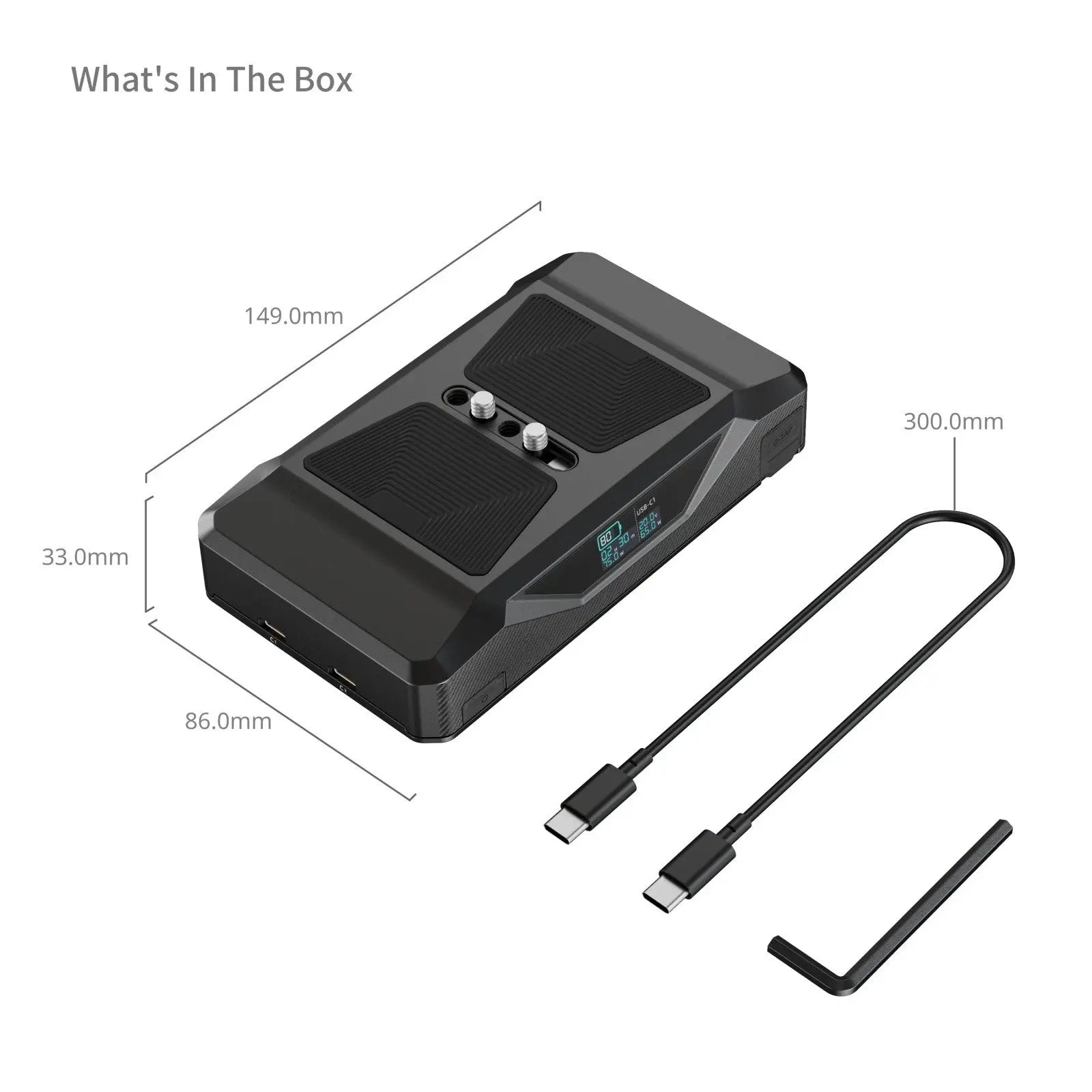

Product Dimensions: 149.0 x 86.0 x 33.0mm / 5.9 x 3.4 x 1.3in

Product Weight : 528.0 ± 10.0g / 18.6 ± 0.4oz

Battery Parameters: 14.76 V/5,000 mAh/73.8 Wh

Battery Capacity: 20,000 mAh (4×5,000 mAh)

Rated Total Output: 73.8 W

D-Tap1 / D-Tap2 Input: 16.8 V/6 A (Max)

D-Tap1 / D-Tap2 Output: 10.4-16.8 V/8 A (Max)

USB-C1 Input/Output:

65 W (Max)

5 V/3 A, 9 V/3 A, 12 V/3 A, 15/3 A, 20 V/3.25 A

USB-C2 Input/Output:

65 W (Max)

5 V/3 A, 9 V/3 A, 12 V/3 A, 15/3 A, 20 V/3.25 A

USB-C1 + USB-C2 Simultaneous Output Power: 100 W (Max)

USB-C1/USB-C2 Support Protocols: PD3.0/QC2.0/QC3.0/PPS/AFC/DCP-1.5 A/APPLE-2.4 A

8V-OUT Output: 7.8-8.4 V/3 A (Max)

Discharging Cut-off Voltage: 10.4 V

Charging Temperature: 0℃-45℃

Discharging Temperature: -15℃-60℃

Material: Aluminum alloy+PC+ABS
