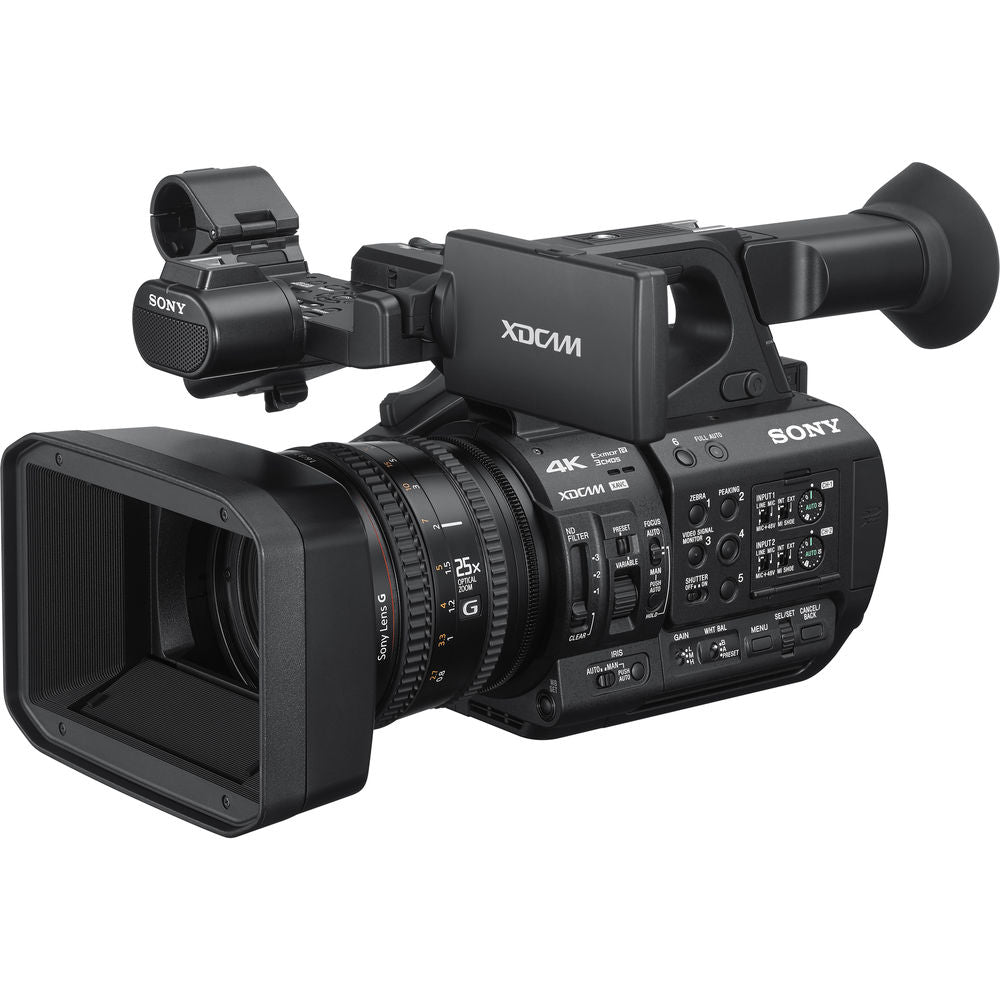

Sony PXW-Z190 4K 3-CMOS 1/3" Sensor XDCAM Camcorder

Sony PXW-Z190 4K 3-CMOS 1/3" Sensor XDCAM Camcorder

Sony's PXW-Z190 4K 3-CMOS 1/3" Sensor XDCAM Camcorder continues the fine tradition of the XDCAM series of cameras. It captures 4K at up to 60p, relying on three 1/3" Exmor R sensors that provide improved low-light capability when compared to standard sensors. The camera integrates a 25x optical Sony G zoom lens and an electronic variable ND filter. The camera supports a variety of codecs out of the box, with an optional MPEG HD license enabling you to shoot HD video.

The camera supports HLG (Hybrid Log Gamma), allowing you to shoot and deliver footage compatible with both HDR (high dynamic range) and SDR (standard dynamic range) without needing laborious post-production work. Dual SD card slots permit a variety of recording options including simultaneous HD and 4K recoding. The camera features built-in 2.4 and 5 GHz Wi-Fi.

Imaging

Image Sensor 3-Chip 1/3" CMOS Sensor

Sensor Resolution 3840 x 2160

Prism Speed f/1.6

Minimum Illumination 0.02 lux

Lens

Focal Length 3.7 to 92.5mm 35mm

Equivalent Focal Length 28.8 to 720mm

Optical Zoom Ratio 25x

Maximum Aperture f/1.6

Minimum Aperture f/11

Filter Size 82 mm

Control Rings Focus Ring Zoom Ring Iris Ring

Focus Control Autofocus Manual Focus

Camera

Shutter Speed 1/24 to 1/8000 sec

Built-In ND Filter Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters and a 2 to 7 Stop Electronic ND Filter

Built-In Microphone Type Stereo

Recording Media 2 x SD (Unspecified Type) Card Slots

Recording

Broadcast System Compatibility NTSC, PAL

Recording Modes

XAVC-L:

3840 x 2160p at 23.98/25/29.97/50/59.94 fps (150 Mb/s)

1920 x 1080p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)

1920 x 1080i at 50/59.94 fps (50 Mb/s)

1280 x 720p at 50/59.94 fps (50 Mb/s)

1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)

1920 x 1080i at 50/59.94 fps (35 Mb/s)

1920 x 1080i at 50/59.94 fps (25 Mb/s)

DV:

720 x 480i at 59.94 fps

720 x 480PsF at 29.97 fps

720 x 576i at 50 fps

720 x 576PsF at 25 fps

Audio Recording XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio

Interfaces

Video Connectors 1 x BNC (3G-SDI) Output 1 x HDMI Output

Audio Connectors 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 1/8" (3.5 mm) Stereo Headphone Output

Other I/O 1 x BNC Timecode Input/Output 1 x USB Micro-B 2 x USB Type-A 1 x RJ45 LAN

Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi, NFC

Display

Display Type LCD

Screen Size 3.5"

Screen Resolution 1,560,000 Dots

EVF

Screen Size .39"

EVF Resolution 2,360,000 Dots

Power

Battery Type Sony BP-U Series

General

Accessory Mount 1 x Multi-Interface Shoe

Built-In Light No

Dimensions 7.48 x 7.95 x 16.52" / 190 x 202 x 419.7 mm (With Protrusions)

Weight 5.1 lb / 2.3 kg
