Angelbird SD Recording Module (Space Gray)

Angelbird SD Recording Module (Space Gray)

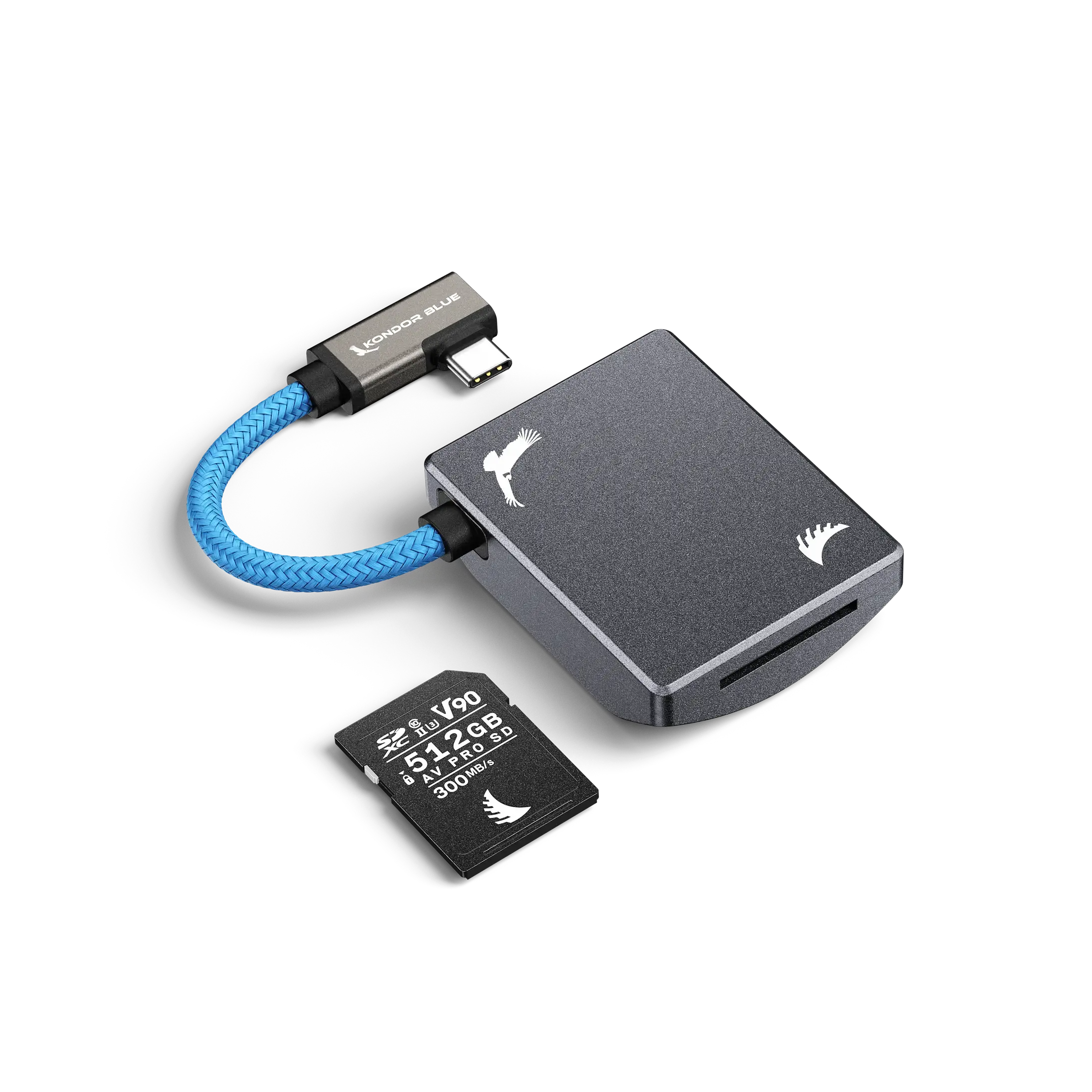

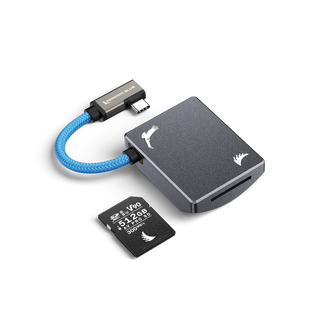

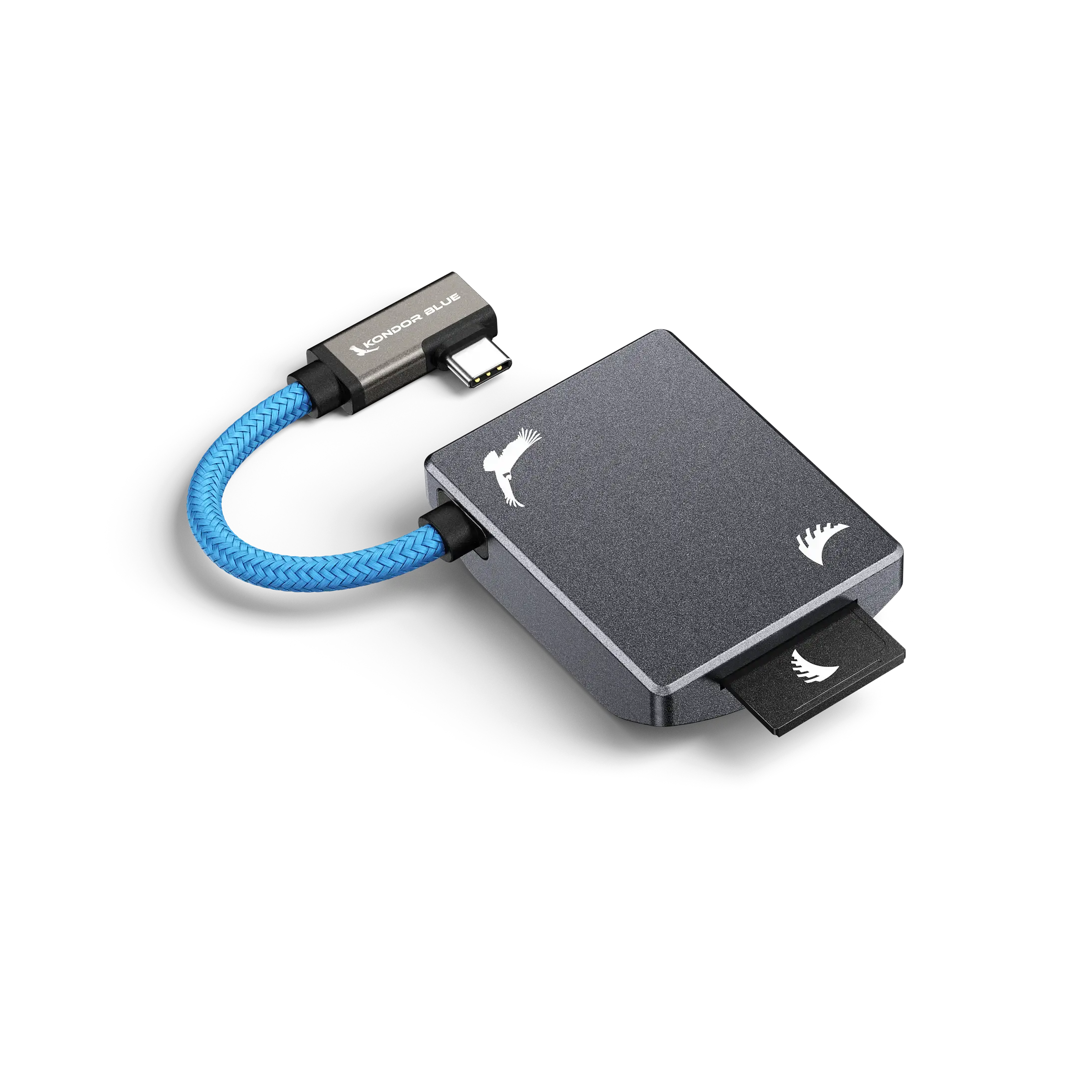

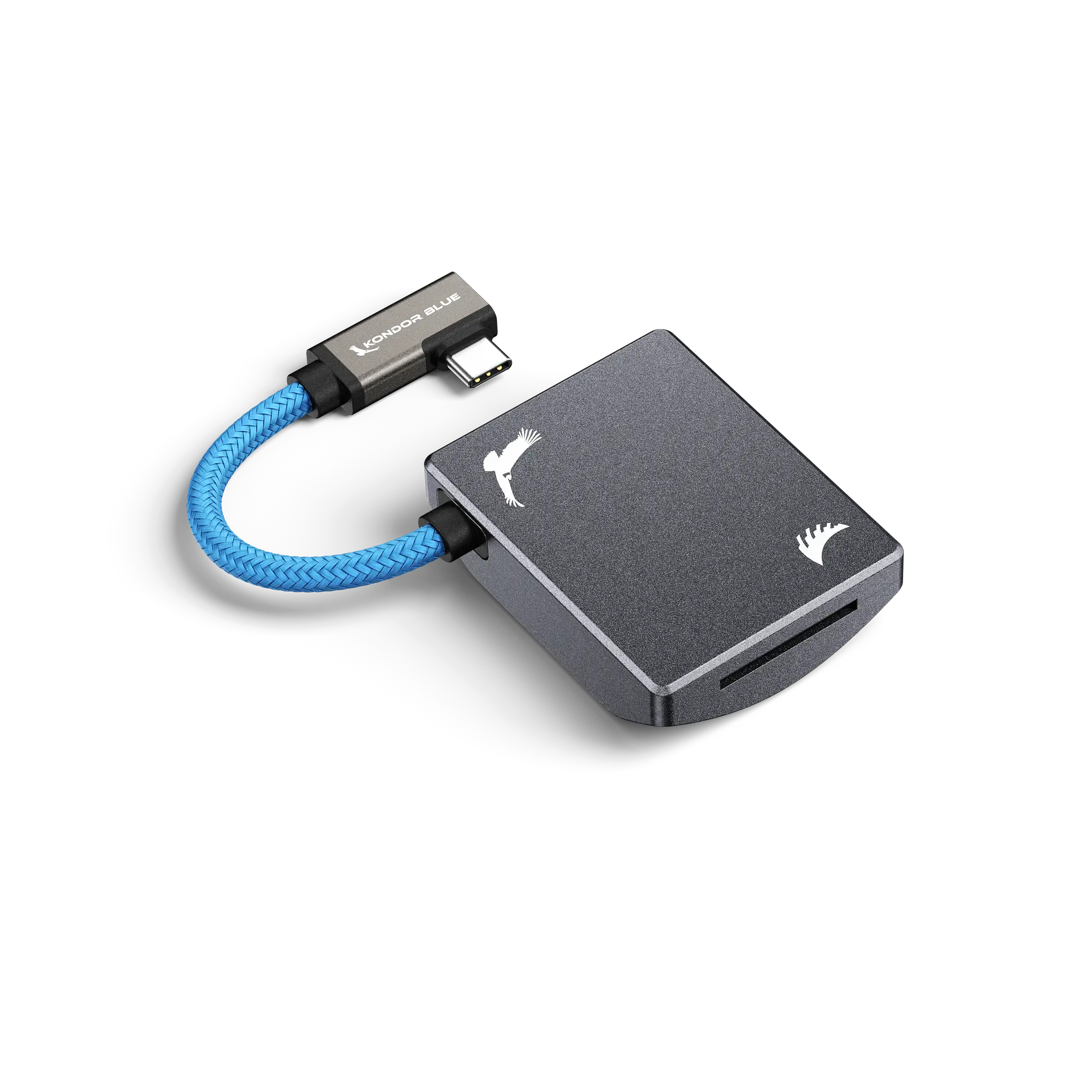

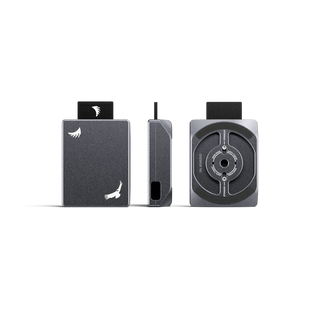

Designed for the iPhone 15 Pro/Pro Max, the space gray SD Recording Module from Angelbird is an accessory that lets you capture ProRes 4K/60p video directly to an SD card that can sustain write speeds of at least 220 MB/s. It features a UHS-II SDXC card slot that is backward compatible with UHS-I, a 10 Gb/s USB-C 3.2 Gen 2 interface and attaches to the back of your phone or compatible case using MagSafe. If you don't have a compatible iPhone, it may be used with other devices that support USB-C recording and offers rig mounting using 1/4"-20 male/female ARRI standard 3mm anti-twist pins. In addition to support for USB 3.2 Gen 2, the Recording Module is backward compatible with other USB standards and may be used with Thunderbolt 3 and 4 ports, although it will operate using the USB standard supported by your device.

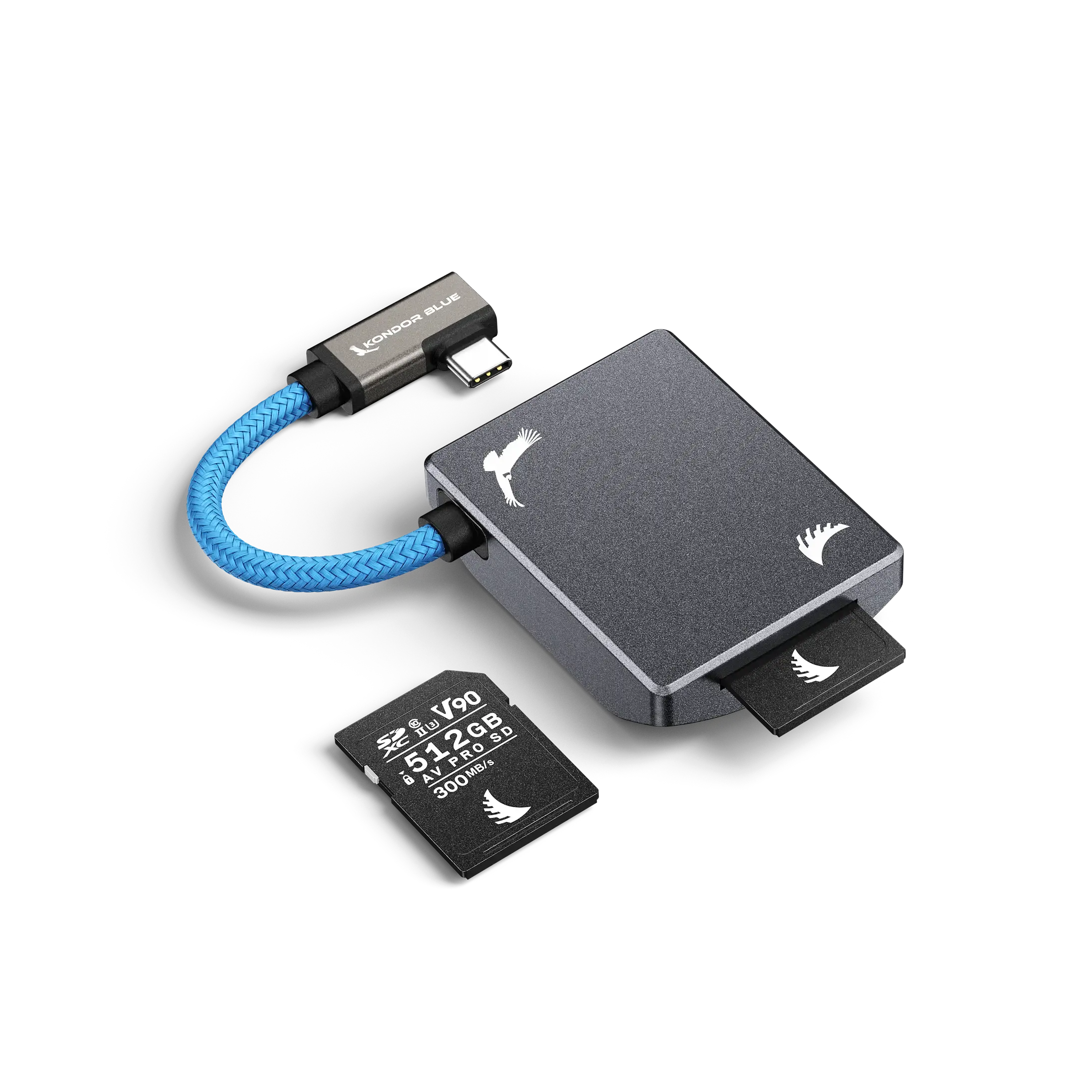

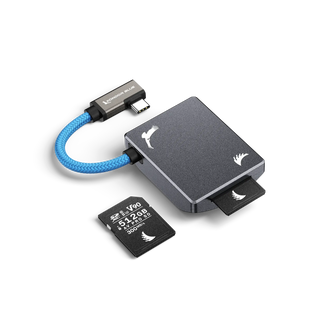

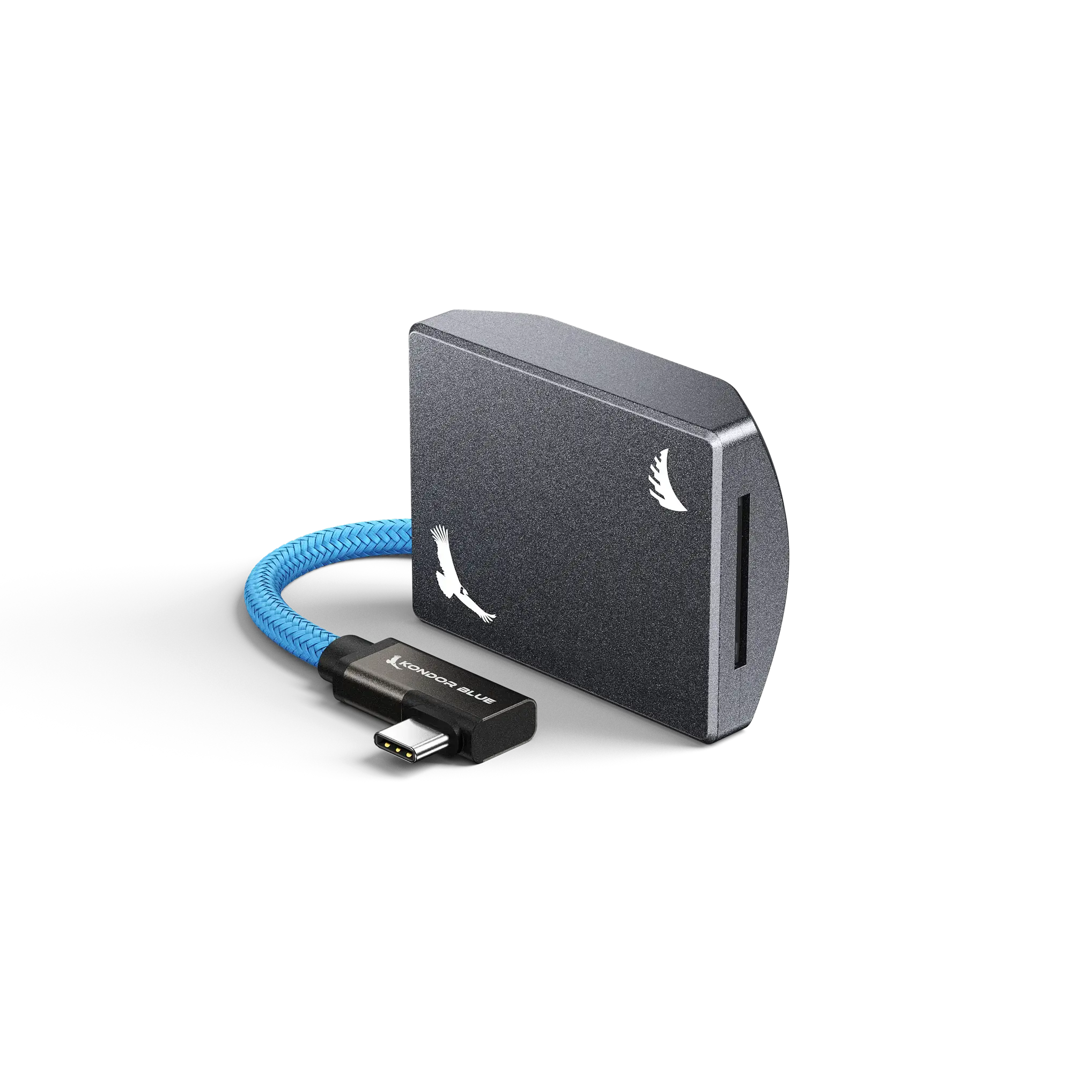

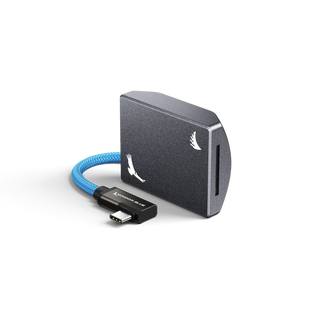

Angelbird's Recording Module is resistant to extreme temperatures, shock, ESD, and overloads. To provide a more secure connection and reduce wear and tear, the Recording Module uses Solid Connect technology with a recessed internal cable connection. Included is a USB-C cable with a right-angle connection on one end and a straight angle on the other.

Please note that to receive the limited 3-year warranty, you must activate your product within 30 days on purchase on Angelbird's warranty information page. If not activated within this period, the market-specific legal guarantee period comes info effect.

10 Gb/s USB-C 3.2 Gen 2 Connectivity

Angelbird's Recording Module has a USB-C 3.2 Gen 2 interface that supports data transfer speeds of up to 10 Gb/s. It is backward compatible with other USB standards and physically compatible with Thunderbolt 3 and 4, although it will operate at the USB standard supported by your device.

USB Bus Powered

With power provided by the USB interface, no additional power is needed.

Versatile Use

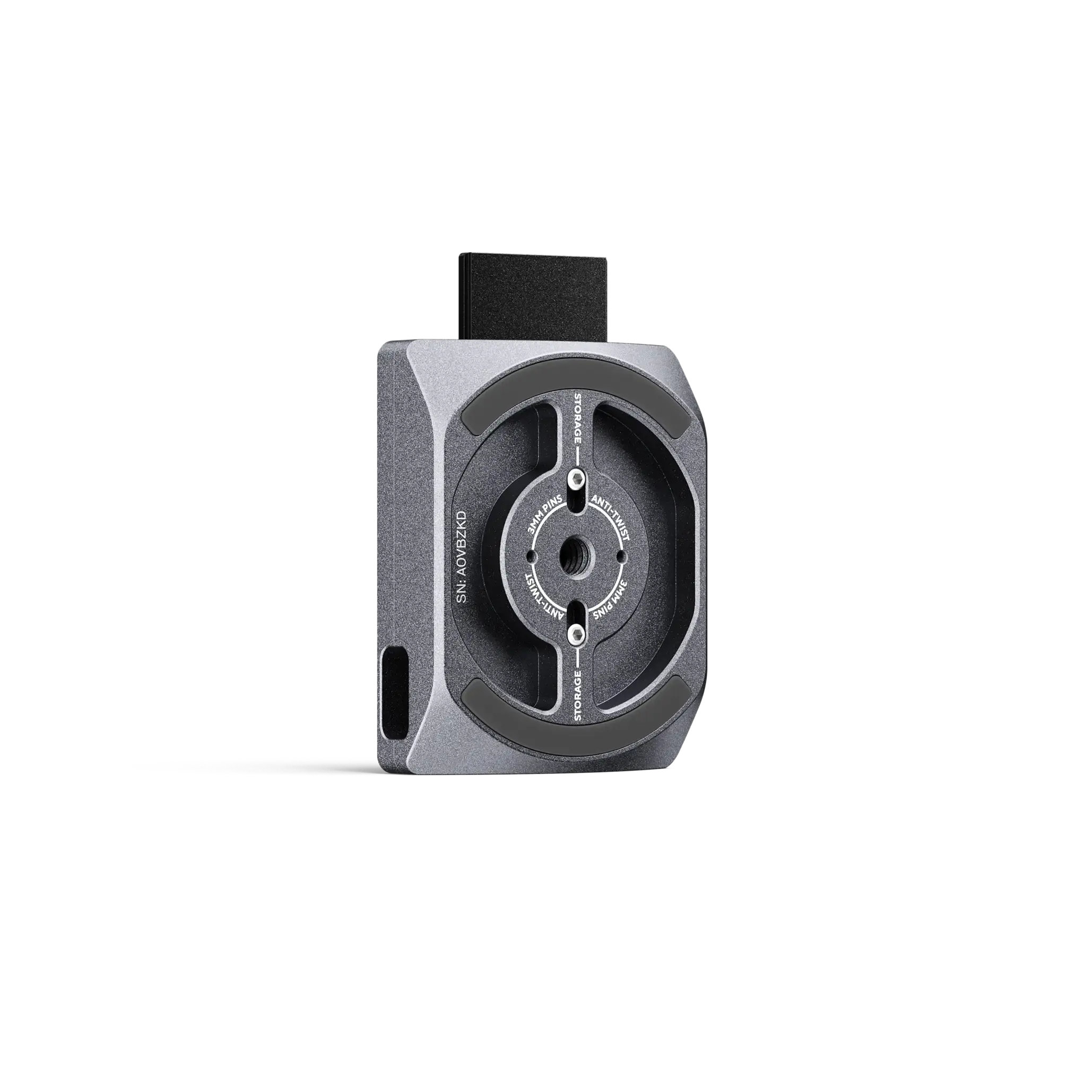

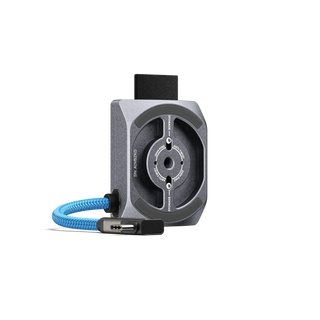

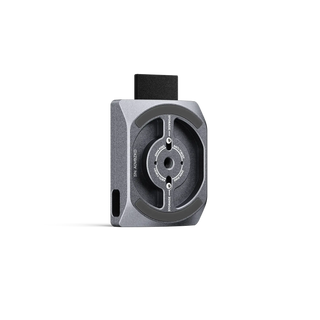

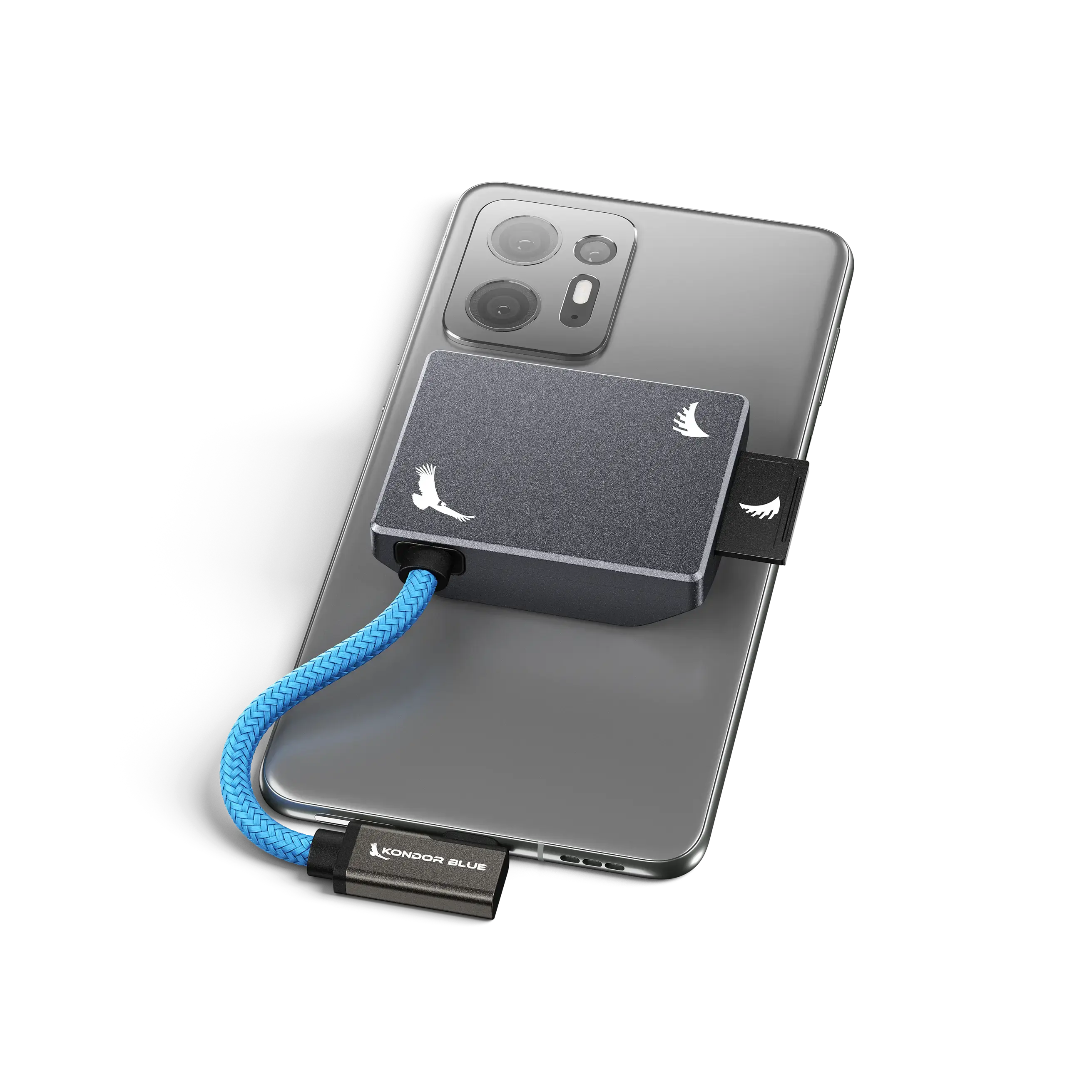

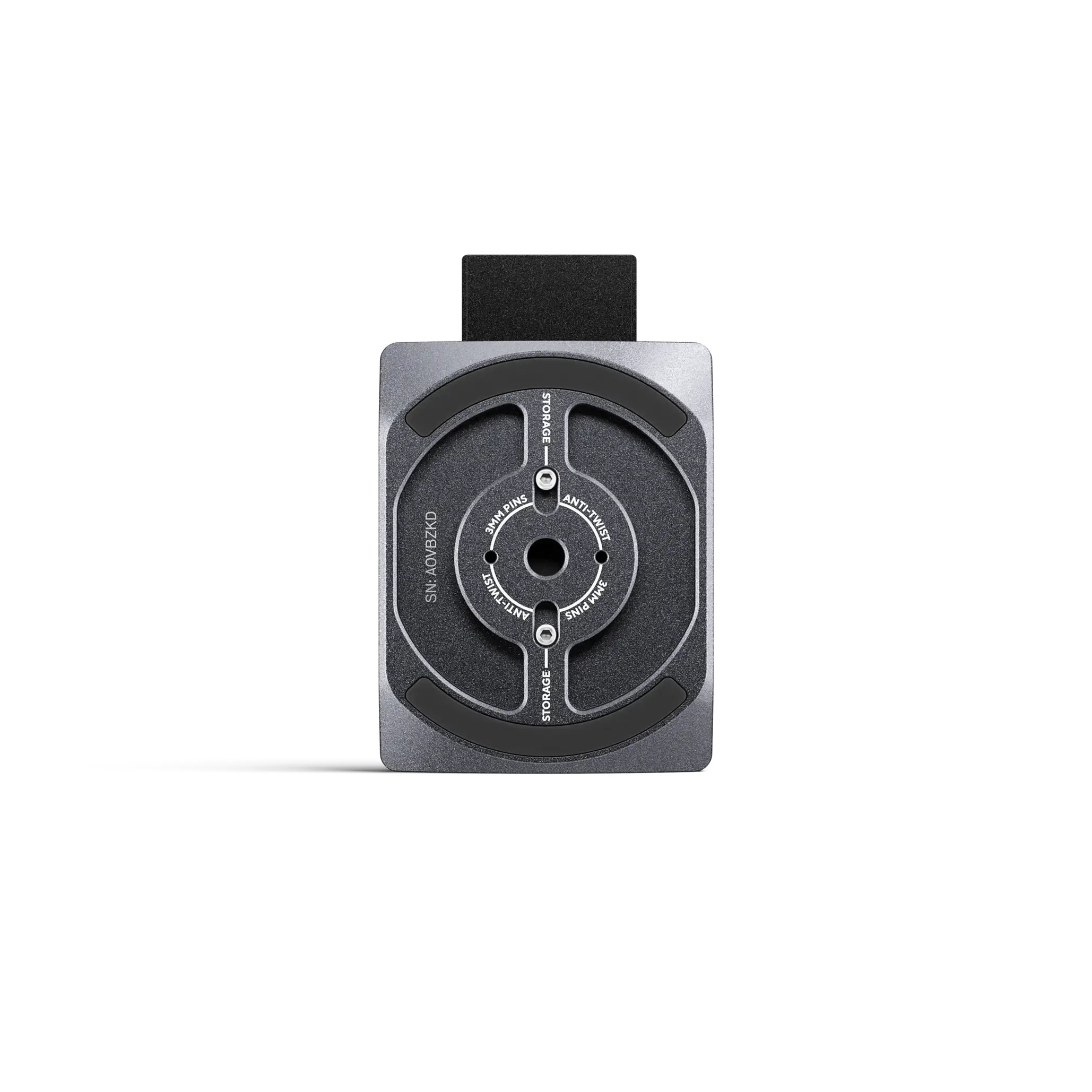

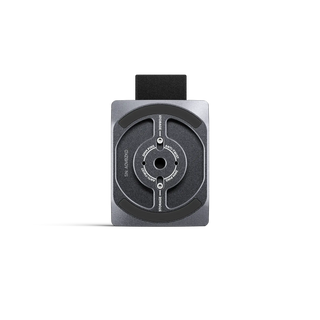

The Recording Module may be attached directly to your iPhone 15 Pro & Pro Max using MagSafe, or use a case that is compatible with MagSafe. It may also be mounted to a rig using 1/4"-20 make/female ARRI standard 3mm anti-twist pins for use with a camera that supports recording via USB-C.

Protection

The Recording Module is temperature, shock, ESD, and overload protection offer protection.

Solid Connect

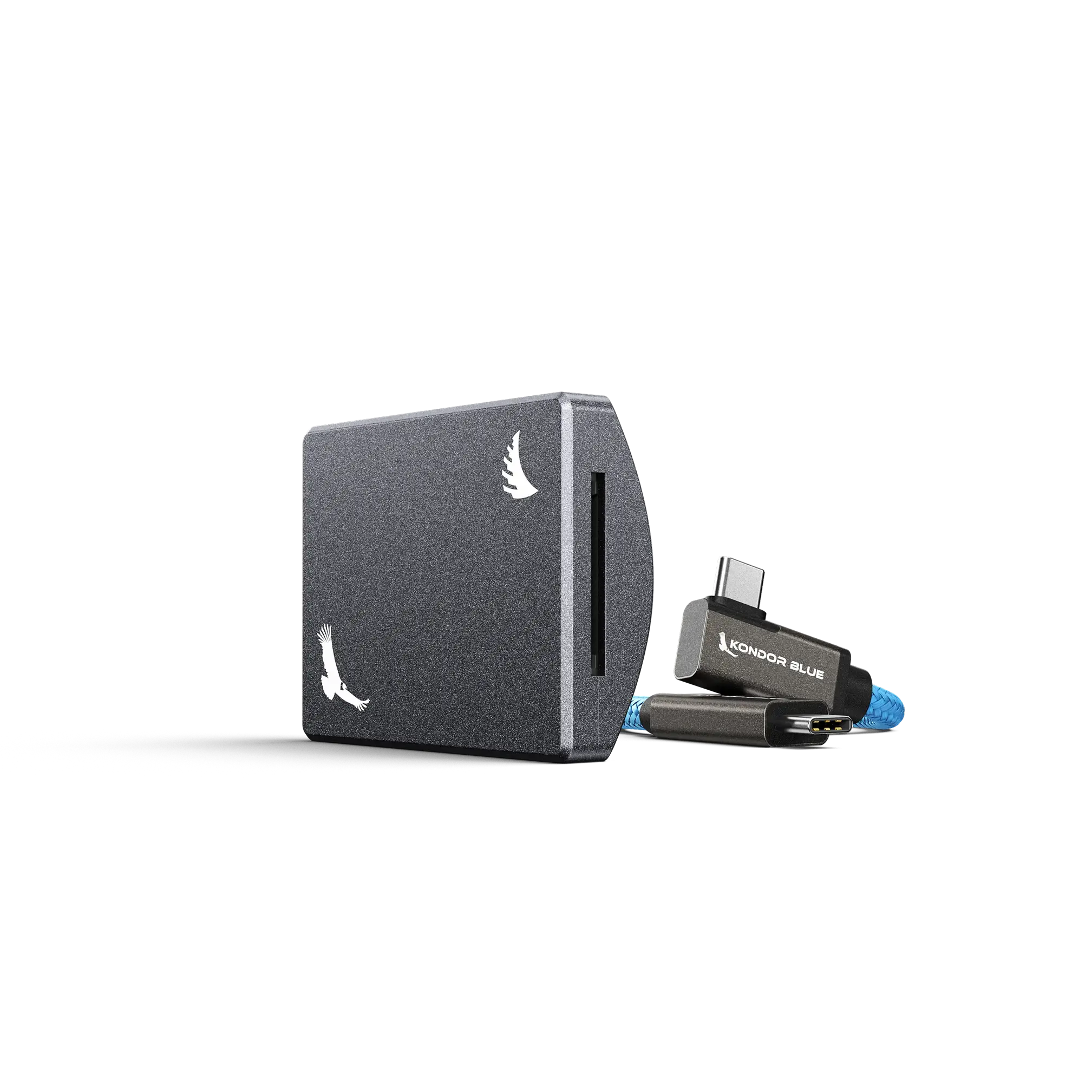

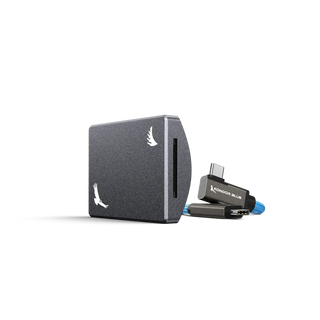

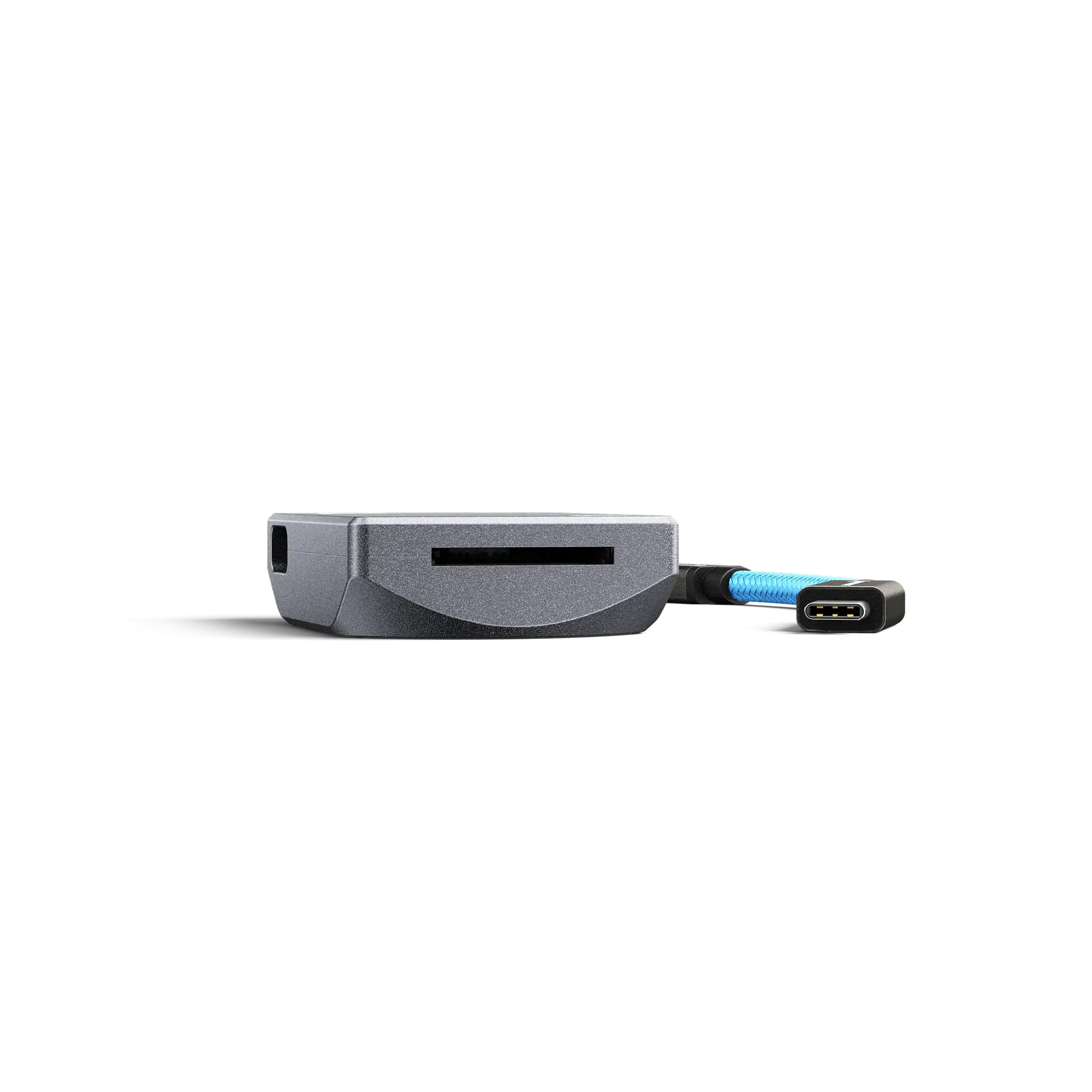

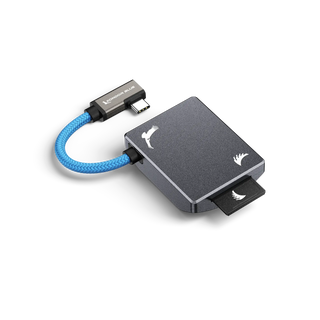

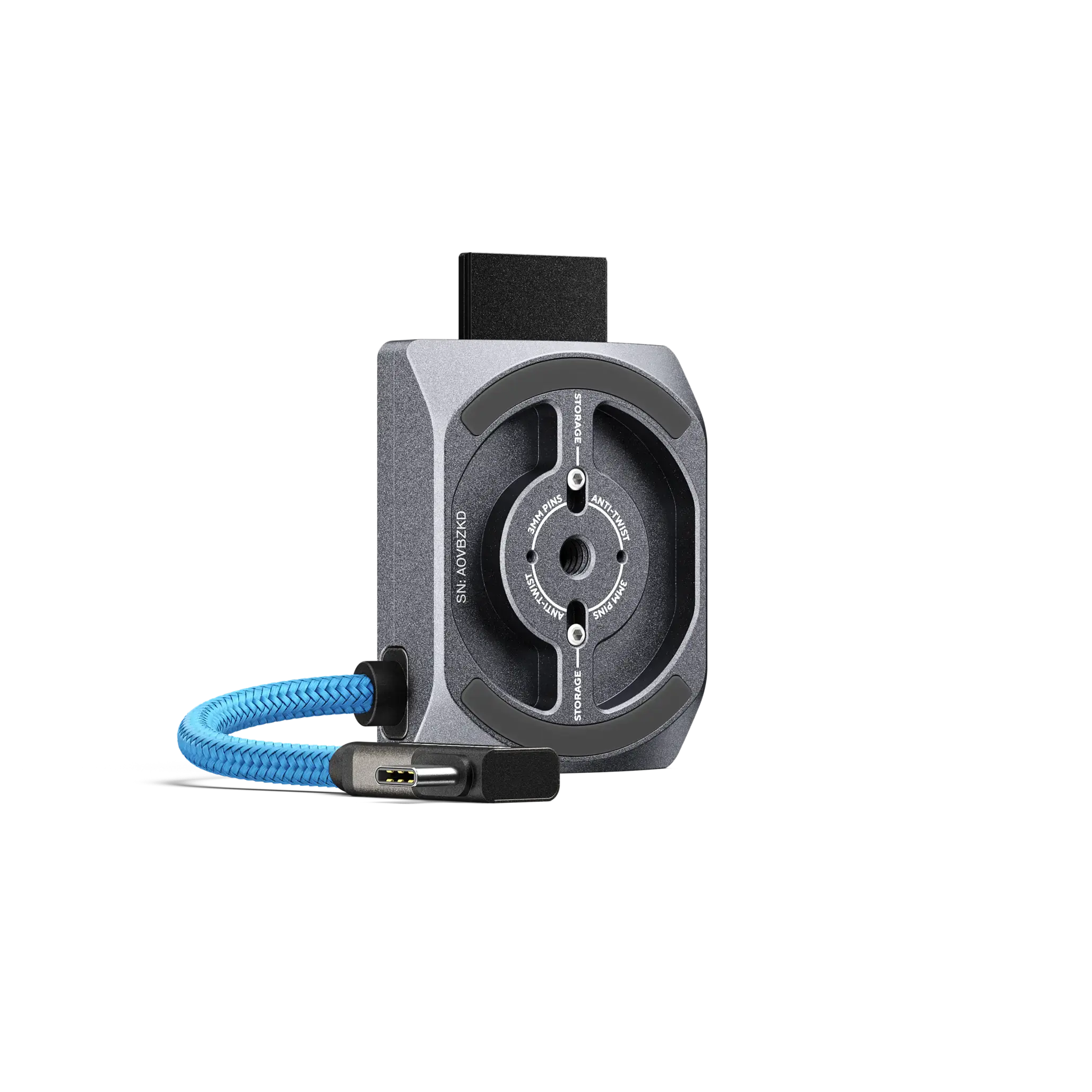

The Solid Connect recessed connection provides a secure connection point and helps to minimize wear and tear. The Recording Module includes a right to straight angle USB-C to USB-C cable.

Angelbird KBRMSD Specs

General

Compatibility Apple iPhone 15 Pro / iPhone 15 Pro Max

Memory Card Slot 1 x UHS-II SD/SDHC/SDXC

Interface 10 Gb/s USB 3.2 Gen 2

Power Bus Powered

Environmental

Certifications CE, RoHS, FCC, UKCA, RCM, REACH, KC

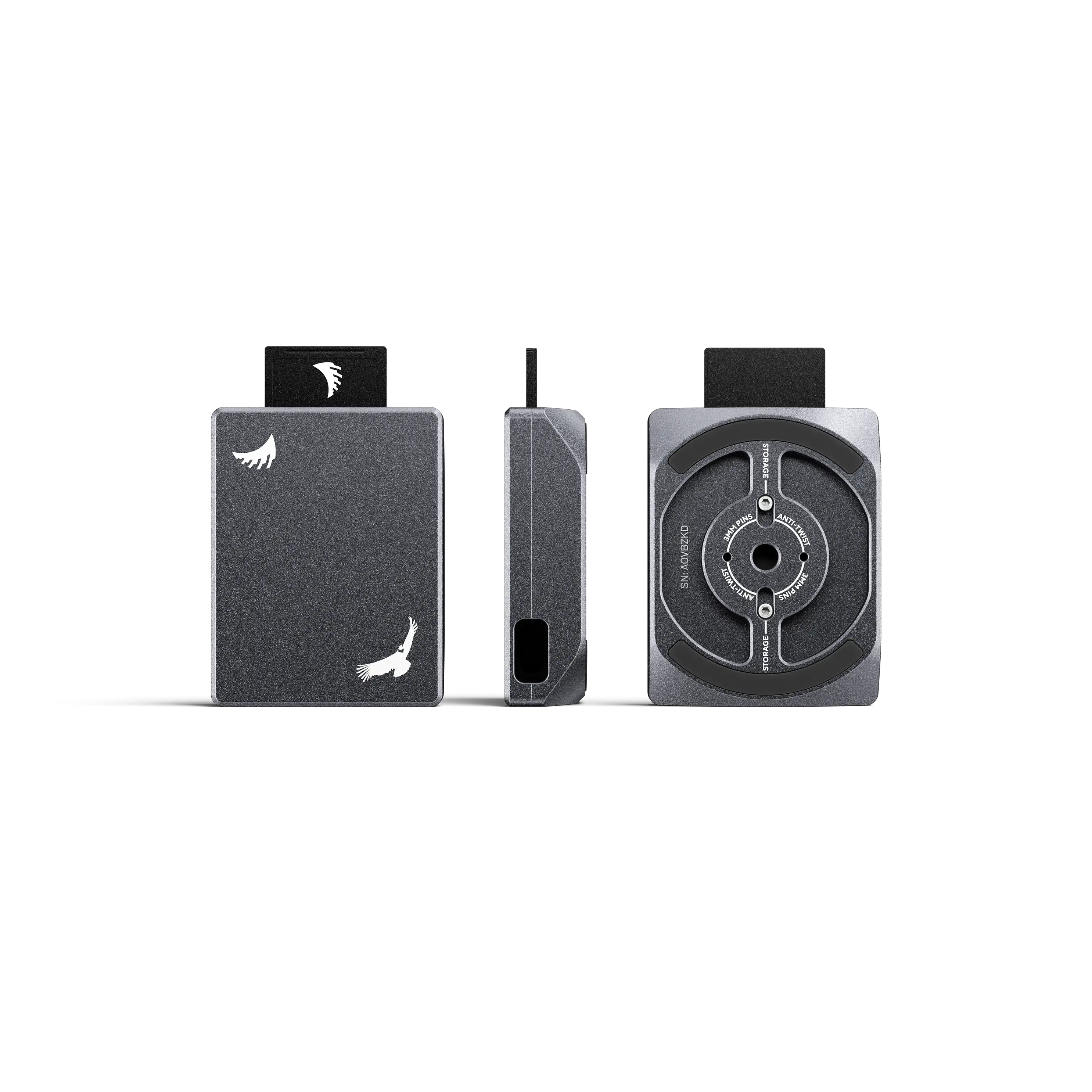

Physical

Mounting Back: 1 x MagSafe

Color Space Gray

Material of Construction Aluminum

Dimensions 2.32 x 1.79 x 0.61" / 58.93 x 45.47 x 15.49 mm

Weight 2.29 oz / 65 g
