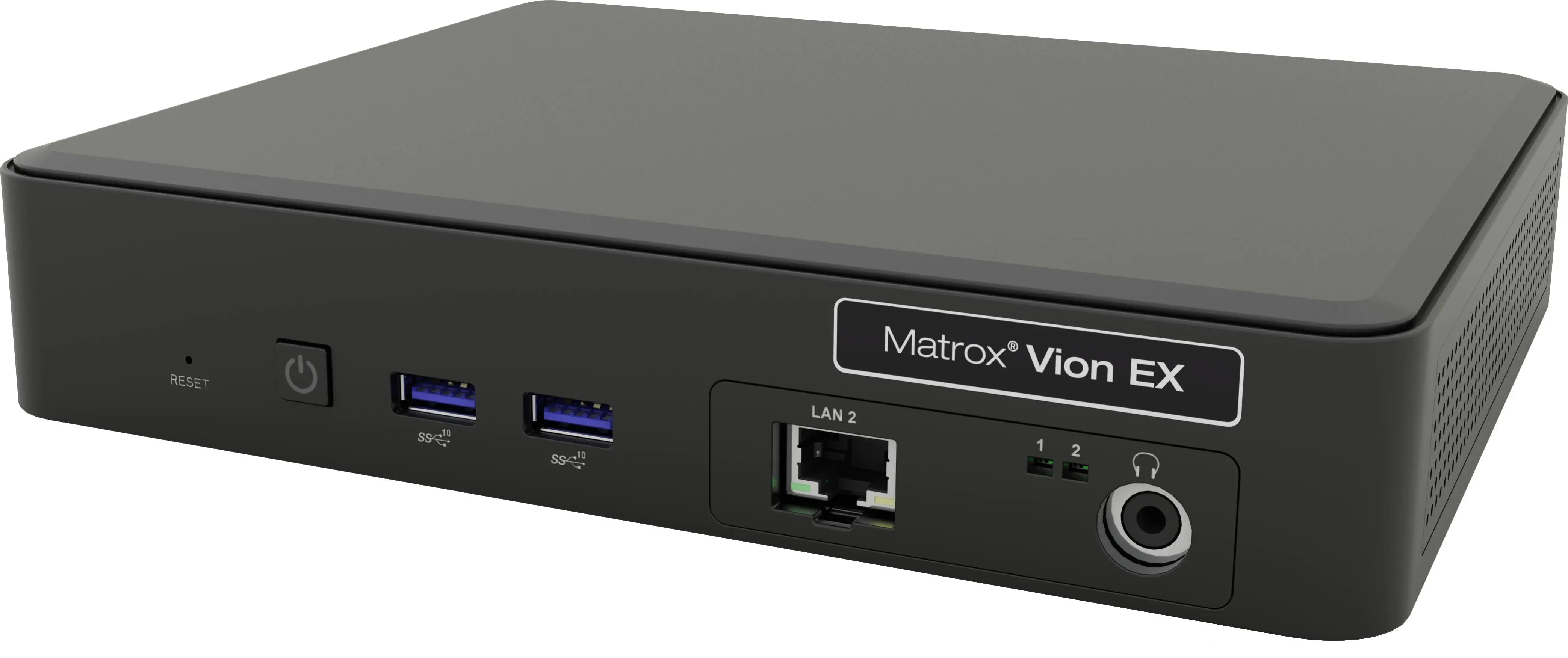

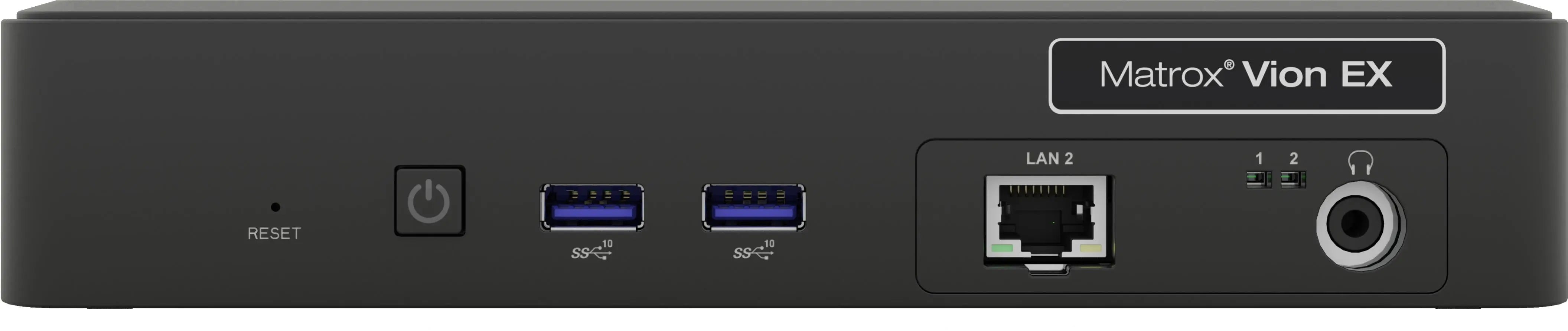

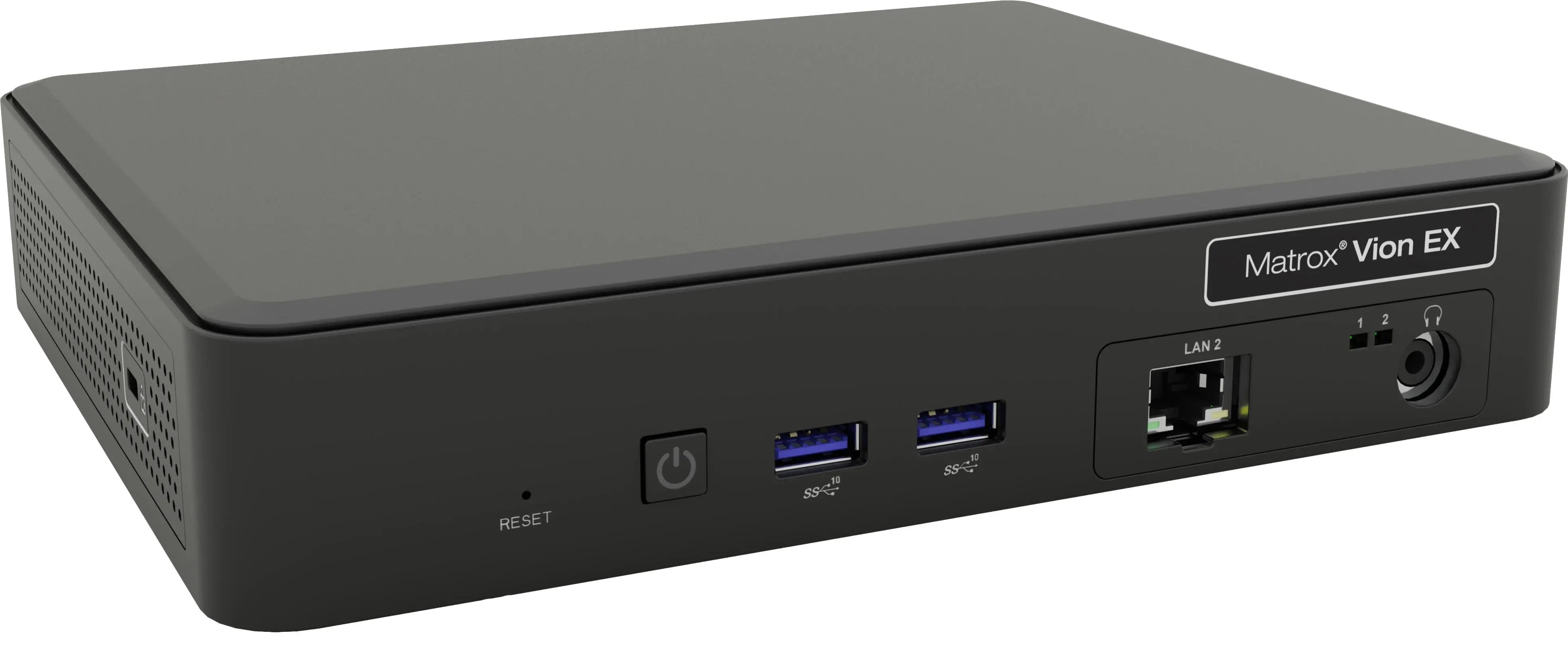

Matrox Vion EX IP Video Gateway

Matrox Vion EX IP Video Gateway

The Matrox Vion EX is a compact, multi-channel 4K-capable IP video gateway for advanced media processing and conversion. Vion provides flexible, low-latency multi-channel encoding, decoding, transcoding, and cross-conversion of IP video formats and codecs, including H.264, HEVC, JPEG-XS, and NDI. This IP video gateway supports the IPMX suite of open standards and protocols such as SMPTE ST 2110-22, SRT, RTSP, RTP, and MPEG-2 TS, enabling flexible routing workflows—for example, transcoding an NDI source for delivery over the web using SRT. With support for 4:2:2 10-bit and 4:4:4 10-bit codecs, optional HDMI 2.0 and 12G-SDI inputs, and the ability to transmit multiple concurrent streams, Vion preserves video detail, manages color space conversions, streaming protocols, and bitrates. These capabilities make it ideal for live production, collaboration, and both local and cloud-based IP workflows.

Matrox Vion EX IP Video Gateway Specifications

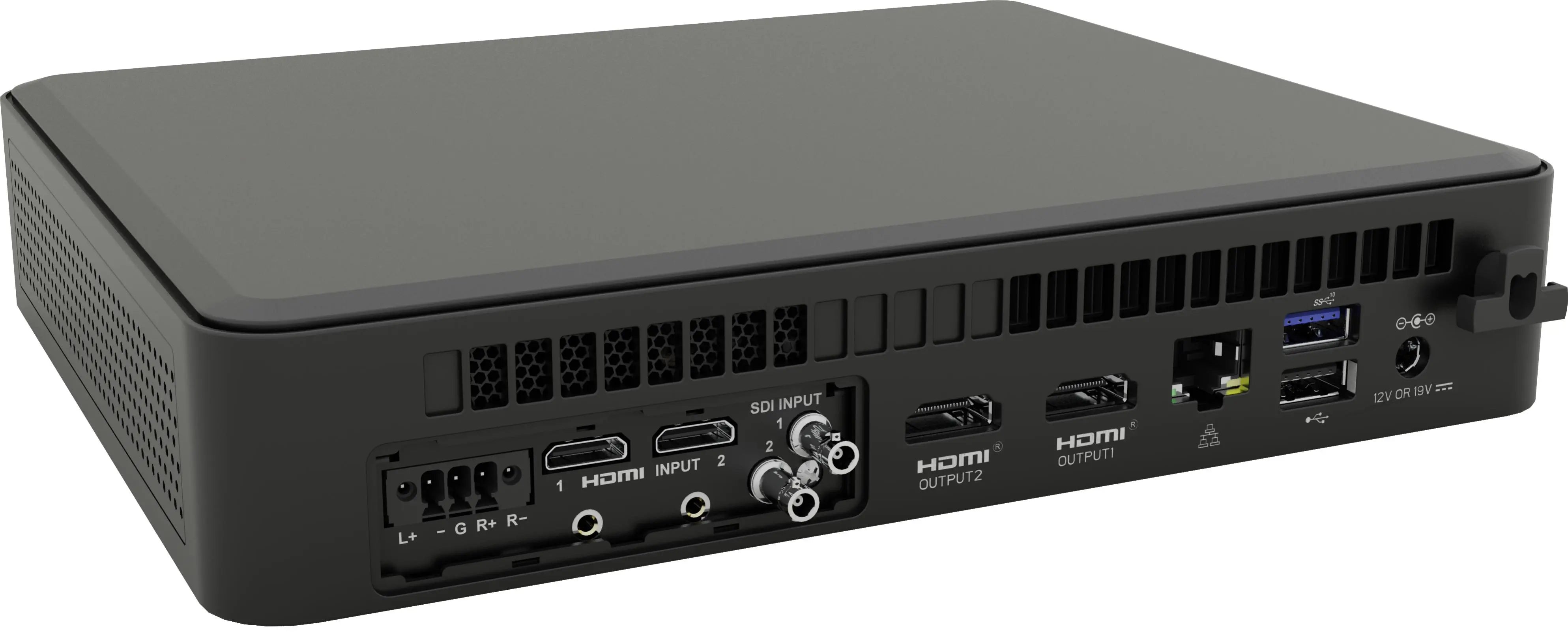

Connectivity

• Input Connections:
  • 2 × HDMI 2.0 (Type C) with retention screw
  • 2 × HD BNC 12G-SDI per SMPTE ST 2082
• Output Connections:
  • 2 × HDMI 2.0 (Type A)
  • 2 × HD BNC 12G-SDI per SMPTE ST 2082
• Network Interfaces:
  • 1 × 2.5 Gbps RJ45
  • 1 × 1 Gbps RJ45
• Audio:
  • 1 × Balanced analog audio input/output

Video & Audio Processing

• Codecs Supported:
  • H.264
  • HEVC (H.265)
  • JPEG-XS
  • NDI (NDI 6, NDI HX3)
• Color Precision:
  • Supports 4:2:2 10-bit and 4:4:4 10-bit color formats
• Protocols Supported:
  • ST 2110-22
  • IPMX
  • SRT
  • RTSP
  • RTP
  • MPEG-2 TS
• Multi-Channel Processing:
  • Capable of delivering multiple concurrent and bi-directional streams with advanced multi-channel encoding, decoding, transcoding, and cross-conversion

Features & Benefits

• IP Signal & Protocol Conversion:
  • Efficiently convert, transcode, transmux, transrate, and transceive compressed IP signals to ensure seamless media distribution. Facilitates NDI media and protocol conversion, including seamless conversion between NDI and SRT, as well as NDI and IPMX.
• 4:4:4 Color Precision:
  • Supports 4:4:4-capable codecs (HEVC and JPEG-XS) to provide maximum image quality and equipment compatibility.
• Open Standards Compatibility:
  • Ensures compatibility across devices and future-proof infrastructure with support for ST 2110-22, IPMX, and JPEG-XS.
• Local Preview:
  • Instantly preview content locally with HDMI and audio outputs.

General Specifications

• Form Factor:
  • Compact, rack-mountable design
• Power Supply:
  • 100–240V AC, 50/60 Hz
• Warranty:
  • Standard 2-year warranty
