Nanlite PavoTube II 6XR RGB LED Pixel Tube Light (25cm, 8-Light Kit)

Nanlite PavoTube II 6XR RGB LED Pixel Tube Light (25cm, 8-Light Kit)

The Nanlite PavoTube II 6XR RGB LED Pixel Tube Light 8-Light Kit provides a complete and portable lighting solution for professional productions on the move. This kit includes eight 10-inch PavoTube II 6XR tubes housed in a durable IP67-rated charging case that can simultaneously charge all lights inside. Nanlite also supplies a comprehensive selection of accessories, including transparent tube clips, 5/8-inch baby pins, fabric grids, D-Tap and AC power cables. Built as the successor to the highly regarded PavoTube II 6C, the 6XR combines the same compact, lightweight form factor with upgraded performance. The “XR” version features wireless LumenRadio CRMX support, offering advanced control options for professional users. With wider colour temperature control, eight controllable pixels, and multiple power sources, this 8-light kit gives you everything you need to bring your creative lighting concepts to life.

Go-Anywhere Lighting Solution

Designed to perform wherever creativity takes you, the PavoTube II 6XR offers a broad CCT range from 2700K to 12,000K with ±150 green/magenta adjustment, PD 3.0 fast charging, and multiple control options, including onboard, DMX, CRMX, and app-based control via NFC technology. Each light can run on its built-in USB-C rechargeable battery, AC power, or optional power banks, making it highly versatile for both studio and location shoots. The included hard-shell charging case ensures all eight lights remain protected, organised, and fully charged, ready for any project.

What Was Good Got Better

The PavoTube II 6XR represents the next evolution of Nanlite’s popular 10-inch 6C model, refined through feedback from creators worldwide. It features DMX/RDM and CRMX compatibility, enhanced app connectivity, and an expanded colour spectrum. The 6XR delivers 36,000 RGB colours, animated pixel effects, and an impressive range of warm-to-cool white tones. Despite the technological upgrades, Nanlite has retained the intuitive usability and creative flexibility that made the original 6C so popular.

Multiple Applications

Compact and versatile, the PavoTube II 6XR suits a variety of lighting tasks—from video calls and interviews to photo shoots, fill lighting, and creative accent lighting. Its slim 10-inch design allows it to fit discreetly in tight spaces, making it perfect for on-set use, small studios, or at-home content creation. Despite its small size, the 6XR provides ample output to illuminate small scenes or add colour and atmosphere to any setup.

Wider CCT Range & Pixel Effects

With 0–100% dimming and an extended CCT range of 2700K to 12,000K, the 6XR outperforms its predecessor with exceptional colour accuracy and creative control. Users can select from both classic and pixel-based lighting effects, including Hue Loop, CCT Loop, Int Loop, Multi Colour, Fade, Process, Scroll, Fire, Rainbow, and Driving. These effects can be customised and saved as presets via the Nanlink app, making it easy to reproduce looks across different shoots.

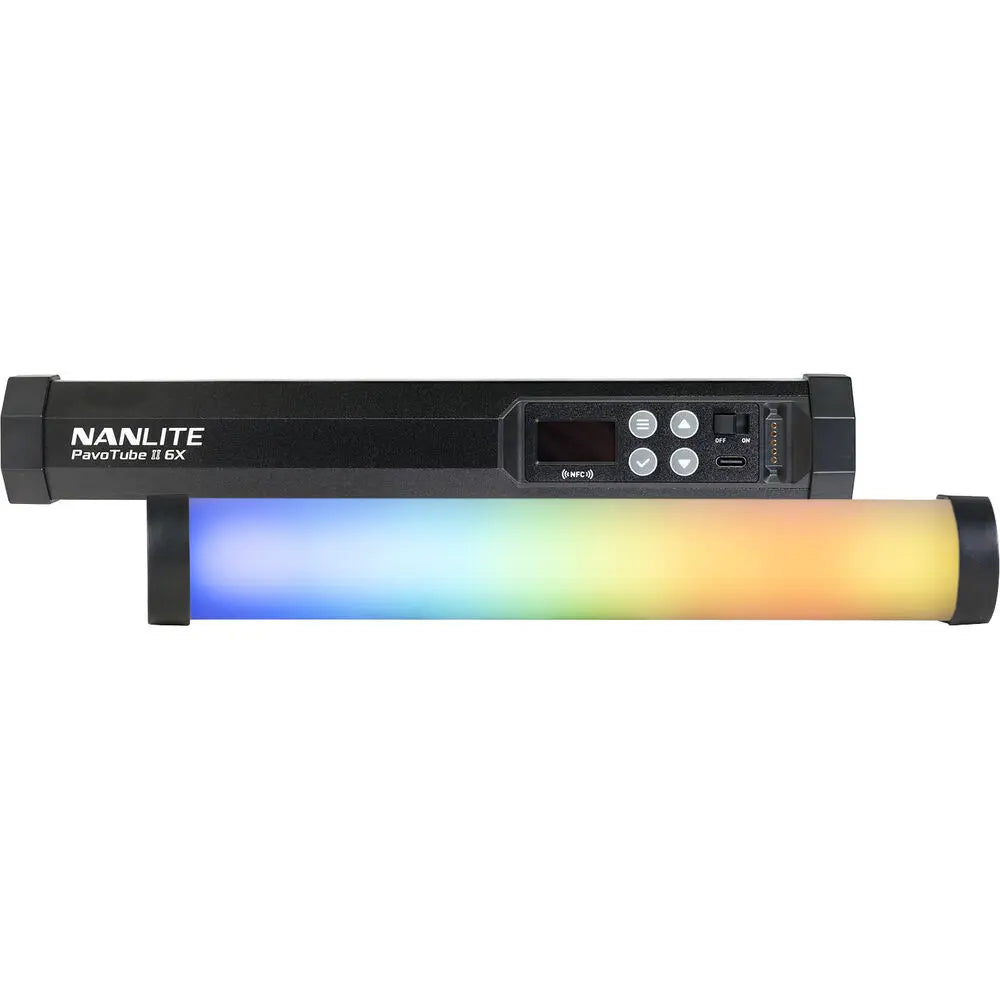

High-Quality RGB Lighting

The PavoTube II 6XR offers stunning colour accuracy and creative freedom, featuring CCT, HSI, and RGB modes, along with 230 LEE and ROSCO gel presets. With a CRI of 96, TLCI of 97, and SSI ratings of 83 (at 3200K) and 73 (at 5600K), it ensures faithful colour reproduction and flattering skin tones. At 5600K, the light outputs 139 lux at one metre, delivering high-quality illumination for professional video and photography.

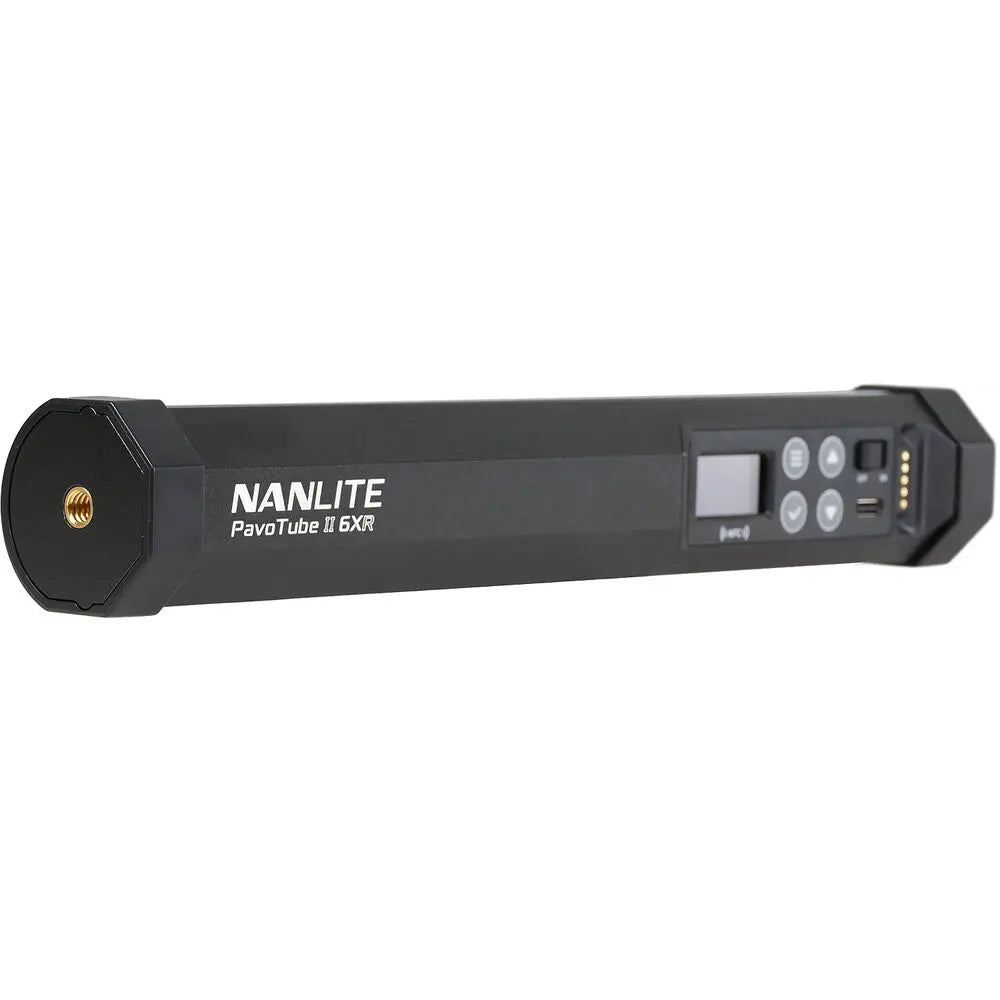

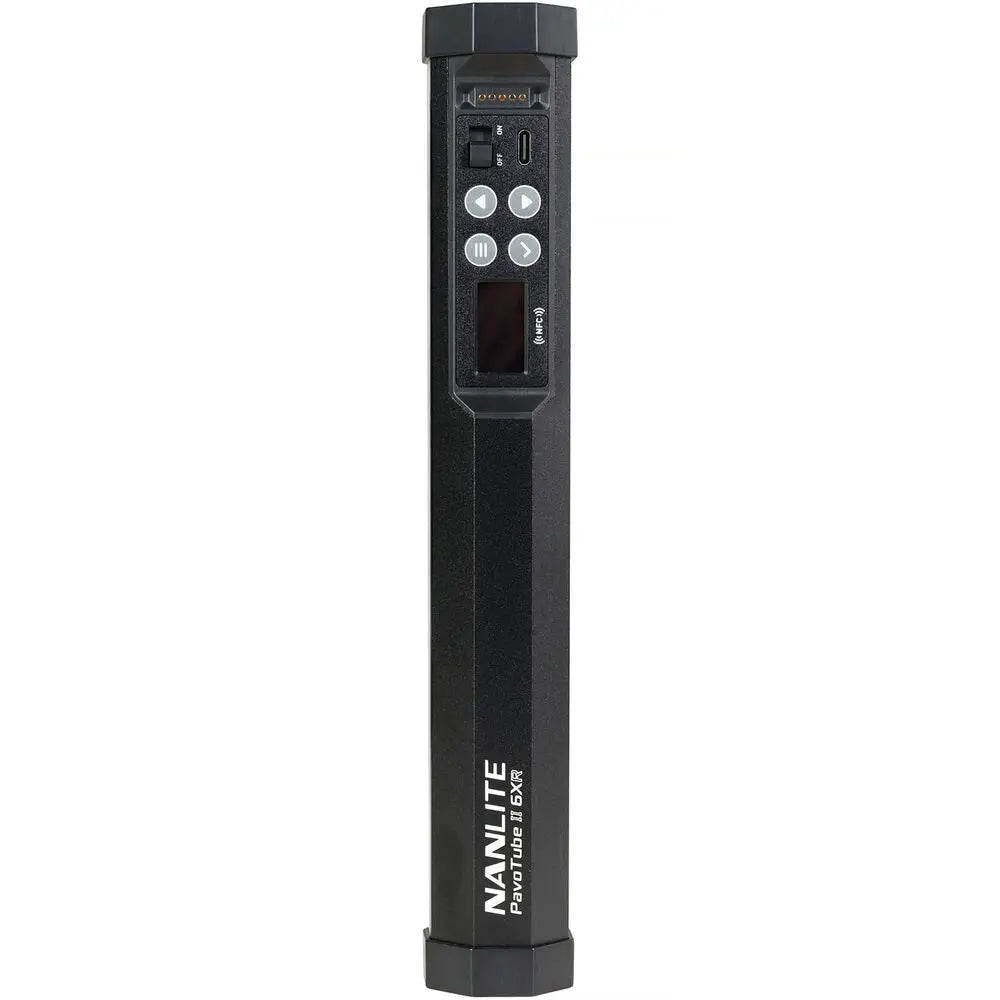

NFC, Intuitive Control & DMX Capability

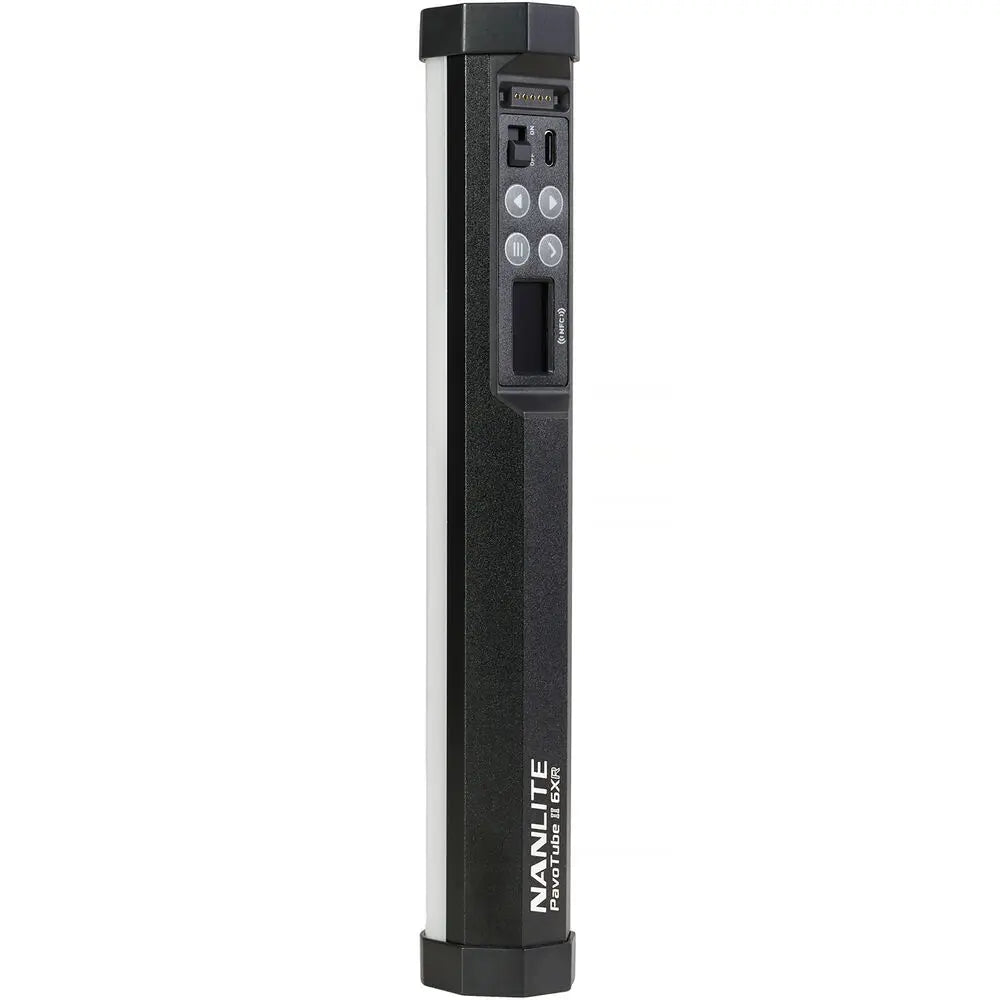

Control the 6XR with ease through its onboard interface, Bluetooth, DMX/RDM via USB-C, or wirelessly through the Nanlink app. NFC pairing allows for rapid connection with mobile devices, while the built-in LumenRadio CRMX receiver provides advanced wireless DMX capability when paired with a compatible transmitter. This professional-grade connectivity makes it ideal for complex lighting setups or live production environments.

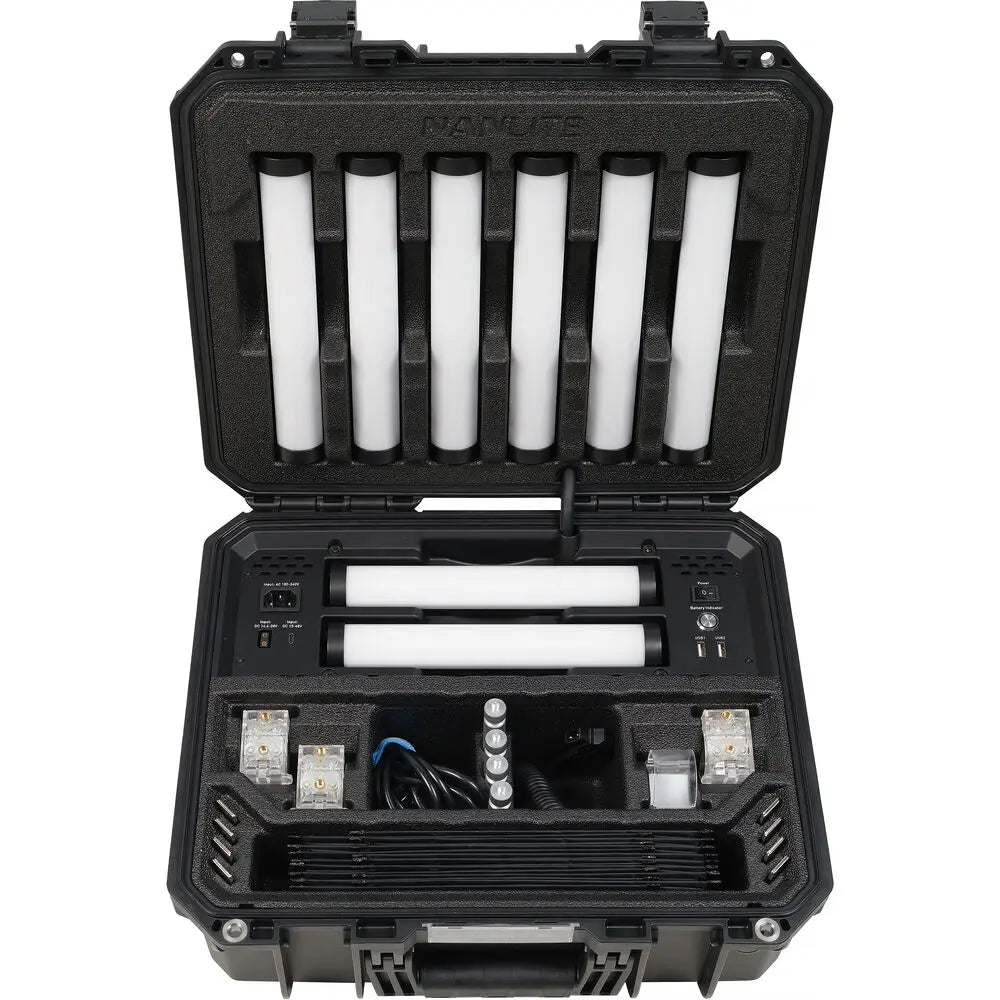

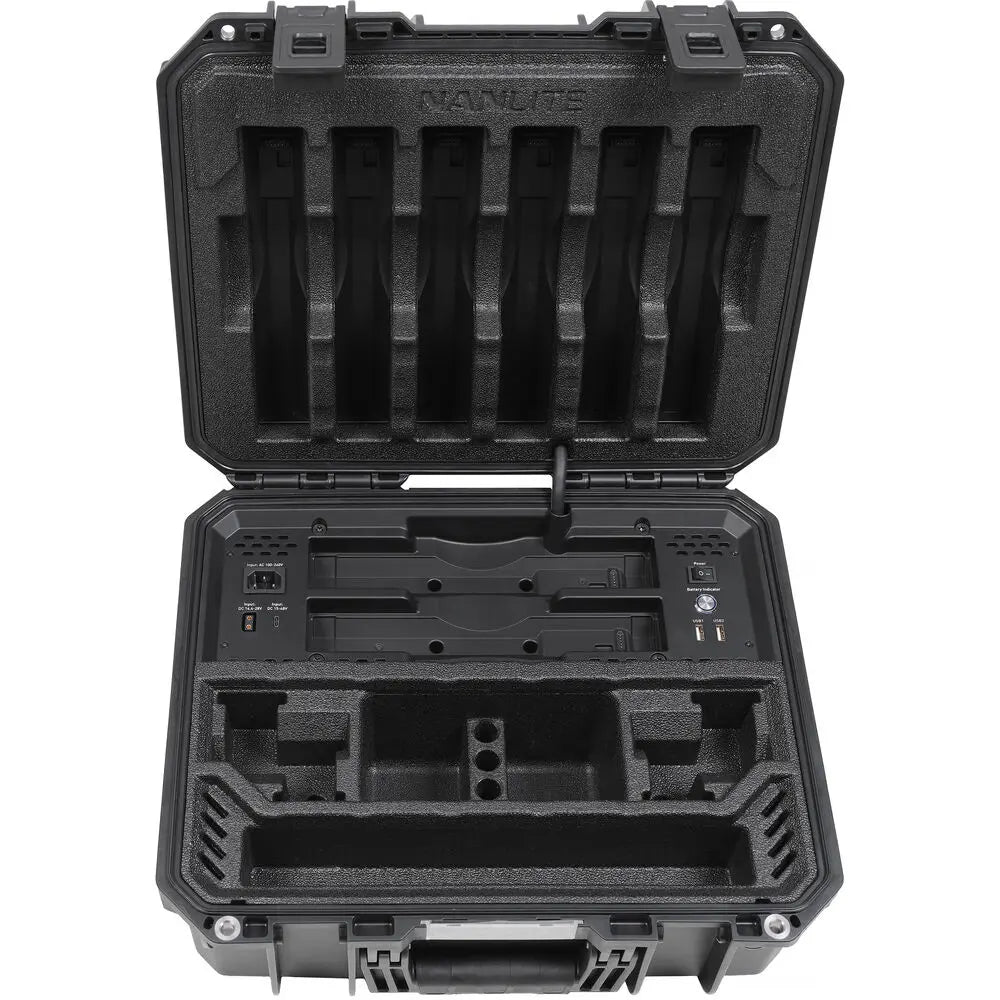

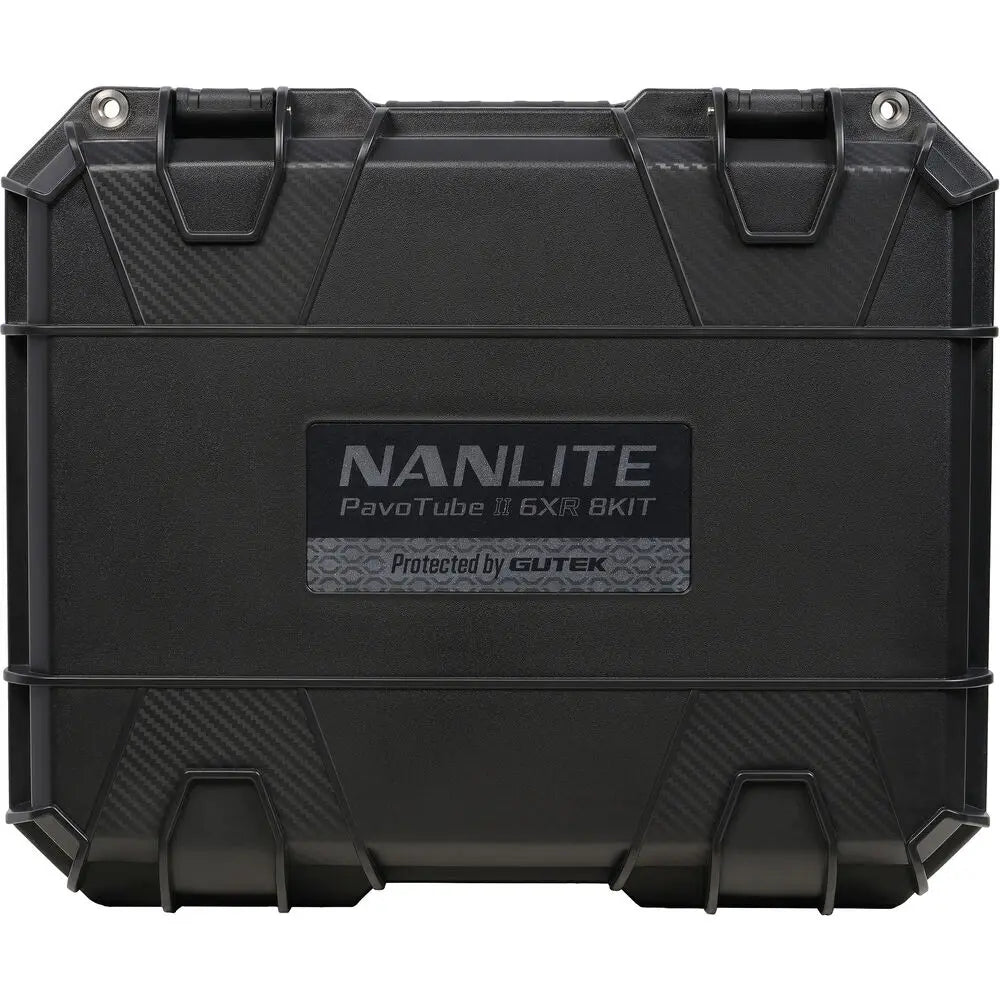

Versatile Power Options & Charging Case

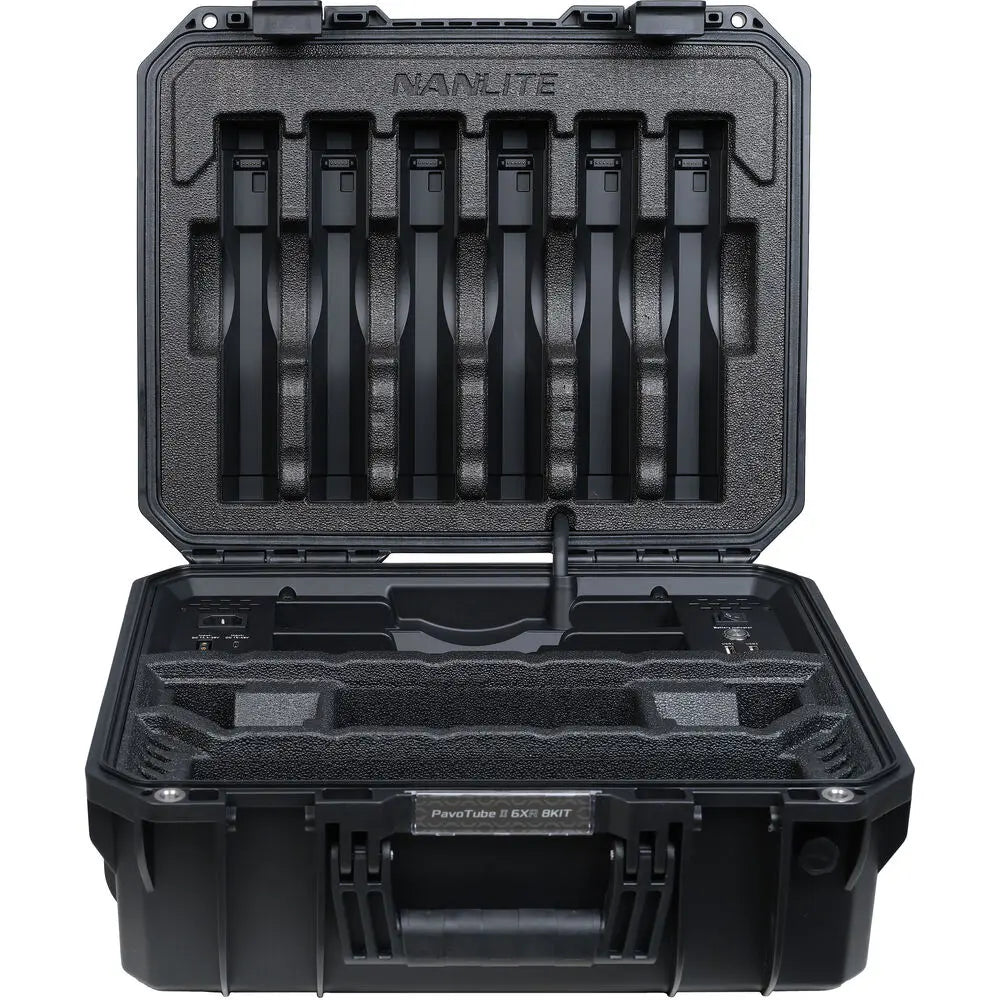

Each tube is powered by an internal USB-C rechargeable battery, capable of fast PD charging and continuous AC operation. The 8-light kit includes a multi-charging case that can charge all tubes at once, along with D-Tap and AC cables for added flexibility. The 6XR also supports optional NP-F battery grips for extended runtime, while a recessed on/off switch prevents accidental activation during transport or setup.

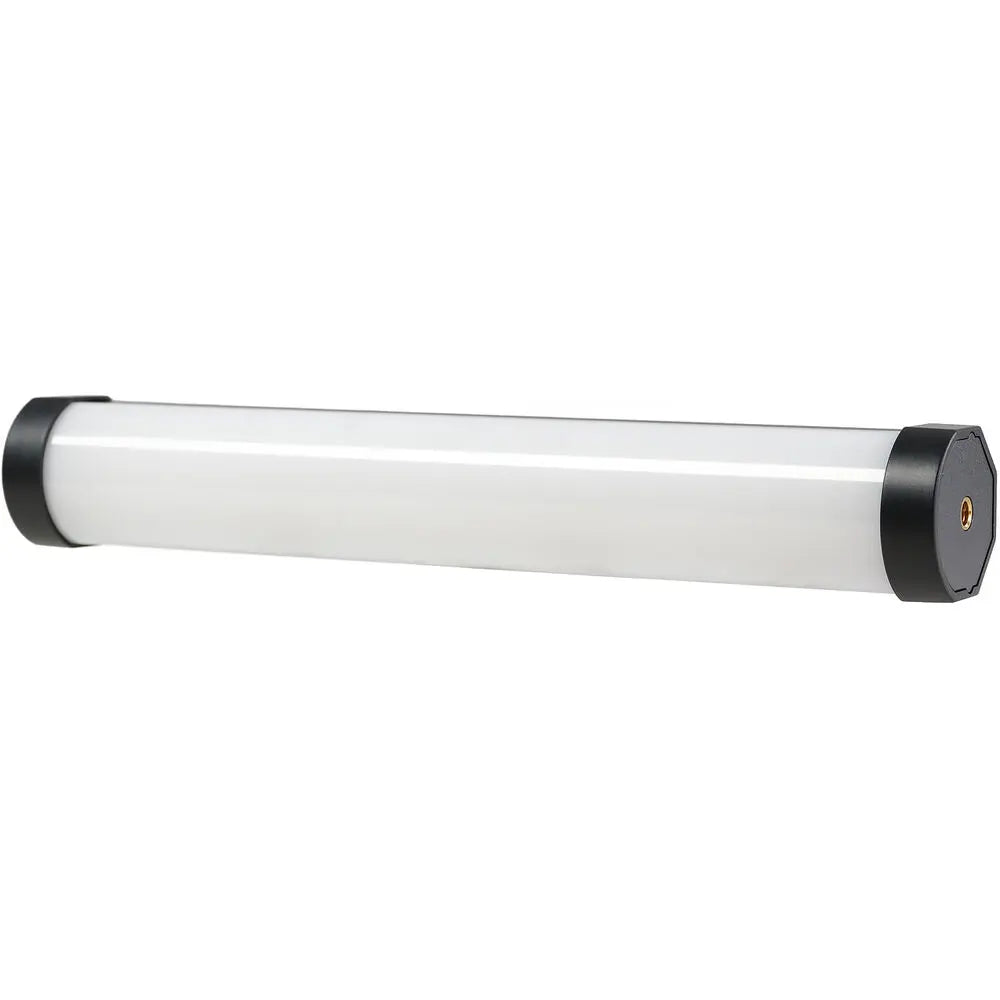

T12 Magnetic or 1/4"-20 Mounting

Mounting options are extensive, with compatibility for T12 diameter accessories, dual ¼"-20 threads on each end, and built-in magnets for quick attachment to metal surfaces. The kit includes 16 iron plates for mounting on non-metal surfaces, ensuring adaptability in any environment.

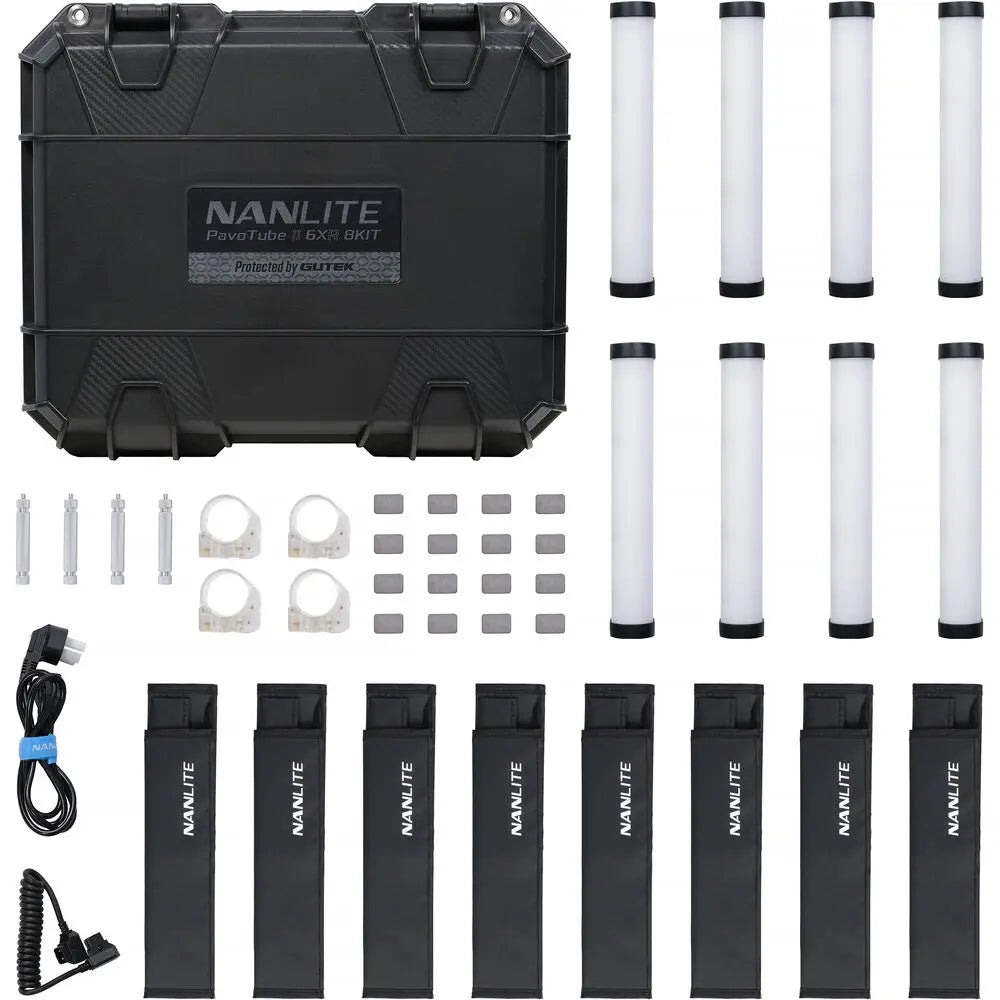

Included & Optional Accessories

This 8-light kit comes equipped with eight EC-PTII6C fabric grids, four transparent clips with ¼"-20 threads, and 5/8" baby pins, giving you instant control over light shaping and mounting. Optional accessories, such as the AS-WB-PTII6C waterproof bag, enable outdoor or underwater use, while existing 6C-compatible accessories remain fully supported.

Portability

Each PavoTube II 6XR weighs just 270 grams, making it an ultra-portable lighting tool ideal for on-the-go creators. Compact yet powerful, it’s perfectly suited for travel, location shoots, and any production that requires flexible, high-quality lighting. The included rugged charging case ensures all eight lights are protected and ready for action wherever your work takes you.

Light Fixture

• Item Type: 8x LED Light Tube/Wand
• Included Storage Case: Yes
• Lumens:
  • 435 (at 2700K)
  • 439 (at 3200K)
  • 457 (at 5600K)
  • 463 (at 6500K)
  • 464 (at 7500K)
• Photometrics:
  • 3200K:
    • 12 fc / 130 Lux at 3.3' / 1 m
    • 48 fc / 519 Lux at 1.6' / 0.5 m
    • 3 fc / 33 Lux at 6.6' / 2 m
  • 5600K:
    • 12 fc / 139 Lux at 3.3' / 1 m
    • 52 fc / 562 Lux at 1.6' / 0.5 m
    • 3 fc / 35 Lux at 6.6' / 2 m
  • 7500K:
    • 13 fc / 142 Lux at 3.3' / 1 m
    • 53 fc / 575 Lux at 1.6' / 0.5 m
    • 3 fc / 36 Lux at 6.6' / 2 m
• Colour Temperature: 2700 to 12,000K
• Colour Modes: RGB, Daylight, Tungsten
• Colour Accuracy Standard:
  • CRI 96
  • TLCI 97
  • SSI 83 at 3200K
  • SSI 73 at 5600K
• Dimming: App-Controlled / Built-In Dimmer / DMX / RDM (0 to 100%)
• Built-In Flash: No
• Pixel Zones: 8
• Preprogrammed Effects: Yes
• Umbrella Mount: No
• Front Accessory Mount: No

Connectivity

• Wireless Remote Control Type: Bluetooth, Wireless CRMX
• Mobile App Compatible: Yes (Android & iOS)
• App Name: Nanlink
• Functionality: Remote Control

Power & I/O

• Power Source: Battery (Built-In)
• Inputs/Outputs: 1x USB-C Female Power/DMX Input (*Adapter Required, Not Included)
• Battery: 1x Rechargeable Lithium-Ion, 3.7 VDC, 3200 mAh (Built-In)
  • Up to 53-Minute Runtime at 100% Brightness
  • Up to 2-Hour Runtime at 50% Brightness
• Battery Charging: Charging Cable (Included)
• Input Power: 5 to 20 VDC
• Included Adapter / Cable: 1x Unspecified to USB-C Male Cable (3.3' / 1 m)
• Power Consumption: 16 W

Mounting

• Fixture Mounting: 2x 1/4"-20 Female Thread, Magnetic

General

• Display: Yes
• Environmental Resistance: No
• Operating Conditions: -4 to 113°F / -20 to 45°C
• Certifications: BIS, CE, FCC-ID, KC, Kcc, NCC, RoHS, UKCA
• Dimensions: 9.84 x 1.57 x 1.51" / 24.99 x 3.99 x 3.84 cm (Fixture)
• Weight: 0.6 lb / 272 g
