Lilliput Dual 7" Rackmount Monitors with 12G-SDI & HDMI 2.0 (3 RU)

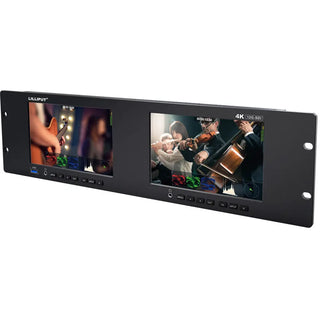

The Lilliput RM7026-12G is a dual 7-inch rackmount production monitor designed for professional broadcast and live environments. Featuring 1920 x 1200 resolution LCD panels with 1000 nits brightness and Hybrid Log Gamma HDR support, it delivers sharp, high-contrast monitoring in both studio and field setups. With dual 12G-SDI and HDMI 2.0 inputs/loop outputs, it supports UHD 4K and HD formats for flexible workflows. Image analysis tools such as waveform, histogram, false color, and focus peaking ensure accurate monitoring, while its rugged metal 3U rackmount design provides durability in demanding installations.

Lilliput RM7026-12G Specifications

Display

• Panel Type: LCD
• Display Size: 7.0" / 17.8 cm
• Native Resolution: 1920 x 1200
• Aspect Ratio: 16:10
• Viewing Angle: 160° (Horizontal), 160° (Vertical)
• Touchscreen: No
• Maximum Brightness: 1000 nits / cd/m²
• Contrast Ratio: 1200:1
• HDR Support: Hybrid Log Gamma (HLG)

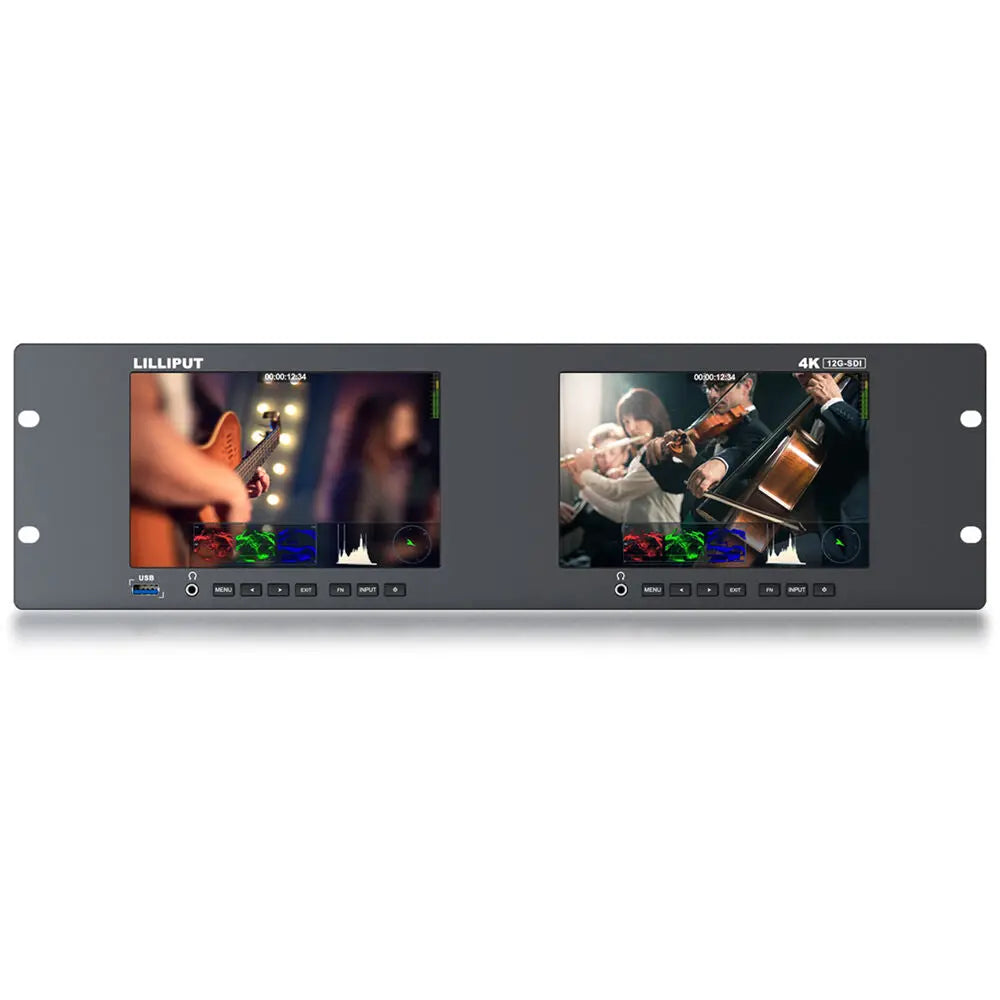

• Image Controls: Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Overscan, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Waveform

Inputs / Outputs

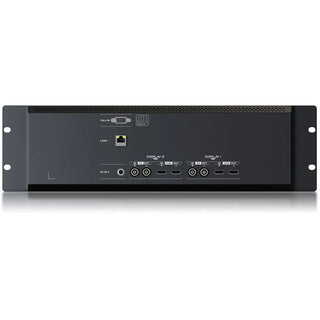

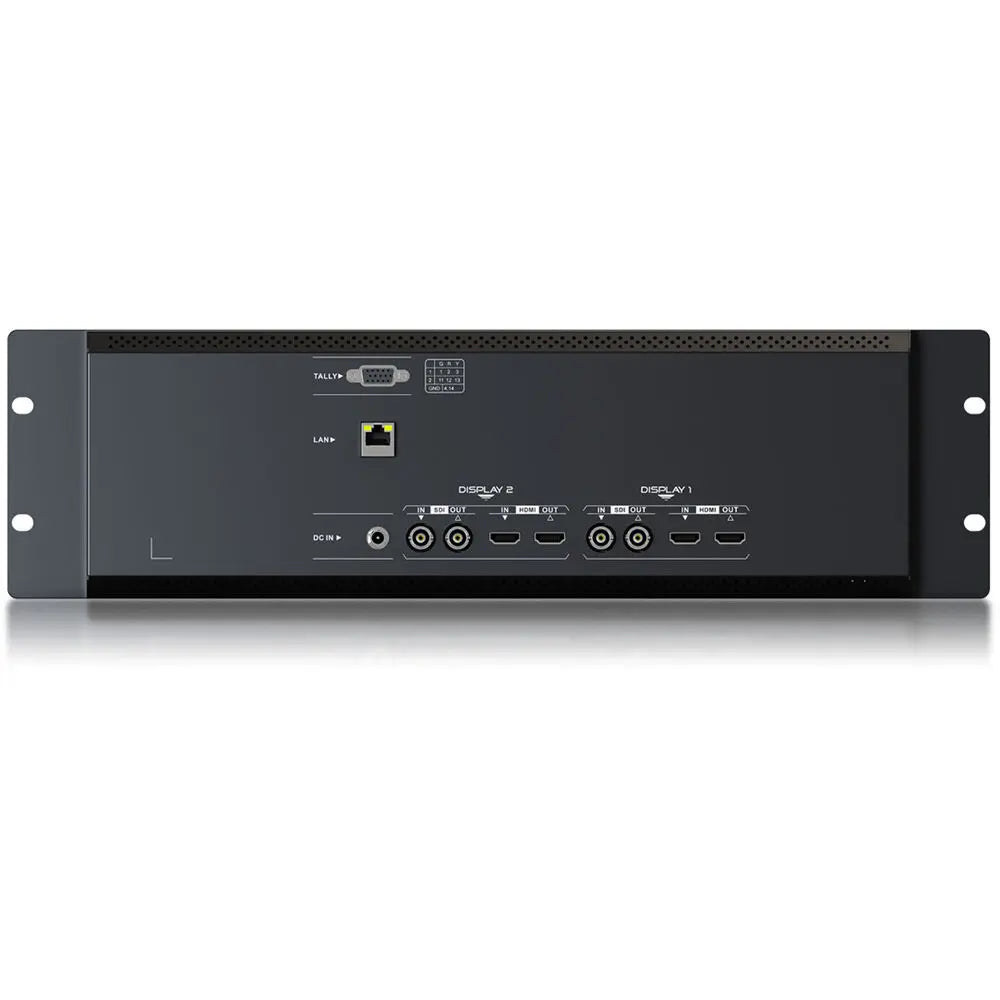

• Video I/O: 2 x BNC (12G-SDI) Input, 2 x BNC (12G-SDI) Loop Output, 2 x HDMI 2.0 Input, 2 x HDMI 2.0 Loop Output
• Audio I/O: 2 x 1/8" / 3.5 mm Headphone Output
• Built-In Speaker: No
• Power I/O: 1 x Barrel (24 VDC / 3 A) Input
• Other I/O: 1 x RJ45 (LAN), 1 x DE-15/DB-15 (Tally), 1 x USB-A
• Media/Memory Card Slot: No

Wireless

• Wi-Fi: No
• Bluetooth: No
• Mobile App Compatible: No

Format Support

• SDI: UHD 4K (60/50/30/25/24), 1080p (60/50/30/25/24), 1080i (60/50)
• HDMI: UHD 4K (60/50/30/25/24), 1080p (60/50/30/25/24), 1080i (60/50), 720p (60/50)

Power

• Input Power: 10 to 24 VDC
• Battery: No
• Power Consumption: 21 W

Mounting

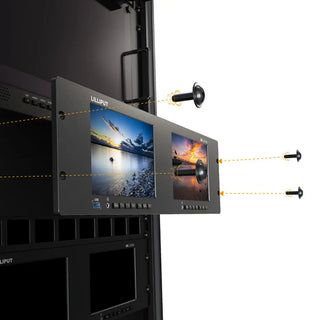

• Rack Form Factor: 3U

General Specifications

• Operating Conditions: 32 to 82°F / 0 to 50°C
• Storage Conditions: -4 to 140°F / -20 to 60°C
• Material of Construction: Metal

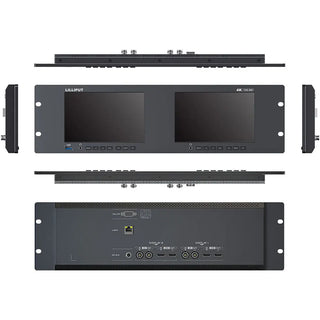

• Dimensions: 18.9 x 5.2 x 1.3" / 480 x 131.6 x 32.5 mm
• Weight: 4.03 lb / 1.83 kg
