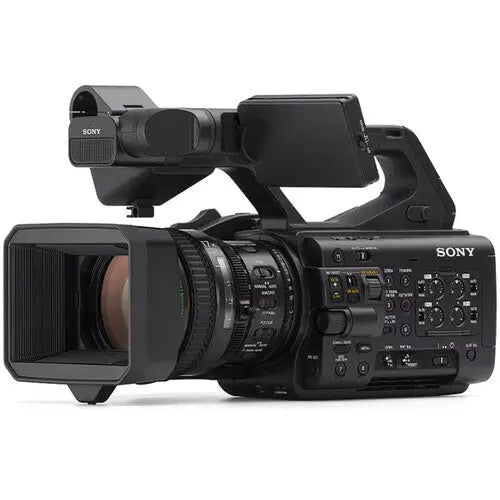

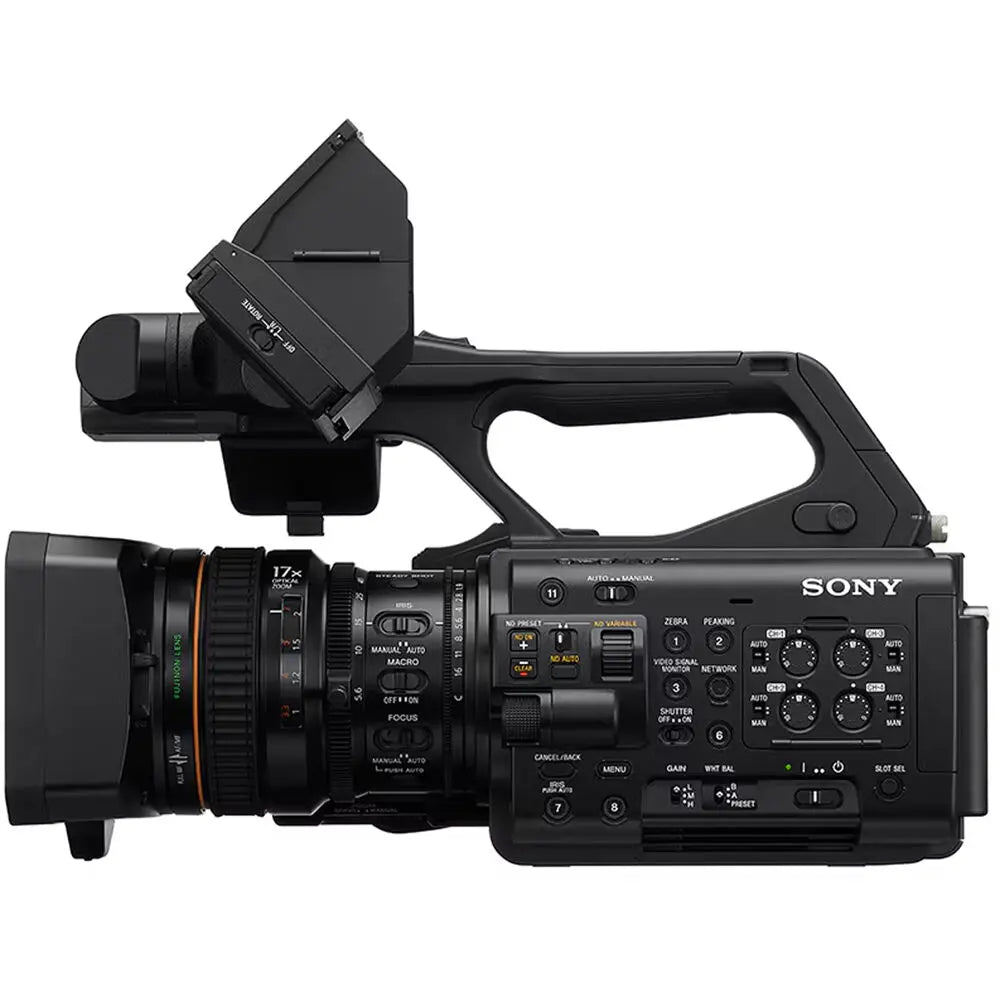

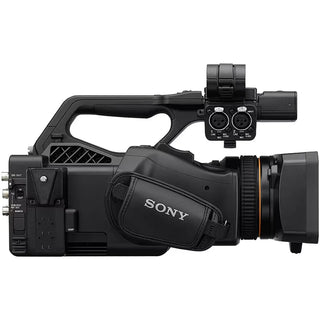

Sony PXW-Z300 3-CMOS XDCAM Camcorder

Overview

High-Performance UHD 4K60 Capture
Packed with broadcast-friendly features, Sony’s PXW-Z300 3-CMOS XDCAM Camcorder uses a 1/2"-type 3-CMOS sensor system to capture up to UHD 4K60 video. Designed for news, documentary, and live production environments, it combines advanced AI autofocus, improved network functions, video authentication, and flexible monitoring options into a compact, shoulder-ready form factor.

Agile News and Production Workflows
Features such as digital signature embedding for authenticity verification, efficient file transfer and streaming, and cloud connectivity enable fast, reliable, and agile workflows for news gathering and field production.

4K Exmor R CMOS Sensors and BIONZ XR Processing
The PXW-Z300 pairs three 4K Exmor R CMOS sensors with Sony’s powerful BIONZ XR image processor to deliver finely detailed, lifelike images with excellent color reproduction, deep depth of field, and exceptionally low noise performance.

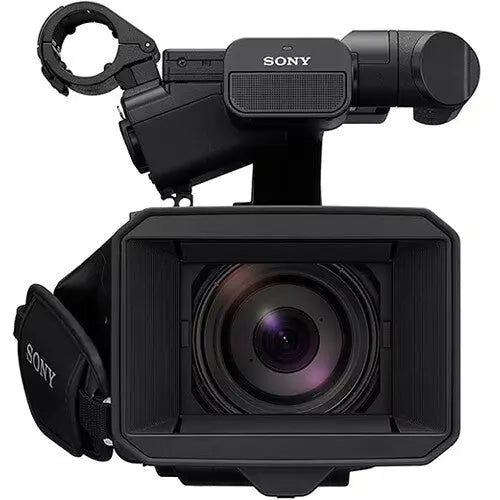

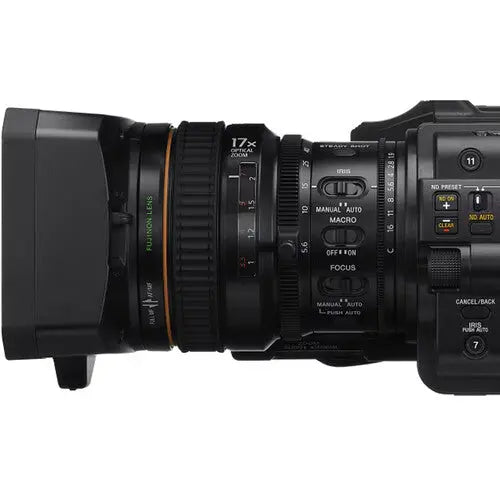

17x Zoom Lens with Advanced Control
The integrated 17x optical zoom lens covers a versatile 30.3 to 515mm (35mm equivalent) range with a bright f/1.9 maximum aperture. A digital extender provides 2x, 3x, or 4x magnification in HD and 1.5x in UHD 4K. Independent focus, iris, and zoom rings allow intuitive manual operation, with a sliding focus ring enabling quick switching between autofocus and full manual focus.

Advanced AI Autofocus and Image Stabilization
A dedicated AI processing unit enables advanced subject-recognition autofocus, accurately tracking people even when they are backlit, distant, partially obscured, or facing away from the camera. Built-in optical image stabilization helps reduce camera shake during handheld shooting.

Look Matching and Color Flexibility
Support for S-Cinetone, ITU709, and 709tone presets ensures easy SDR matching with other Sony cameras, while HLG Live, HLG Mild, and HLG Natural presets simplify HDR workflows. Custom 3D LUT import is also supported for creating tailored looks.

Versatile Recording, Streaming, and Connectivity
Dual media slots, Picture Cache, Interval Recording, and Slow & Quick Motion provide flexible capture options across UHD 4K and HD formats. The PXW-Z300 supports MXF MPEG HD422, XAVC Intra, XAVC Long, and proxy MP4 recording, along with RTMP/RTMPS and SRT live streaming. Comprehensive connectivity includes 12G-SDI, HDMI, timecode, genlock, LAN, USB-C, and remote control interfaces.

Designed for Modern Field Production
A high-bright touchscreen LCD mounted on a flexible arm, an integrated side accessory V-mount, wireless monitoring and control via the Monitor & Control app, upcoming C2PA-compliant video authentication, and robust power options using BP-U batteries or USB-C PD make the PXW-Z300 a powerful, future-ready solution for professional broadcast and live production.

Imaging

• Image Sensor: 7.6 x 4 mm (1/2"-Type) 3-Chip CMOS
• Effective Sensor Resolution: 8.29 MP (Effective), 12.2 MP (Actual)
• Image Stabilization: Optical (Integrated Lens)
• Built-In ND Filter: 2 to 7-Stop Electronic ND
• Capture Type: Video Only

Exposure Control

• Shutter Type: Electronic Rolling Shutter
• Shutter Speed: 1/8000 to 64 Seconds
• ISO / Gain Sensitivity: -3 to 18 dB (Extended: -3 to 42 dB)
• Minimum Illumination: 0.0013 Lux at f/1.9
• White Balance: 2000 to 15,000K (ATW Preset)

Lens

• Focal Length: 5.6 to 95.2mm (35mm Equivalent: 30.3 to 515mm)
• Zoom: 17x Optical
• Maximum Aperture: f/1.9
• Minimum Aperture: f/16
• Minimum Focus Distance: 2" / 5 cm (From Front of Lens)
• Control Rings: Focus, Zoom, Iris
• Focus Mode: Automatic, Manual

Video Capture

• Internal Recording Formats: MP4 Proxy, XAVC-I, XAVC-L, MXF
• UHD 4K: 3840 x 2160 at 23.98/25/29.97/50/59.94 fps
• Full HD: 1920 x 1080p at 23.98/25/29.97/50/59.94 fps
• Interlaced: 1920 x 1080i at 50/60 fps
• Video Output: SDI (BNC), HDMI
• Broadcast Standards: NTSC, PAL
• Fast / Slow Motion: Supported
• Interval Recording: Time-Lapse Video
• Gamma Curves: HDR-HLG, Rec.709, Rec.2020, S-Cinetone, S-Log3

Audio

• Built-In Microphone: Stereo
• Audio Recording: MP4, MXF, XAVC (4-Channel)
• Audio Inputs: 2x XLR 3-Pin
• Headphone Output: 1x 3.5 mm TRS

IP Streaming

• Protocols: RTMP, RTMPS, SRT
• UHD Streaming: 3840 x 2160 at 25p, 29.97p
• HD Streaming: 1920 x 1080 at 25p, 29.97p, 50p, 59.94p
• HD Ready: 1280 x 720 at 25p, 29.97p

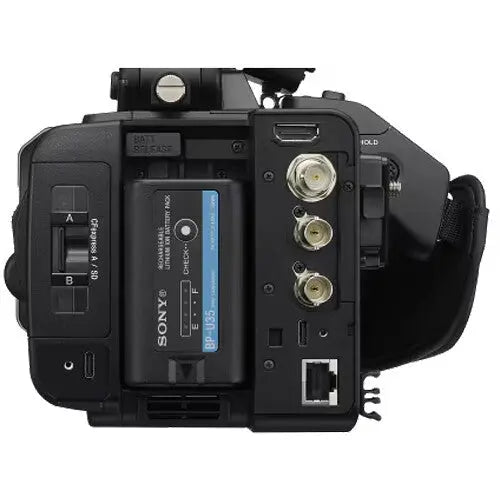

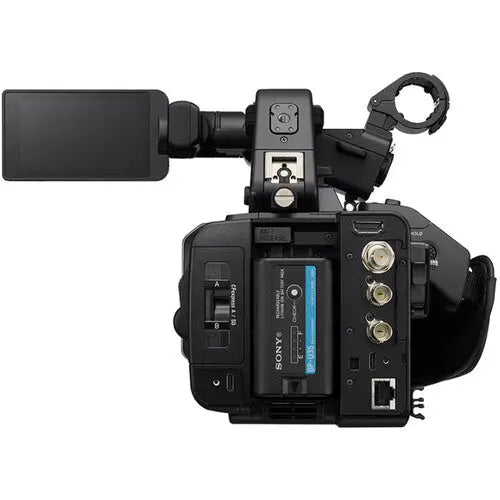

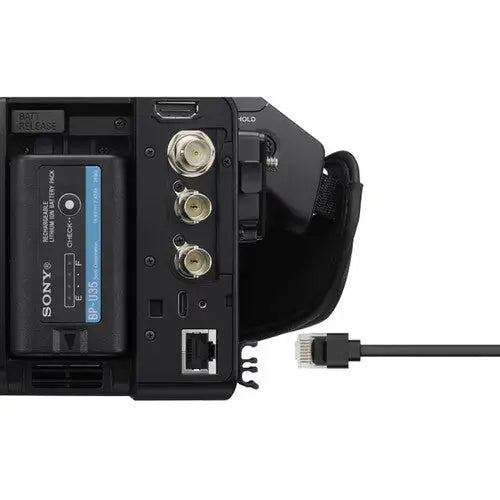

Media & Interface

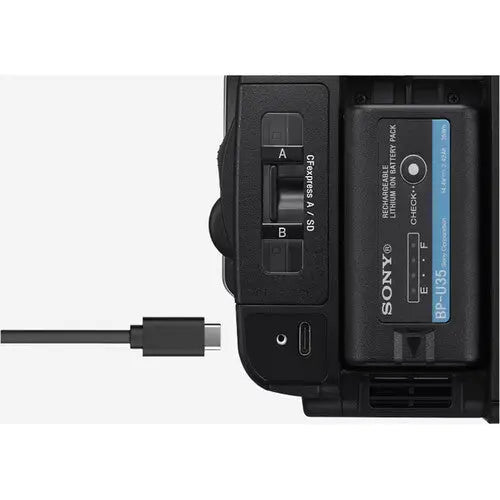

• Media Slots: Dual Slot (CFexpress Type A / SDXC)
• Video I/O: 1x 12G-SDI (BNC), 1x HDMI 2.0
• Power Input: USB-C (20V DC, 5A)
• Other I/O: Timecode (BNC), Genlock (BNC), RJ45 Gigabit Ethernet, 2.5 mm Remote, 3.5 mm Control

Wireless & Control

• Wireless: Wi‑Fi 5 (802.11ac)
• Mobile App Support: Yes (Android & iOS)
• App: Sony Monitor & Control
• GPS: Yes

Monitor & Viewfinder

• Monitor: 3.5" Articulating Touchscreen LCD
• Resolution: 2,764,800 Dots
• Viewfinder: Via Video Output Only

Power

• Battery: Sony BP-U Series
• Power Consumption: ≥48 W

Environmental

• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -4 to 140°F / -20 to 60°C

General

• Shoe Mount: 1x Cold Shoe, 1x Hot Shoe
• Tripod Mount: 1x 1/4"-20, 1x 3/8"-16
• Accessory Threads: 2x 1/4"-20
• Dimensions (W x H x D): 7.2 x 7.9 x 13.1" / 182.5 x 201.9 x 333.9 mm
• Weight: 5.7 lb / 2.6 kg (Body Only), 6.59 lb / 2.99 kg (With Battery)
