PortKeys LS7P 7" HDMI/SDI High-Bright Monitor with Wireless Camera Control
SKU: LS7P
Main Features
- 7" 1920 x 1080 Resolution Display
- Up to DCI 4K30 Video Input via HDMI
- Up to 1080p Video Input via 3G-SDI
- Wireless Control of Multiple Cameras
- 1000 cd/m² Brightness | 1000:1 Contrast
- Multiple Built-In Imaging Tools, 3D LUTs

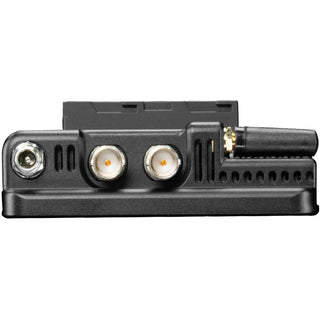

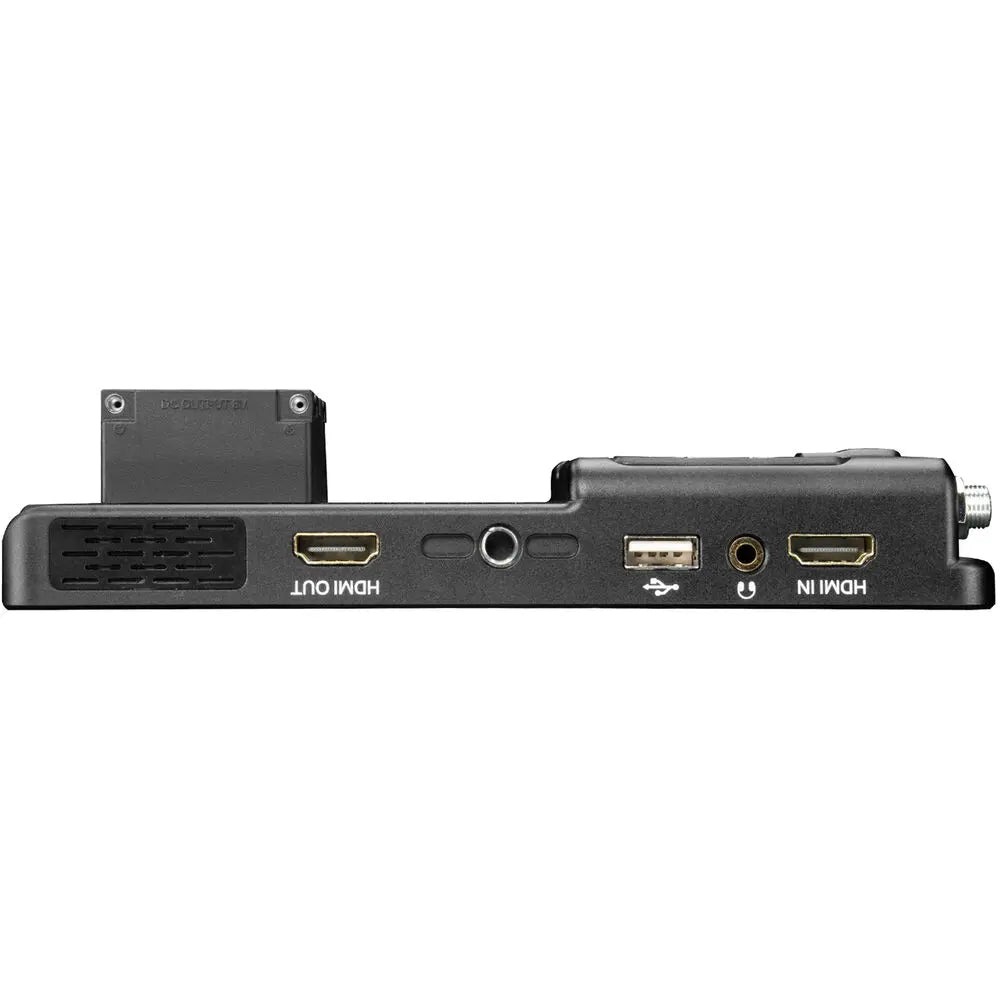

- HDMI/SDI Loop Output, Headphone Jack
- 160° Viewing Angle, Top Buttons
- Power via L-Series Battery or DC Input
- 1/4"-20 Mounting Thread, Back Flex Mount
Preview and control multiple cameras with the PortKeys LS7P 7" HDMI/SDI High-Bright Monitor with Wireless Camera Control, a powerful touchscreen monitor designed for professional multi-camera workflows. It supports up to DCI 4K30 input via HDMI and 1080p via 3G-SDI, with HDMI...
More Details
PortKeys LS7P 7" HDMI/SDI High-Bright Monitor with Wireless Camera Control
SKU: LS7P
Fast Shipping
Secure payment
Tax Included
Tax included.

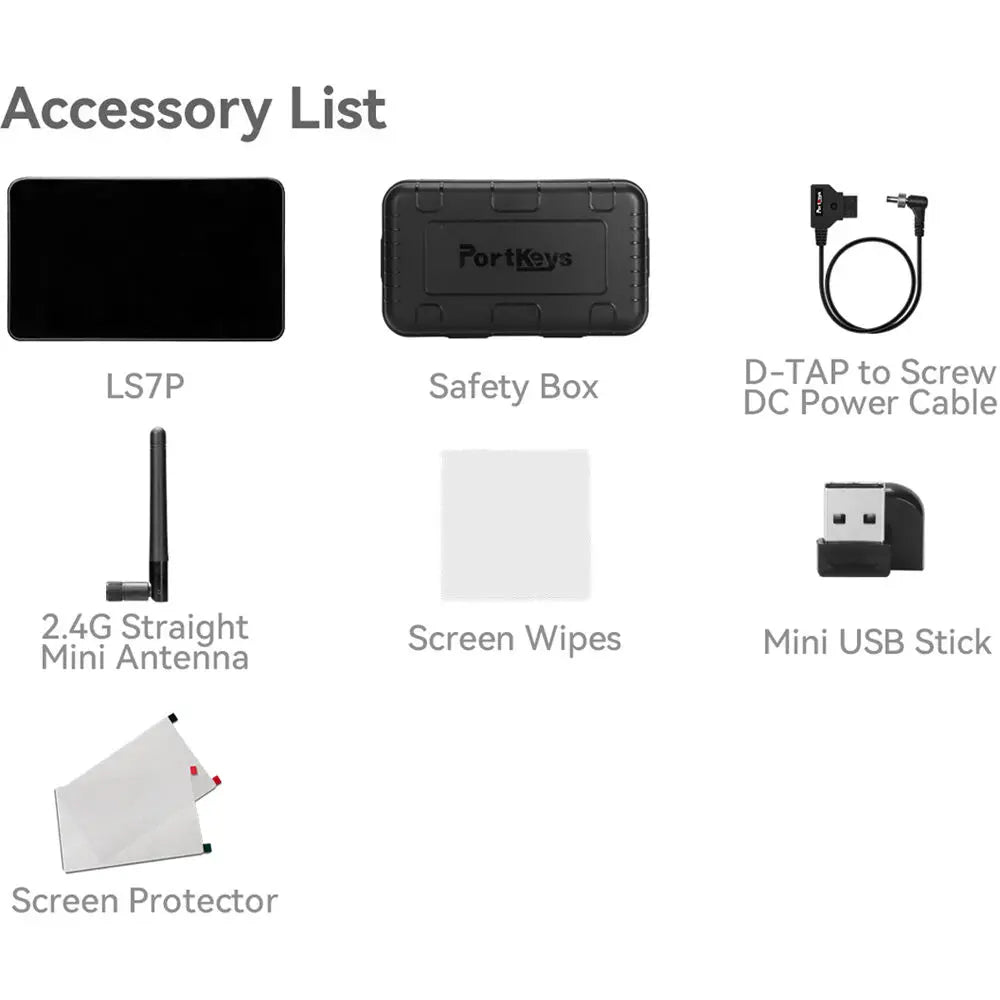

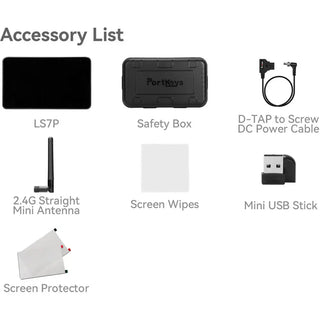

What's in the box
- Safety Box
- 2.5 GHz Mini Antenna
- Mini-USB Flash Drive
- Screen Wipe
- D-Tap to Locking DC Power Cable
- Screen Protector
- Limited 1-Year Manufacturer Warranty
Write a Review
Ask a Question
Main Features
- 7" 1920 x 1080 Resolution Display
- Up to DCI 4K30 Video Input via HDMI
- Up to 1080p Video Input via 3G-SDI
- Wireless Control of Multiple Cameras
- 1000 cd/m² Brightness | 1000:1 Contrast
- Multiple Built-In Imaging Tools, 3D LUTs
- HDMI/SDI Loop Output, Headphone Jack
- 160° Viewing Angle, Top Buttons
- Power via L-Series Battery or DC Input
- 1/4"-20 Mounting Thread, Back Flex Mount
Preview and control multiple cameras with the PortKeys LS7P 7" HDMI/SDI High-Bright Monitor with Wireless Camera Control, a powerful touchscreen monitor designed for professional multi-camera workflows. It supports up to DCI 4K30 input via HDMI and 1080p via 3G-SDI, with HDMI...
More Details
-
PortKeys LS7P 7" HDMI/SDI High-Bright Monitor with Wireless Camera Control
Preview and control multiple cameras with the PortKeys LS7P 7" HDMI/SDI High-Bright Monitor with Wireless Camera Control, a powerful touchscreen monitor designed for professional multi-camera workflows. It supports up to DCI 4K30 input via HDMI and 1080p via 3G-SDI, with HDMI and SDI loop outputs for sending your signal to additional displays. Using the latest Movnorm OS with built-in Wi-Fi and Bluetooth, you can wirelessly monitor and control up to four cameras at once directly from the monitor interface.

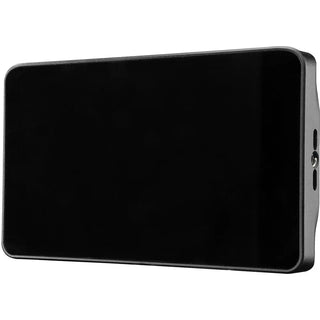

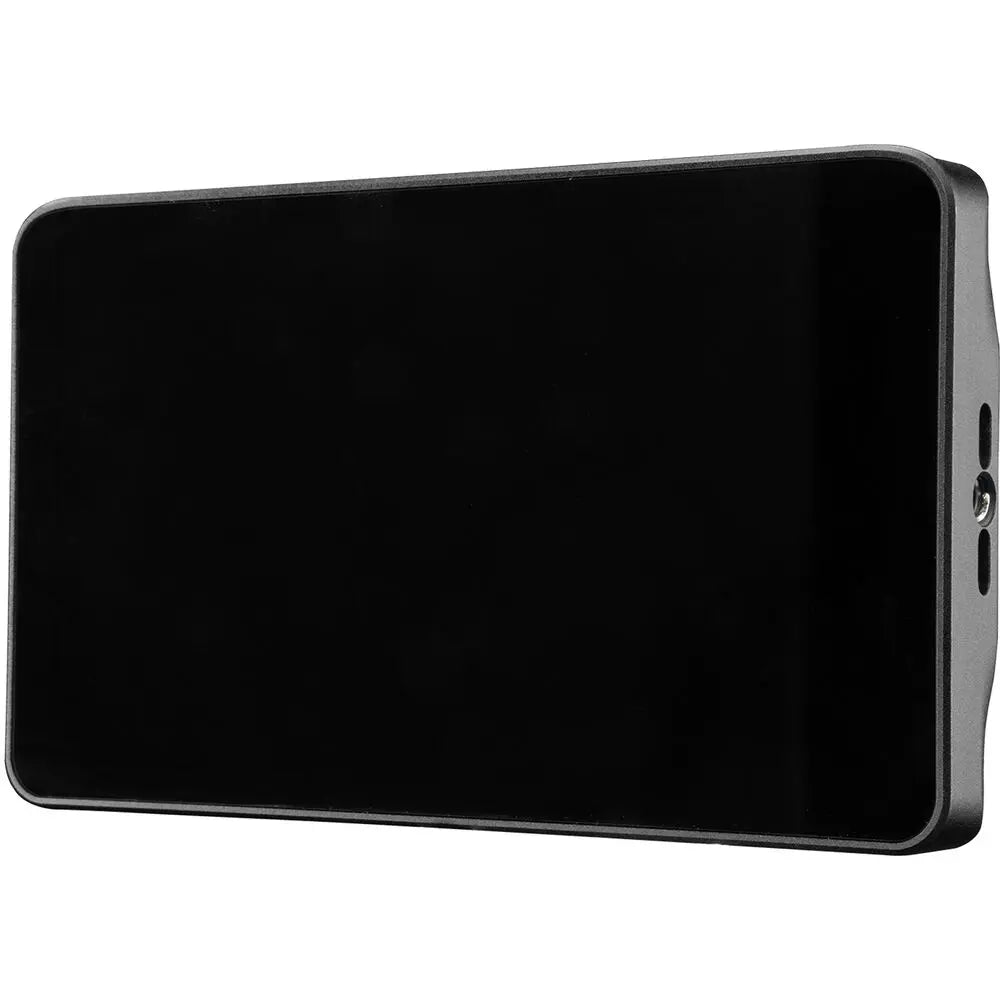

The 7" LCD screen features a 1920 × 1080 resolution, 1000:1 contrast ratio and a high-brightness 1000 cd/m² panel, making it easy to view both indoors and outdoors. With a wide 160° viewing angle, framing and focus remain clear even when you’re not positioned directly in front of the screen.

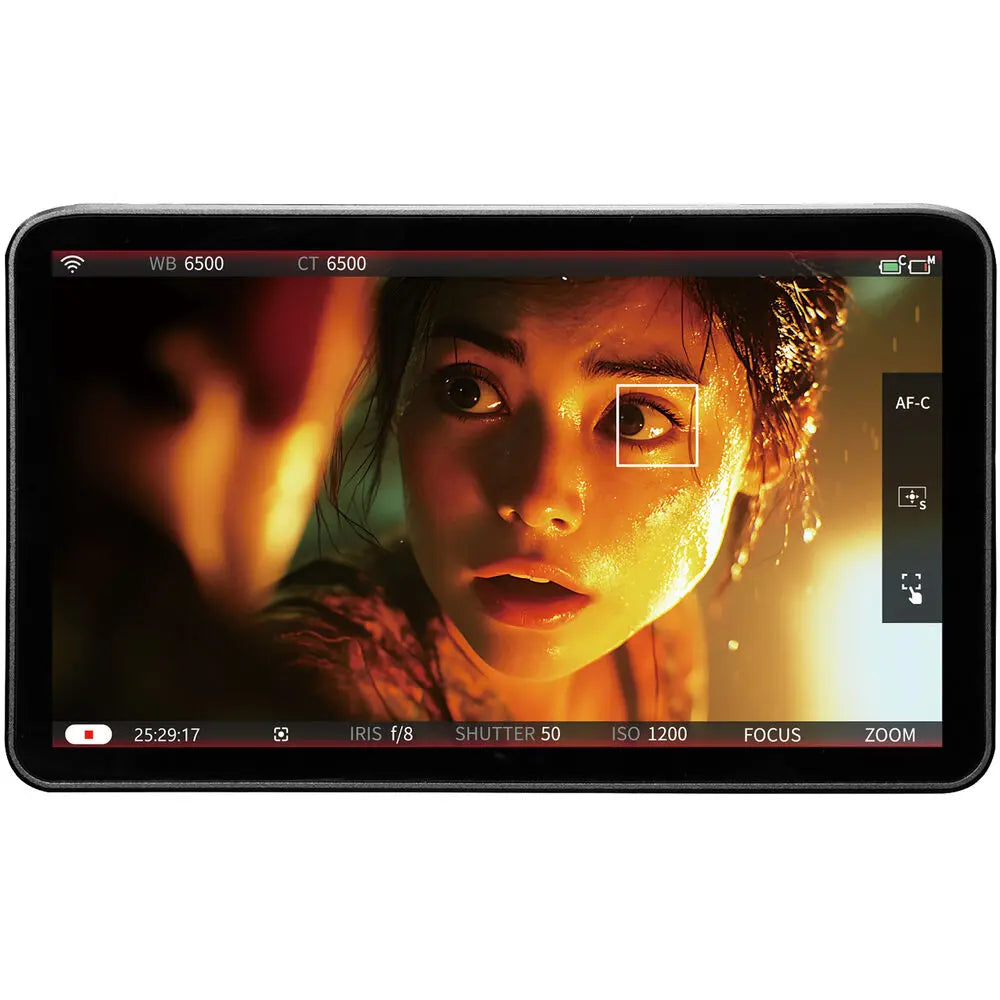

Wireless and wired camera control is fully supported, allowing you to access key functions such as touch focus, start/stop recording and more. You can switch between up to four connected cameras directly from the touchscreen, making it ideal for studio, broadcast and multi-angle productions.
The monitor supports real-time 3D LUT processing on both the display and loop outputs. Custom LUTs can be loaded via the USB-A port using a flash drive and stored directly on the monitor for quick access during shoots.
A comprehensive suite of professional imaging tools is built in, including peaking, zebra, false colour, waveform and RGB scopes, audio meters, freeze frame, guides and grids, as well as colour controls such as contrast, sharpness, tint and chroma. Anamorphic de-squeeze, crop functions and preset lens ratios are also available to suit a wide range of shooting styles.

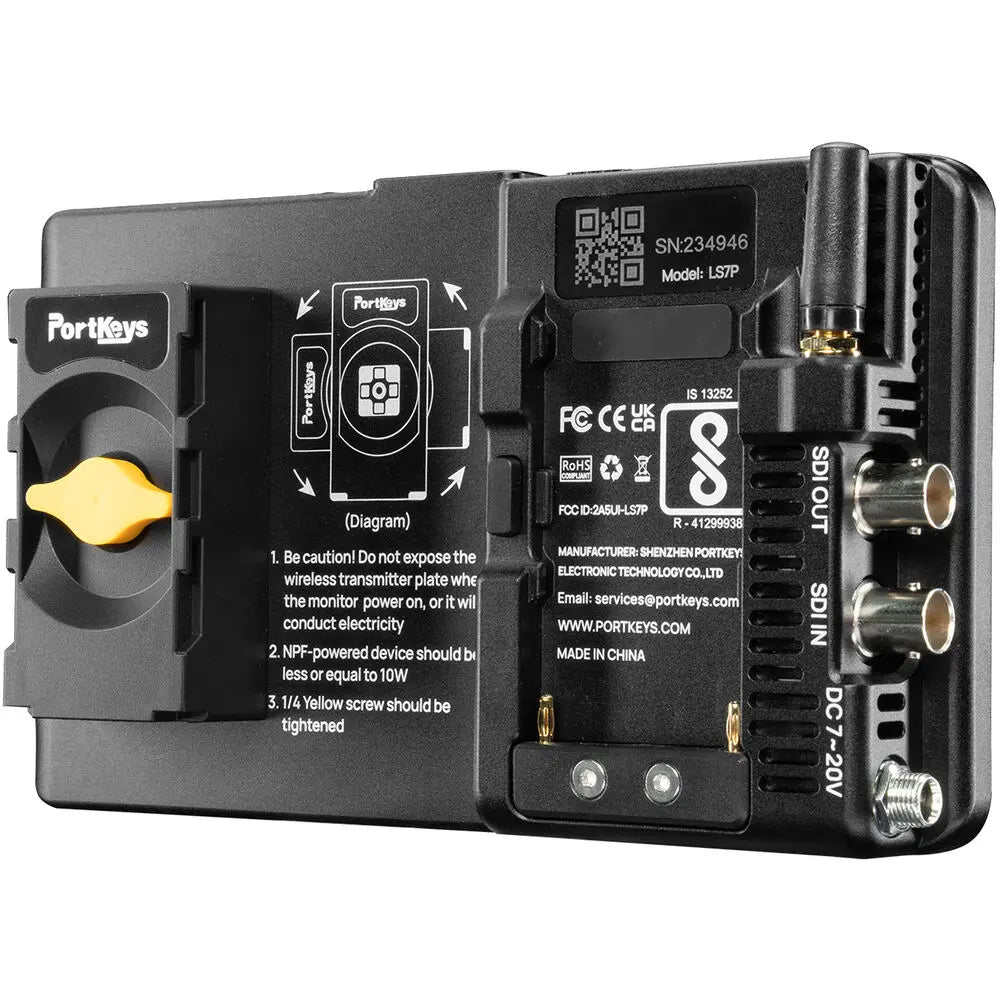

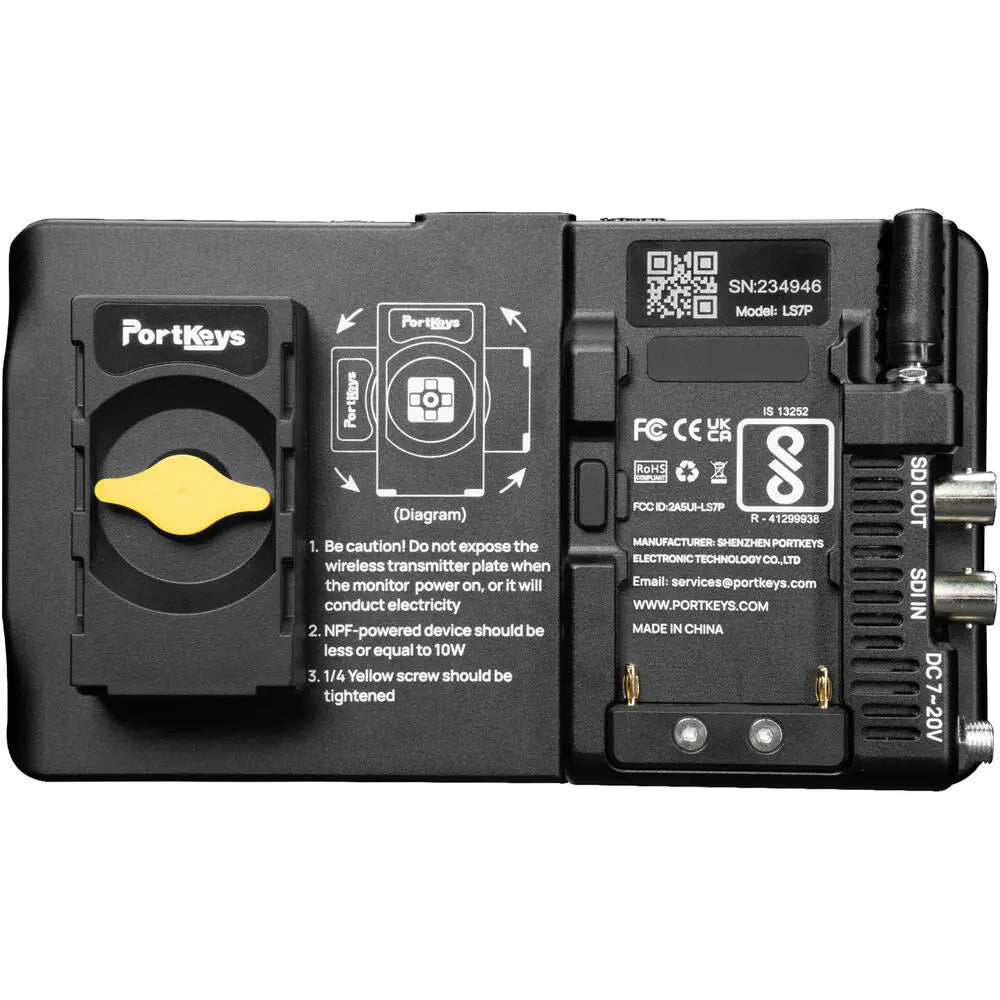

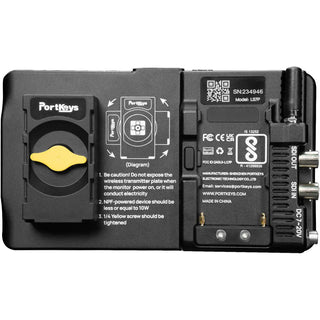

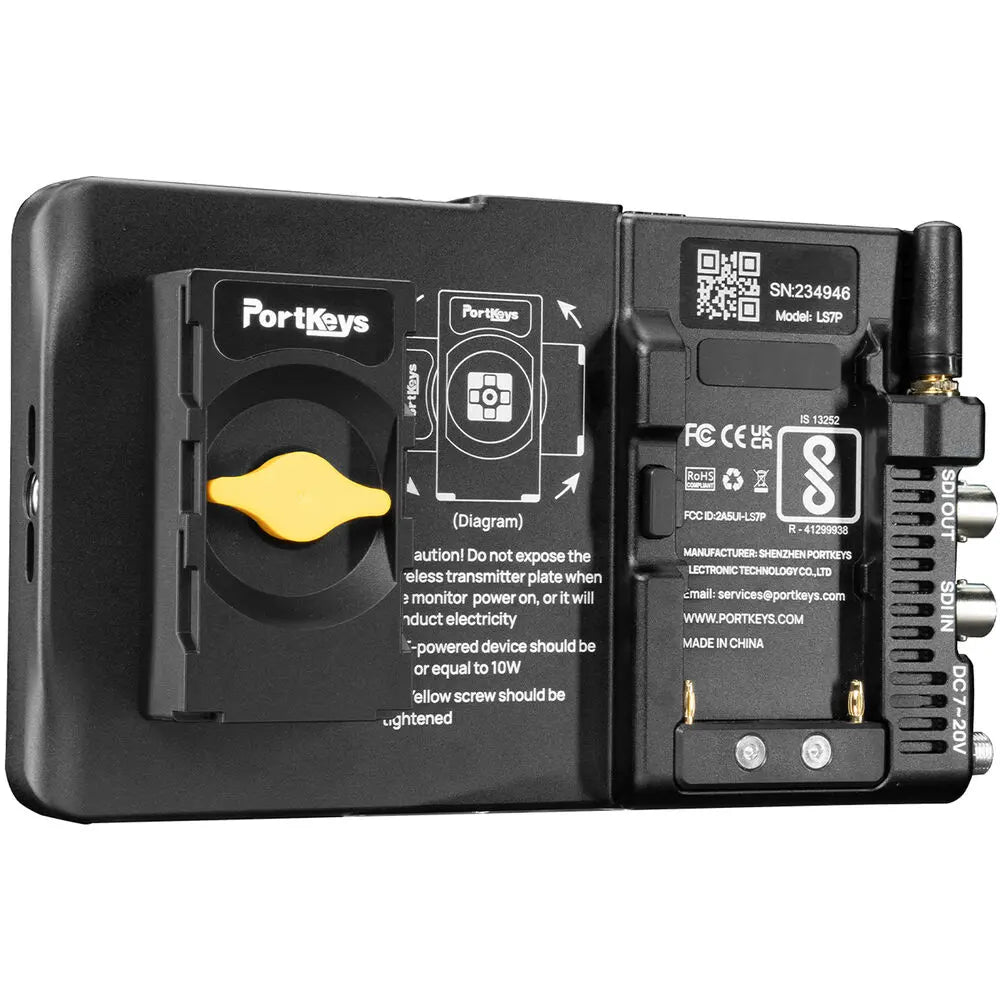

Designed for fast-paced workflows, the rear flex mount incorporates an L-series dummy battery plate, allowing you to mount and power a compatible video transmitter or receiver directly from the monitor. Power is supplied via a Sony L-series battery or through the locking DC input using an optional power adaptor.

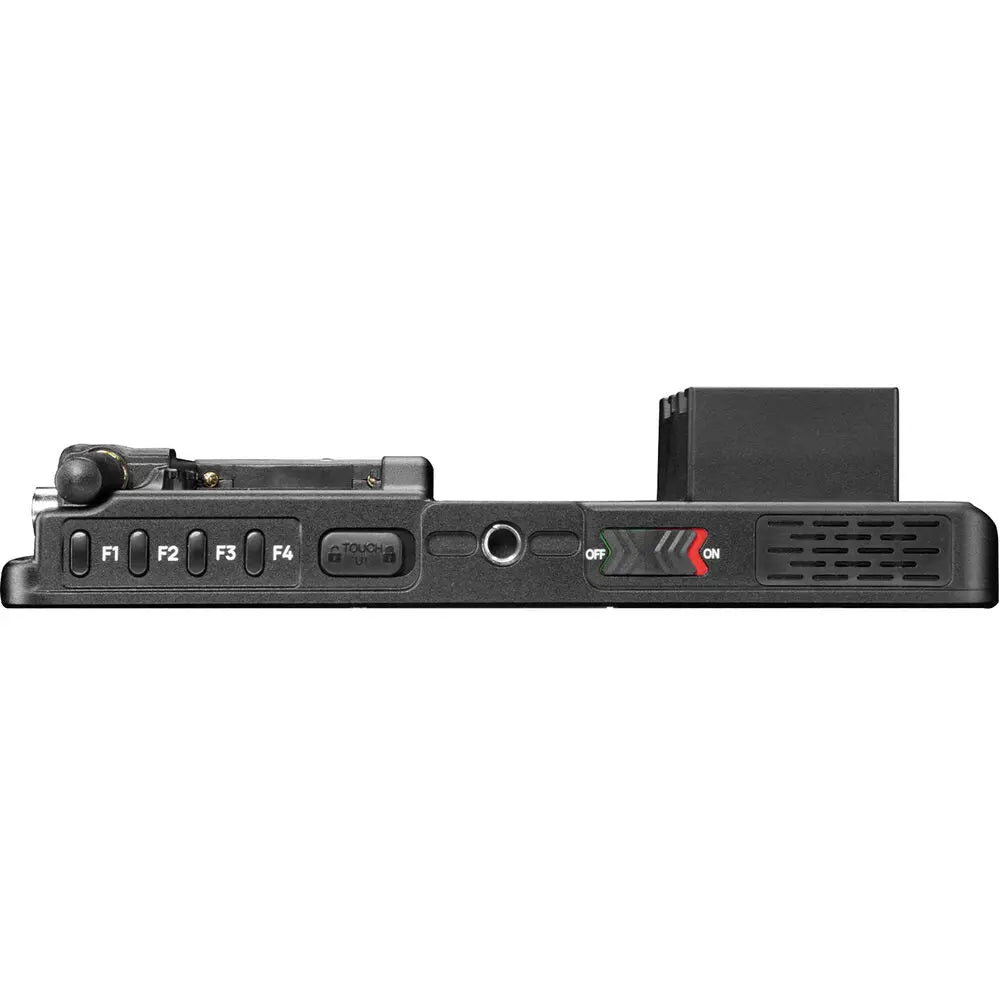

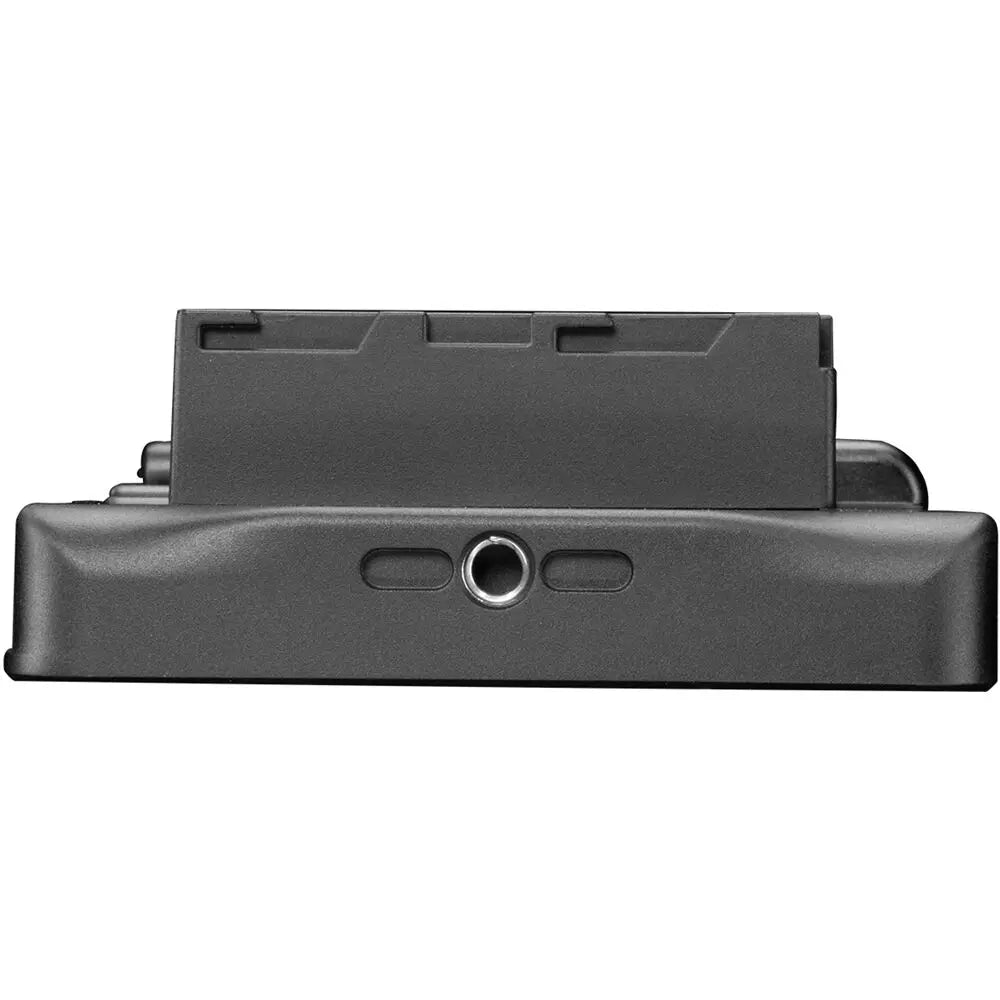

The aluminium chassis is lightweight yet durable for use in demanding environments, while customisable control buttons on the top panel let you assign your most-used tools. With 1/4"-20 mounting threads on the top, side and bottom, the monitor integrates seamlessly into any camera rig, arm or cage setup.
