Portable 3-Camera PTZ Livestreaming Bundle

Portable 3-Camera PTZ Livestreaming Bundle

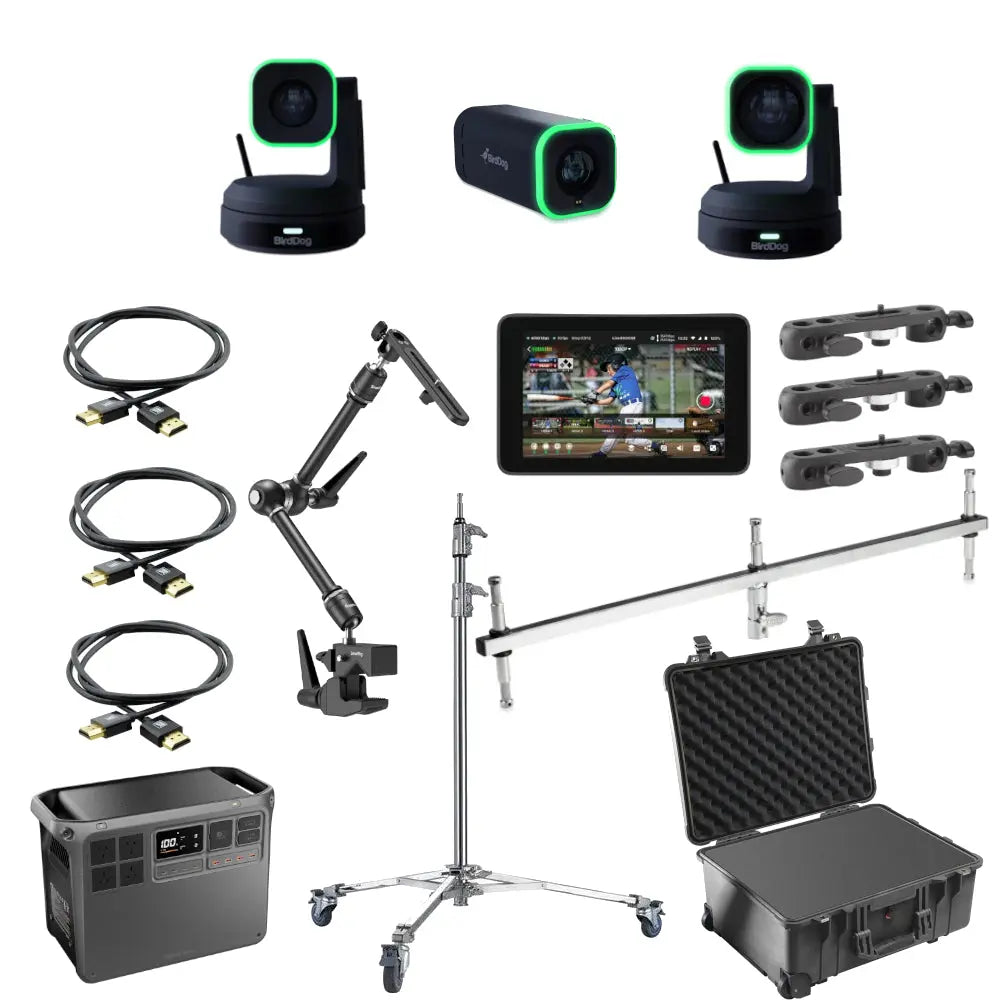

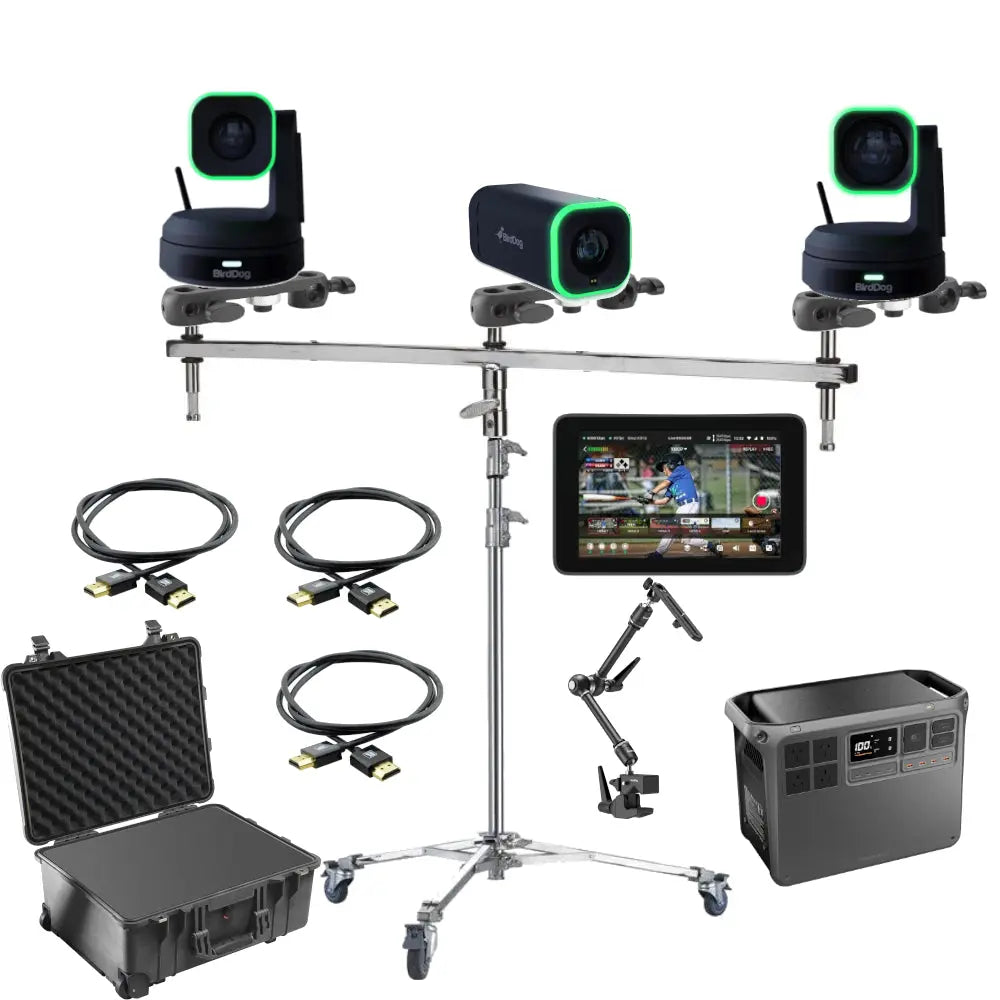

The Portable 3-Camera PTZ Livestreaming Bundle is a comprehensive bundle, that's perfect for live streams on location. Whether you're streaming a wedding, event, or funeral, this kit is perfect for you.

With 2 Birddog X1 AI Auto-Tracking PTZ Cameras, 1 Birddog Maki Live, and a YoloBox Ultra, this bundle comes together to create a fantastic portable live streaming kit. These three cameras come together to give you ultimate flexibility to control and switch between the static angle of the Maki to the two dynamic angles of the X1's. All from the Yolobox Ultra.

The cameras and Yolobox fit securely into a Pelican 1560 Case with Foam, that also has room for additional accessories.

Also included in the bundle is the DJI Power 2000. This will allow you to power the cameras in even the most remote locations, or when accessing power isn't that easy.

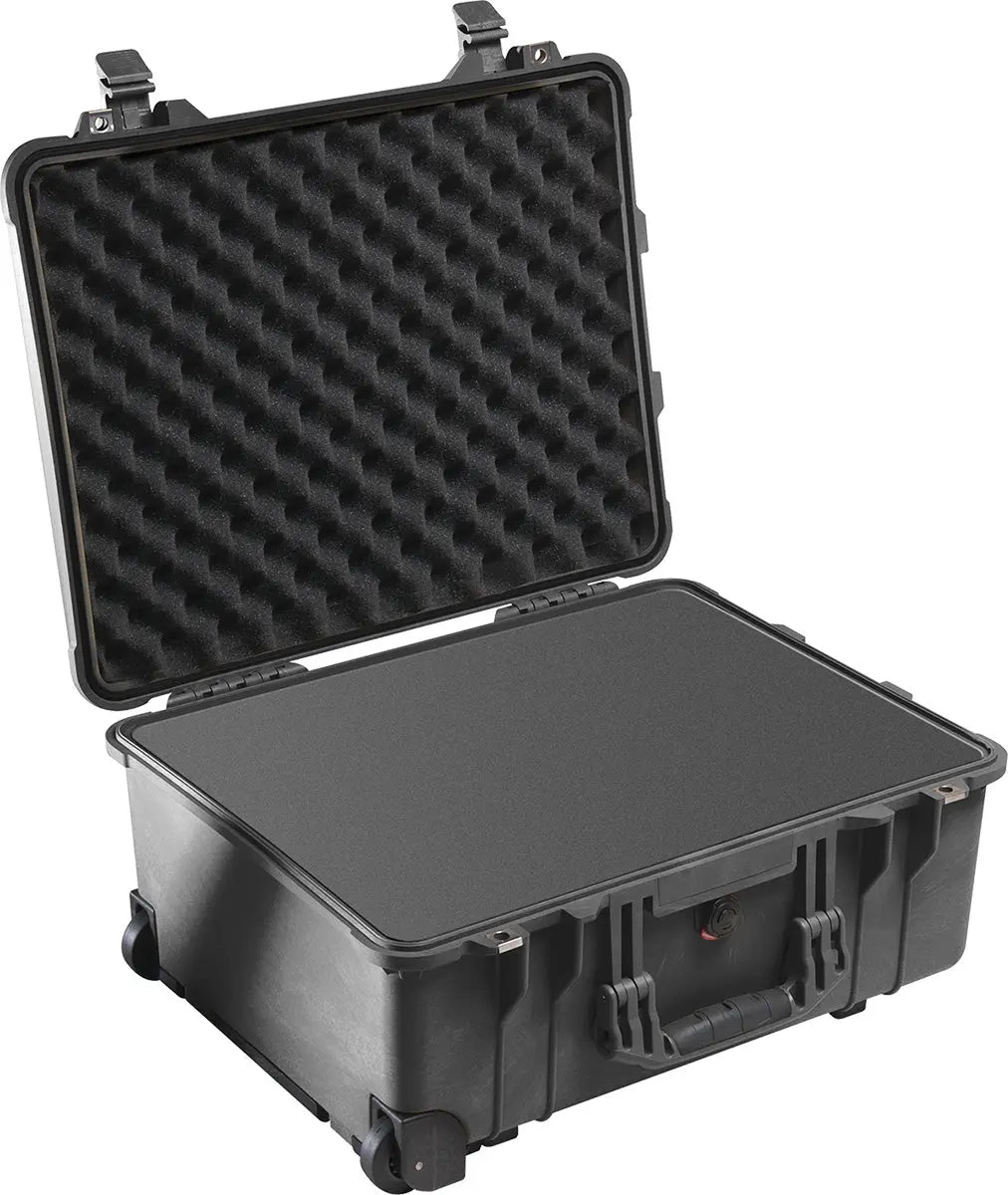

• Pelican PE1560 1560 Case

  • * Retractable extension handle
  • * Strong polyurethane wheels with stainless steel bearings
  • * Easy open Double Throw latches * Open cell core with solid wall design - strong, light weight
  • * O-ring seal
  • * Automatic Pressure Equalization Valve
  • * Comfortable rubber over-molded top and side handles
  • * Stainless steel hardware and padlock protectors
  • * 2 level Pick N Pluck™ with convoluted lid foam
  • * Lifetime Guarantee of Excellence
  • * Watertight, crushproof, and dust proof


  019428045388

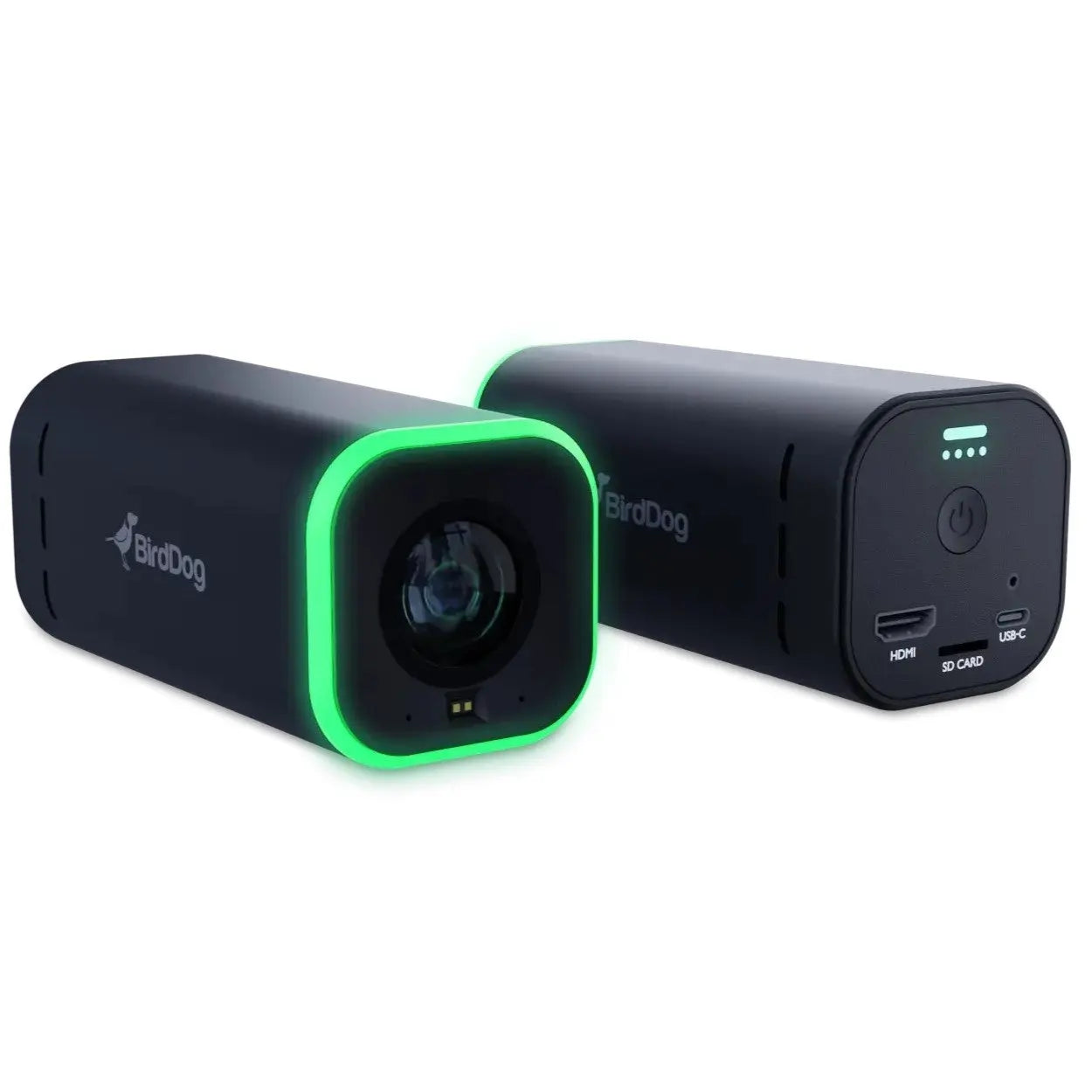

• BirdDog MAKI Live - 4K Portable Live Streaming camera with NDI

  High-Quality Video Streaming

  Easily stream high-resolution video at rates up to UHD 4K30 using the MAKI Live UHD 4K Streaming Box Camera from BirdDog. Ideal for podcasters, content creators, and educators, the MAKI Live features built-in Wi-Fi 6, NDI|HX2|HX3 and RTSP, RTMP, and SRT support, 3x optical/10x digital zoom, and HDMI and USB-C outputs.

  AI-Assisted Zoom and Audio

  The MAKI Live has a zoom lens with an 81.4 to 31.3° angle of view, and it offers AI-assisted gesture recognition for hands-free zoom control. It also provides low/mid/high AI noise isolation for capturing your speakers clearly in various environments.

  Up to UHD 4K30 Video

  With its 1/2.8"-type Sony CMOS sensor and 4K30 capabilities, the MAKI Live can capture clear, detailed video at rates up to UHD 4K30.

  Streaming

  The MAKI Live offers NDI|HX2 and low/medium/high/ultra NDI|HX3 streaming, balancing video quality with efficient bandwidth usage. Download an NDI|HX-compatible viewer like the free NDI Studio Monitor, or use the BirdDog PLAY hardware decoder to view your NDI stream. SRT streaming is offered for reliable remote transmission, and multicasting is available with a properly configured network.

  Autofocus Modes

  Choose between automatic, manual, and ToF (time of flight) modes to keep your subjects in focus.

  MAKI Live App

  Available for iOS and Android devices, the MAKI Live app can be used to set your camera as a Wi-Fi client or hotspot in AP (access point) mode. It also provides main camera function settings, tally adjustments, and the ability to save video to a microSD card.

  Web GUI

  Use BirdDog's BirdUI to remotely configure your MAKI Live camera using your computer browser.

  Configurable Tally

  The BirdDog HALO multicolor tally system is built into your MAKI Live camera, letting you adjust the front tally light and rear LEDs to best suit your talent or operator's preferences.

  Compact Form

  The MAKI Live features a compact form, helping you easily capture engaging camera angles without getting in the way of your talent.


  9354873001239

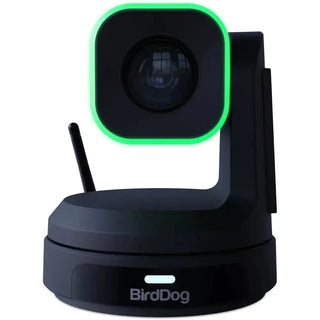

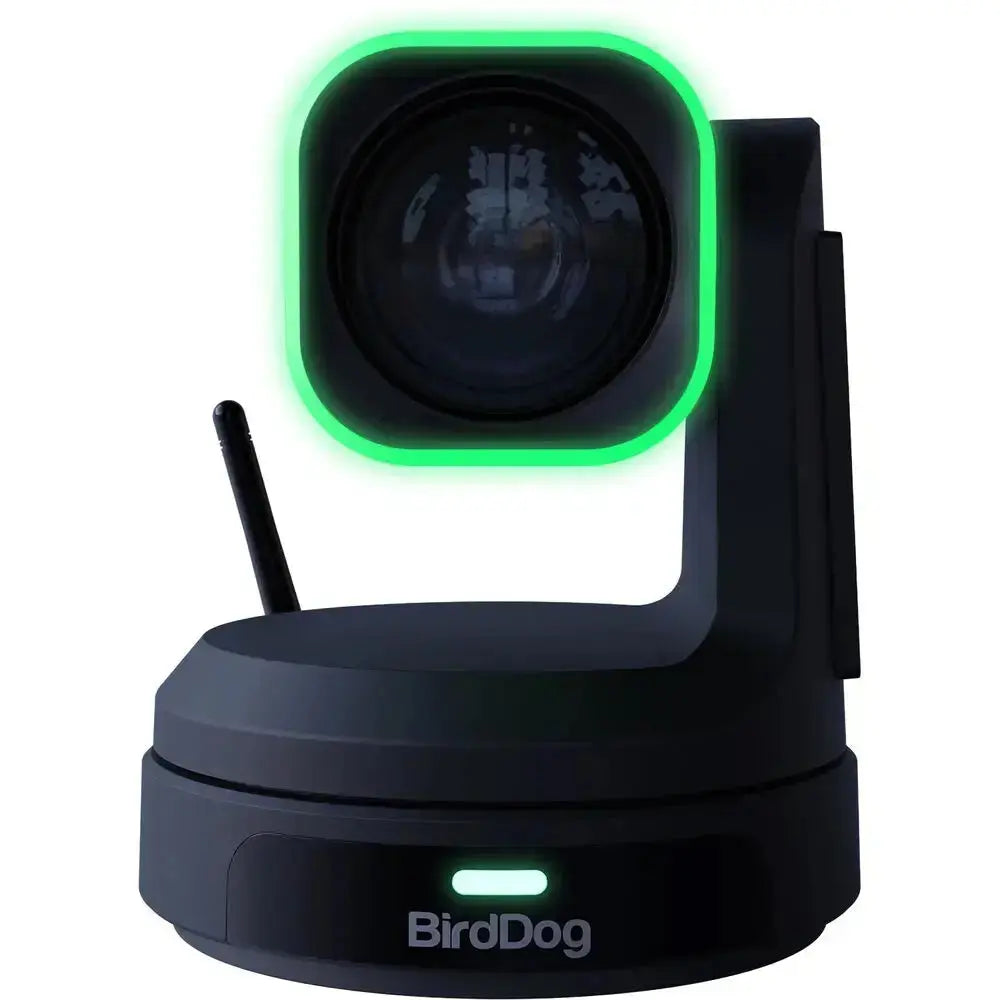

• BirdDog X1 Ultra PTZ Camera with 12x Zoom (Black)

  Capture UHD 4K30 resolution video and keep your subjects in frame with AI auto framing using this black X1 Ultra PTZ Camera with 12x Zoom from BirdDog. Boasting a powerful 12x zoom as well as color matrix, API, and Kelvin control, the versatile X1 Ultra offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.

  Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally and a 2.93" E-Ink display augment the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

  Integrated NDI Decoder

  The camera features an NDI|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle.

  AI Tracking

  Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real-time. Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

  Wi-Fi Connectivity

  No need to use cables to capture every shot. On top of regular Ethernet with PoE, the camera boasts built-in Wi-Fi functionality. Easily capture shots from spots where it's hard to run a cable, seamlessly integrating into any environment.

  NDI|HX2 & NDI|HX3 Integration

  Achieve superior network performance via NDI|HX2 and NDI|HX3 integration. You get significantly reduced network impact and excellent image quality for a more user-friendly experience in more network environments.

  Built-In Halo Tally Light

  A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep you audience engaged and your look polished.


  9354873000836

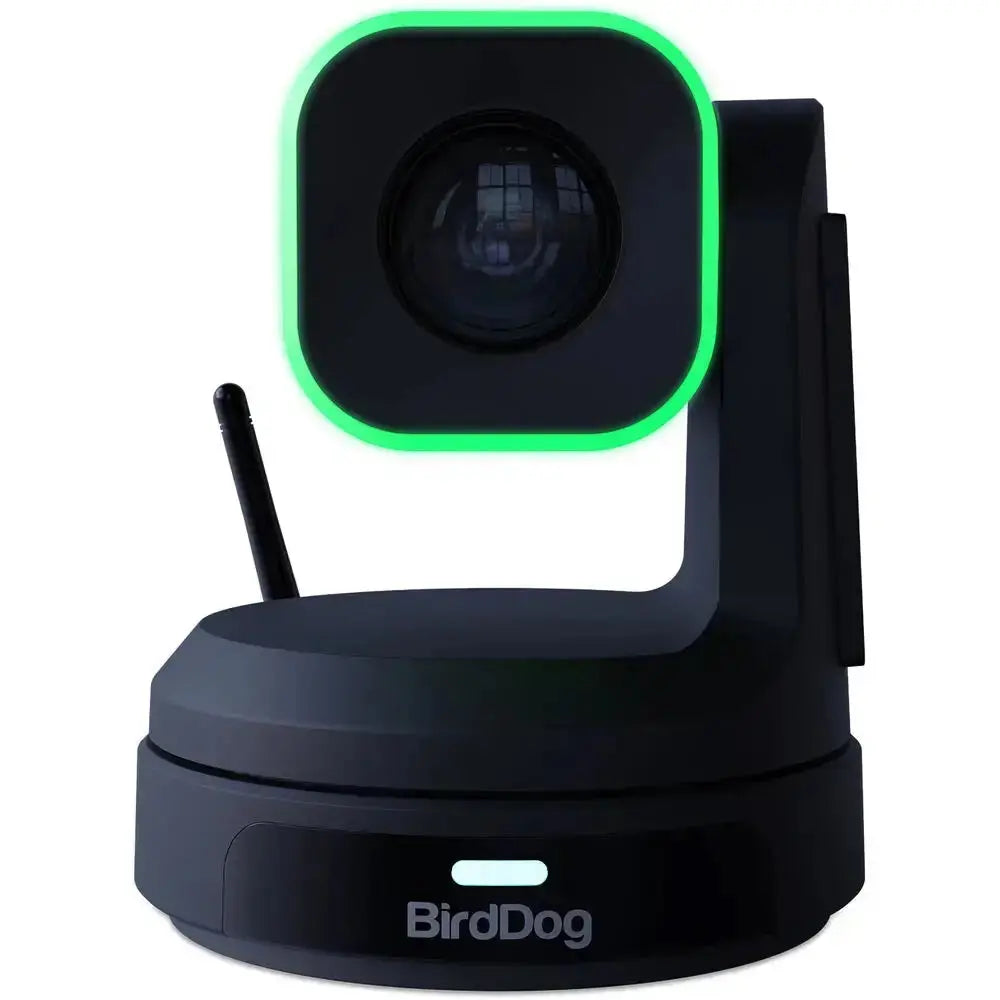

• BirdDog X1 PTZ Camera with 20x Zoom (Black)

  Capture 1080p60 resolution video and keep your subjects in frame with AI auto framing using this black X1 PTZ Camera with 20x Zoom from BirdDog. Boasting a powerful 20x zoom as well as color matrix, API, and Kelvin control, the versatile X1 offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.

  Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally and a 2.93" E-Ink display augment the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

  Integrated NDI Decoder

  The camera features an NDI|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle.

  AI Tracking

  Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real-time. Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

  Wi-Fi Connectivity

  No need to use cables to capture every shot. On top of regular Ethernet with PoE, the camera boasts built-in Wi-Fi functionality. Easily capture shots from spots where it's hard to run a cable, seamlessly integrating into any environment.

  NDI|HX2 & NDI|HX3 Integration

  Achieve superior network performance via NDI|HX2 and NDI|HX3 integration. You get significantly reduced network impact and excellent image quality for a more user-friendly experience in more network environments.

  Built-In Halo Tally Light

  A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep you audience engaged and your look polished.


  9354873000812

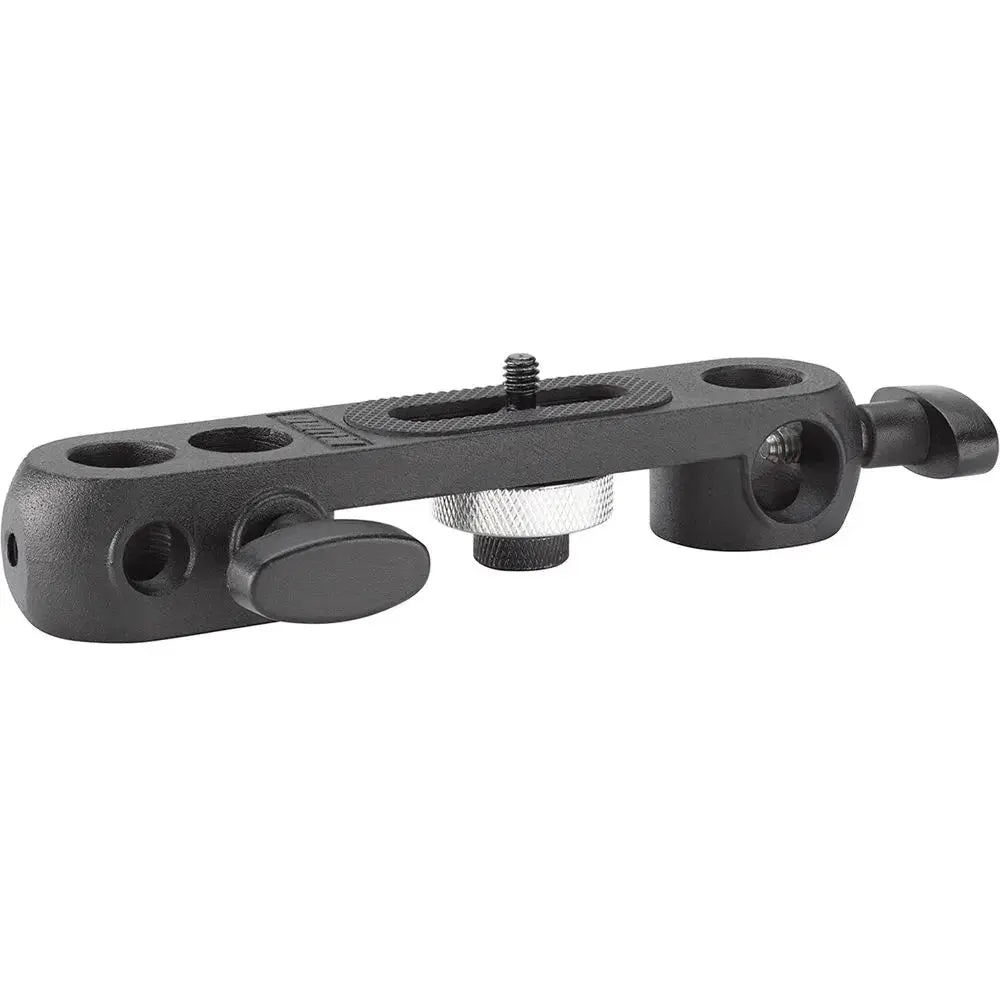

• Kupo KS-CB01 Camera Mount Bracket

  To attach a camera to a light stand or articulating arm like Kupo's Max Arm, use the KS-CB01 Camera Mount Bracket. The bracket has a camera screw that locks and has a knurled ring.


  6954016520639

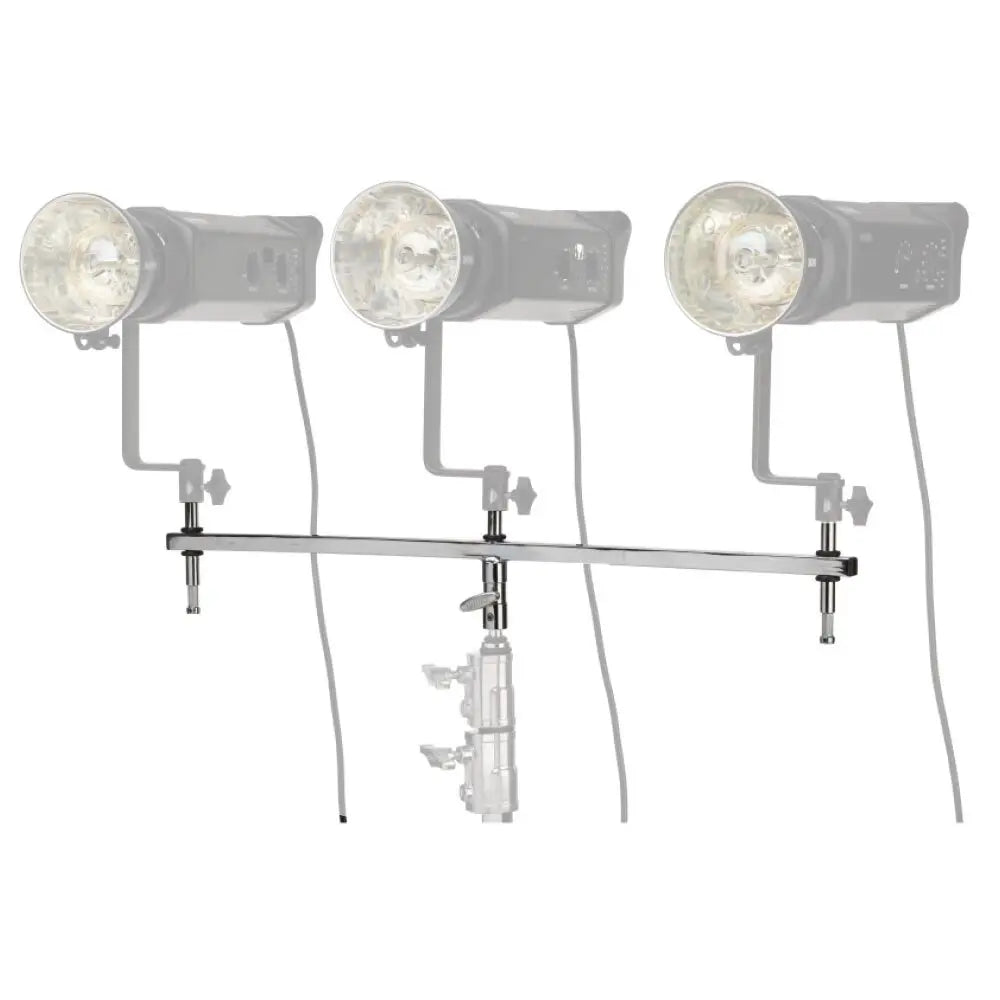

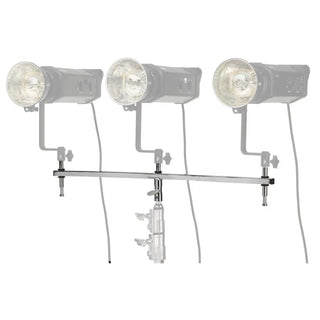

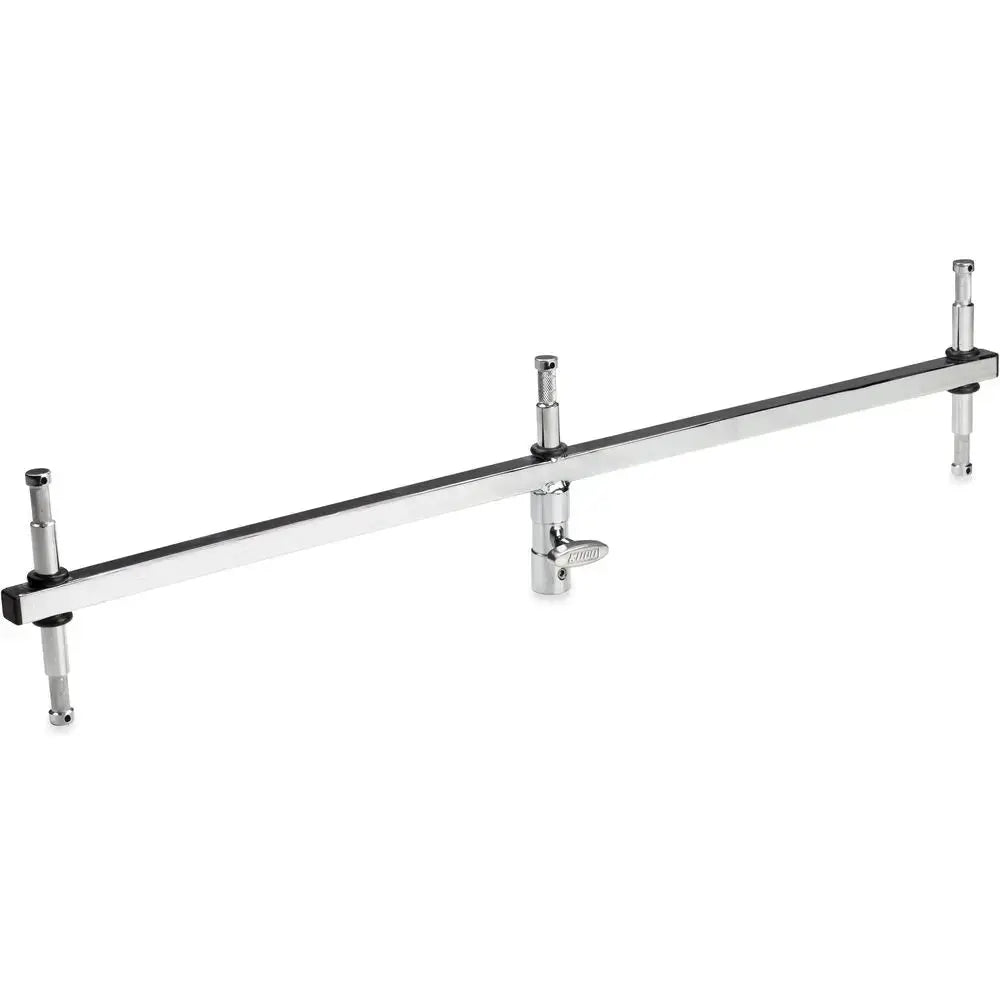

• Kupo KS-066 Baby Triple Header

  This Baby Triple Header from Kupo The handy adapter allows up to five light fixtures or accessories onto a single light stand. Features five baby studs with embossed necks welded onto sturdy steel and offset for mounting up to five lights. This triple header can be mounted on the stand top of a 16mm baby stud or fit into a 28mm junior receiver and tightens securely with a robust metal knob.


  6954016522527

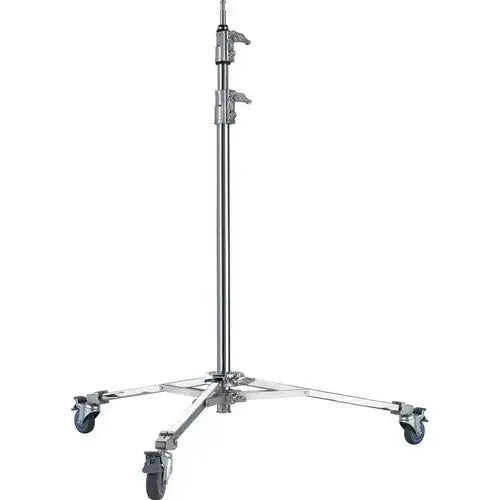

• Kupo 320M Baby Roller Stand (2.7m)

  This 2.7m Kupo Baby Roller Stand is the ideal choice for supporting light fixtures, monitors, or booms weighing up to 12kg. It has a standard 5/8" stud and braked castors for safety and stability.

  Please see Assembly Instructions from Kupo for tool requirements and installation instructions.






  6954016560529

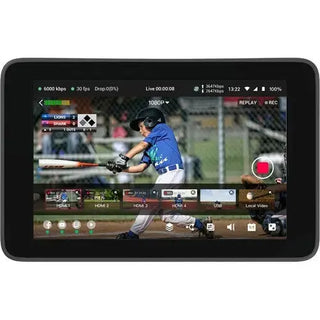

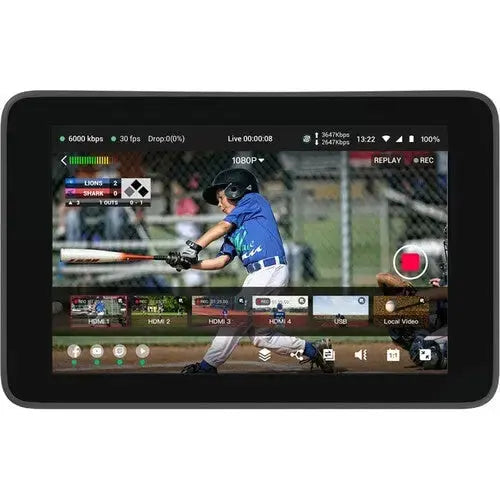

• YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System

  With the YoloBox Ultra from YoloLiv, you can produce a live stream from any location. It's a multicamera encoder, streamer, switcher, monitor, and recorder all in one portable device. Using a SIM card and a subscription, broadcast simultaneous UHD 4K video streams across 4G LTE, USB-C modem, RJ45 Ethernet, and Wi-Fi 6. The Ultra may connect to several cameras or devices with four HDMI, one USB-C, and two USB-A connections. Live streaming performance is enhanced with an integrated Qualcomm CPU 865, while visibility is improved by an LCD touchscreen with a brightness of 650 cd/m². The integrated 6800mAh battery allows the Ultra to stream for up to 8 hours.

  The YoloBox Pro and Instream technologies are combined in the Ultra to enable live streaming in both vertical and horizontal configurations. Whereas vertical streaming may support up to two simultaneous destinations, horizontal streaming can support up to three simultaneous destinations in 4K. The Ultra live broadcasts over protocols like MJPEG, NDI, SRT, RTMP, and RTMPS to ensure compatibility with well-known websites and apps, including Facebook, Instagram, Twitch, YouTube, and TikTok. It is even possible to install third-party apps straight onto the monitor.

  The Qualcomm CPU 865 integrated processor ensures maximum image quality and minimal latency in live streaming. With 8GB of RAM and 128GB of ROM, the processor offers 2.5x CPU and 4x GPU performance.

  You can record video and send it to a monitor or computer using up to four HDMI input sources (such as DSLRs or mirrorless cameras) and three USB input sources (such as webcams or document cameras). Easily navigate between ten or more different video sources. Video can be streamed via a linked Wi-Fi dongle or recorded onto an SD card. The onboard audio mixing interface can combine line and integrated 3.5mm microphone inputs.

  You may support cellular bonding with the Ultra's Wi-Fi 6, RJ45 Ethernet, USB-C modem, and 4G LTE connectivity. YoloLiv Network Bonding subscription and a separately sold SIM card allow you to use your Ultra to access worldwide internet connectivity wherever you want to stream.


  664918139131

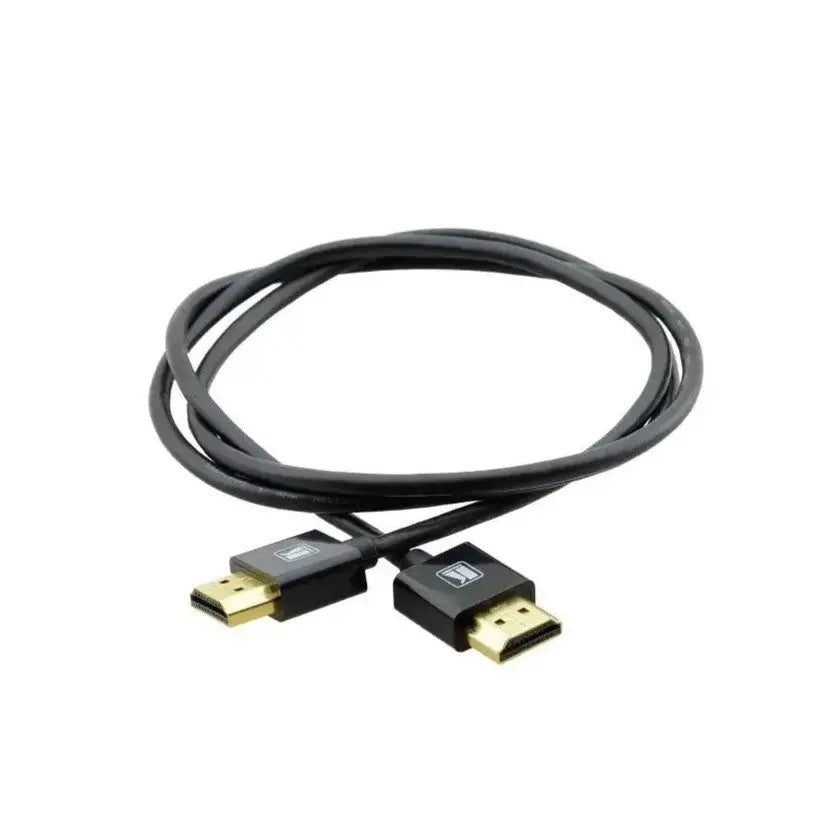

• Kramer C-HM/HM/PICO/BK-10 Ultra-Slim Flexible High-Speed HDMI Cable with Ethernet (Black, 3m)

  Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).


  7291063068042

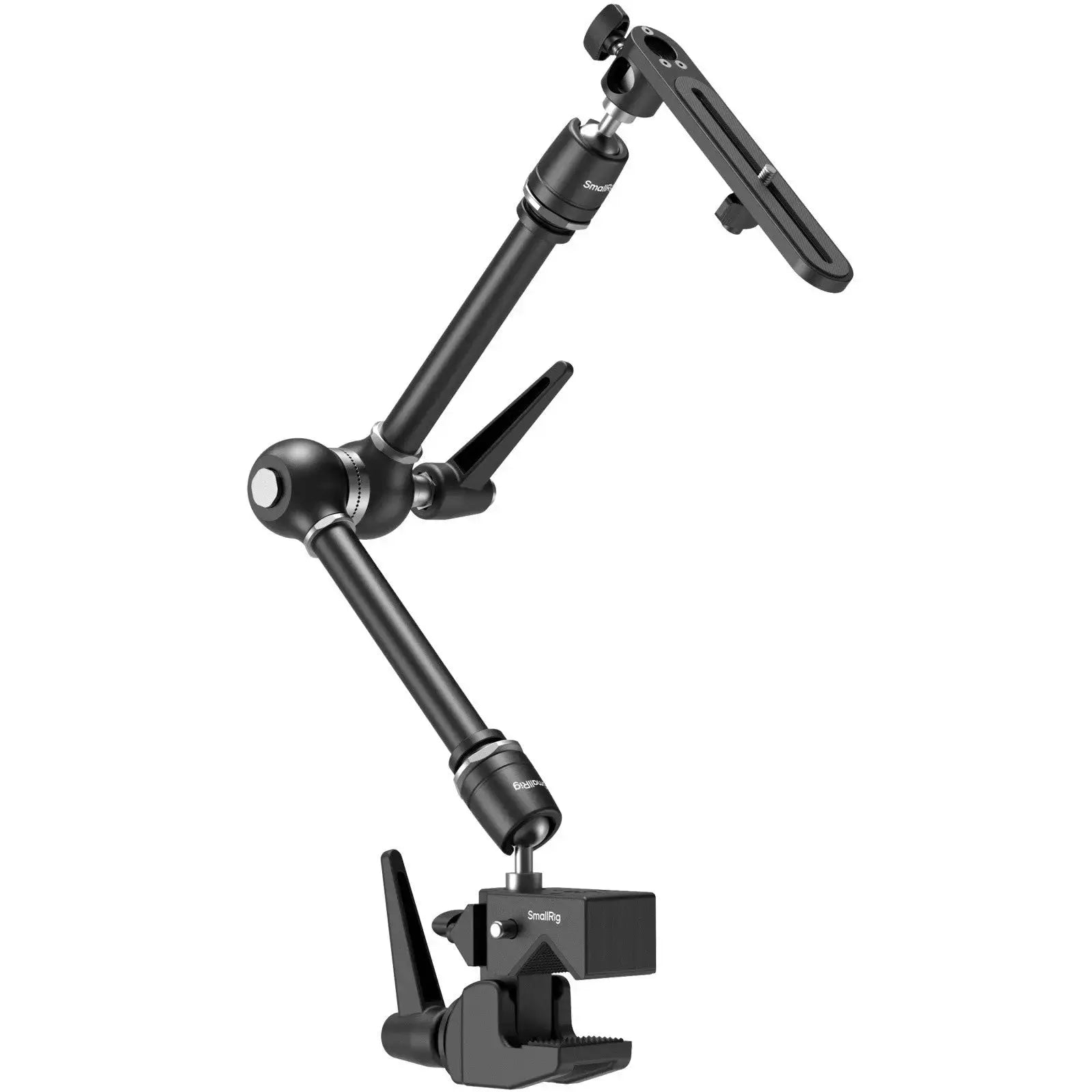

• SmallRig 4862 Super Clamp with Magic Arm Kit

  SmallRig Super Clamp with Magic Arm Kit 4862 provides a solution for supporting filming equipment in tight spaces. The kit includes an adjustable Magic Arm and a robust super clamp.

  The Magic Arm, measuring 524mm (20.6in) in length, securely mounts to the clamp using an anti-deflection top screw, ensuring a firm and secure connection between the clamp and the Magic Arm.

  The clamp can be attached to round tubes 10 - 60mm / 0.4 - 2.3in diameter and flat objects up to 50mm / 1.9in thick with the removable wedge, with silicone pads at the contact points to secure the grip without damaging the surface.

  Crafted from durable aluminum alloy, the main body ensures a sturdy construction, with the entire support system capable of effectively bearing loads up to 3kg (6.61lb). Additionally, for compact filming environments, our product range includes the Magic Arm with Crab Clamp Kits 4454, 3726, and more.


  6941590019499

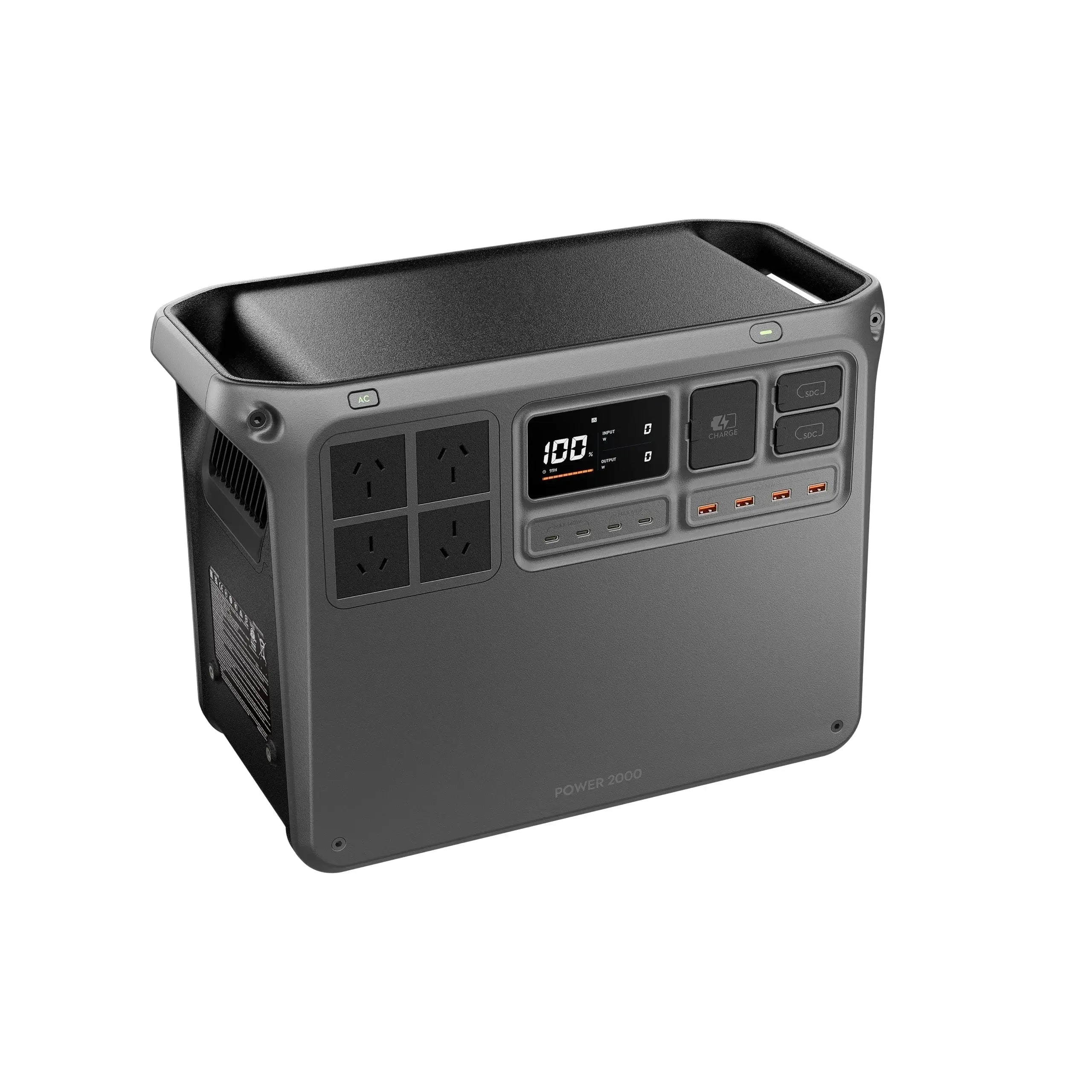

• DJI Power 2000

  The new DJI Power 2000 portable power station packs 2048Wh high capacity into a compact size. Its 3000W output powers most household appliances effortlessly. Recharge to 80% in just 45 minutes using AC power, or opt for solar and car recharging. Highly expandable, it can be extended up to 22528 Wh, providing flexible power for home backup, road trips, RVs, film and TV production, and more. Featuring a board-level sub-nano coating for enhanced safety, it can also be controlled remotely using an app, ensuring power usage stays convenient.

  2048Wh Portable Power Station - Big Power, Compact Size

  DJI Power 2000 offers a generous 2048Wh capacity in a compact 16-inch mini carry-on size, easily fitting into any car or trunk. Ports, buttons, and screens are integrated on the front of the unit, making operation convenient, saving space and keeping things neat during storage. It can connect up to ten 2048Wh expansion batteries, boosting the capacity to an incredible 22528 Wh.This powerhouse is ideal for both daily backup and emergent household power needs.

  DJI Power 2000 can steadily maintain a 3000W output until battery runs out, reliably running over 99% of household appliances such as induction cookers, microwaves, and ovens. With four AC output ports, four USB-C ports, and four USB-A ports, it enables simultaneous, effortless charging of multiple phones, tablets, and high-power appliances.

  Fast and Flexible Recharging

  DJI Power 2000 can be recharged via grid power, solar power, and car power, as well as intelligent hybrid recharging. Whether indoors or on the go, you can choose the best charging method, ensuring a reliable power supply and greater convenience.

  Grid Power

  It's fast and easy to plug in, recharge, and go. When connected to grid power, it supports fast recharging up to 2200 W , taking only 45 minutes to go from zero to 80%, and 75 minutes to full.Even if you start charging it right before heading out, it gives you the confidence to be able to set off whenever you need.

  Solar Power

  Economical and environmentally friendly, DJI Power 2000 can be rapidly recharged with up to 1800 W of solar power using the DJI Power 1.8kW Solar/Car Super Fast Charger, taking only 75 minutes to charge from zero to full.

  Car Power

  Easily supercharge any road trip with the DJI Power 1kW Super Fast Car Charger or the 1.8kW Solar/Car Super Fast Charger. These charges utilize the excess electricity from your car's alternator to quickly recharge the Power 2000, suitable for regular cars and RVs. It takes just 145 minutes to charge the power station from zero to full.

  Intelligent Hybrid Recharging

  Recharging with both AC and DC is economical, green, and highly efficient. While using grid power, you can recharge the Power 2000 with solar and/or car power. With an expansion battery, recharging power can soar to 3000 W, rapidly replenishing energy. Intelligent charging prioritizes clean solar power, cutting grid electricity use and reducing bills. This is especially useful for RV, camping and emergency power needs.

  UPS Mode: Seamless Power Backup

  When an electrical device is connected to a powered-on DJI Power 2000 via an AC output port and both are receiving grid power, the Power 2000 defaults to UPS (Uninterruptible Power Supply) mode. In the event of a sudden power outage, DJI Power 2000 can start powering the connected device(s) within 0.01 seconds, ensuring continuous operation and providing you with peace of mind.

  Grid-Tied Energy Storage

  "DJI Power 2000 can connect to the grid* without additional accessories and integrate with balcony solar systems. Recharge the power station with solar panels during the day, and once the power station is fully charged, the excess electricity will be fed into the grid.
  ^{* When grid-tied, the output power of the power station is 800 W, and the AC ports are not functional.}"

  Advanced Safety and Ultra-Quiet Operation

  Sleep Undisturbed with Ultra-Quiet Performance

  In Standard Recharge Mode, DJI Power 2000 produces sound no higher than 29 dB, quieter than most household refrigerators. Its ultra-quiet performance ensures normal nighttime power use, providing a full charge after a restful night.

  All-Around Safety

  Safety is a top priority for DJI Power 2000, with careful attention paid to each detail ranging from its body structure and cell chemistry to the system software. It also adopts advanced power management, maintaining battery level even when turned off for extended periods and ready for immediate use once powered on. Plus, enjoy up to 5 years of warranty with a long-lasting peace of mind.

  For the battery cell, we've chosen LFP (Lithium Iron Phosphate). It's safe and won't explode even if punctured. It boasts a long lifespan, retaining 80% capacity after 4000 cycles. With one full charge cycle per day, it can serve for ten years.

  The BMS intelligent battery management system provides comprehensive protection. With 26 temperature sensors constantly monitoring heat dissipation, the device operates normally even at high temperatures up to 45°C (113°F). Additionally, 21 fuses provide circuit protection for each module. If the safety threshold for electricity usage is surpassed, the protective mechanism for power supply and recharging activates automatically, leaving no room for accidents.

  The BMS system uses a new sub-nano coating for enhanced battery protection.

  It also incorporates a new potting process to protect the inverter, ensuring safe operation in rain, condensation, and salt spray conditions.This makes it ideal for worry-free use while camping by the sea or driving in high-altitude areas.

  The power station is made of flame-retardant materials, ensuring that drops and impacts do not cause open flames. It also has a static pressure bearing capacity of up to 1 ton, making it exceptionally reliable.

  Certified for Greater Preparedness

  DJI Power 2000 has aced all tests and secured certification from the Japan Fire and Disaster Prevention Association. It's a game-changer in disaster preparedness boosting safety, functionality, and convenience, providing reliable protection for peace of mind.

  Versatile Solutions for Every Scenario - Multi-Scenario Super Expansion

  DJI Power 2000 is equipped with two complete SDC ports, expanding its power ecosystem. It can be paired with accessories such as expansion batteries, the 1kW Super Fast Car Charger, 1.8kW Solar/Car Super Fast Charger, and fast charging cables for drones, meeting the needs of home backup power, short camping trips, long RV trips, film and TV production, and more.

  Home Backup Power

  Power 2000 can connect to up to ten 2048Wh expansion batteries, providing up to 22528 Wh of power reserve. This ample capacity easily handles power peaks or sudden outages caused by natural disasters. It can also be paired with a 1.8kW Solar/Car Super Fast Charger for quick recharging with a max 1800 W of solar power, offering an eco-friendly and cost-effective home energy storage solution.

  Camping & Short Road Trips

  During your ride, the DJI Power 1kW Super Fast Car Charger can use excess electricity from the car's alternator to quickly recharge the Power 2000 at up to 1000 W, fully charging it in about 145 minutes. Whether for a weekend outing or a nearby camping trip, recharge while driving, and once you reach your destination, you’ll have power for camping lights, mini fridges, induction cookers, and other devices at any time.

  RV & Long Road Trips

  The DJI Power 1.8kW Solar/Car Super Fast Charger supports simultaneous connection to solar panels and the RV's alternator, together providing up to 1200 W of solar power and 600 W of continuous car power to quickly recharge a Power 2000, taking only approx. 75 minutes for a full charge. When parked at a campsite, you can also connect to the campsite's grid power and solar panels for hybrid charging, ensuring a continuous power supply for your long-distance journey.

  Film and TV Production

  With a large capacity of 2048 Wh, it can power more photography and lighting equipment, and also provide up to 240W DJI Power SDC super-fast charging for select DJI drone batteries, enabling takeoff in as little as half an hour, doubling charging efficiency. With two to three drone batteries, you can fly and film continuously throughout the day.

  Remote Control via App

  DJI Power 2000 can be directly connected to the new DJI Home app. The interface is simple and user-friendly, allowing you to remotely switch AC output on or off, adjust parameters, and monitor the power status in real-time. In addition to the power station itself, you can also view and adjust the parameters of the expansion battery and 1/1.8 kW Super Fast Chargers. No matter where you are, you can easily manage DJI Power devices for a smarter, more efficient experience.


  6937224114579

• Pelican PE1560 1560 Case

  1560 Case Specifications
  Exterior Dimensions (L x W x D)		Interior Dimensions (L x W x D)
  22.06" x 17.93" x 10.43" (56 x 45.5 x 26.5 cm)		20.37" x 15.43" x 9.00" (51.7 x 39.2 x 22.9 cm)
  Lid Depth		Bottom Depth	Total Depth
  2.00" (5.1 cm)		7.00" (17.8 cm)	9.00" (22.9 cm)
  Weight with foam		Weight without foam	Buoyancy Max.
  20 lbs. (9.07 kg)		17 lbs. (7.71 kg)	115 lbs. (52.16 kg)
  Range Temperature		No. of Wheels
  -40 / 210° F (-40 / 99° C)		2

• BirdDog MAKI Live - 4K Portable Live Streaming camera with NDI

  BirdDog MAKI Live Specs

  Inputs/Outputs

  USB I/O	1 x USB-C Female Output
  Video I/O	1x HDMI Output
  Media/Memory Card Slot	Single Slot: microSD (Unspecified Type)
  Image Sensor	Sony 1/2.8"-Type CMOS Effective Megapixels: 8.29 MP
  Lens Focal Length	3.3-9.9 mm
  Aperture Range	f/2-f/3.7
  Zoom	Optical: 3x Digital: 10x
  Video Resolution	UHD 4K: 30/29.97/25 1080p: 30/29.97/25 720p: 30
  Angle of View	Horizontal: 81.4 (W) ~ 31.3° (T) Vertical: 50.5 (W) ~ 18.2° (T) Diagonal: 92 (W) ~ 35.8° (T)
  Presets	255
  Video Compression	H.264, up to 62 Mb/s
  Network Protocols	NDI|HX2, NDI|HX3, RTSP, RTMP, SRT
  Control Ports	VISCA IP, NDI, UVC
  Control Protocol	VISCA IP, NDI, UVC

  Wireless

  Wireless	Wi-Fi 6 (802.11ax) *Built-In
  Mobile App Compatible	Yes: Android & iOS App Name: MAKI Live Functionality: Adjust Settings, Remote Control, Setup

  Power

  Power Source	DC Input
  DC Input Power	5 VDC at 2.4 A
  Power Consumption	5 W (Typical)

  Physical

  Mounting	1x 1/4"-20 Thread
  Color	Black
  Certifications	CE Class A, FCC Part 15
  Operating Conditions	14 to 104°F / -10 to 40°C
  Dimensions	4.7 x 2.2 x 2.2" / 120 x 56 x 56 mm
  Weight	11.8 oz / 335 g

• BirdDog X1 Ultra PTZ Camera with 12x Zoom (Black)

  BirdDog X1 Ultra Specs

  Imaging

  Image Sensor 1/2.8"-Type CMOS

  Horizontal Resolution (TV Lines) 2160 TV Lines

  Sensor Resolution Effective: 8.29 Megapixel (3840 x 2160)

  IR Cut Filter No

  Built-In ND Filter No

  Focus Control Autofocus Manual Focus

  Exposure Control

  Signal-to-Noise Ratio 50 dB

  Lens

  Focal Length 4.1 to 49.2mm

  Optical Zoom Ratio 12x

  Field of View Horizontal: 70.28 to 6.57° Vertical: 42.06 to 3.76° Diagonal: 78.36 to 7.5°

  Maximum Aperture f/1.8 to 2.68

  Video Capture

  Broadcast Output NTSC/PAL

  IP Streaming NDI|HX2, NDI|HX3, RTMP, RTSP 3840 x 2160 at 30p

  Control

  Presets 255

  Move Speed Pan: 0.1 to 80°/sec Tilt: 0.1 to 60°/sec

  Movement Range Pan: -175 to 175° Tilt: -90 to 90°

  Tally Light Yes

  Supported Control Protocols ONVIF Profile S RS-232 RS-485

  Interface

  Video I/O 1x HDMI (Unspecified Signal) Output

  Other I/O 1x USB-C 1x RJ45 (NDI)

  Built-In Speaker No

  Power

  PoE Support PoE 802.3af

  Power I/O 1x RJ45 (12VDC at 2 A) Input

  Power Consumption 13 W

  Environmental

  Storage Temperature 14 to -40°F / -10 to -40°C

  Operating Humidity 20 to 80%

  General

  Dimensions (W x H x D) 10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm

  Weight 3.15 lb / 1.43 kg

• BirdDog X1 PTZ Camera with 20x Zoom (Black)

  BirdDog X1 Specs

  Imaging

  Image Sensor 1/2.8"-Type CMOS

  Horizontal Resolution (TV Lines) 1080 TV Lines

  Sensor Resolution Effective: 2.07 Megapixel (1920 x 1080)

  IR Cut Filter No

  Built-In ND Filter No

  Focus Control Autofocus Manual Focus

  Exposure Control

  Signal-to-Noise Ratio 50 dB

  Lens

  Focal Length 5.5 to 110mm

  Optical Zoom Ratio 20x

  Field of View Horizontal: 55.8 to 3.2° Vertical: 32.2 to 1.8° Diagonal: 61 to 3.64°

  Maximum Aperture f/1.6 to 3.5

  Video Capture

  Broadcast Output NTSC/PAL

  IP Streaming NDI|HX2, NDI|HX3, RTMP, RTSP 1920 x 1080 at 60p

  Control

  Presets 255

  Move Speed Pan: 0.1 to 80°/sec Tilt: 0.1 to 60°/sec

  Movement Range Pan: -175 to 175° Tilt: -90 to 90°

  Tally Light Yes

  Supported Control Protocols ONVIF Profile S RS-232 RS-485

  Interface

  Video I/O 1x HDMI (Unspecified Signal) Output

  Other I/O 1x USB-C 1x RJ45 (NDI)

  Built-In Speaker No

  Power

  PoE Support PoE 802.3af

  Power I/O 1x RJ45 (12VDC at 2 A) Input

  Power Consumption 13 W

  Environmental

  Storage Temperature 14 to -40°F / -10 to -40°C

  Operating Humidity 20 to 80%

  General

  Dimensions (W x H x D) 10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm

  Weight 2.98 lb / 1.35 kg

• Kupo KS-CB01 Camera Mount Bracket



• Kupo KS-066 Baby Triple Header

  Connections

  5 x 5/8" Male Baby Stud
  1 x 5/8" Female Receiver

  Construction Material

  Steel

  Weight

  3.31 lb / 1.5 kg

• Kupo 320M Baby Roller Stand (2.7m)

  Stand Type

  1 x General Purpose Stand

  Maximum Working Height

  106.3" / 270 cm

  Minimum Working Height

  45" / 114.3 cm

  Load Capacity

  26.5 lb / 12 kg

  Closed Length

  44.9" / 114 cm

  Stand/Column Top Mount

  5/8" Stud

  Wheels

  Built-In

  Number of Sections

  3

  Footprint Diameter

  41.7" / 105.92 cm

  Finish

  Chrome

  Weight

  16.7 lb / 7.6 kg

• YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System



• Kramer C-HM/HM/PICO/BK-10 Ultra-Slim Flexible High-Speed HDMI Cable with Ethernet (Black, 3m)



• SmallRig 4862 Super Clamp with Magic Arm Kit



• DJI Power 2000

  General	Model	DYM2000L/DYM2000H
  General	Cell Chemistry	LFP (lithium ferrophosphate)
  General	Capacity	2048 Wh
  General	Cycle Life	Maintains over 80% capacity after 4000 cycles. Measured at 25℃/77°F room temperature, being recharged in the Standard Recharge Mode, and at an output power of 2000 W.
  General	Net Weight	Approx. 22 kg
  General	Dimensions	448×225×324 mm (L×W×H)
  General	Number of Ports	AC Output × 4 USB-C × 4 USB-A × 4 SDC × 2 AC Input × 1
  General	Max Operating Altitude	5000 m
  Output Specifications	AC Output	DYM2000L: AC 100-120 V, 25 A, 50/60 Hz DYM2000H: AC 220-240 V, 13.6 A, 50/60 Hz AC output data varies by country and region.
  Output Specifications	AC Output (Bypass Mode)	DYM2000L: AC 100- 120 V, 12 A DYM2000H: AC 220-240 V, 10 A
  Output Specifications	USB-A Output	5 V, 3 A 9 V, 2 A 12 V, 2 A Max output power per channel: 24 W Supports QC 2.0 and QC 3.0 protocols with a maximum output power of 24 W when only 1 port is used; when 2 or more ports are used simultaneously, each port defaults to 5 V/2 A/10 W output, and negotiated high voltage is not supported.
  Output Specifications	USB–C Output	5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 5 A 20 V, 5 A 28 V, 5 A (EPR) C1 and C2 port max output power: 140 W* C3 and C4 port max output power: 65 W From left to right, the max output power for C1 and C2 ports is 140 W, and for C3 and C4 ports is 65 W. * Each USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
  Output Specifications	SDC Output	SDC 1 and SDC 2: 9-28 V, max current: 12 A Both of the SDC 1 and SDC 2 ports support extensive accessories.
  Input Specifications	AC Input	DYM2000L: AC 110-120 V, max current: 15 A DYM2000H: AC 220-240 V, max current: 10 A
  Input Specifications	SDC Input	SDC 1 and SDC 2: DC 32-58.4 V, max current: 60 A Both of the SDC 1 and SDC 2 ports support extensive accessories.
  Operating Temperature	Power Supply Temperature	-10° to 45° C (14° to 113° F)
  Operating Temperature	Recharging Temperature	0° to 45° C (32° to 113° F)
  Operating Temperature	Storage Temperature	-10° to 45° C (14° to 113° F)
  Wi-Fi and Bluetooth	Transmitter Power (EIRP)	Wi-Fi (802.11 b/g/n): 2.4000-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC) Bluetooth 5.0: 2.4000-2.4835 GHz: < 7 dBm The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations.
