Aputure STORM 1200x Cine Kit with Skid Support, Fresnel, and Barndoors

Aputure STORM 1200x Cine Kit with Skid Support, Fresnel, and Barndoors

The Aputure STORM 1200x Cine Kit is a premium, all-in-one lighting solution for professional filmmakers and demanding set environments. Centred around the STORM 1200x Bi-Colour LED Monolight, this kit delivers exceptional full-spectrum output, versatile colour control, and rugged reliability, bundled with the CF12 Fresnel, CF12 barndoors, and a durable skid support for maximum performance and flexibility on set.

At its core, the STORM 1200x introduces Aputure’s groundbreaking BLAIR chipset, featuring an advanced LED mix of blue, lime, amber, indigo, and red. This full-spectrum design achieves stunning brightness, with up to 202,500 lux at 1m using the included 45° reflector, and professional-grade colour accuracy, boasting 95 CRI and TLCI and 87 SSI at 3200K and 5600 K. The light offers a wide CCT range of 2500–10,000K, with green-magenta adjustment for precise white-point control.

The included controller unit supports step-less dimming from 0.1% to 100% and enables flicker-free performance at all output levels. Multiple control options, including DMX, LumenRadio CRMX, Art-Net, sACN Ethernet, and Bluetooth via the Sidus Link and Sidus Link Pro apps, seamlessly integrate the STORM 1200x into modern lighting ecosystems.

Built to endure, the fixture is IP65-rated for dust and weather resistance, with a universal Bowens S mount for compatibility with a wide range of modifiers. The kit’s CF12 Fresnel lens enhances the output up to 60,000 lux at 3200K, allowing smooth beam control from a 15° spot to a 45° flood. Paired with the eight-leaf CF12 barndoors, users can precisely shape and cut the light as needed.

To complete the system, the included Aputure Skid provides a solid ground-based mounting solution, allowing safe and stable placement of the STORM 1200x with its attached accessories. With innovative design features like cable clearance and shelf compatibility, it’s ideal for studios, rentals, and location work.

Whether lighting a primary production or tackling challenging outdoor shoots, the Aputure STORM 1200x Cine Kit offers unmatched performance, reliability, and control in a single, professional-grade package.

Light Fixture

• Item Type: 1x COB LED Monolight
• Included Light Modifier: 1x Reflector
• Included Storage Case: Yes

Photometrics

• 3200K (Unmodified): 6998 fc / 75,330 Lux at 1 m
• 777 fc / 8370 Lux at 3 m
• 294 fc / 3170 Lux at 5 m
• 45° at 3200K (With Reflector): 16,303 fc / 175,500 Lux at 1 m
• 1811 fc / 19,500 Lux at 3 m
• 641 fc / 6910 Lux at 5 m
• 5600K (Unmodified): 7098 fc / 76,410 Lux at 1 m
• 788 fc / 8490 Lux at 3 m
• 300 fc / 3230 Lux at 5 m
• 45° at 5600K (With Reflector): 18,812 fc / 202,500 Lux at 1 m
• 2090 fc / 22,500 Lux at 3 m
• 656 fc / 7070 Lux at 5 m

Colour & Dimming

• Colour Temperature: 2500 to 10,000K (CCT Mode)
• Colour Modes: Daylight, Tungsten
• Colour Accuracy: CRI 95 at 3000K, TLCI 95 at 3200K, CQS 96, SSI 87 at 3200K/5600K, TM-30 Rf 95, Rg 100
• Dimming: 0.1 to 100% (App, Controller, DMX, RDM)
• Cooling System: Fan
• Beam Angle: 45° with Reflector
• Preprogrammed Effects: Yes
• Built-In Flash: No
• Umbrella Mount: No
• Front Accessory Mount: Bowens S

Connectivity

• Wireless Remote Type: Bluetooth, Wireless CRMX (TimoTwo)
• Mobile App Compatible: Yes (Sidus Link Pro for Android & iOS)
• Wireless Range: 328.1' / 100 m

Power & I/O

• Power Source: AC (Cable Included, Requires Power Supply/Controller)
• Power Inputs:
  • Light Fixture: 1x Unspecified Power Input
  • Power Supply: 1x powerCON AC Input, 1x XLR 5-Pin DMX Input, 1x XLR 5-Pin DMX Output, 2x RJ45 Network Ports
• Power Output (to Fixture): 48 VDC
• Included Cable: 1x 19.7' / 6 m (Unspecified to Unspecified)
• Power Pass-Thru: No
• Power Consumption: 1200 W (1550 W Max)
• Input Power: 100 to 240 VAC, 50/60 Hz

Mounting

• Yoke Type: Manually-Operated
• Fixture Mounting: 1x 1-1/8" Stud

General

• Display: No
• Environmental Resistance: Weather-Resistant (IP65)
• Operating Temp: -4 to 113°F / -20 to 45°C
• Storage Temp: -40 to 176°F / -40 to 80°C
• Dimensions (Fixture): 13.2 x 13.1 x 9.8" / 33.6 x 33.4 x 25 cm
• Dimensions (Power Supply): 13.5 x 7.4 x 5.4" / 34.4 x 18.9 x 13.6 cm
• Weight (Fixture with Yoke): 20.9 lb / 9.5 kg
• Weight (Power Supply): 13.05 lb / 5.92 kg

Fresnel Attachment

• Compatibility: Aputure STORM 80c
• Diameter: 12" / 30.5 cm
• Beam Angle: 15° (Spot), 45° (Flood)
• Mounting: 1x Bowens ProLock
• Colour: Black
• Dimensions: 15.1 x 14.6 x 5" / 38.3 x 37 x 12.8 cm
• Weight: 10.41 lb / 4.72 kg

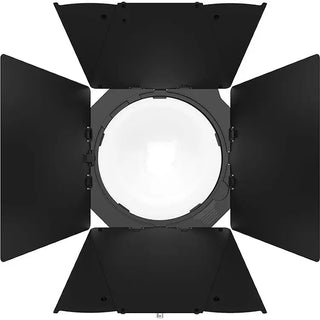

Barndoors

• Item Type: 8-Leaf Barndoors
• Compatibility: Aputure CF12 Fresnel / STORM 1200x / STORM 1000c
• Materials: Aluminium
• Weight: 5.31 lb / 2.41 kg

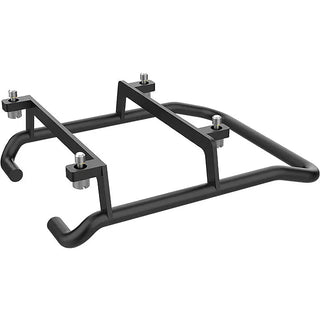

Skid

• Compatibility: Aputure STORM 1200x / STORM 1000c
• Mounting: 4x Screws
• Colour: Black
• Construction Material: Stainless Steel
• Dimensions: 14.9 x 10.9 x 4.9" / 37.8 x 27.8 x 12.5 cm
• Weight: 2.4 lb / 1.1 kg
