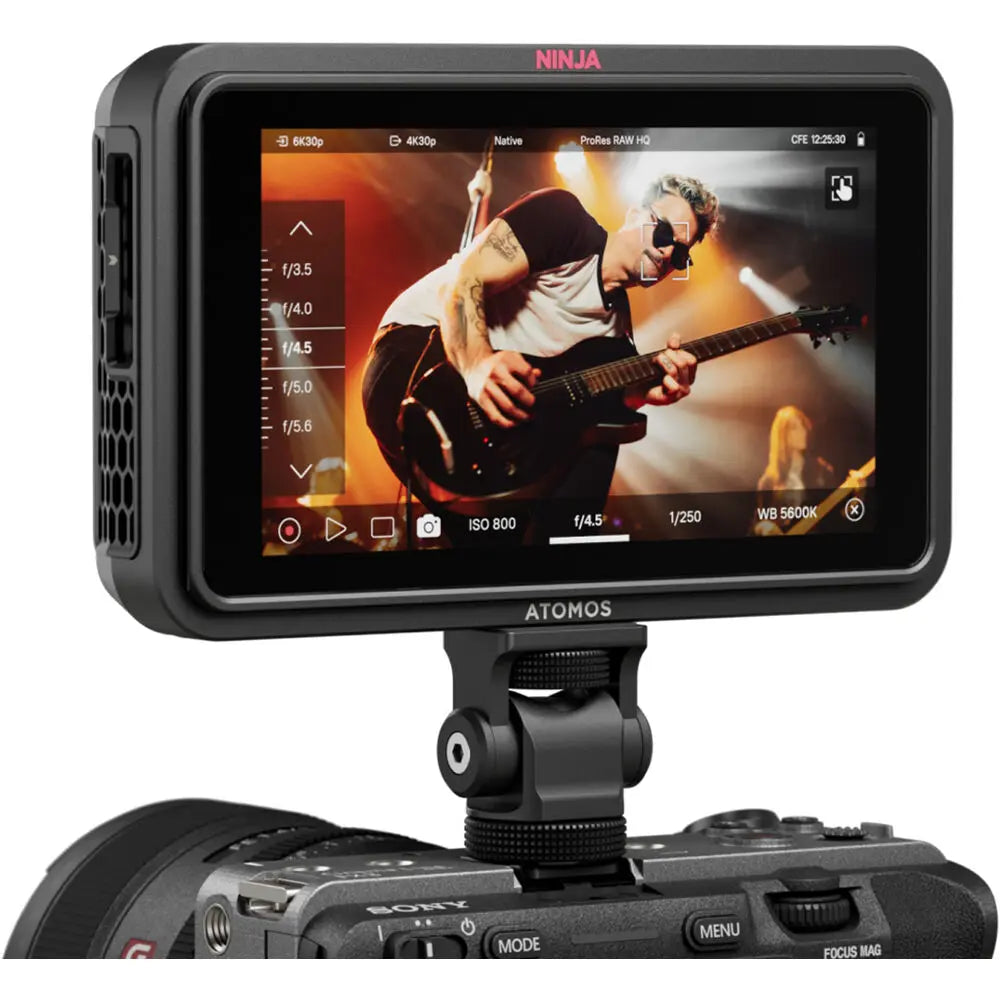

Designed as a wired companion to the Ninja TX and Ninja TX GO, the Atomos Ninja RAW 5.2" HDMI Monitor/Recorder is a compact, high-performance on-camera monitor and recorder built for professional productions and advanced content creators. It combines a bright 1500 cd/m² touchscreen display, HDMI 2.0 input/output, integrated ProRes RAW/DNx/H.265 codecs, CFexpress Type B and USB-C recording, tally light functionality, and optional NDI/HX3 and Camera-to-Cloud workflows via USB-C networking.

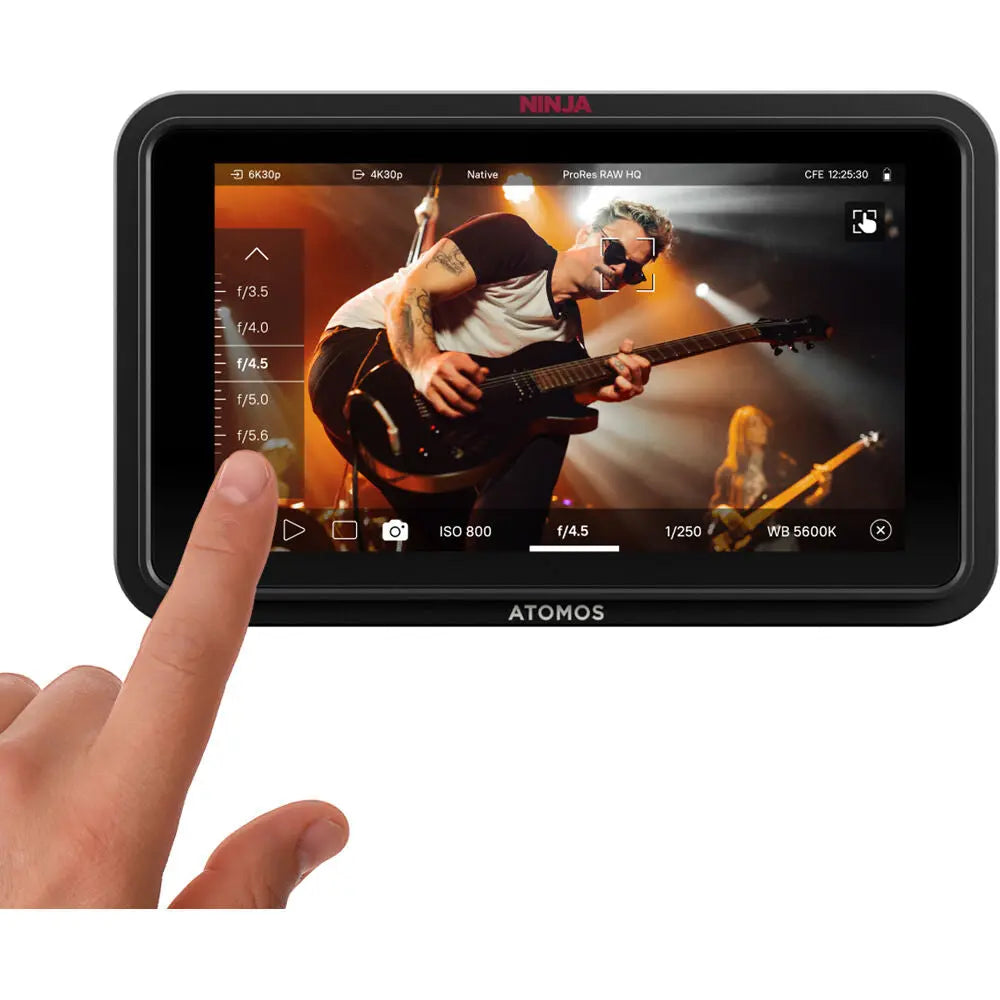

5.2" High-Brightness Touchscreen Display

The 5.2" IPS touchscreen features a 1920 × 1080 resolution and a daylight-viewable 1500 cd/m² brightness output for accurate monitoring in virtually any lighting environment. With 8/10-bit color processing, HDR (HLG) support, and 100% Rec. 709 coverage, the Ninja RAW ensures faithful color reproduction on set.

It also supports Calibrite ColorChecker Display Pro/Plus calibration for consistent, professional color accuracy across workflows.

Updated AtomOS Linux Platform

Running on the updated AtomOS Linux operating system, the Ninja RAW delivers:

• Improved performance and stability

• Sleeker, more responsive interface

• More efficient and cooler operation

• Enhanced toolset for professional workflows

Comprehensive Color & Metadata Support

The Ninja RAW supports log formats from major manufacturers including Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon. Users can upload custom 3D LUTs and output HDR conversions to:

• Log

• HLG

• PQ

• Dolby Vision

RAW metadata such as white balance, exposure index, shutter speed/angle, iris (f-stop), ISO, gamma, and gamut are preserved for full post-production flexibility.

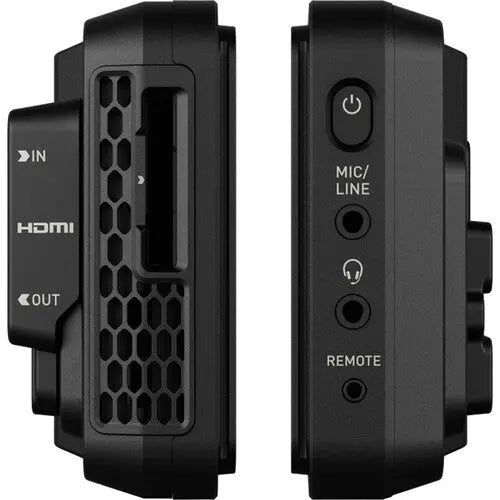

Advanced HDMI Input/Output

The HDMI input supports:

• Up to 8K30

• DCI/UHD 4K60

• 1080p120

A loop-through HDMI output passes the incoming signal to external monitors, wireless transmitters, or live streaming encoders, enabling flexible on-set routing.

Built-In Tally Light

The integrated tally light provides clear visual recording status:

• Red: Recording / Live

• Green: Preview / Standby

This offers immediate visual confirmation for talent and crew.

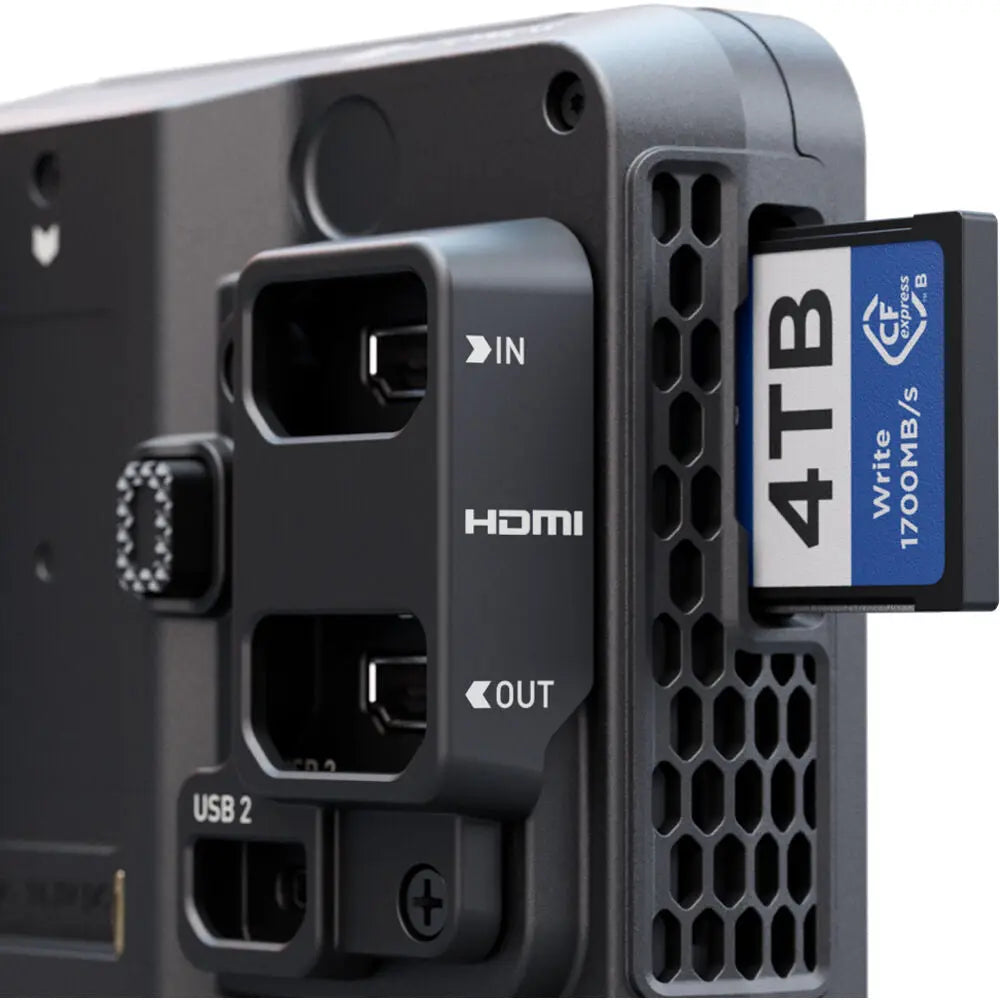

Flexible Recording & USB-C Expansion

The Ninja RAW features:

• 1 × CFexpress Type B slot

• Dual USB-C recording outputs (PCIe/NVMe based for ultra-fast transfer)

USB-C ports also support:

• Calibration

• 3D LUT uploads

• External audio devices

• Firmware updates

• 30W Power Delivery

With AtomOS 12.2.1 (free OTA update), the Ninja RAW supports ProRes RAW recording from the Canon EOS R6 Mark III up to:

• 6960 × 3672p30

• 4320 × 2278p60

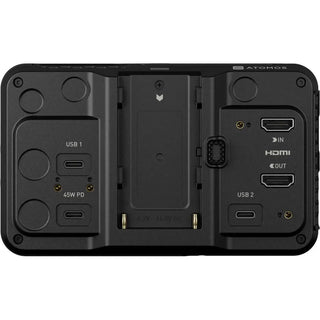

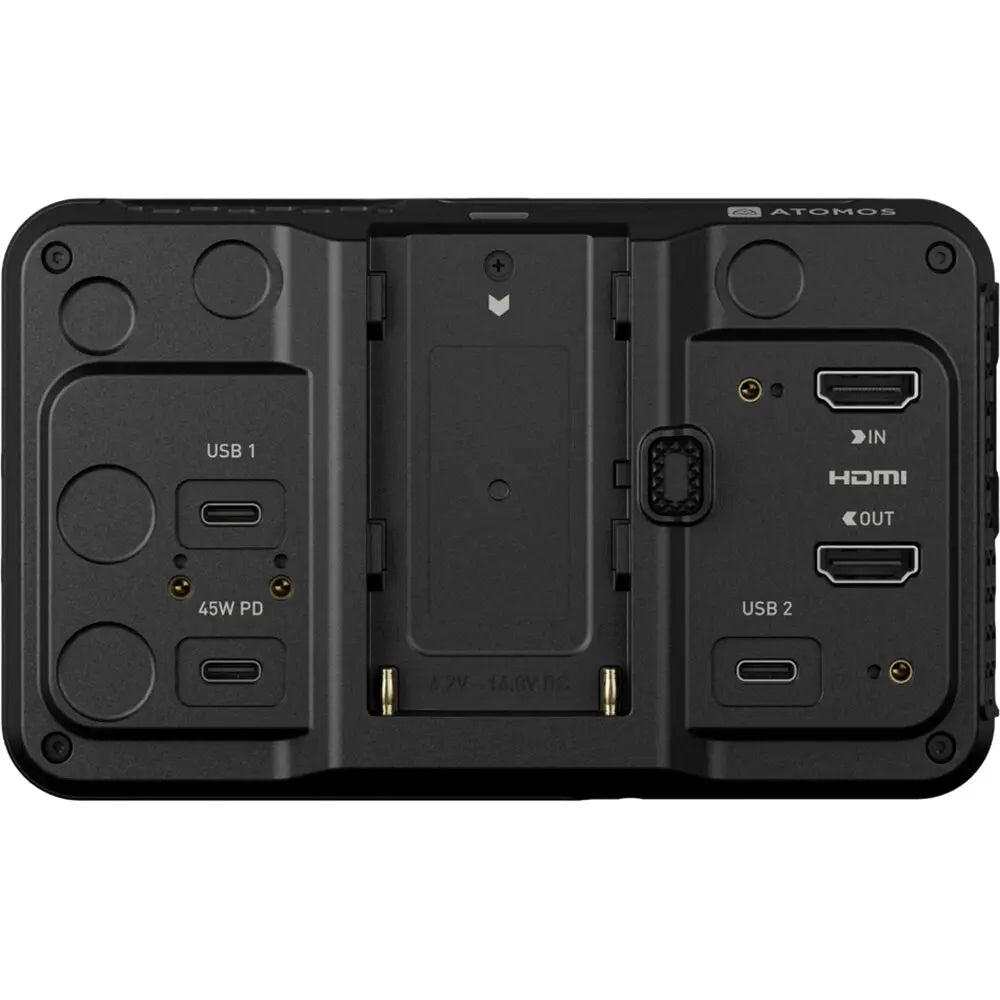

Power Options

• Rear-mounted NP-F L-Series battery plate

• Optional battery eliminator for DC power

• USB-C Power Delivery (30W) via included cable

SegmentPro Recording

SegmentPro allows long recordings to be split into smaller, user-defined file segments without dropped frames. This improves file management, workflow flexibility, and reduces risk when handling large media files.

Optional Network & Cloud Workflows

Using a separately available USB-C network adapter, the Ninja RAW supports:

• Camera-to-Cloud (C2C) uploads

• Direct progressive upload to ATOMOSphere

• Integration with Adobe Frame.io and Dropbox

It can also operate within NDI environments as either:

• An NDI source

• An NDI receiver

This enables high-quality, low-bandwidth IP video workflows.

Comprehensive Monitoring Tools

Professional monitoring tools include:

• Focus Peaking

• Zoom (2:1, 1:1)

• Zebras

• False Color (including ARRI & EL Zone)

• Frame Guides & SMPTE Safe Areas

• Grid Markers

• Waveform

• RGB Parade

• Vectorscope

• 3D/1D LUT support (.cube uploads)

• Anamorphic De-Squeeze

All tools are accessible via one-touch touchscreen controls.

Flexible Control Options

• Multifunction hardware buttons paired with touchscreen interface

• Auto HDMI trigger support (Canon & Sony via Atomos Open Standard)

• LANC control via optional USB-C to serial cable

• Expanded camera control via latest OTA firmware updates
