CineTreak CineLive C1 Compact 4-Channel HDMI Streaming Video Switcher with 5" Display

CineTreak CineLive C1 Compact 4-Channel HDMI Streaming Video Switcher with 5" Display

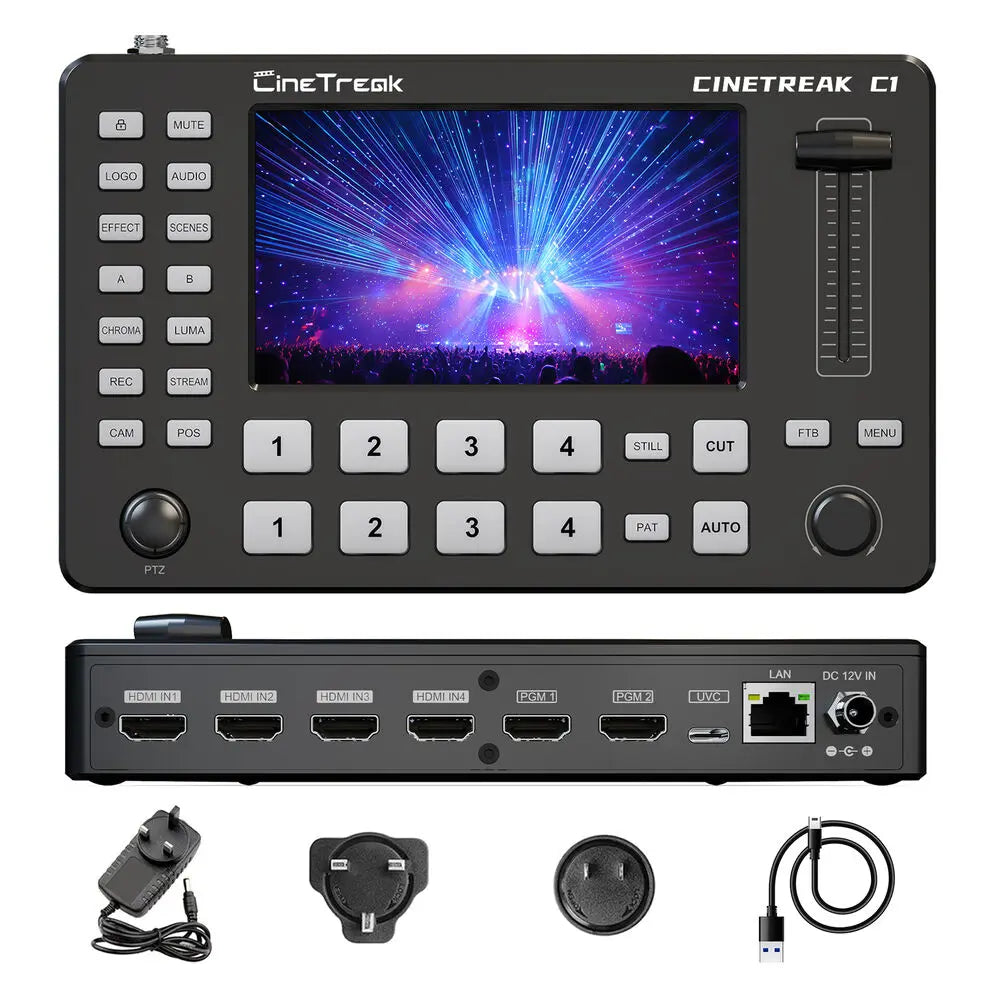

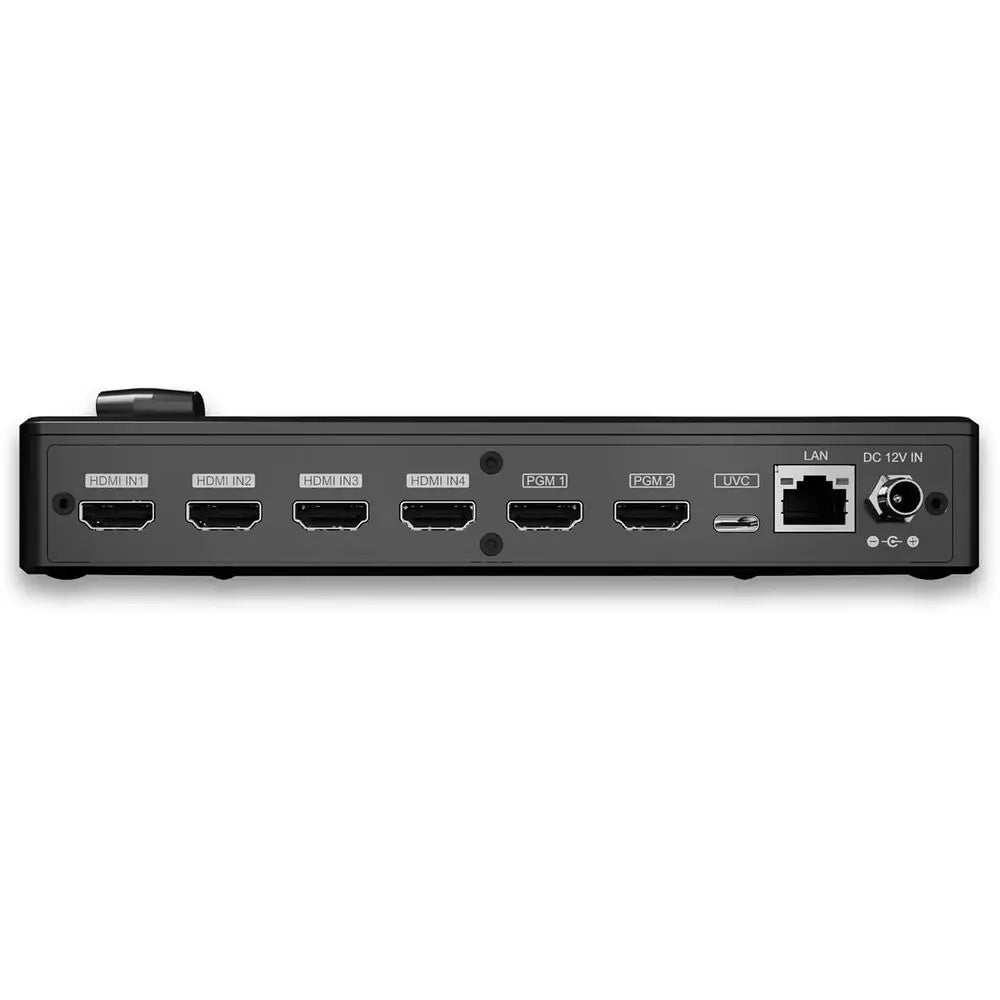

The CineLive C1 Compact 4-Channel HDMI Switcher from CineTreak is a professional, portable solution for mixing and live streaming up to 1080p60 video with embedded audio. Designed for sports, houses of worship, virtual studios, gaming, meetings, and telemedicine, the C1 offers four HDMI inputs, two HDMI program outputs, one USB-C UVC output, one LAN port, and two 3.5mm audio inputs. External recording is supported via USB-A or SSD storage, making it easy to capture high-quality program output for playback or archiving.

The C1 supports simultaneous streaming to two RTMP destinations, allowing broadcasters to reach multiple platforms at once using USB-C or network connections. H.264 encoding, luma and chroma keying, 32 transition effects, and Picture-in-Picture (PiP) and Picture-over-Picture (PoP) functionality provide a professional-grade video production workflow. Logos and overlays can also be added for branding or subtitles.

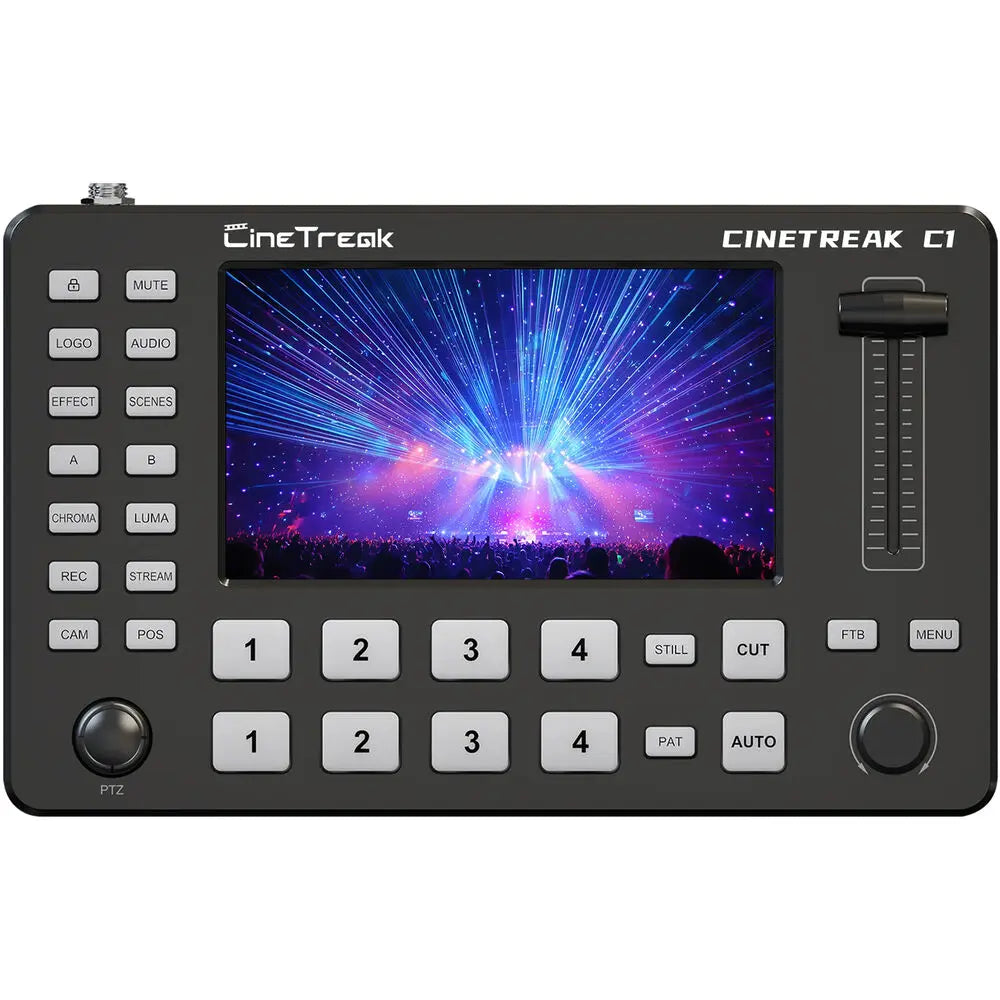

Control options are versatile, including pushbutton, T-bar, web browser, and mobile app operation. Built-in VISCA PTZ camera control allows up to four cameras to be adjusted for position, focus, colour, and zoom, ensuring smooth multicamera switching. Landscape and portrait modes allow quick orientation changes for standard or social media-friendly vertical streaming.

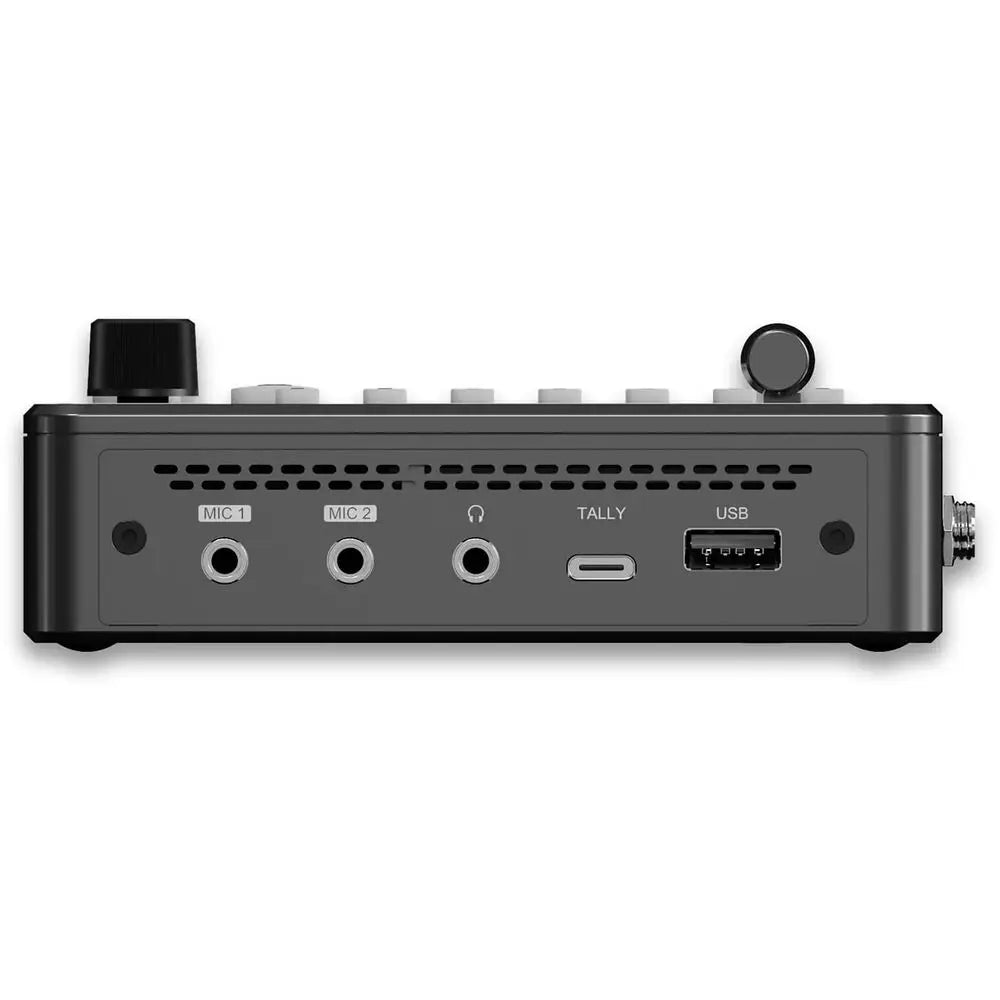

Audio management is fully integrated, supporting four HDMI audio channels, two additional 3.5mm mic/line inputs, and separate level, mix delay, and HDMI AFV (audio follow video) controls. The one-key REC and STREAM functions simplify recording and live streaming, providing a seamless, professional workflow for content creators.

The CineLive C1 is a compact, reliable, and versatile switcher, perfect for content creators, educators, broadcasters, and live event producers who need high-quality video and audio control in a portable form factor.

Mix Effects

• Available M/E Layers: 2 M/E
• Effect Types: Graphic, Transition, Chroma Key, Luma Key
• Graphics Memory: 100 Images (Total)
• Downstream Keys: No
• Audio Mixing: 4-Channel Mixing

Processing

• Switching Type: Pushbutton, Software, T-Bar
• Processing Resolution: 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
• Colour Processing: RGB, YUV

Input

• Number of Video Input Sources: 4
• Video Inputs: 4x HDMI
• Input Video Format:
  • HDMI: 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 1080i at 50/60 fps
  • 720p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 576p
  • 576i / 625 lines
  • 480p
  • 480i / 525 lines
• Audio Inputs: 2x 1/8" / 3.5 mm TRS Stereo Female
• Embedded Audio Input: HDMI

Output

• Video Output Channels: 3
• Video Outputs:
  • 2x LC Fiber
  • 1x USB-A
  • 1x USB-C
• Output Video Format: HDMI 1080p up to 60 fps
• Embedded Audio Output: HDMI: 4-Channel
• Multiview Output: Yes

Connectivity

• Other I/O: 1x RJ45 LAN
• HDCP Support: No

IP Encoding/Decoding

• IP Video: H.264: 1920 x 1080 at 60p Encoding
• Transport Protocols: RTMP
• Simultaneous Streams: 2 Streams
• Compatible Services: Facebook Live, Instagram, Skype, TikTok, Twitch, YouTube Live

Display

• Display Size: 5.5"

Hardware

• OS Compatibility: Android/iOS
• Mobile App Compatible: Yes: Android & iOS
• Processor: Not Specified by Manufacturer
• Wi-Fi: No
• Bluetooth: No

Power

• Power I/O: 1x Barrel (7 to 12 VDC ) Input
• Power Consumption: 12 W

General

• Operating Conditions: 32 to 122°F / 0 to 50°C
• Storage Conditions: -22 to 158°F / -30 to 70°C
• Certifications: CE, FCC, RoHS
• Dimensions: 7.9 x 4.8 x 1.8" / 200.5 x 123 x 45 mm
• Weight: 1.5 lb / 670 g
