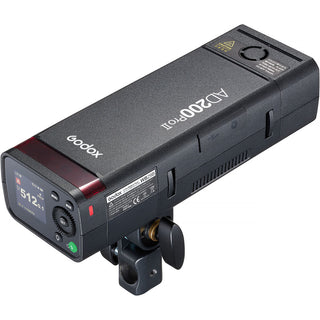

Godox AD200Pro II TTL Pocket Flash

The Godox AD200Pro II TTL Pocket Flash is an enhanced 200Ws portable strobe designed to deliver professional lighting performance in a compact, highly versatile form factor. Building on the success of its predecessor, the AD200Pro II introduces refined functionality, improved flash heads, streamlined wireless sync, and intuitive group identification—making it an ideal solution for studio and on-location photographers.

Dual Flash Head Flexibility

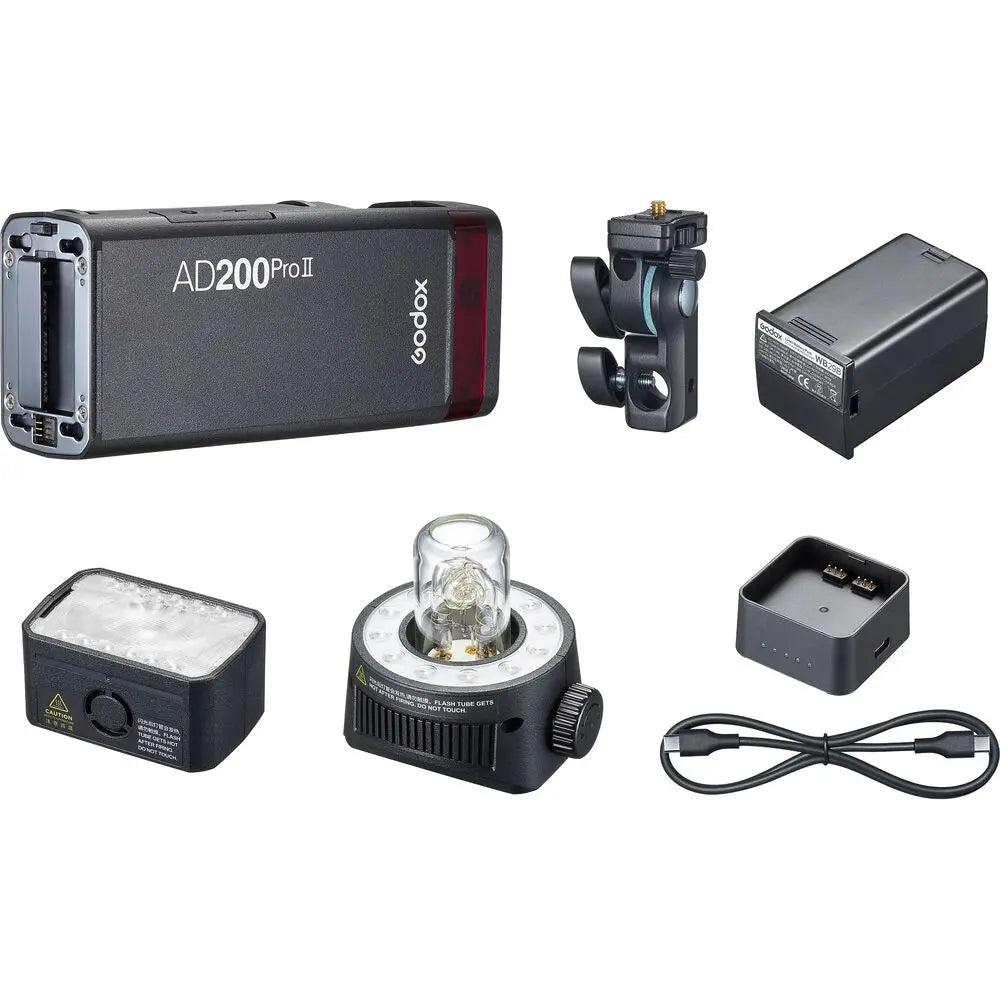

Included with the AD200Pro II are two upgraded flash heads:

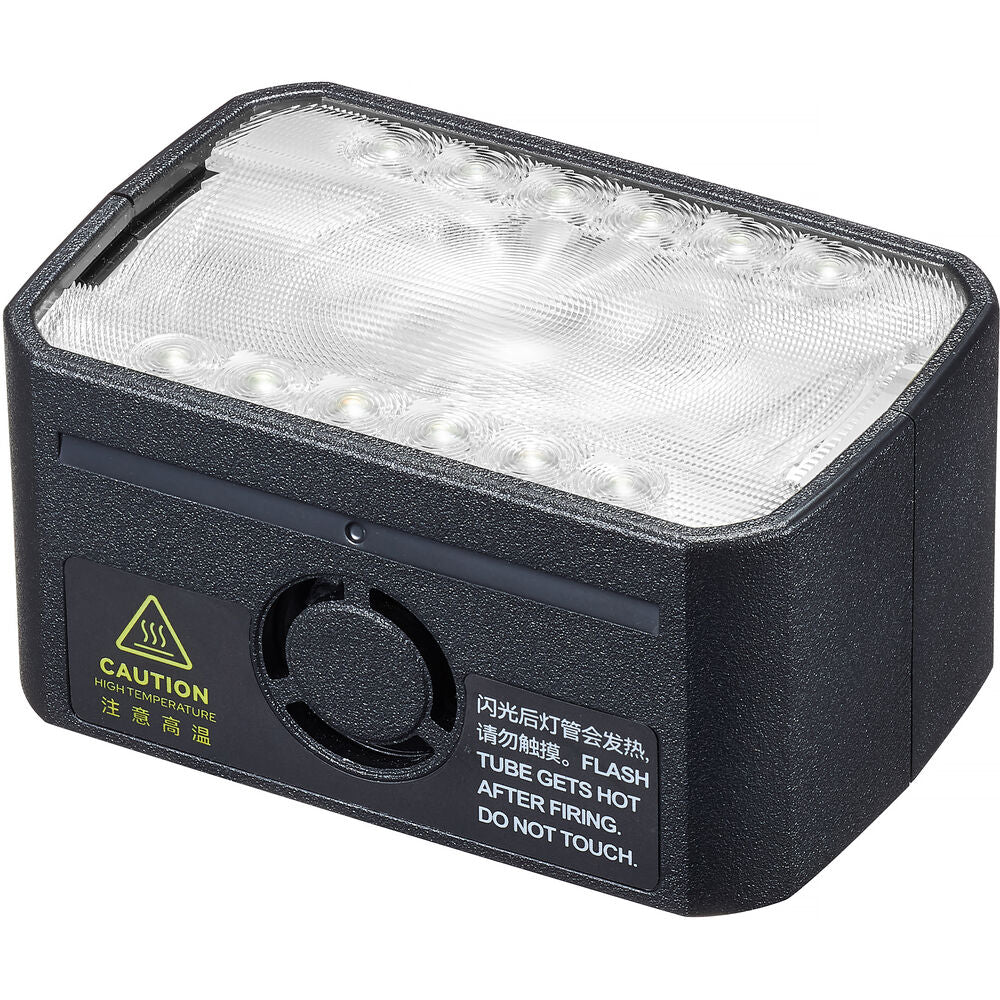

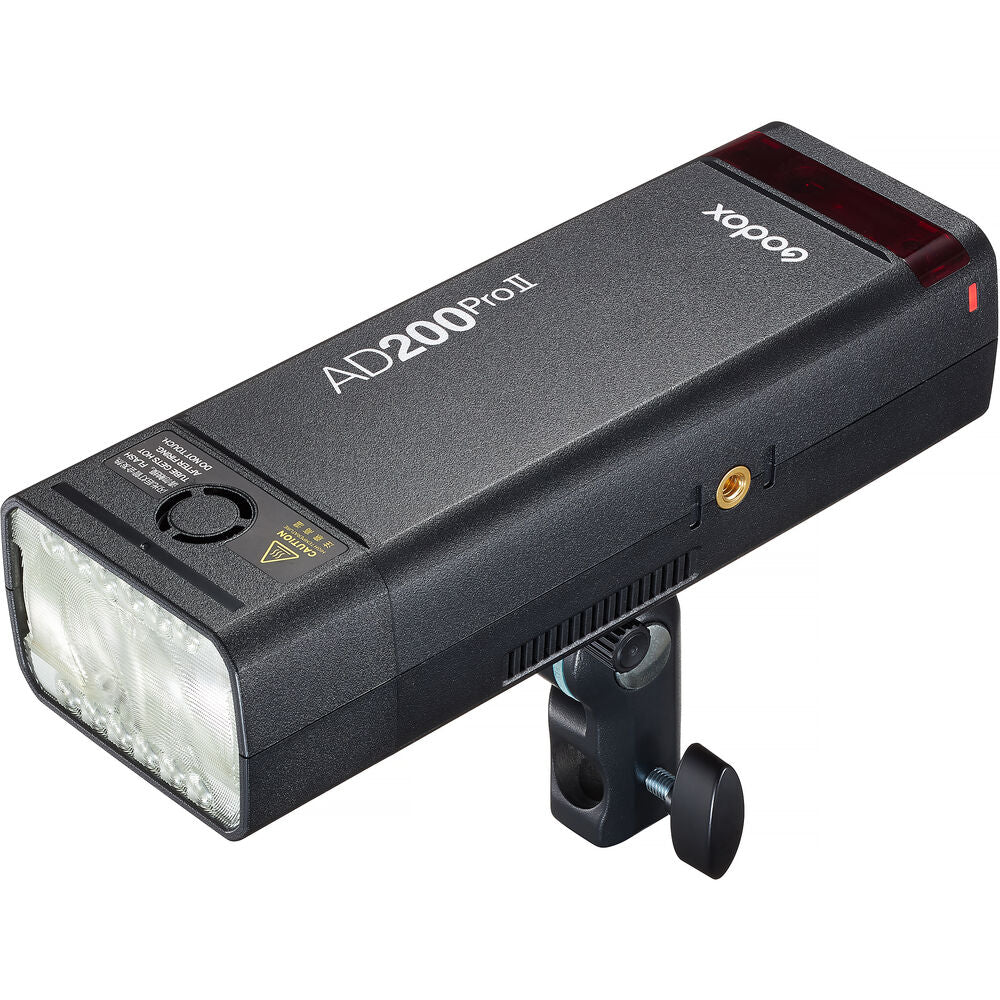

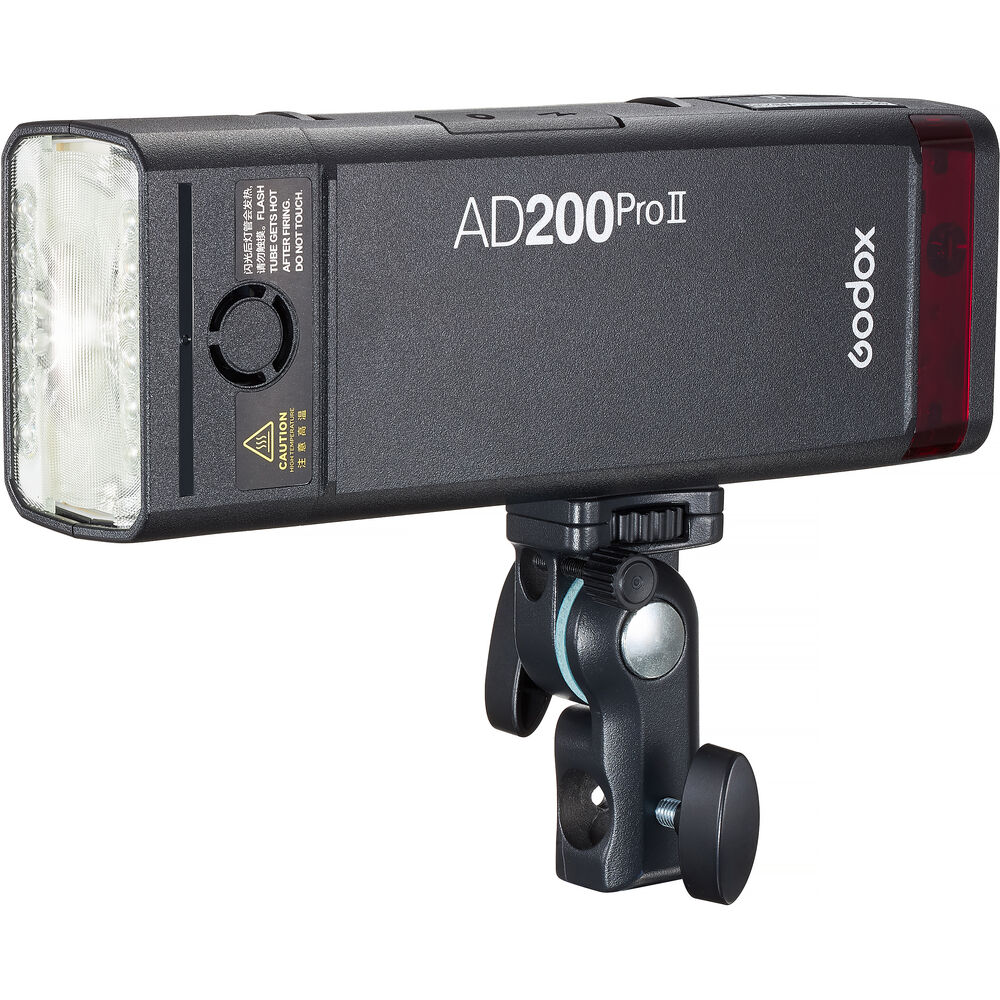

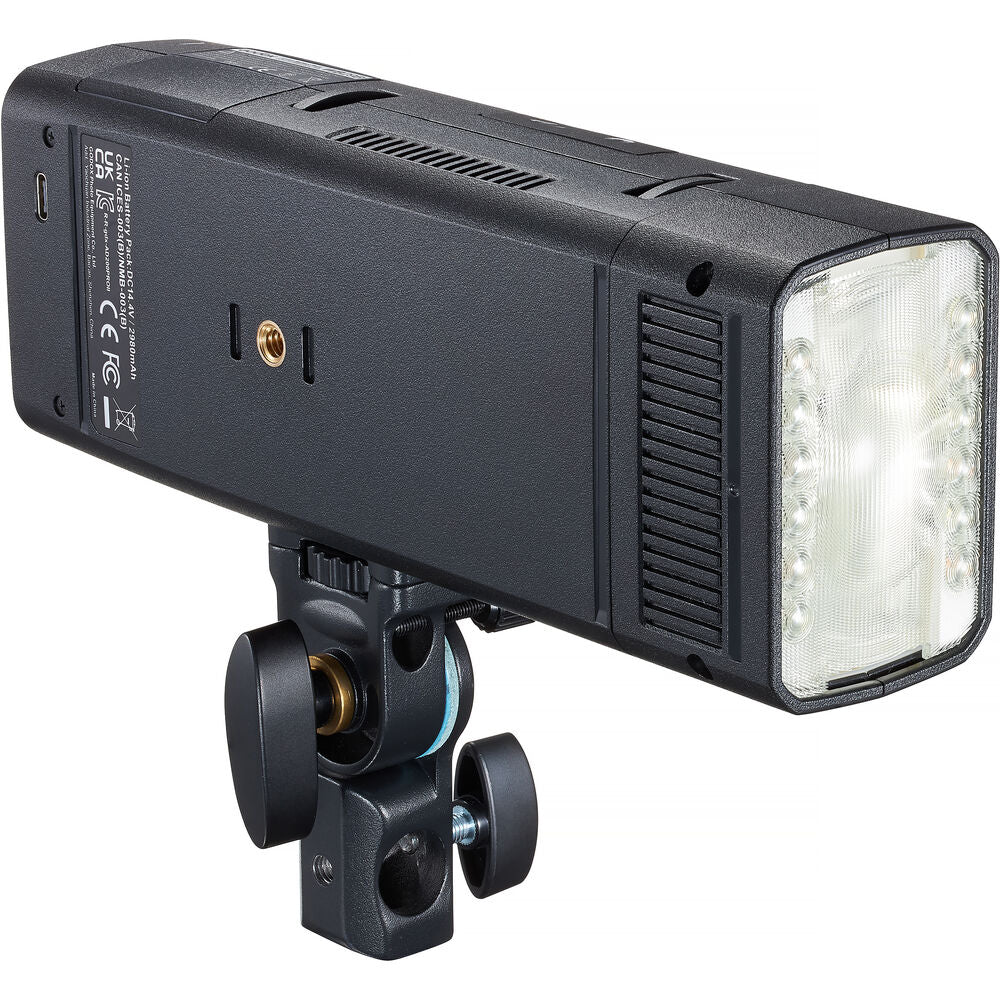

• H200 II Speedlite Head – Produces the classic, direct on-camera flash look.

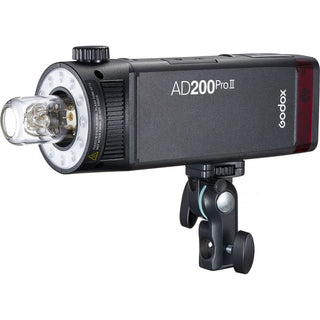

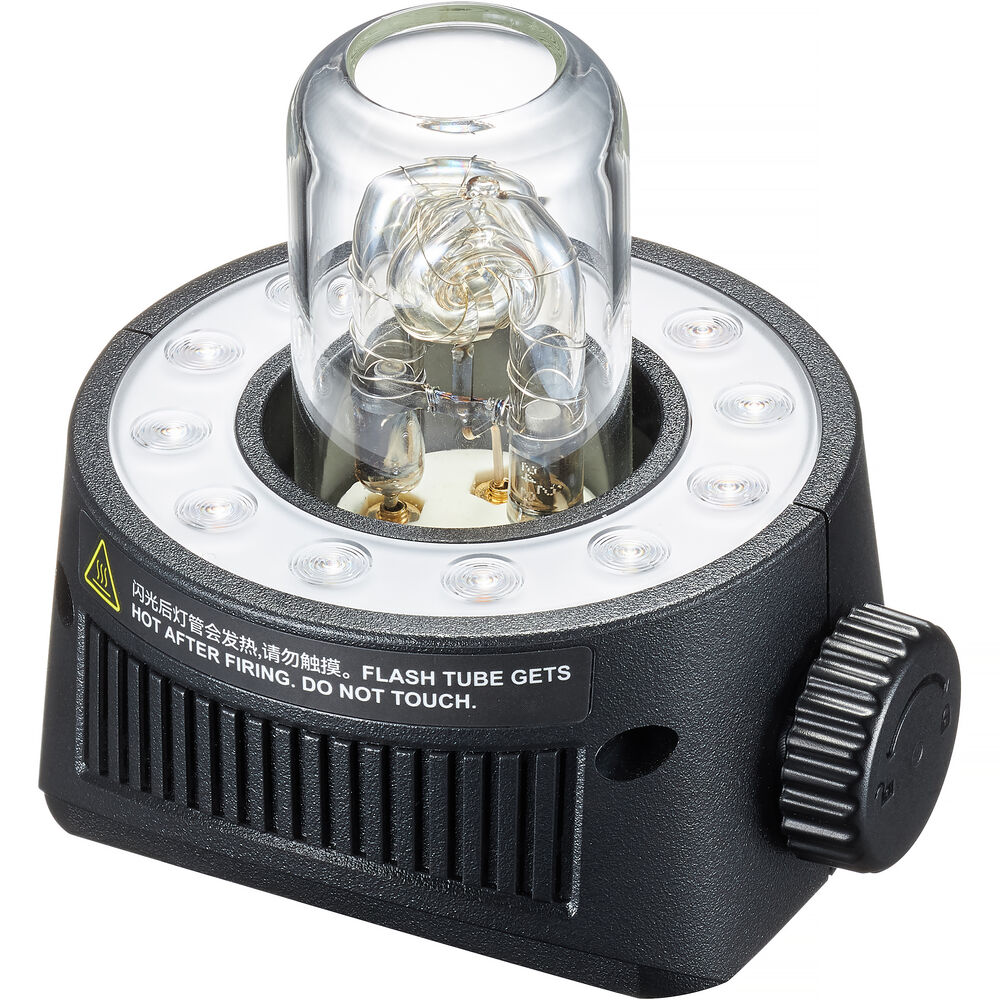

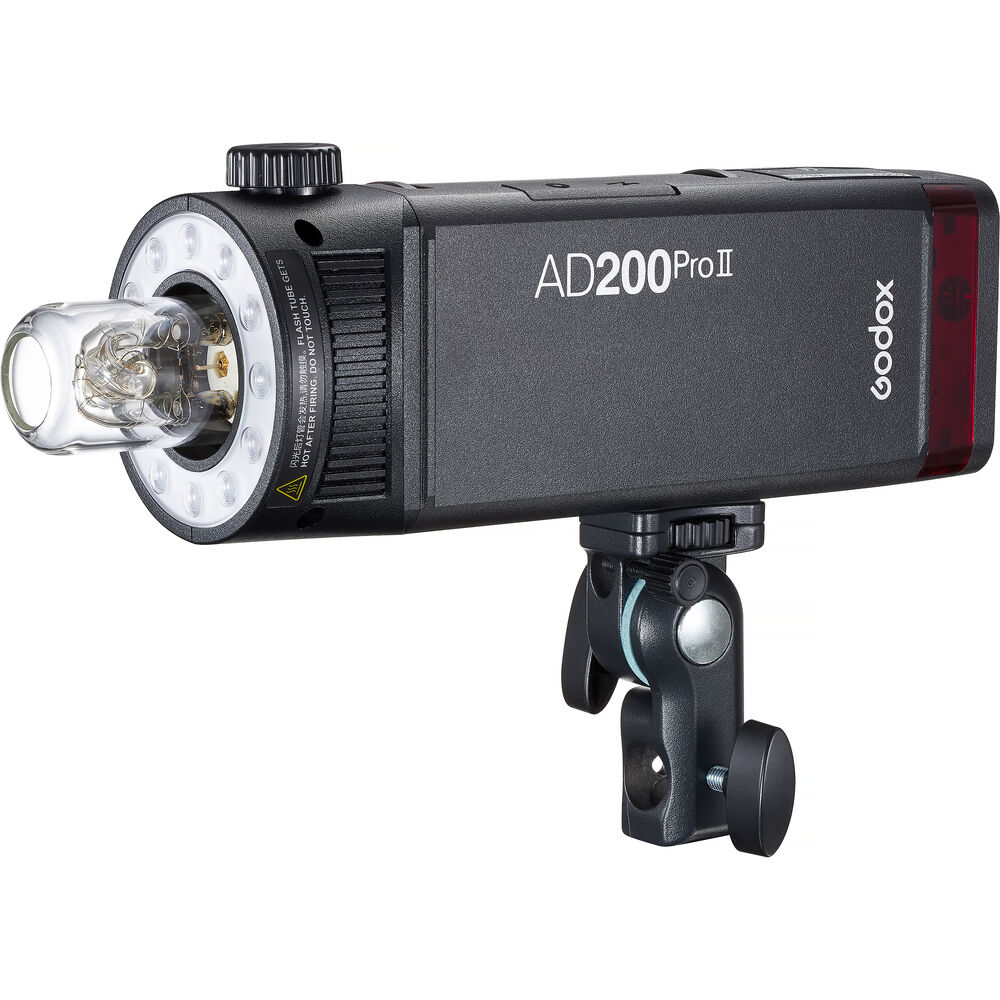

• H200J II Bare Bulb Head – Delivers softer, more omnidirectional light ideal for modifiers.

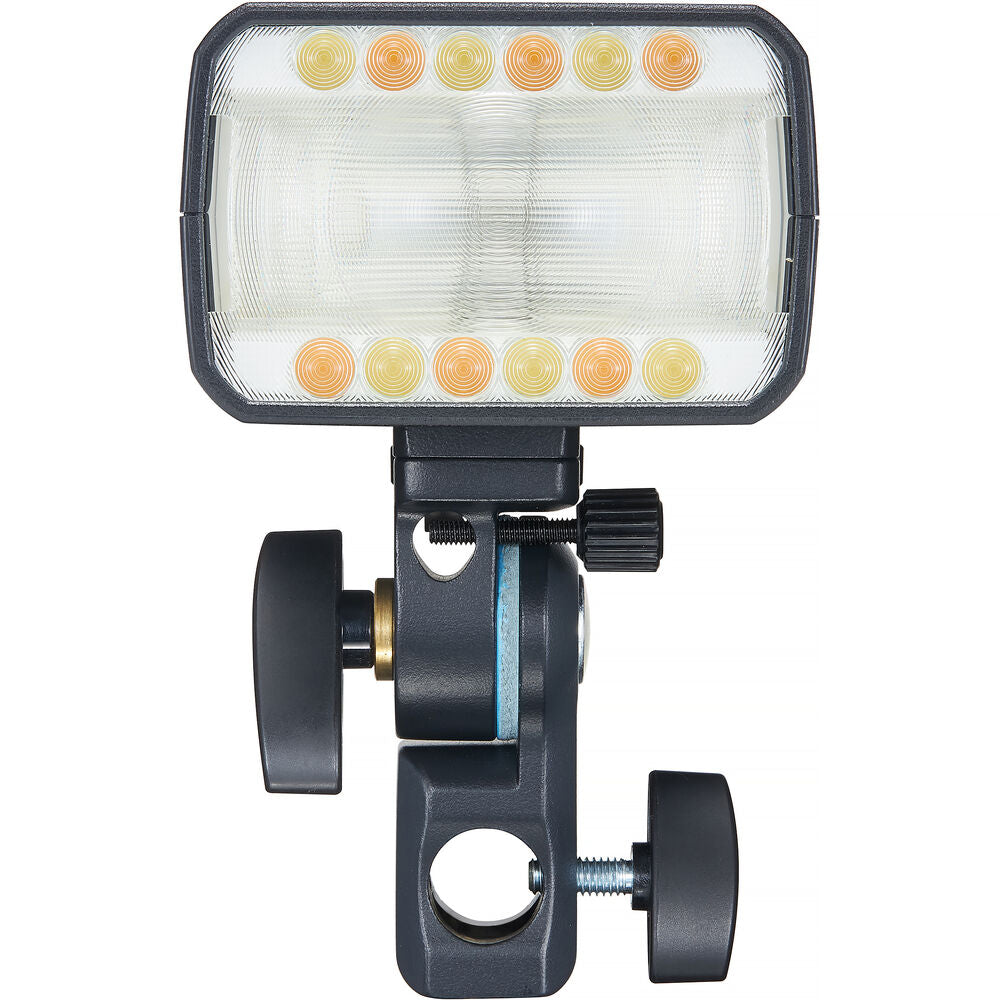

Both heads now feature bi-color LED modeling lights (2800–6000K) with proportional and adjustable output modes. The modeling lamps output 1400 lux at 3.3' and offer up to 6 hours (H200 II) or 5.5 hours (H200J II) of continuous use.

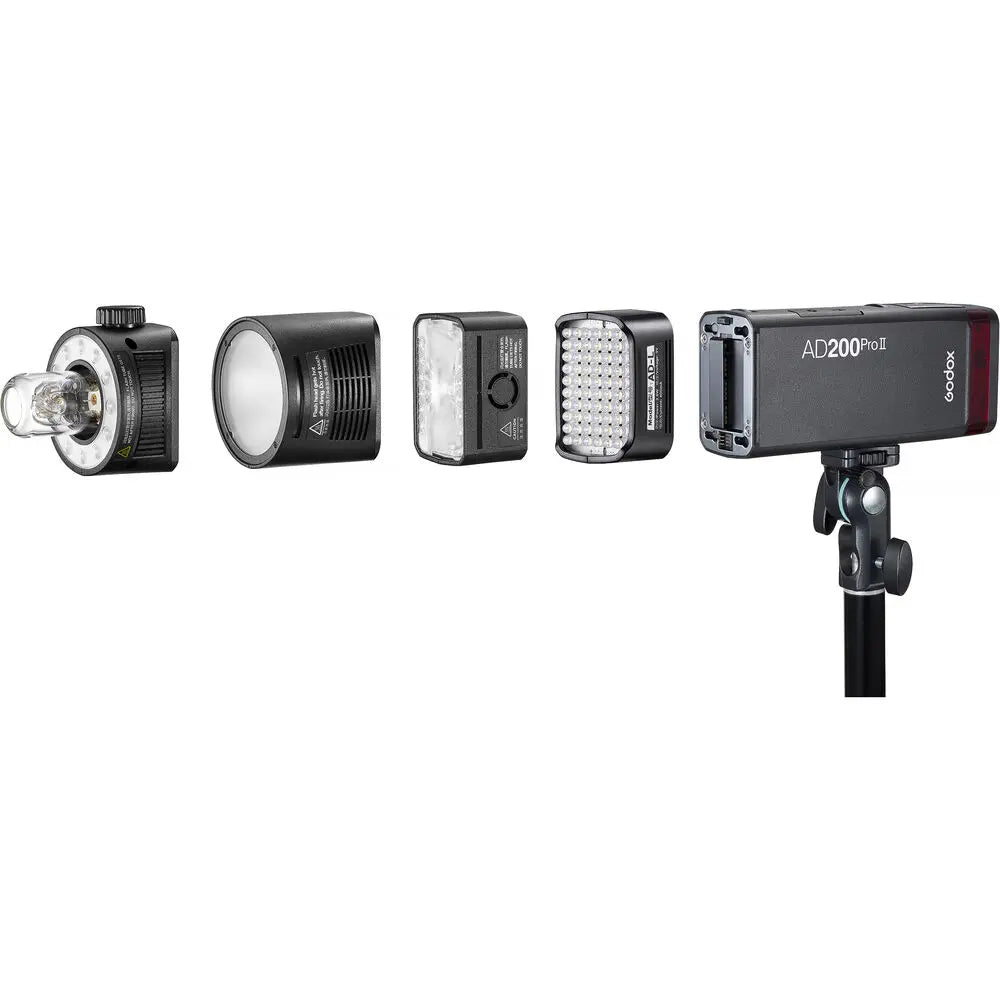

For expanded creative control, the AD200Pro II is also compatible with optional H200R round, R200 ring, and ADS200 stick flash heads, enabling everything from round-head aesthetics to 360° beam spread.

Expanded Power & Performance

Offering a wide 1/512 to 1/1 power range in precise 0.1-stop increments, the AD200Pro II provides exceptional control over exposure. It maintains the reliable 0.01–1.8 sec recycle time while delivering flash durations from:

• 1/272 to 1/23,500 sec (Speedlite head)

• 1/252 to 1/16,200 sec (Bare bulb head)

With a guide number of 170' / 52m (speedlite) and 196' / 60m (bare bulb) at ISO 100, it produces ample output for portraits, weddings, commercial, and event photography.

High-speed sync up to 1/8000 sec, first and second curtain sync, stroboscopic flash (up to 90 times), TTL, Manual, and Multi modes further expand creative possibilities.

Seamless Wireless Integration

The AD200Pro II features the built-in Godox 2.4 GHz Wireless X System, offering:

• 16 groups (0–9, A–F)

• 32 channels

• 99 wireless ID settings

• Up to 328' (100m) range

It supports TTL systems for Canon, Nikon, Sony, FUJIFILM, Olympus, and Panasonic, and can be wirelessly controlled via optional Godox triggers such as the X3, X2, XPro, and XPro II.

One-Tap Sync with X3 Trigger

When paired with the optional X3 trigger, users can instantly synchronize via a dedicated wireless sync function—eliminating complex channel and ID setup for faster workflow.

Group Color Indicator

Each of the 16 wireless groups displays a unique color on the flash body, allowing easy visual identification from a distance when managing multi-light setups.

Stable Color & Consistency

A dedicated Stable Color Temperature Mode maintains color accuracy within ±100K across the entire power range, ensuring consistent results in professional workflows.

Reliable Battery Performance

Powered by a removable 14.4V / 2900mAh lithium battery, the AD200Pro II delivers up to 500 full-power flashes per charge and thousands at lower outputs. A charger is included, and the unit can also operate with the optional PB960 power pack.

Compact, Lightweight & Mount-Ready

Weighing just 2 lb (907 g), the AD200Pro II remains highly portable while offering professional-grade output. It measures:

• 8.27 x 3.07 x 2.05" (with speedlite head)

• 10.24 x 3.54 x 3.11" (with bare bulb head)

A mounting bracket with 5/8" receiver is included for light stands, along with multiple 1/4"-20 threads for flexible rigging. Additional modifiers such as barndoors and softboxes are available separately to tailor the light to any creative scenario.

Godox AD200Pro II – Specification Sheet

General

• Item Type: 1x Monolight
• Includes Flash Tube: Yes
• Included Storage Case: Yes

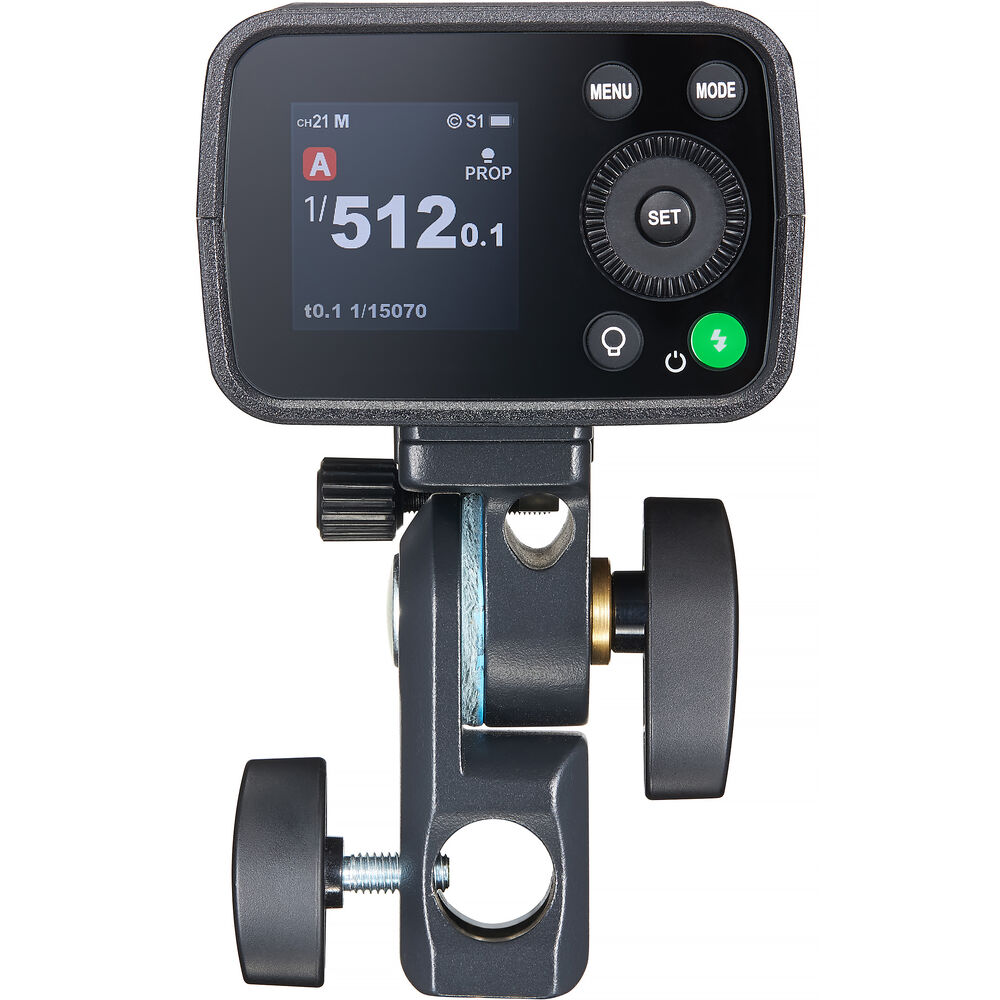

• Display: Yes
• Operating Conditions: Up to 120°F / 49°C
• Dimensions: 8.27 x 3.07 x 2.05" / 21.01 x 7.8 x 5.21 cm
• Weight: 2 lb / 907 g

Light Performance

• Power Range: 200 Ws
• Power Control: 10-Stop Range
• Guide Number: 170.6' / 52 m (ISO 100)
• Recycle Time: 0.01 to 1.8 sec
• Flash Duration: 1/272 to 1/23,500 sec
• Sync Speed: 1/8000 sec (High-Speed Sync)
• Color Temperature: 5800K ± 200K
• Flash Ready Indicator: Audio & Visual
• TTL Metering: Yes (via optional transmitter – Canon E-TTL / E-TTL II, FUJIFILM TTL, Nikon i-TTL, Sony ADI / P-TTL)
• Cooling System: Fan
• Delay Range: 0.01 to 30 sec
• Auto Dump: No

Modeling Light

• Type: LED Built-In
• Color Temperature: 2800K to 6000K
• Control Modes: Free Set, Off, Proportional
• On/Off Switch: Yes

Connectivity

• Wireless System: 2.4 GHz Radio/RF
• Wireless Remote Control: Built-In Radio/RF Receiver
• Optical Receiver: Built-In
• Mobile App Compatible: No
• Wireless Channels: 32
• Wireless Groups: 16
• Wireless Frequency: 2.4 GHz
• Wireless Range: 328.1' / 100 m
• Sync Input: 1x 1/8" / 3.5 mm Flash Sync
• USB Port: 1x USB-C (Battery / Firmware)

Power

• Power Source: Rechargeable Battery (Included)
• Battery: 14.4 VDC, 2900 mAh Lithium
• Battery Performance: Approx. 500 full-power flashes
• Battery Charging: Single-Bay Charger (Included)
• Input Power: 14.4 VDC

Mounting

• Front Accessory Mount: Proprietary
• Umbrella Mount: No
• Fixture Mounting: Support Mount
• Threads: 2x 1/4"-20 Female
• Included Adapter: 1x Swivel Mount (1/4"-20 Male to 5/8" Receiver)
• Replaceable Flash Tube: Yes (User Replaceable)
