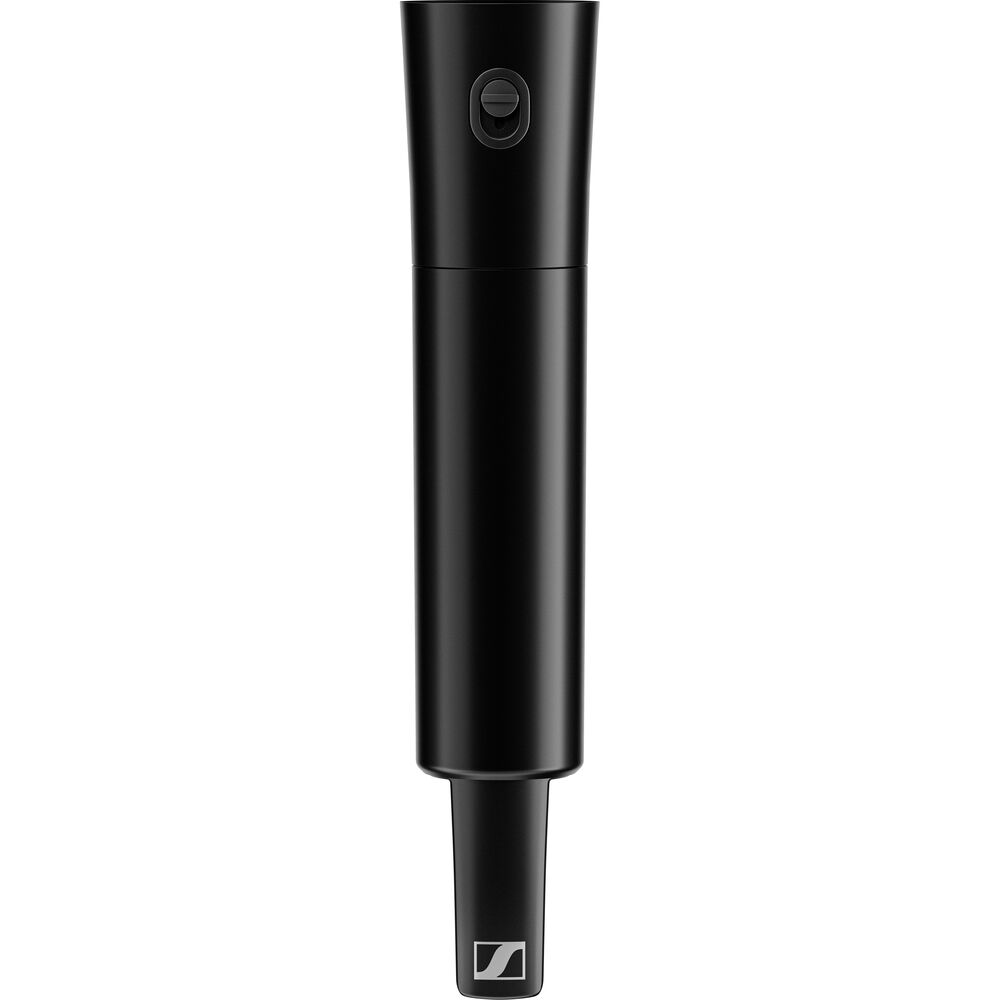

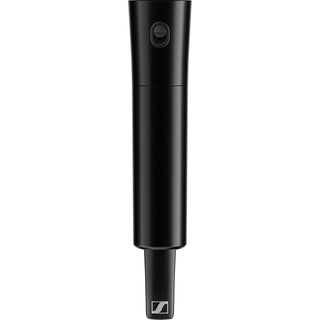

Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (R1-9: 520 to 607 MHz)

Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (R1-9: 520 to 607 MHz) Overview

The Sennheiser EW-DX SKM-S is a professional digital handheld wireless transmitter designed for use with Sennheiser EW-DX wireless receivers. Ideal for live performances, presentations, conferences and professional events, it delivers reliable wireless audio with excellent dynamic range and flexible microphone capsule options. Supplied without a microphone capsule, it allows you to choose a compatible interchangeable capsule to suit your vocal requirements and application.

Featuring an impressive 134 dB input dynamic range, the EW-DX SKM-S can handle everything from quieter speech to powerful vocals without requiring constant gain adjustments. A trim control provides additional level adjustment for group performances, while the programmable mute switch can be locked or remotely overridden through a compatible receiver or mobile device.

The transmitter features an e-Ink display for easy identification and parameter viewing, even when powered off. Bluetooth pairing enables quick and convenient synchronisation with compatible receivers, while its rugged all-metal housing provides the durability required for demanding professional environments.

For flexible power options, the EW-DX SKM-S operates for up to 8 hours on two AA batteries or up to 12 hours with the optional BA 70 lithium-ion rechargeable battery pack. It also supports in-transmitter charging with the optional CHG 70N network charging dock.

Designed for scalable professional wireless systems, EW-DX uses an equidistant tuning grid to help minimise intermodulation issues in multi-transmitter environments. Compatible system configurations can support up to 146 channels in equidistant tuning grid mode or up to 293 channels in Link Density mode, depending on the system setup and operating conditions.

Key Features

• Professional digital handheld transmitter compatible with Sennheiser EW-DX wireless receivers

• 134 dB input dynamic range for handling a wide variety of vocal levels

• Interchangeable microphone capsule design; capsule sold separately

• Programmable mute switch with remote control options

• e-Ink display for transmitter identification and parameter visibility

• Bluetooth pairing for quick receiver synchronisation

• Rugged, all-metal housing for professional stage use

• Up to 8 hours of operation with two AA batteries or 12 hours with the optional BA 70 rechargeable battery pack

• Compatible with the optional CHG 70N network charging dock

• Equidistant tuning grid technology for reliable multi-channel operation

• Compatible with a range of optional Sennheiser and Neumann microphone capsules, including MMD 835, MMD 845, MME 865, MMD 935, MMD 945, MM 435, MM 445 and Neumann KK 204

Sennheiser EW-DX SKM-S – Specifications

System

• Wireless Technology: Digital UHF / Bluetooth 5.1 LE
• RF Frequency Band: R1-9: 520 to 607.8 MHz
• Number of RF Channel Frequencies: 2,240
• Maximum Operating Range: 100 m (328.1 ft), line of sight
• Latency: 1.9 ms
• Encryption: AES 256
• Built-In Recorder: No
• Mobile App Compatibility: Yes, Android and iOS

Transmitter

• Included Transmitter: 1 x Handheld
• RF Output Power: 10 mW
• Antenna: Internal
• Input Level: Microphone
• Audio I/O: None
• Bias / Plug-In Power: Supported; voltage unspecified
• Phantom Power: Not supported
• USB I/O: None
• Muting: Mute switch
• Auto-Level / Gain: No
• Frequency Response: 20 Hz to 20 kHz (-3 dB)
• Sync Method: Bluetooth
• Display: Backlit LCD

Microphone

• Microphone Capsule: Not included

Power

• Transmitter Battery Type: 1 x Sennheiser battery pack (included) or 2 x AA batteries (not included)
• Battery Life: Up to 12 hours with Sennheiser battery pack; up to 8 hours with alkaline batteries
• Charging Case: Not included
• AC/DC Power Adapter: Not included

Physical

• Environmental Resistance: None specified
• Housing: Metal
• Dimensions: 268 x 50 mm (10.6 x 2 in)
• Weight: 304 g (10.7 oz)
