SmallRig 6746 Wired Touchscreen Display Adapter for Smartphones (Basic Edition)

SmallRig 6746 Wired Touchscreen Display Adapter for Smartphones (Basic Edition) Overview

The SmallRig 6746 Wired Touchscreen Display Adapter for Smartphones (Basic Edition) features a 4.02-inch capacitive touchscreen designed to simplify mobile photography, videography, and live streaming. Supporting both screen mirroring and direct smartphone control, it provides a convenient monitoring and operating solution for compatible smartphones.

Touchscreen Monitoring and Control

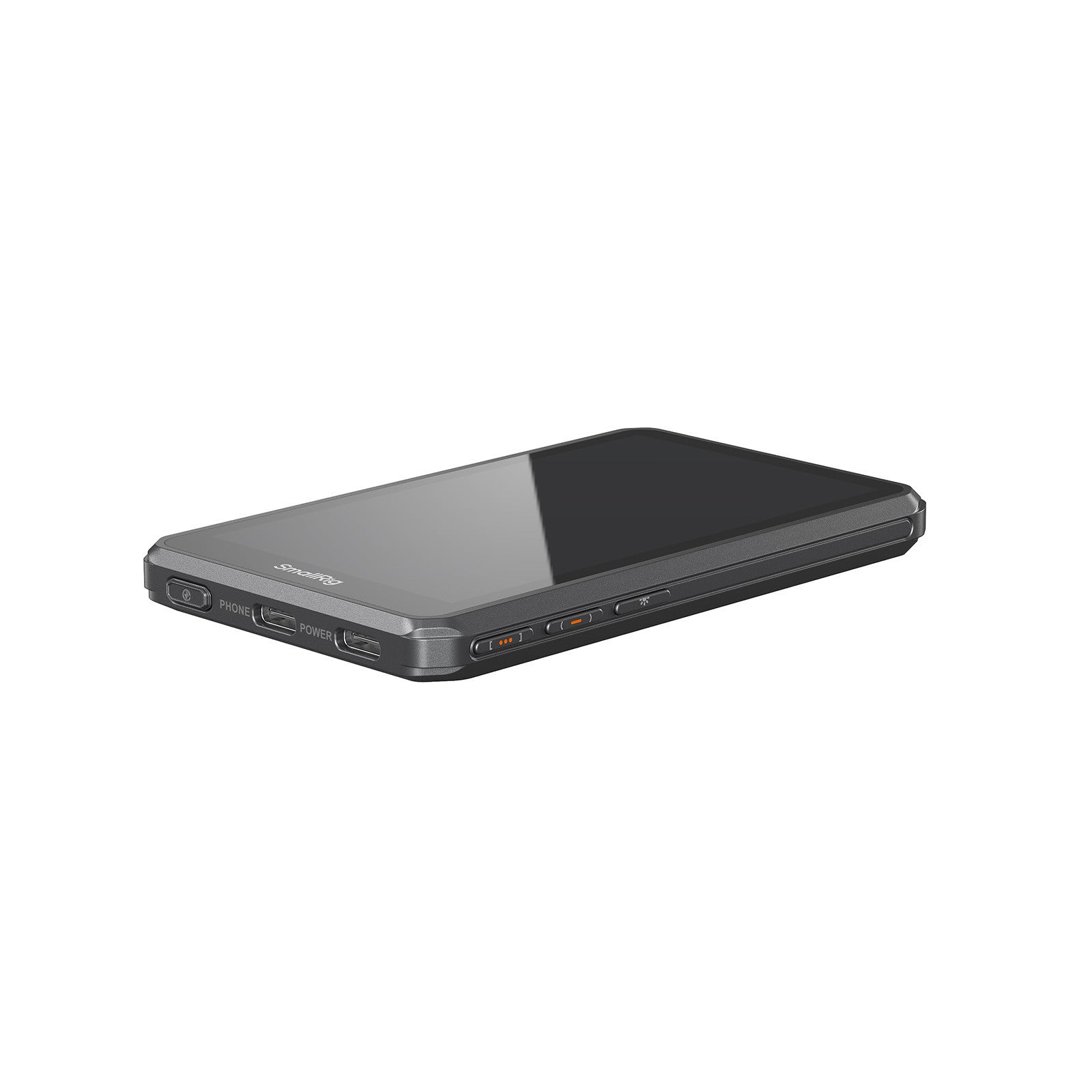

The 4.02-inch touchscreen enables users to view their smartphone display and interact directly with compatible devices. Four dedicated function buttons provide quick access to system sleep, screen brightness, image rotation, portrait mirroring, display modes, and reverse phone control, helping streamline everyday content creation.

Power and Audio Connectivity

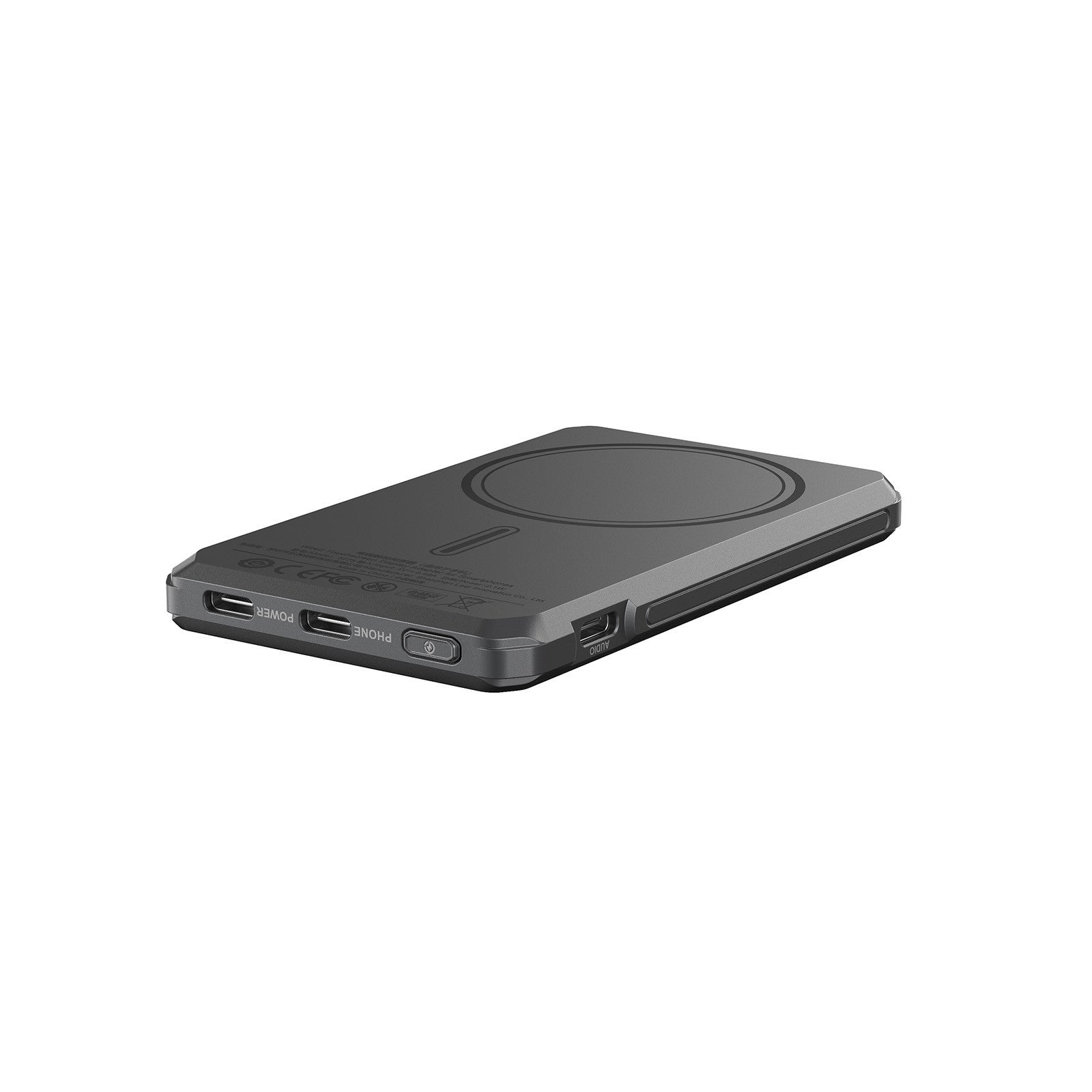

The adapter features a USB-C PD port for charging a connected smartphone during use and can also be powered directly by the phone itself. A USB 2.0 port supports connection to an external microphone receiver for audio recording, making it suitable for mobile video production and live streaming setups.

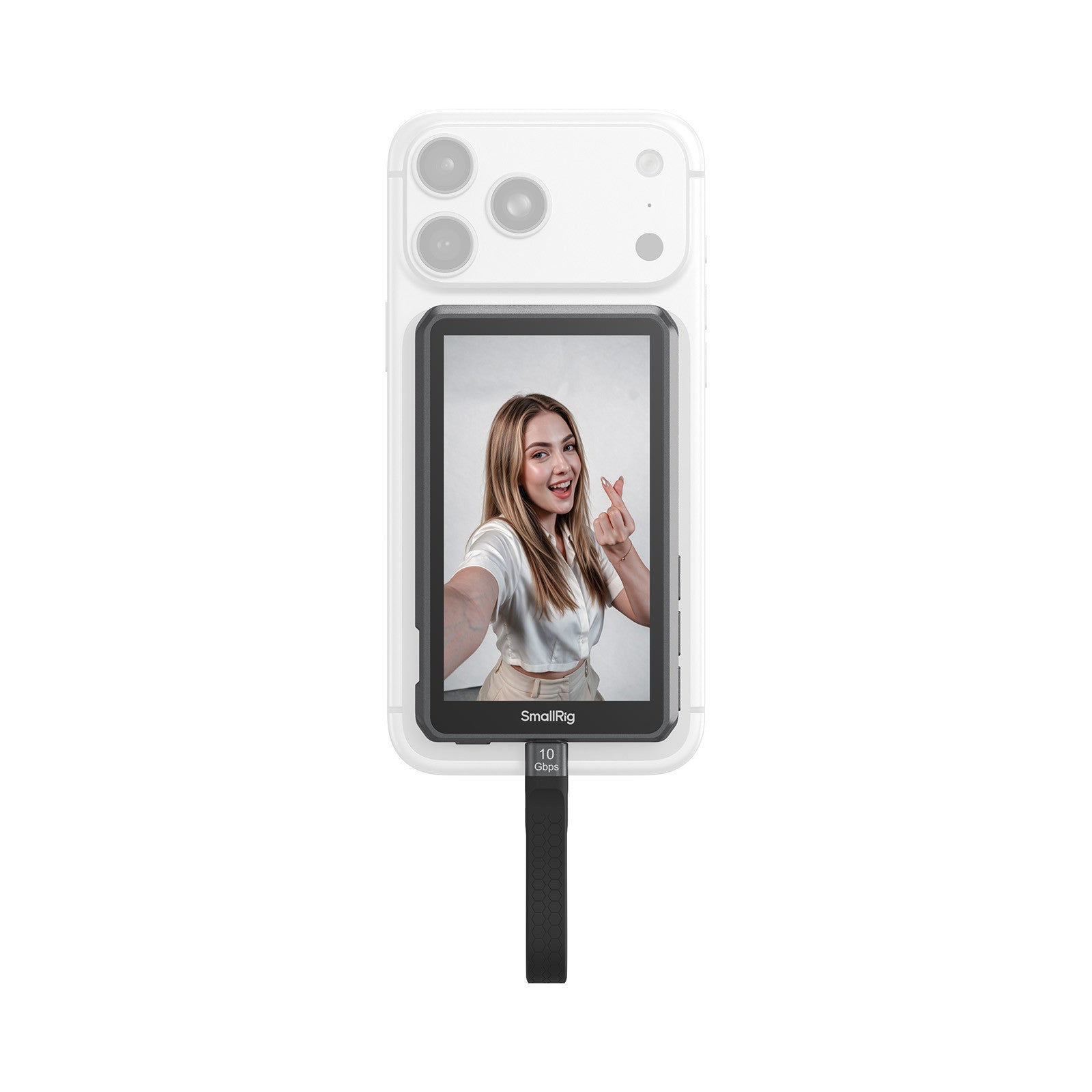

Magnetic Mounting Design

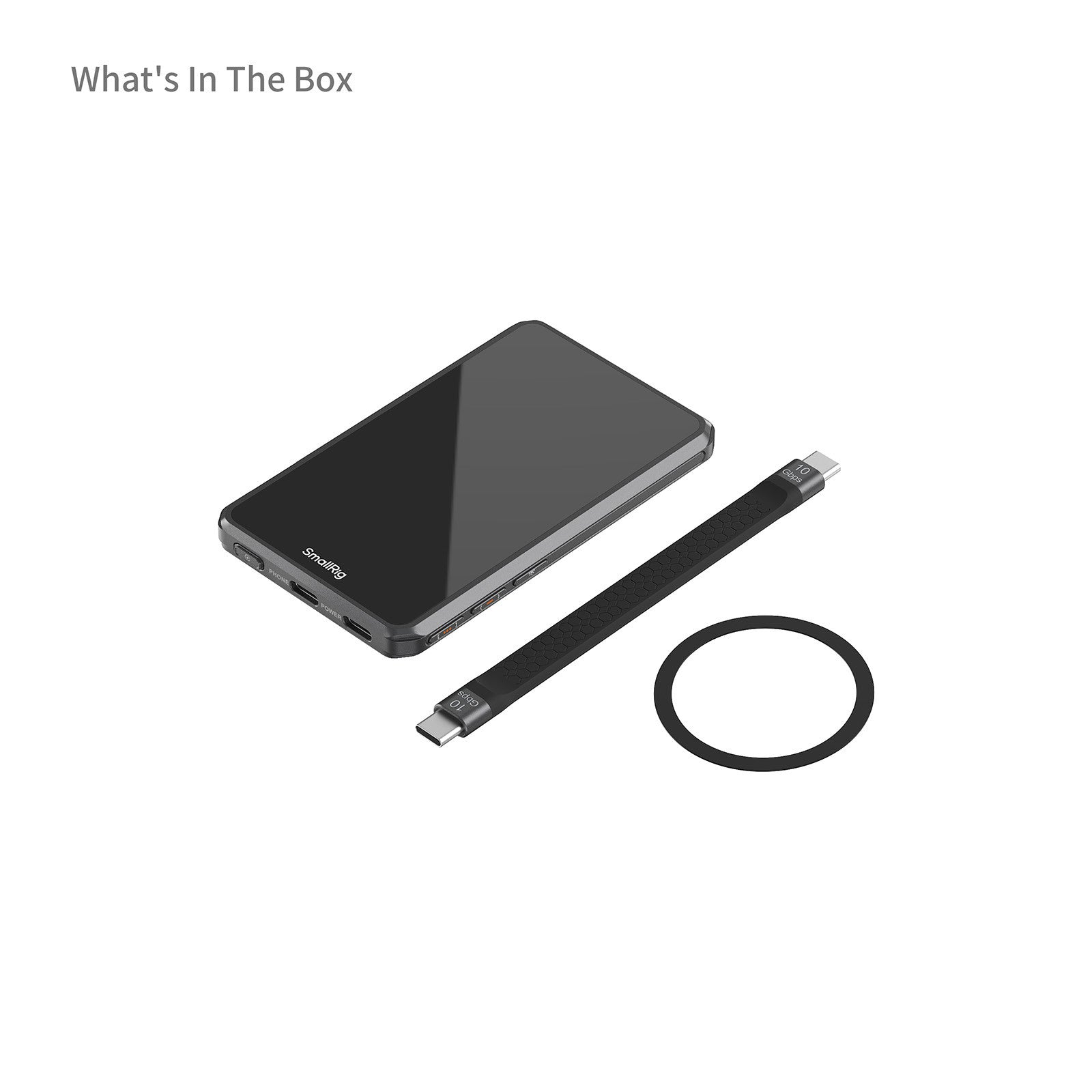

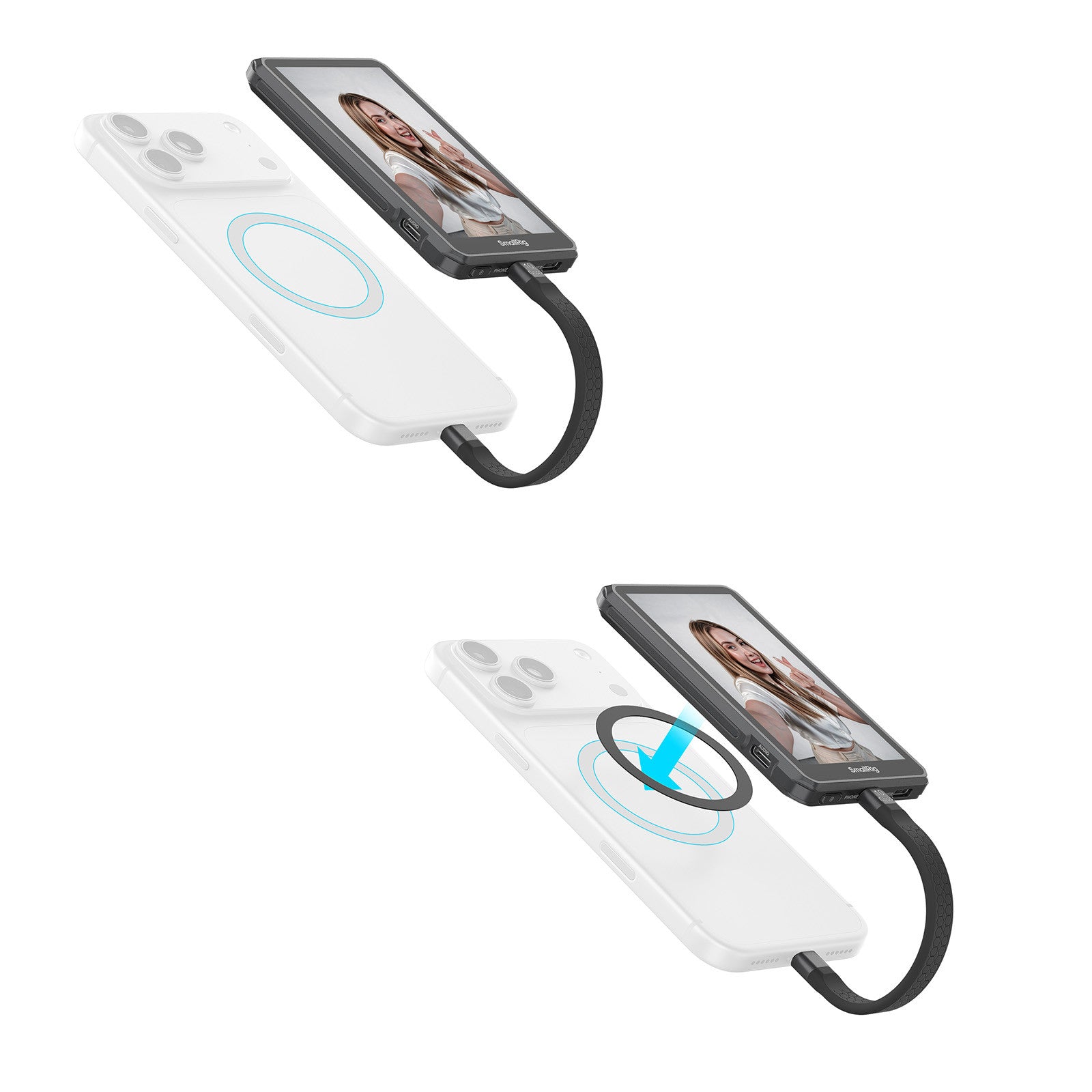

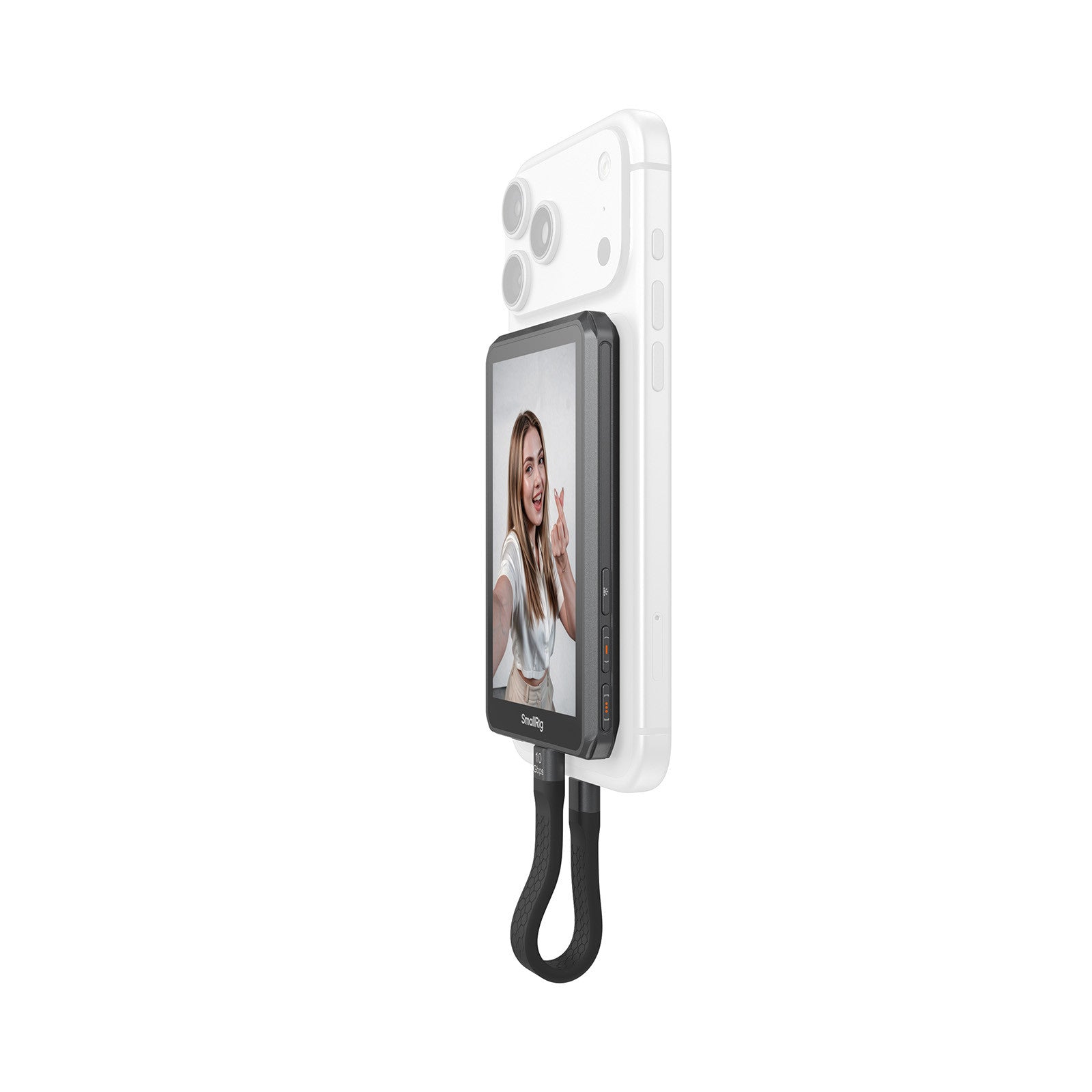

The magnetic attachment system allows the adapter to connect directly to compatible iPhones or to other smartphones and cases fitted with the included magnetic ring. Its compact design makes it a practical addition to a mobile content creation setup.

Compatible Smartphones

The SmallRig 6746 is designed for use with selected smartphone models, including:

• Apple: iPhone 15, 16, and 17 Pro and Pro Max series

• Samsung: Galaxy S25 and S26 Ultra series

• Huawei: Mate 80 and 90 series; Pura 80 and 90 series

• Xiaomi: 15 and 17 series

• Vivo: X200 and X300 series

• OPPO: Find series

Important Notes

• Do not immerse the product in water or use it in humid environments.

• Select the appropriate touch mode for your smartphone using the function buttons before use.

• Touch control functionality and user experience may vary depending on the smartphone's operating system.

General Specifications

• Model: SmallRig 6746
• Product Type: Wired Touchscreen Display Adapter for Smartphones (Basic Edition)
• Material: Silicone, Aluminium Alloy

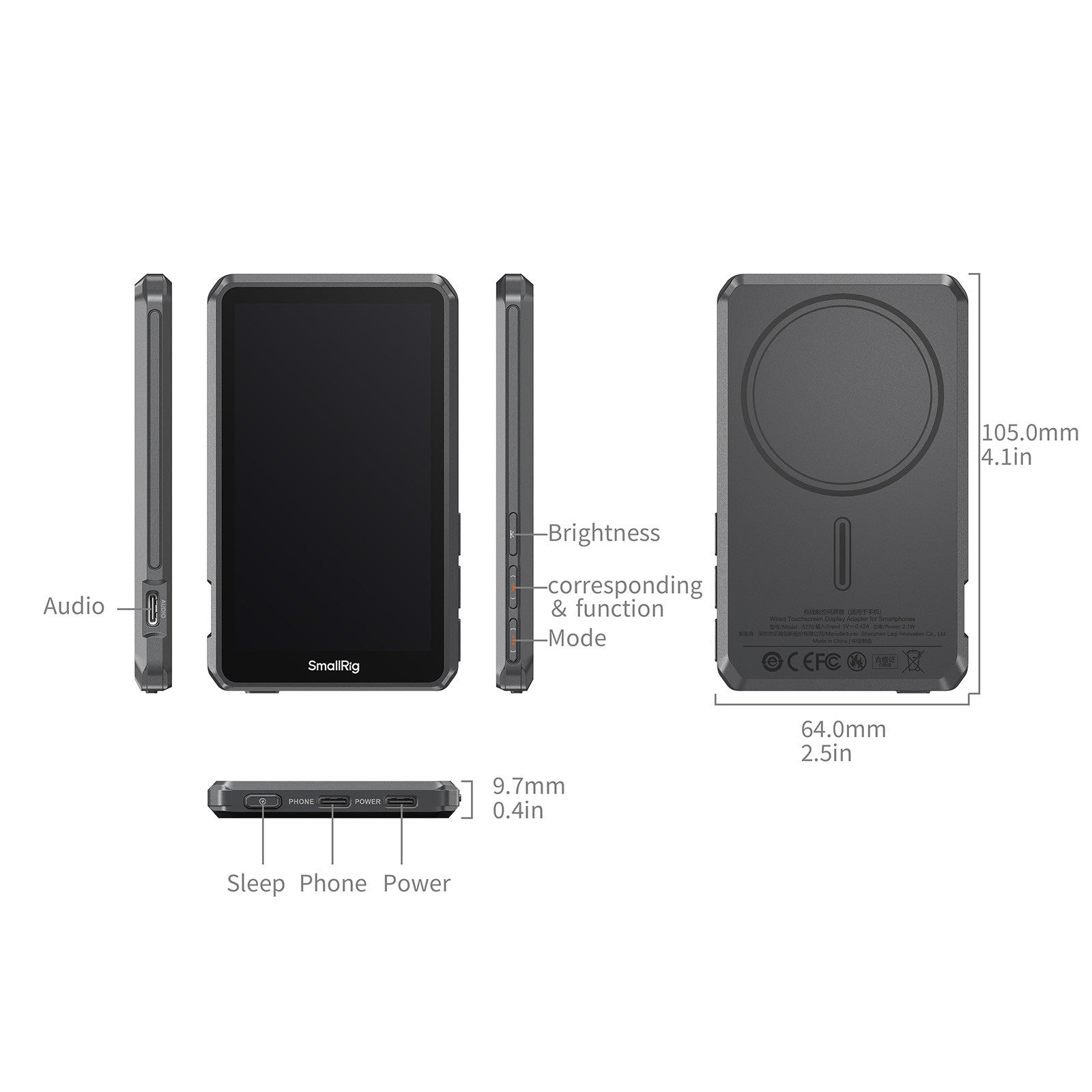

• Product Dimensions: 105.0 × 64.0 × 9.7 mm / 4.1 × 2.5 × 0.4 in
• Product Weight: 105.7 ± 2.0 g / 3.7 ± 0.1 oz

Power Specifications

• Voltage: 5 V
• Current: 420 mA
• Rated Power: 2.1 W
