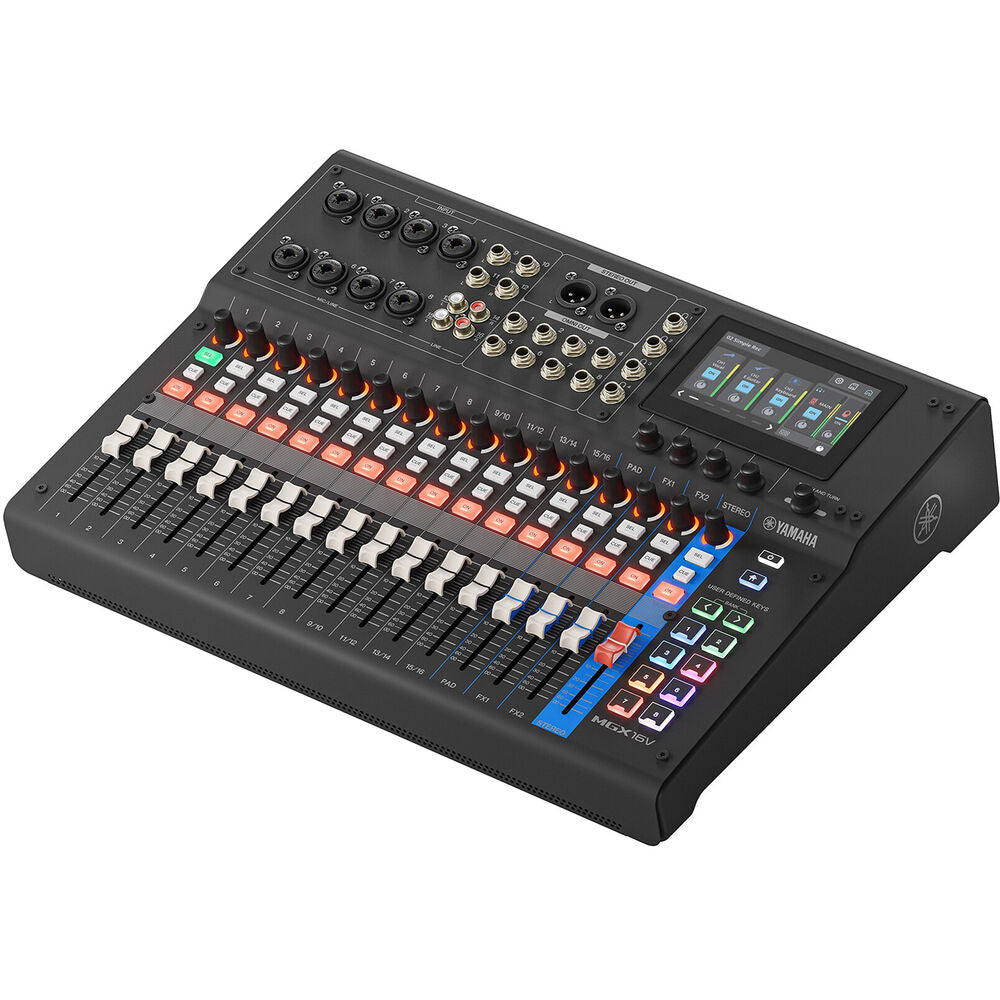

Delivering a perfect balance of flexibility, performance, and premium sound quality, the Yamaha MGX16V B is a 22-channel digital mixing console that evolves the legacy of Yamaha’s MG-Series analog mixers into a fully hands-on digital mixing environment. Designed for live sound, installed systems, podcasting, streaming, music production, and recording applications, the MGX16V integrates advanced audio and video capabilities to support modern hybrid workflows.
Integrated Audio & Video Capabilities
The MGX16V features a USB-HDMI audio/video interface with capture and pass-through functionality, enabling users to mix audio while simultaneously recording or streaming high-definition video to a PC. HDMI IN/THRU ports support capture at up to 4K60 fps (1080p240 fps) and pass-through at the same resolutions, making the console ideal for small live events, hybrid concerts, podcasting, or streaming setups. This integration allows creators to manage both audio and video from a single, compact system.
Versatility and Professional Sound

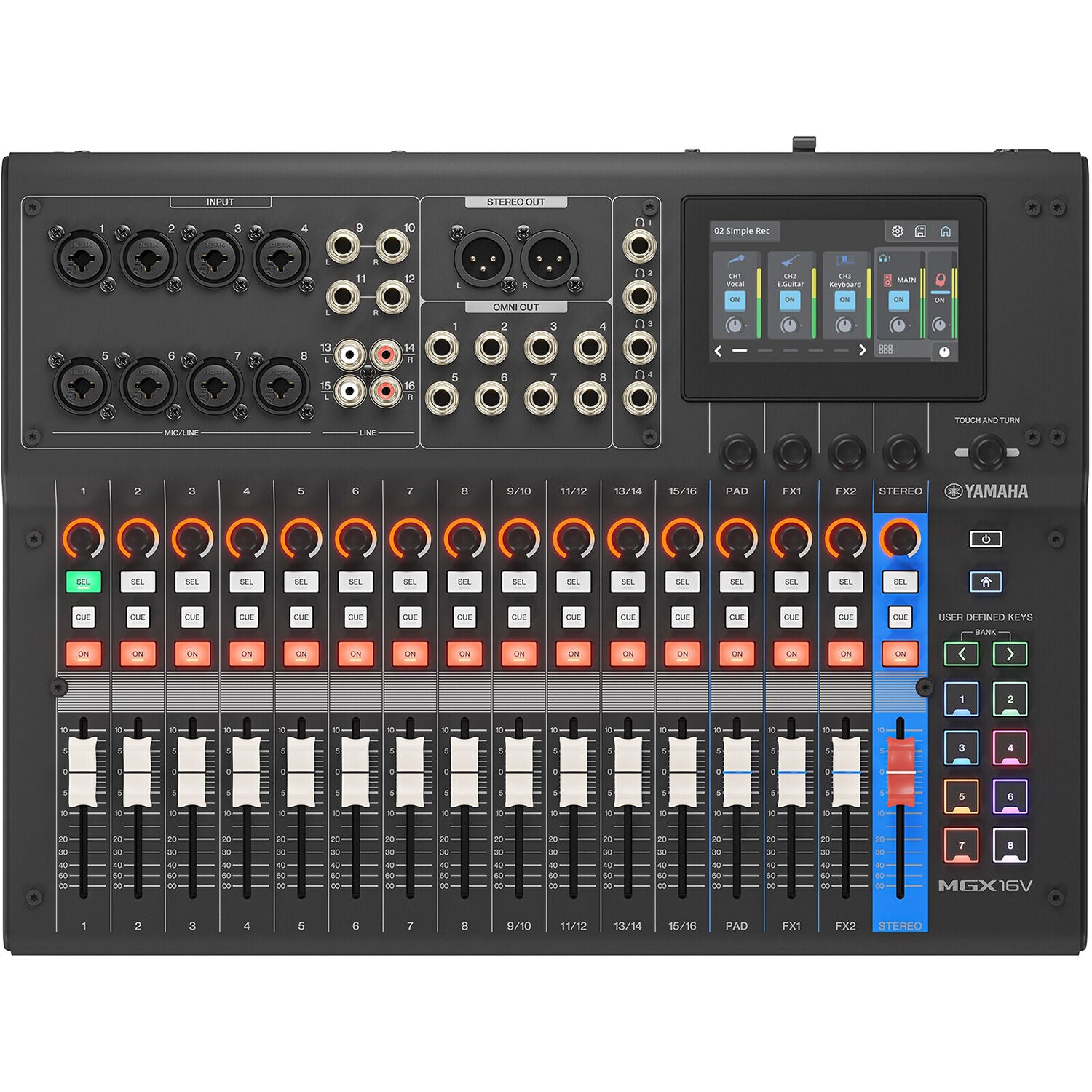

The MGX16V offers extensive flexibility with carefully selected physical I/O, including:
-
8 premium MGX mic preamps on Mic/Line combo inputs
-
8 Line inputs
-
2 XLR main outputs
-
8 TRS OMNI bus outputs
-
4 headphone ports
Supported by a robust bus architecture of 8 MIX buses, 2 FX buses, 1 CUE bus, and 1 Stereo bus, the console provides expansive routing and mixing capability. Onboard DSP effects, including Gate, Compressor, EQ, Reverb, Amp Simulators, and Voice Changers, further enhance creative sound shaping.
Yamaha True Sound
Following Yamaha’s “True Sound” philosophy, the MGX16V delivers pristine audio through high-performance AD/DA converters and MGX mic preamps with up to 86 dB gain range, ultralow distortion, and 125 dB stereo dynamic range. This ensures that every vocal or instrument nuance is captured accurately, providing professional-grade audio for performers, engineers, and audiences alike.
Creative Tools & Workflow Efficiency

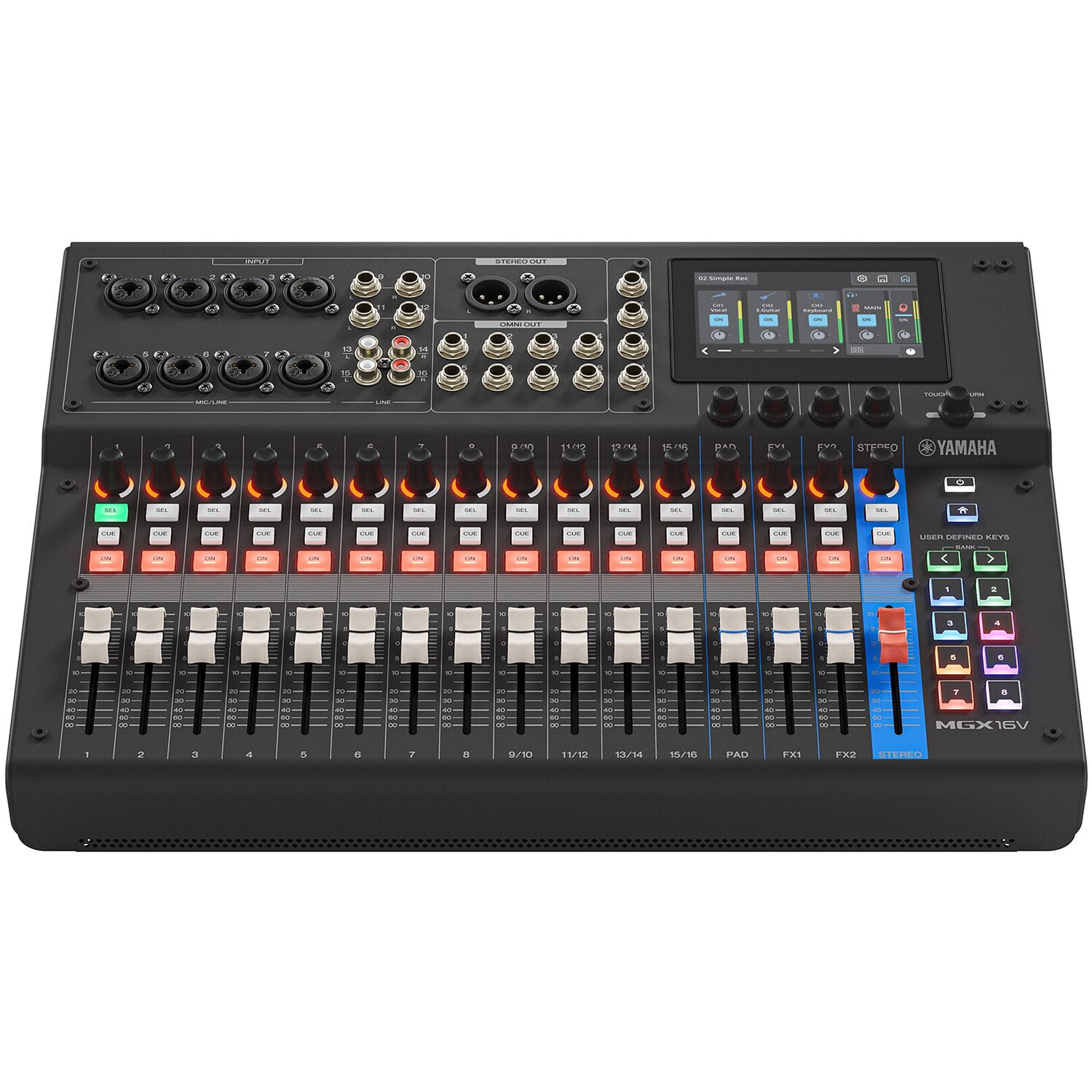

The MGX16V is designed for rapid, intuitive operation with:
-
16 motorized 60mm channel faders
-
16 FX knobs, 5 control knobs, and 1 touch-sensitive knob
-
A feature-rich 4.3" touchscreen GUI
-
8 customizable sound pads and 4 user-defined knobs for quick access to effects, scene recall, or test tones
Intelligent features such as Smart Gain, Clip Safe, Total FX (including Ducker and Multi-Band Compressor), and Delay for lip-sync adjustment keep workflows smooth and consistent. Scene Recall and Simple Mode allow instant setup changes to maintain focus on creativity.
Hybrid-Ready Performance Hub
The MGX16V serves as a multifunctional production hub with:
-

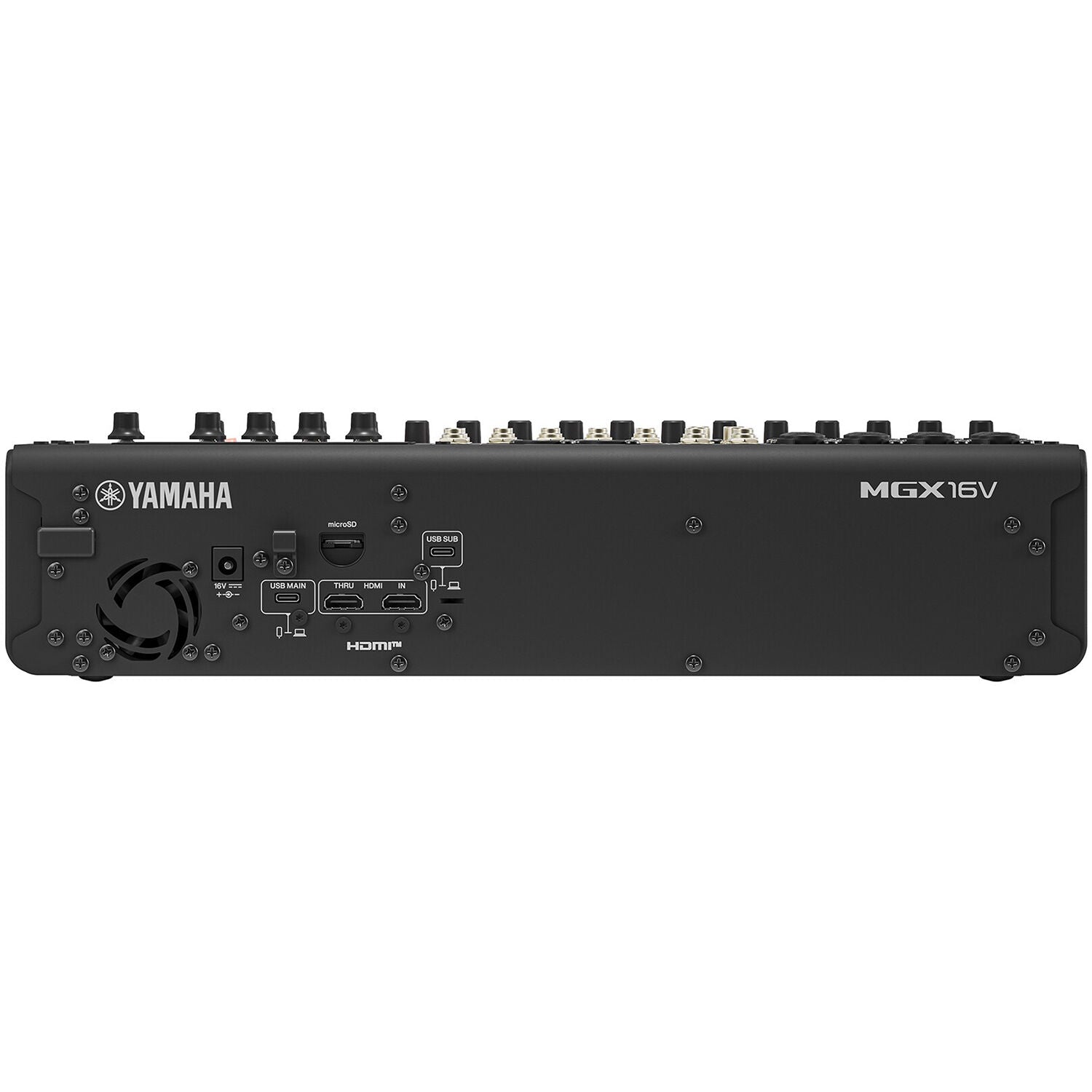

Dual USB ports for multitrack recording/playback:
-
USB MAIN: 18-track recording / 18-track playback
-
USB SUB: 2-track recording / 2-track playback
-
-
Bluetooth 5.0 for wireless audio integration
-
MicroSD card recording/playback (up to 16 tracks)
-
HDMI audio/video capture and pass-through
This makes it ideal for hybrid events, streaming, and portable production setups.
Seamless Integration & Expansion
Compatible with Steinberg MixKey V1.0, Elgato Stream Deck, and OBS Studio, the MGX16V allows full system control for audio/video management, live streaming, and creative production. It integrates smoothly with Yamaha’s ecosystem of speakers, microphones, headphones, and other accessories for a fully scalable solution.
Compact, Durable, and Portable

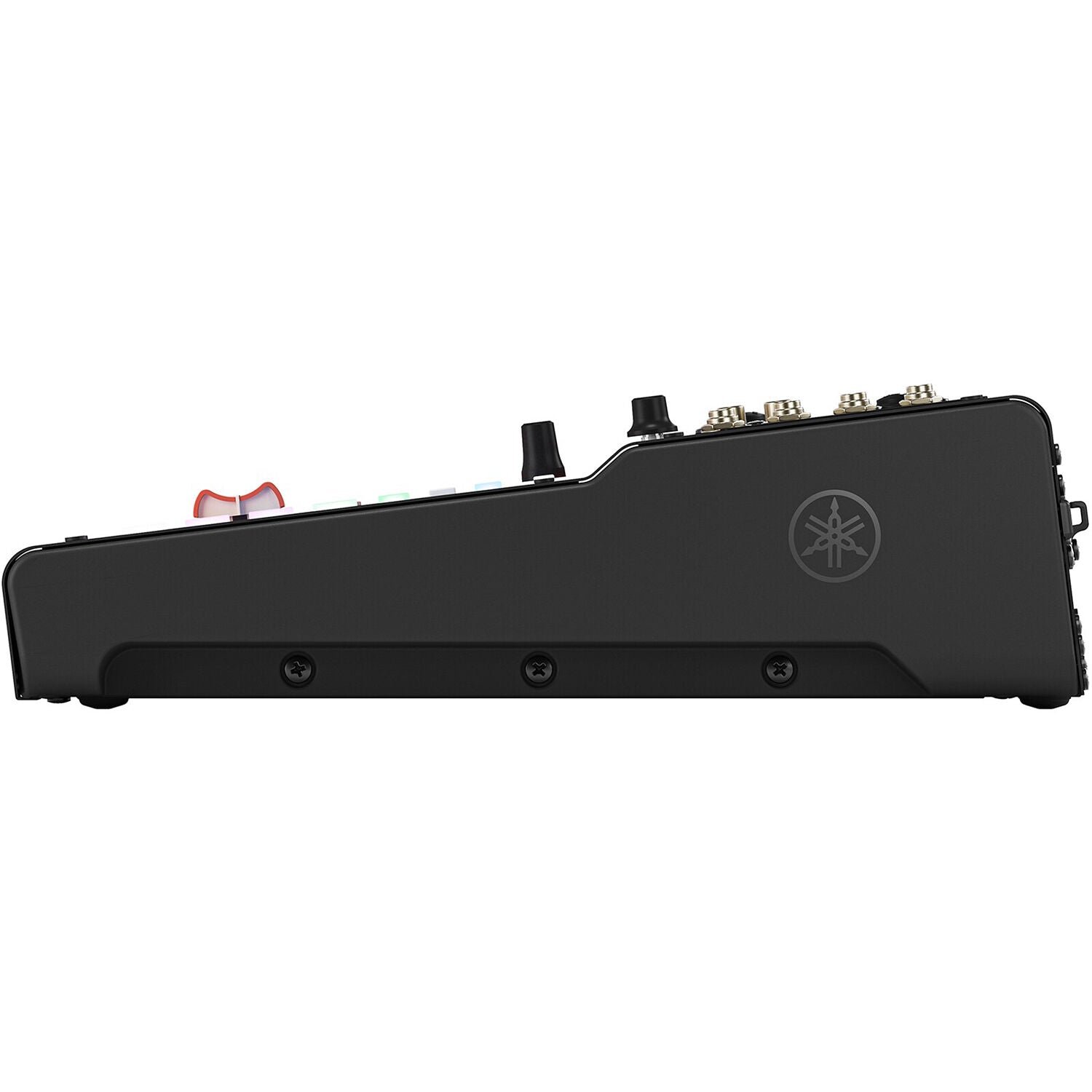

Despite its wide range of features, the MGX16V weighs just 4.9 kg (10.8 lb) and maintains a rugged build, ensuring durability for touring, installation, or studio use while remaining highly portable.
Complete, Connected, Creative
Whether mixing live sound, recording music, streaming hybrid events, or producing content, the Yamaha MGX16V B delivers a professional, all-in-one solution that combines high-quality audio, integrated video, flexible workflow tools, and seamless system integration—empowering creators, engineers, and performers to elevate their productions.
