Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX 835-S SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a dual-channel, 1/2-rack receiver and two handheld transmitters/mics with mute switch and MMD 835 cardioid capsules.

With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them. The wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel count, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.

Rock-Solid Wireless Audio with Professional Digital Sound & More Mic Channels

• The UHF transmission greatly enhances range (up to 330') and the wide 80 MHz bandwidth gives you the ability to find a clean channel from 3200 available frequencies.
• Intelligent Switching Diversity compares incoming signals on two independent antennas and receiver circuits to ensure optimal wireless quality. The receiver switches between antennas only during header data as to never affect the audio information.
• The equidistant tuning grid removes the need for frequency coordination and allows you to add additional transmitters and receivers for up to 134 mic channels simultaneously.
• For complex systems requiring even more mics, engage the Link Density mode for up to 269 channels on the same system.

Dual-Channel Receiver with OLED Screen & Bluetooth

• The all-metal, 1/2-rack, dual-channel EW-DX EM 2 receiver offers intuitive front-panel controls and a high-contrast OLED with meters for RF, battery status of the associated transmitter, and audio output that make setup a breeze.
• Bluetooth capabilities allow you easily sync transmitters at a distance of up to 120' away and control the receiver remotely from your smartphone using the Smart Assist app.

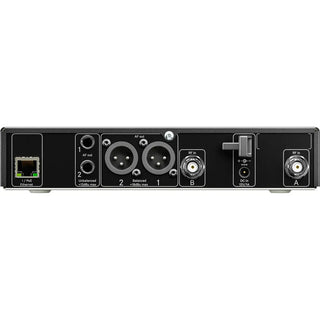

• The RJ45 port allows for PoE (Power over Ethernet) as well as networked control via Sennheiser's Wireless Systems Manager and Cockpit Control software.
• Balanced XLR outputs as well as unbalanced 1/4" outputs provide plenty of connection options for PA systems and recording equipment. A front headphone jack with volume control is also provided, along with an external PSU if you're not using PoE.
• A rack-mounting kit is included.

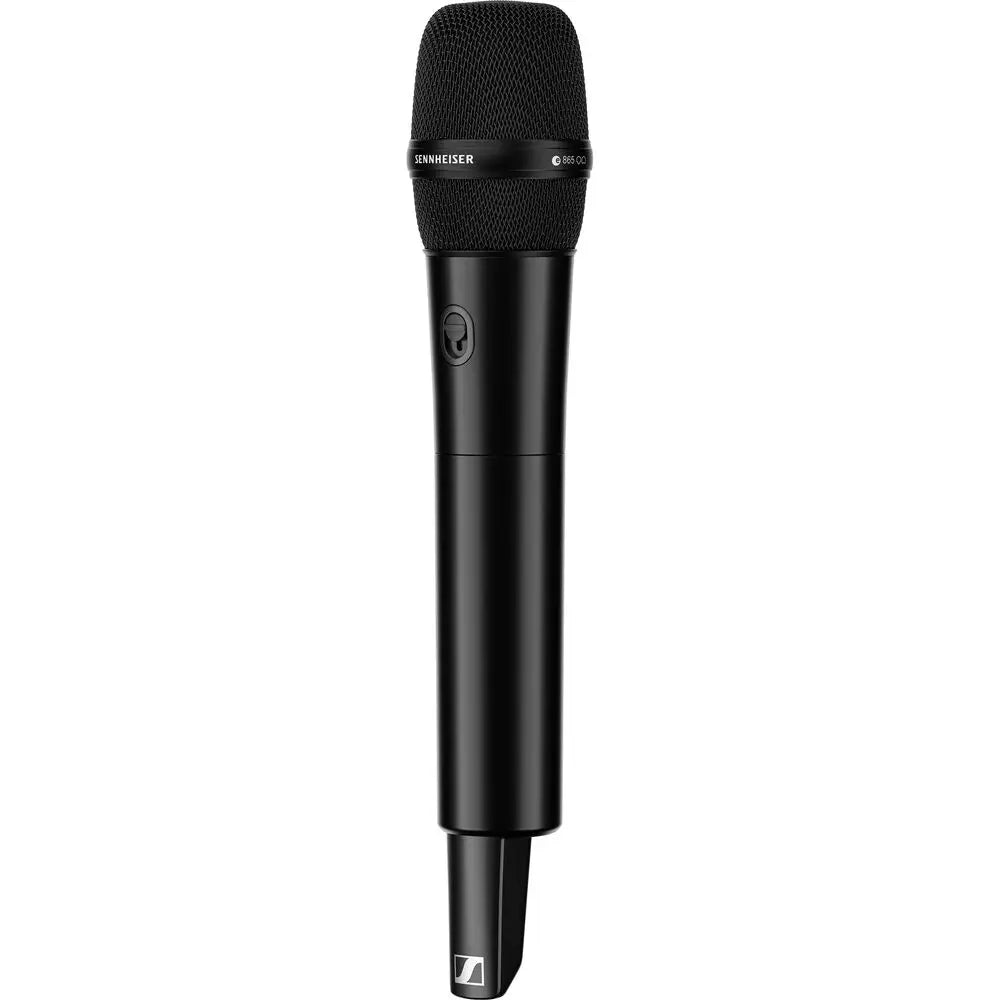

2 Handheld Transmitters with Mute Switches, MMD 835 Capsules, and e-Ink Displays

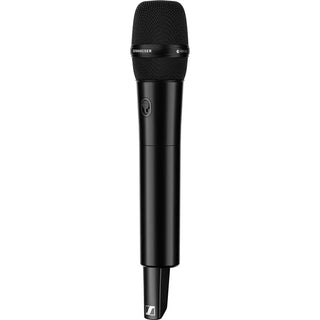

• The two rugged, all-metal handheld transmitters are equipped with lockable mute buttons along with function buttons that allow you to control all the transmitters' settings directly from the mic.
• The MMD 835 dynamic capsules feature a cardioid polar pattern that helps minimize background noise and feedback.
• The e-Ink display helps you quickly name and identify the transmitter and allows you to see parameters, even when the unit is powered off.

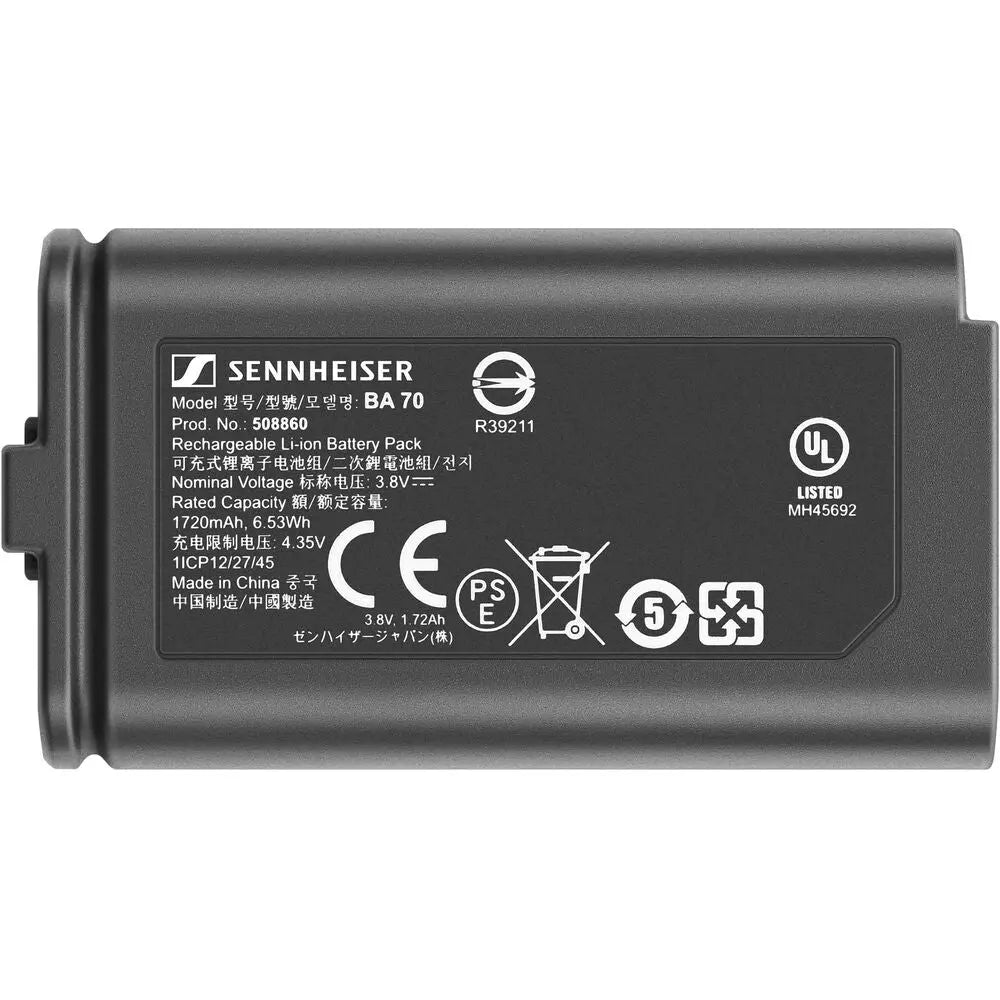

• Each transmitter will operate on its included BA70 rechargeable battery for up to 12 hours. Two AA batteries will power the transmitter for up to 8 hours. Charging contacts allow for in-device battery charging with the CHG 70N (available separately).
• The interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid—capsules include the MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.
• Input trim controls allow you to adapt individual transmitters for group performances.
