Sennheiser EW-DX 835-S SET Dual-Channel Digital Wireless System with Two Handheld Mics & MMD 835 Capsules (S4-10: 630 to 693.8 MHz)

Sennheiser EW-DX 835-S SET Dual-Channel Digital Wireless System with Two Handheld Mics & MMD 835 Capsules (S4-10: 630 to 693.8 MHz)

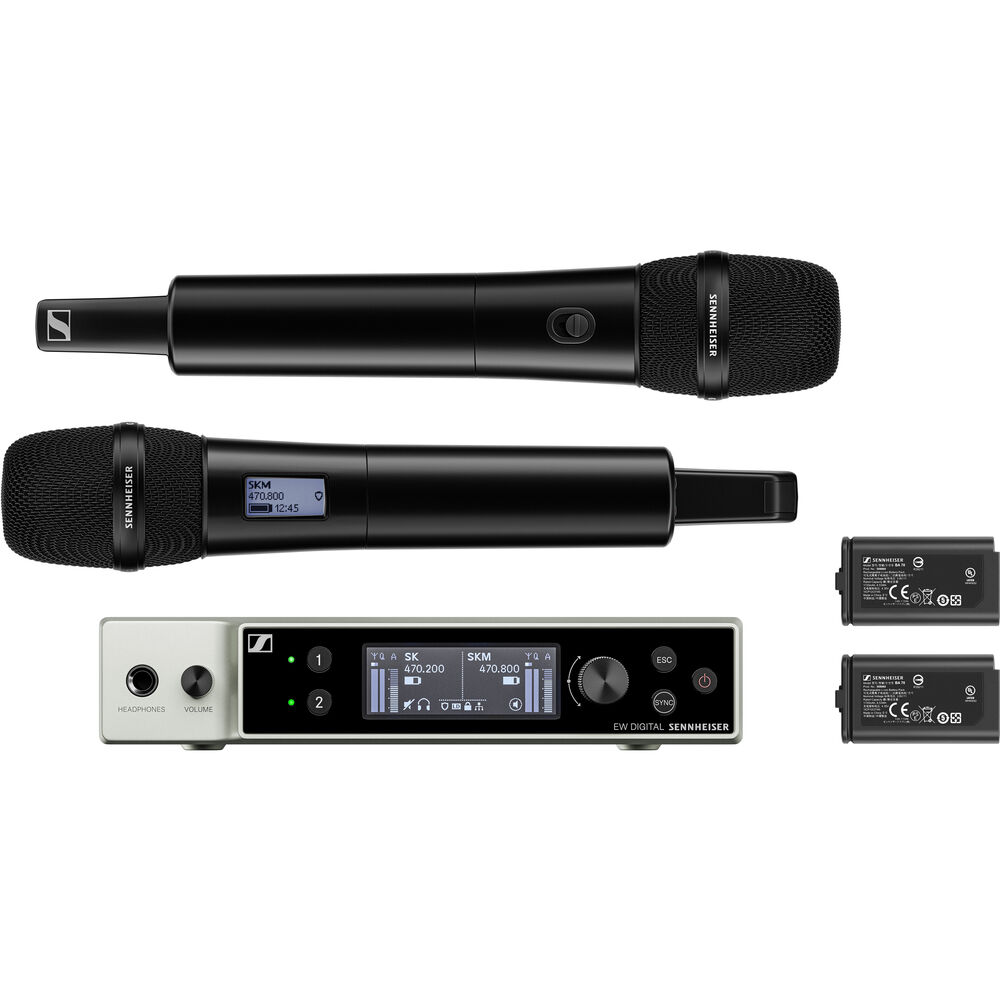

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX 835-S SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a dual-channel, 1/2-rack receiver and two handheld transmitter/mics with mute switch and MMD 835 cardioid capsules.

With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them. The wide 87 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.

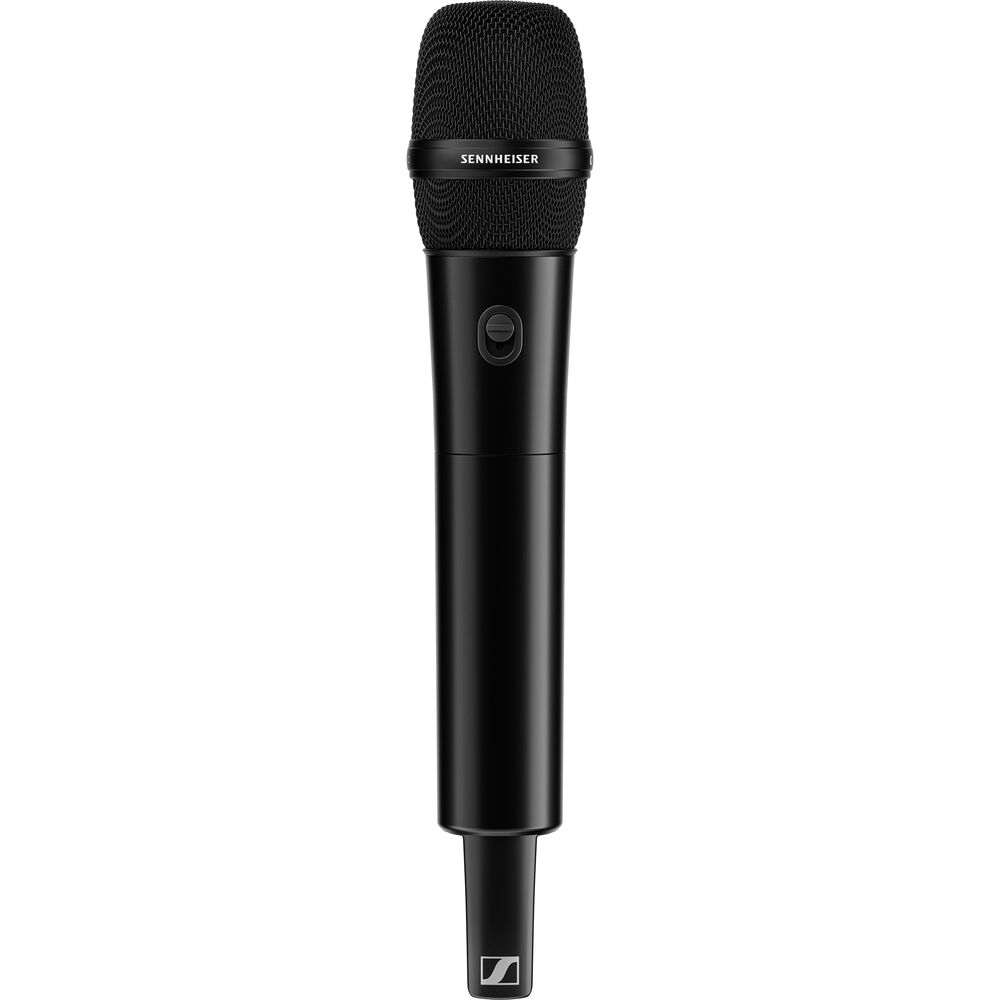

2 Handheld Transmitters with Mute Switches, MMD 835 Capsules, and e-Ink Displays

• The two rugged, all-metal handheld transmitters are equipped with lockable mute buttons along with function buttons that allow you to control all the transmitters' settings directly from the mic.
• The MMD 835 dynamic capsules feature a cardioid polar pattern that helps minimize background noise and feedback.
• The e-Ink display helps you quickly name and identify the transmitter and allows you to see parameters, even when the unit is powered off.

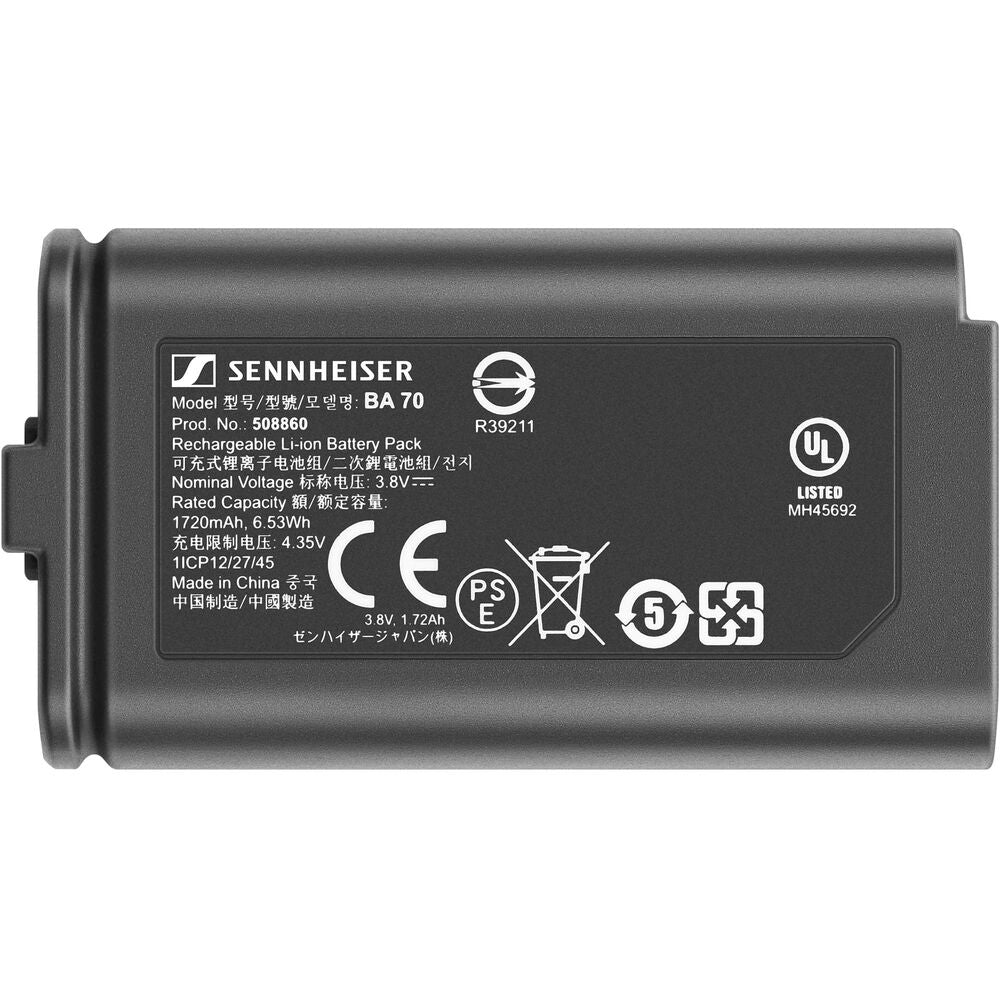

• Each transmitter will operate on its included BA70 rechargeable battery for up to 12 hours. Two AA batteries will power the transmitter for up to 8 hours. Charging contacts allow for in-device battery charging with the CHG 70N (available separately).
• The interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid—capsules include the MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.
• Input trim controls allow you to adapt individual transmitters for group performances.

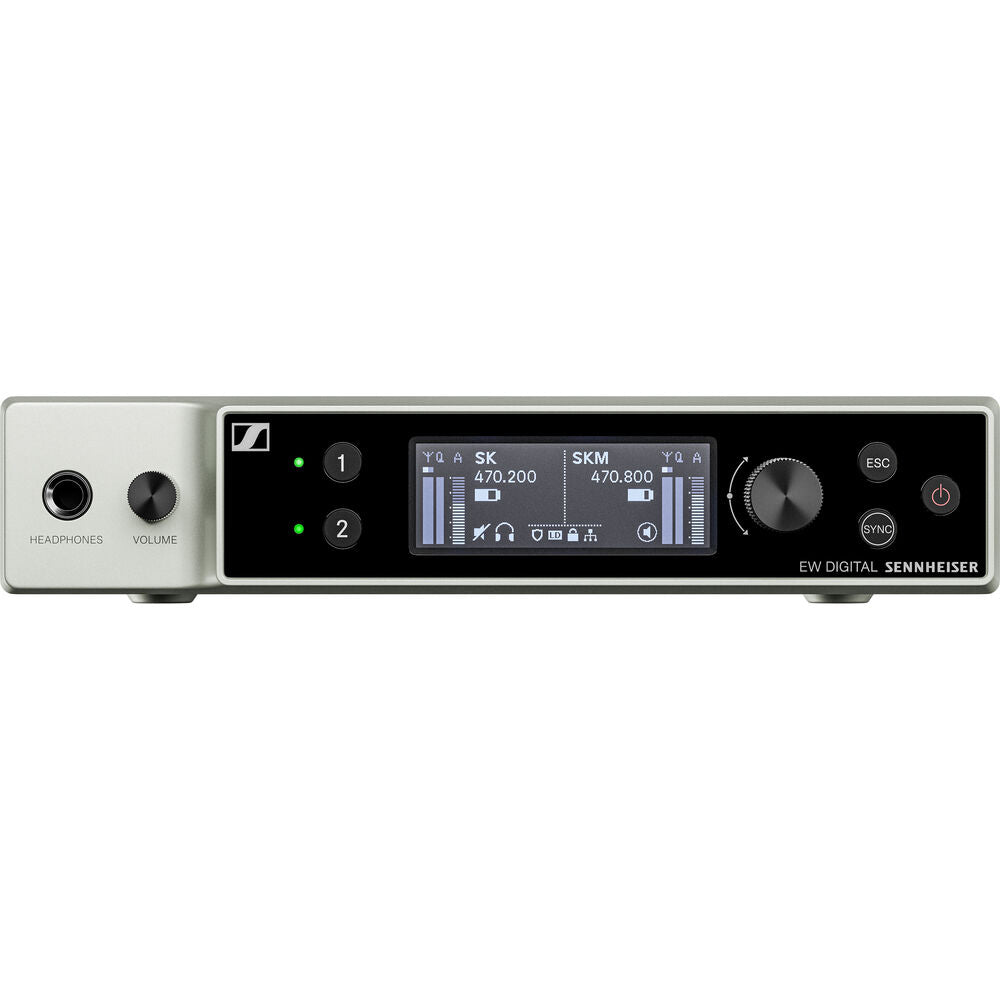

Dual-Channel Receiver with OLED Screen & Bluetooth

• The all-metal, 1/2-rack, dual-channel EW-DX EM 2 receiver offers intuitive front-panel controls and a high-contrast OLED with meters for RF, battery status of the associated transmitter, and audio output that make setup a breeze.
• Bluetooth capabilities allow you easily sync transmitters at a distance of up to 120' away and control the receiver remotely from your smartphone, using the Smart Assist app.
• The RJ45 port allows for PoE (Power over Ethernet) as well as networked control via Sennheiser's Wireless Systems Manager and Cockpit Control software.

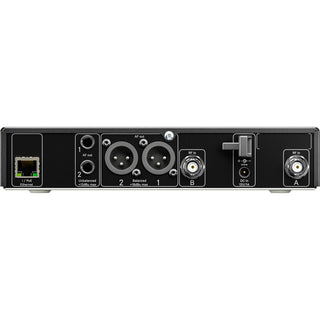

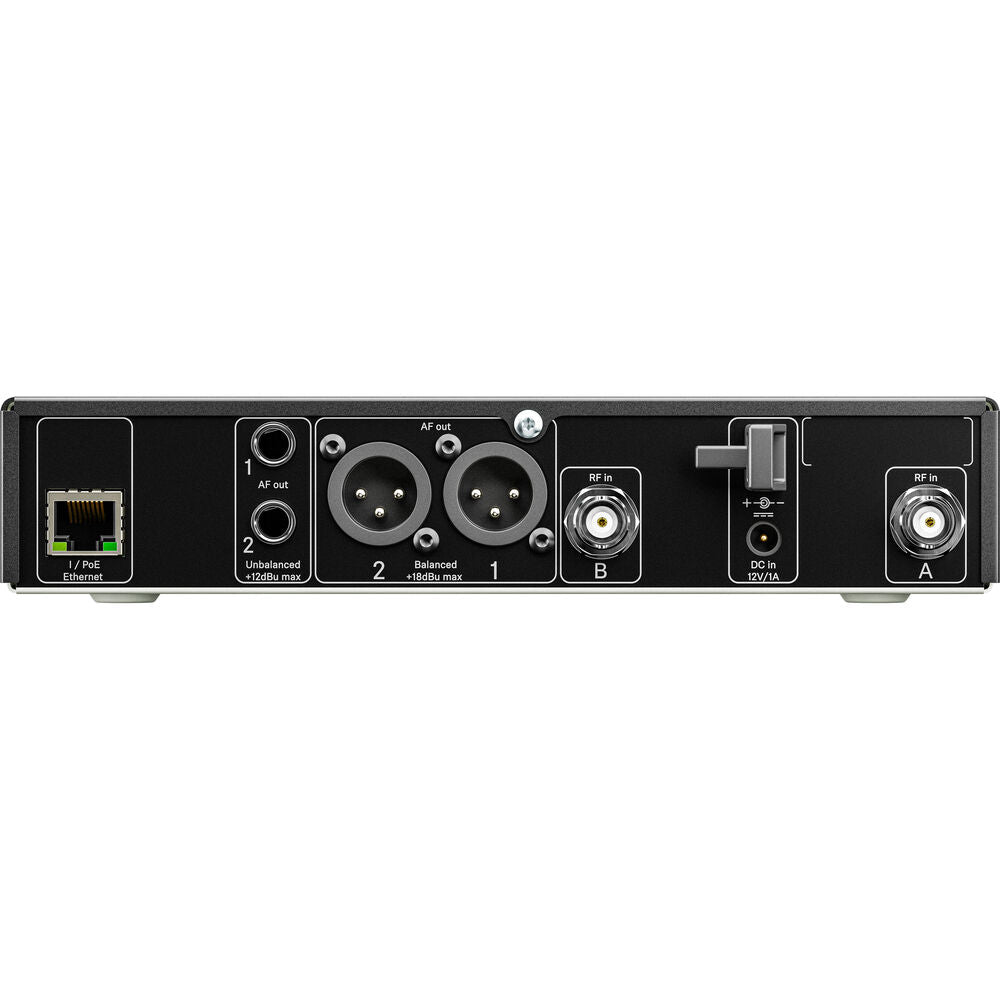

• Balanced XLR outputs as well as unbalanced 1/4" outputs provide plenty of connection options for PA systems and recording equipment. A front headphone jack with volume control is also provided, along with an external PSU if you're not using PoE.
• A rack-mounting kit is included.

Sennheiser 835-S SET Specs

System

Wireless Technology Digital UHF

Number of RF Channel Frequencies 3480

Included Transmitters 2x Handheld

Diversity Intelligent Switching Diversity

RF Frequency Band S4-10: 630 to 693.8 MHz

RF Bandwidth 87 MHz

Frequency Step Size 25 kHz

RF Channel Scanning Auto-Scan

Max Operating Range 328.1' / 100 m (Line of Sight)

Max Transmitters per Band 293

Built-In Recorder No

Mobile App Compatible Yes: Android & iOS

Bluetooth 5.1 LE

Bluetooth Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)

Sample Rate/Resolution 24-Bit

Latency 1.9 ms

Dynamic Range 134 dB

Encryption AES 256

Receiver

Receiver Type Tabletop / Rackmount

Mounting Options Rackmount (with Included Hardware)

Rackmount Size 1 RU (1/2 Rack)

Antenna 2x 1/4 Wave Rod, BNC (Rear-Mount)

Number of Audio Channels 2

Audio I/O 2x XLR 3-Pin Male Balanced Output 2x 1/4" TS Female Unbalanced Output

Audio Output Level +18 dBu (Max) +12 dBu (Max)

Frequency Response 20 Hz to 20 kHz ±3 dB

Network I/O 1x RJ45

Word Clock I/O No

USB/Lightning Connectivity No

RF Output Power 10 mW (EIRP)

Power Requirements AC/DC Power Adapter, PoE

AC/DC Power Adapter 11 to 13 VDC (Included)

DC Input Power 12 VDC

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Display & Indicators 1x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)

Housing Metal

Operating Temperature 14 to 131°F / -10 to 55°C

Operating Humidity 5 to 95%

Dimensions 8.3 x 1.7 x 7.4" / 212 x 44 x 189 mm

Weight 2.2 lb / 1 kg (without Antenna)

Transmitter

Transmitter Type Handheld

RF Output Power 10 mW (ERP) 10 mW (EIRP)

Audio I/O No

Muting Mute Switch

Audio Input Level 2 to 4.35 V

Auto-Level Control No

Frequency Response 20 Hz to 20 kHz -3 dB

Sync Method Bluetooth

Antenna 1x Internal (Handheld)

Power Requirements Battery

Battery Type 1x Sennheiser Battery Pack (Included) 2x AA (Not Included)

Approx. Battery Life 12 Hours (Sennheiser Battery Pack) 8 Hours (Alkaline)

Display & Indicators 1x Backlit LCD (Battery Status, Mute)

Housing Metal

Operating Temperature 14 to 131°F / -10 to 55°C

Operating Humidity 5 to 95%

Dimensions 2 x 10.6" / 50 x 268 mm

Weight 10.7 oz / 304 g

Microphone

Microphone Type Handheld Capsule

Color Black Sound Field Mono Capsule Dynamic Polar Pattern Cardioid Maximum SPL 154 dB SPL Sensitivity 2.1 mV/Pa
