Roland VR-1HD AV Streaming Mixer

Roland VR-1HD AV Streaming Mixer

Engage your followers with pro-style switching of your live-streamed content using the VR-1HD AV Streaming Mixer from Roland. The VR-1HD AV mixer can switch up to three HDMI inputs and stream up to 1080p30 Full HD video.

Combine cameras, webcams, games, smartphones, and tablets. The VR-1HD AV mixer is compatible with multiple video formats and incorporates two XLR mic inputs and dedicated line inputs for adding professional audio to your stream.

Video Follows Audio, Beat Sync Switching, and Auto Scan modes provide three options for single-operator switching—no director is required. An Auto Mixing function enables you to preset audio preferences so your sound remains balanced with your selected channels receiving priority.

The VR-1HD AV Streaming Mixer features five Scene Presets that work with your editing software to create layered looks, a PiP (Picture-in-Picture) function, and a keying function. Control the mixer using your computer and pair it with a separately available top-mounted gooseneck mic for hands-free performing when using Auto Switching.

Features

Real-Time Engagement
    Command your audience's attention with live-switched content

Plug-and-Play Broadcast Studio
    Mix and match a variety of video and audio inputs via three HDMI ports and two XLR/TRS combo inputs

Scene Switching & Effects
    PiP (Picture in Picture), keying, and five preset scene buttons work with your editing software to produce dynamic, layered video

Three Auto Switching Modes
    Video Follows Audio, Beat Sync, and Auto Scan switching modes enable you to concentrate on your performance, even without a director

Auto Mixing Audio Mode
    Preset input priorities, eliminate input competition, and balance audio with the Auto Mixing function

Audio Controls & Effects
    Equalizers, Gate Settings, Compressors, Stingers, and Voice Transformers enable you to customize your audio output

Full HD Broadcasting
    Connects to your computer via USB 3.0 (Type-B) for up to 1080p30 Full HD broadcasting

Video Processing ?? ?4:2:2 (YPbPr), 10-Bit

Input Connectors ?? ?HDMI: 3 x HDMI Type A (HDCP, Multi-Format Support)

Output Connectors
Main: 1 x HDMI Type A (HDCP Support)
Monitor: 1 x HDMI Type A (HDCP Support)
Thru: 1 x HDMI Type A (HDCP Support)

Video Input Formats
Input Conforms to SMPTE-296M/274M
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
576p: 50
576i: 50
480i: 59.94

60 Hz:
WUXGA (1920 x 1200)
FHD (1920 x 1080)
UXGA (1600 x 1200)
SXGA+ (1400 x 1050)
FWXGA (1366 x 768)
SXGA (1280 x 1024)
WXGA (1280 x 800
HD (1280 x 720)
XGA (1024 x 768)
SVGA (800 x 600)
VGA (640 x 480)

Note: The refresh rate is the maximum value of each resolution.
Conforms to VESA DMT Version 1.0 Revision 11.
1920 x 1200, 60 Hz: Reduced blanking.
The frame rate can be selected at the System menu (59.94 or 50 Hz).

Video Output Formats
Main, Monitor:
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50

60 Hz:
WUXGA (1920 x 1200) *
FHD (1920 x 1080) *
UXGA (1600 x 1200) *
SXGA+ (1400 x 1050) *
FWXGA (1366 x 768) *
SXGA (1280 x 1024) *
WXGA (1280 x 8000) *
XGA (1024 x 768) *
VGA (640 x 480) *
Note: The video signal frame rate can be selected at the System menu (59.94 or 50 Hz).
* Output refresh rate is 75 Hz when frame rate is set to 50 Hz.

USB Stream:
1080p: 29.97/25
720p: 59.94/50/29.97/25
854 x 480p: 59.94/50/29.97/25
Note: The video signal frame rate can be selected at the System menu (59.94 or 50 Hz).
Still Image ?? ?Maximum Size: 1920 x 1200 Pixels
Format: Windows Bitmap File (.bmp) 24-Bit per Pixel, Uncompressed
Note: Up to two files from a USB can be loaded at startup.
Video Effects ?? ?Scene: PiP, Split
Transition: Black Fade, Mix Fade
Key Composition: Luminance Key
Other: Still Image Playback, Output Fade (Audio, Video: White or Black), Test Pattern Output

Audio
Audio Processing ?? ?48 kHz, 24-Bit
Audio Formats ?? ?HDMI Inputs 1-3: Linear PCM, 48 kHz, 24-Bit, Stereo
USB Stream: Linear PCM, 48 kHz, 16-Bit, Stereo

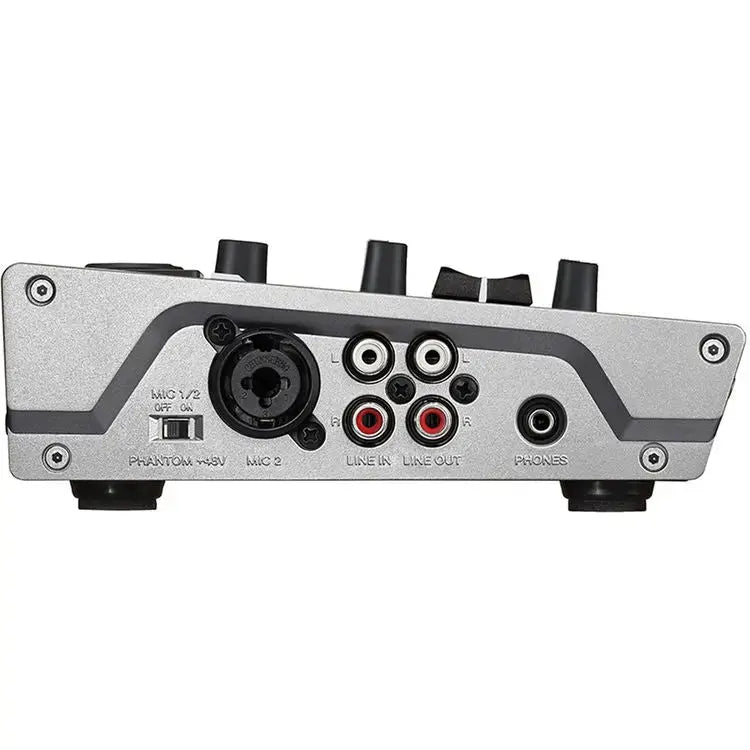

Input Connectors ?? ?Video Inputs 1-3: 3 x HDMI Type A
Mic In 1-2: Combo 3-Pin XLR, 1/4" TRS Phone (+48 VDC, 10 mA Max. Phantom Power)
Line In: 2 x Stereo RCA Phono
USB Stream: USB Type-B

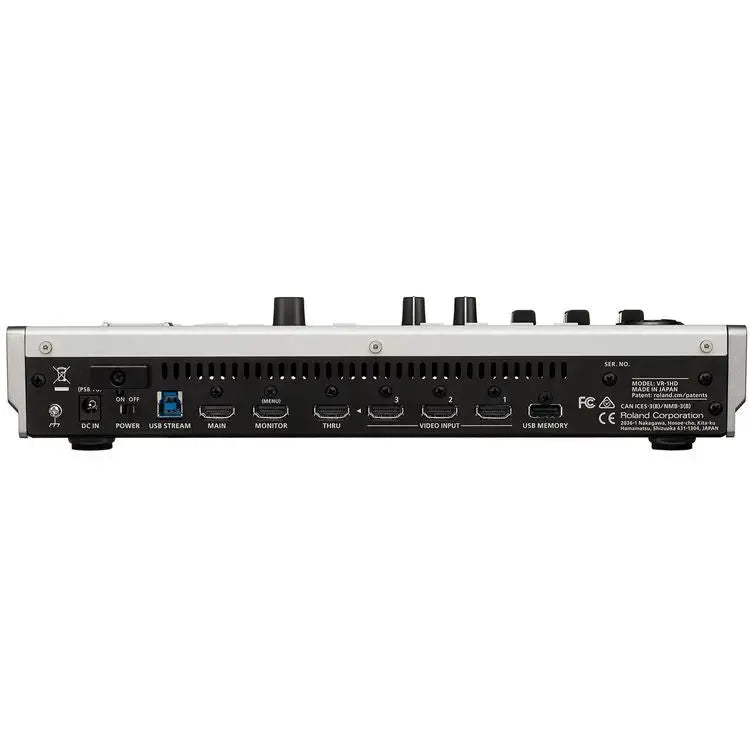

Output Connectors ?? ?Main: HDMI Type A
Monitor: HDMI Type A
Line Out: RCA Phono Type
USB Stream: USB Type-B
Headphones: Stereo Miniature Phone Type
Nominal Input Level ?? ?Mic In 1/2: -60 to +4 dBu (Maximum Input Level: +22 dBu)
Line In: -10 dBu (Maximum Input Level: +8 dBu)
Input Impedance ?? ?Mic In 1/2: -Minimum 10 kOhms (Balanced, Head Amp Gain: 0 to +17 dBu), Minimum 5 kOhms
Line In: -10 dBu (Maximum Input Level: +8 dBu)
Nominal Output Level ?? ?Line Out: -10 dBu (Maximum Input Level: +8 dBu)
Headphones: 92 mW + 92 mW (32 Ohms)
Output Impedance ?? ?Line Out: 1 kOhms
Headphones: 10 Ohms
Audio Effects ?? ?Auto Mixing, Echo Canceller, Howling Canceller
EQ, Delay, Compressor, HPF, Gate
Reverb, Limiter, Voice Changer
Player ?? ?4 x Audio Players
Data Format: WAV (Linear PCM, 48 kHz, 16-Bit Stereo/44.1 kHz, 16-Bit, Stereo)

General
Other Connectors ?? ?USB Memory: 1 x USB Type-A (For USB Flash Drive, Still Image, Audio Player, System Update)
USB Stream: 1 x USB Type-B (For USB 3.0 Video, USB 2.0 Audio Stereo):
1 In/1 Out, Remote Control
DC Input: 1 x Barrel
Functions ?? ?5 x Scene Memory
Panel Lock Function
EDID Emulator
Auto Switching (Auto Scan, Beat-Sync Switching, Video Follow Audio)
AC Adapter ?? ?Current Draw: 2 A
Power Consumption: 24 W
Operating Temperature ?? ?32 to 104?F / 0 to 40?C
Dimensions (WxDxH) ?? ?12.4 x 6.7 x 2.6" / 31.4 x 16.9 x 6.6 cm
Weight ?? ?3.5 lb / 1.6 kg
