AJA Bridge NDI 3G 3G-SDI to NDI/NDI to 3G-SDI Converter

AJA Bridge NDI 3G 3G-SDI to NDI/NDI to 3G-SDI Converter

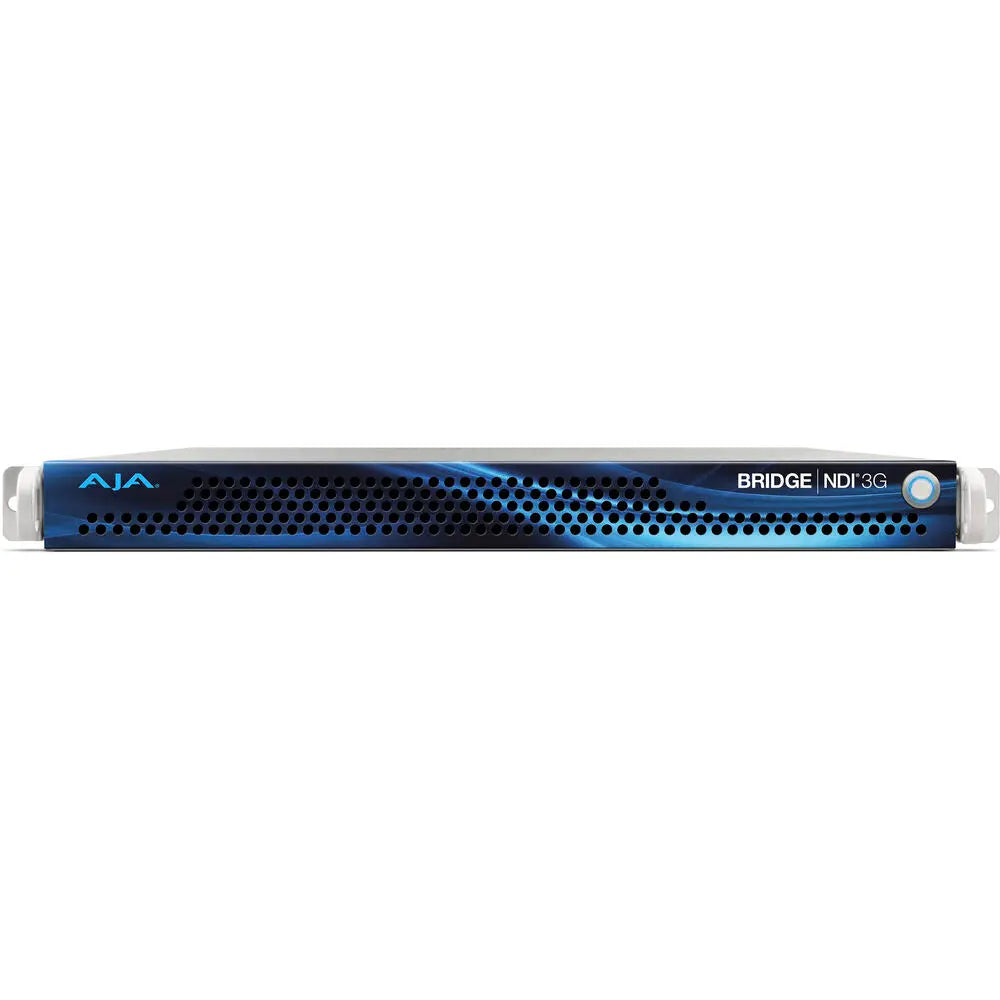

The Bridge NDI 3G Converter from AJA provides high-capacity 3G-SDI to NDI and NDI to 3G-SDI conversion in a compact 1 RU form. Designed to fit into your existing SDI or NDI workflow, this plug-and-play converter is ideal for broadcast, security, sports, entertainment, and other AV applications.

Converter features include support for up to DCI 4K60 4:2:2 10-bit video, 16 x 3G-SDI input/output ports, two x 10 GigE RJ45 input/output ports, support for up to 16-channel embedded audio, and both local and remote control.

3G-SDI to NDI & NDI to 3G-SDI Conversion

• Bidirectional encoding/decoding from SDI to NDI or NDI to SDI
• Combination of HD or DCI 4K/UHD 4K video

3G-SDI Input & Output

• Supports up to 16 channels of 3G-SDI up to 1080p60 HD
• Supports up to 4 channels of DCI or UHD 4K60
• Selectable square division or 2SI 4K

Selectable NDI Profiles

Choose between 8-bit and 16-bit, 4:2:2 NDI encoding profiles

16-Channel Audio

• SDI and ND embedded audio input and output
• Supports 2, 8, or 16 channels of embedded audio

Encoding/Decoding Combos

Provides up to 8-channel combinations of SDI to NDI encoding and NDI to SDI decoding and SDI to NDI encoding in each direction.

Remote or Local Control

• Control locally using a mouse and keyboard with a VGA-compatible monitor
• Remote access for easy control via the same intuitive UI

Monitoring

Confidence monitoring via BNC or VGA video output

AJA Bridge NDI Specs

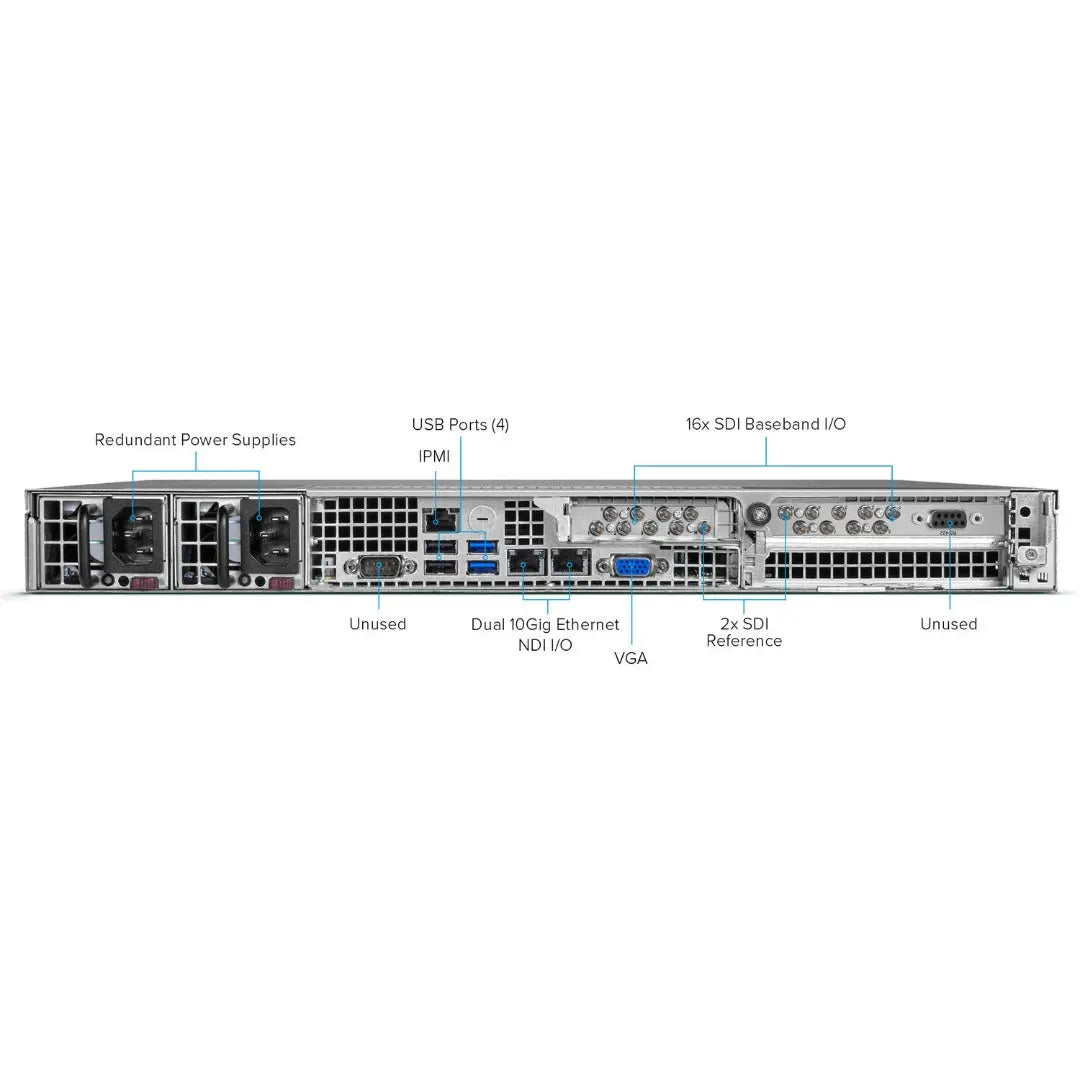

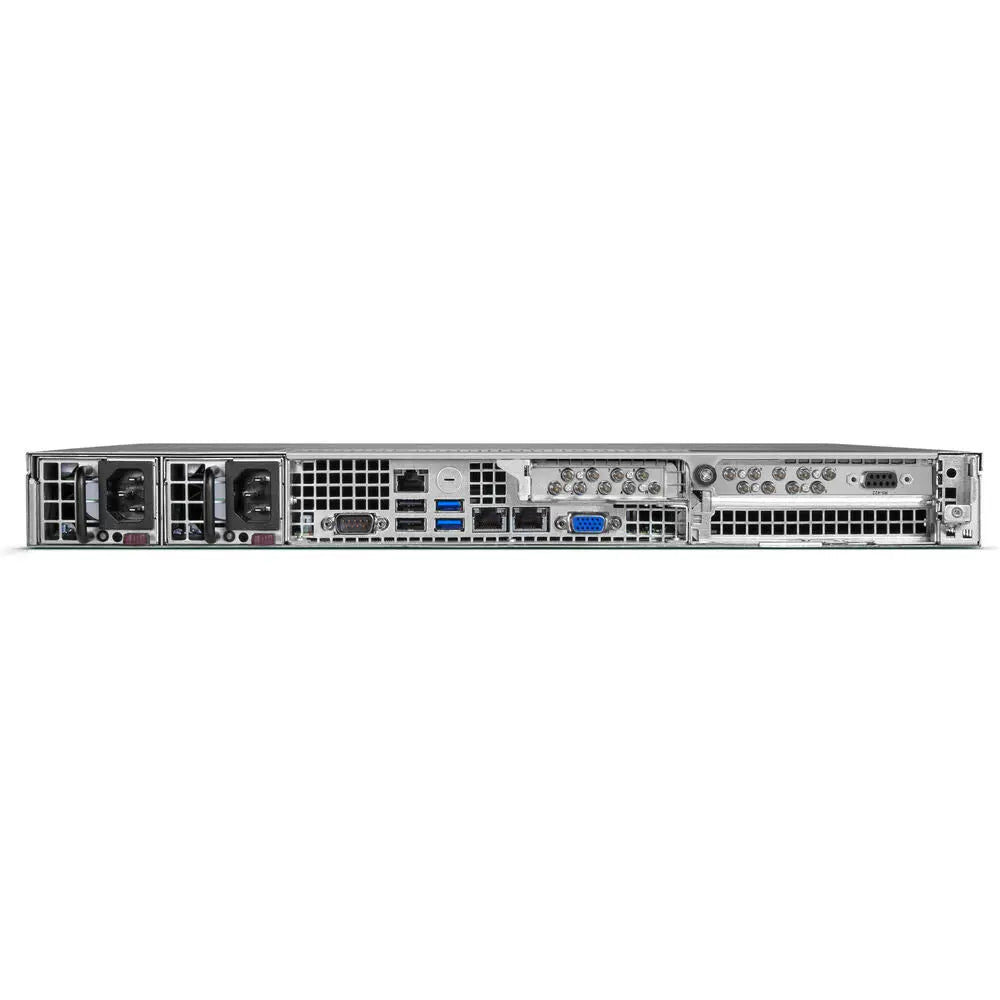

Inputs/Outputs

Inputs/Outputs 16x BNC (3G-SDI)

Audio Inputs No

Video Outputs 1x DE-15/DB-15 (VGA) (Monitor)

Audio Outputs No

Other I/O 1x RJ45 NDI Input/Output 1x RJ45 Control Input/Output

Expansion Slots No

Format Support

Input Video Format

RJ45 (8-Bit 4:2:2 YUV)

DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps

SDI (10-Bit 4:2:2 YUV)

DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps

Output Video Format

RJ45 (16-Bit 4:2:2 P216)

DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps

RJ45 (8-Bit 4:2:2 YUV)

DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps

SDI (10-Bit 4:2:2 YUV)

DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps

Output Audio Format USB Audio

Embedded Audio LAN (RJ45)/SDI: 16-Channel

Standards

Video Standard Compliance SMPTE 292M/424M

HDR Support Not Specified by Manufacturer

IP Streaming

Video IP Encoding

NDI: 1920 x 1080 to 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60p (150 to 250 Mb/s)

NDI: 1920 x 1080 at 50i, 59.94i (150 to 250 Mb/s) NDI: 1280 x 720 at 50p, 59.94p, 60p (150 to 250 Mb/s)

Video IP Decoding

NDI: 1920 x 1080 to 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p

NDI: 1920 x 1080 at 50i, 59.94i (150 to 250 Mb/s)

NDI: 1280 x 720 at 50p, 59.94p, 60p (150 to 250 Mb/s)

Audio IP Encoding NDI

Hardware

Wireless No

Power

Power I/O 2x IEC C14 (100 to 240 VDC ) Input

Power Consumption Device: 190 W

Environmental

Operating Temperature 41 to 95°F / 5 to 35°C

Storage Temperature -40 to 140°F / -40 to 60°C

Operating Humidity 8 to 90%

Storage Humidity 5 to 95% (Non-Condensing)

General

Rack Form Factor 1 U

Certifications ICES-3(A), CE, FCC

Dimensions 17.2 x 16.9 x 1.7" / 43.7 x 42.9 x 4.3 cm

Weight 18.1 lb / 8.2 kg
