AJA KUMO 1616 Compact 12G-SDI Router (1 RU)

AJA KUMO 1616 Compact 12G-SDI Router (1 RU)

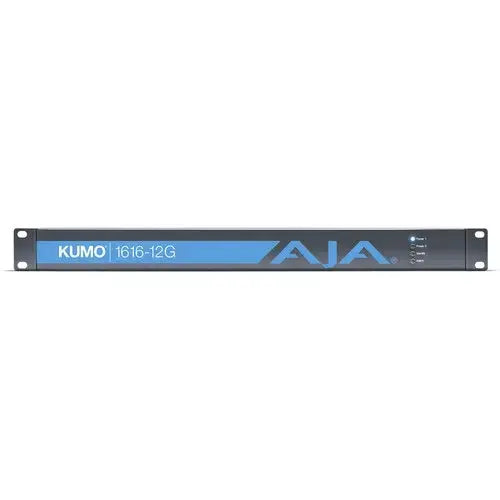

The 1 RU KUMO 1616 12G-SDI Compact Router from AJA is a 16 x 16 video matrix router. It is a small, cost-effective solution for a range of broadcast, production, and post-production applications. This router features 16 SDI inputs and 16 SDI outputs. The KUMO 1616 12G has an embedded Linux operating system and internal Web server, which provide Web browser control via 10/100/1000 Ethernet with no need for additional software.

The mini-USB port provides easy configuration of the router IP address and simplifies network configurations. The unit's compact 1 RU size makes it suitable for edit suites, mobile sports trucks, corporate video installations, and live theatrical A/V rigs while its HTTP support gives you a wide range of powerful control options. This router can be integrated with existing infrastructure using the industry-standard grass valley native protocol over RS-422 or Ethernet.

• Automatic EQ and re-clocking
• Supports all ancillary data, including embedded audio
• Up to eight Salvos can be configured and saved in each KUMO router
• Reference via BNC, looping, black burst or tri-level sync
• 10/100/1000 Ethernet LAN
• Embedded Linux OS with internal Web server for Web browser control
• HTTP control and monitoring via a web browser
• Industry-standard grass valley native protocol over RS-422 or Ethernet
• 1 RU form factor
• Redundant power, isolated power inputs

Compatible Control Panels AJA KUMO CP - 1 RU X-Y Ethernet control panel AJA KUMO CP2 - 2 RU X-Y Ethernet control panel

Video Format 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s, 12 Gb/s SDI 270 Mb/s DVB-ASI Format agnostic, 125 Mb/s to 12 Gb/s

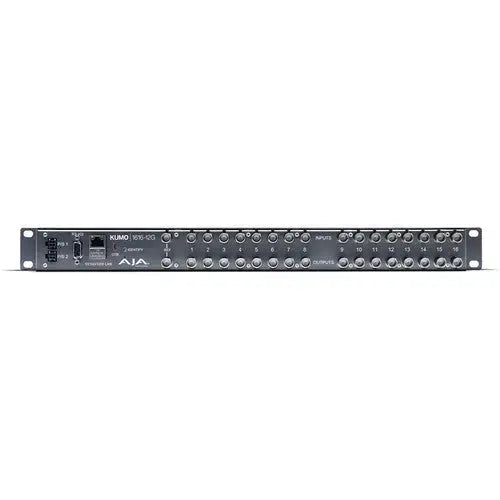

Video Input Digital 16 x 12G-SDI BNC ports

Video Output Digital 16 x 12G-SDI BNC ports, noninverting

Cable Equalization Belden 1694A: 12 Gb/s, up to 196.9' / 60 m 6 Gb/s, up to 393.7' / 120 m 3 Gb/s, up to 623.4' / 190 m 1.5 Gb/s, up to 639.8' / 195 m 270 Mb/s, up to 1329' / 405 m Automatic operation

Video Bandwidth SMPTE 259, 292, 424, 2081, and 2082

Reclocking 270 Mb/s, 1483 Gb/s, 1485 Gb/s, 2967 Gb/s, 2970 Gb/s, 5934 Gb/s, 5940 Gb/s, 11.868 Gb/s, 11.880 Gb/s - auto select

Reference Input 2 x BNC ports, external

Network Interface 1 x RJ45, 10/100/1000 Ethernet

USB Interface 1 x Mini-USB for IP configuration

Serial Interface 1 x 9-pin sub-D female, RS-422 port

Power Consumption 13 W typical

Power Source 10-14 VDC regulated

Power Supply 100-240 VAC, 50/60 Hz, universal input

Dimensions 17.4 x 1.54 x 1.75" / 441.96 x 39.12 x 44.45 mm Rackmount 1 RU

Weight 1.4 lb. / 0.7 kg
