Blackmagic Design Camera ProDock

Blackmagic Design Camera ProDock

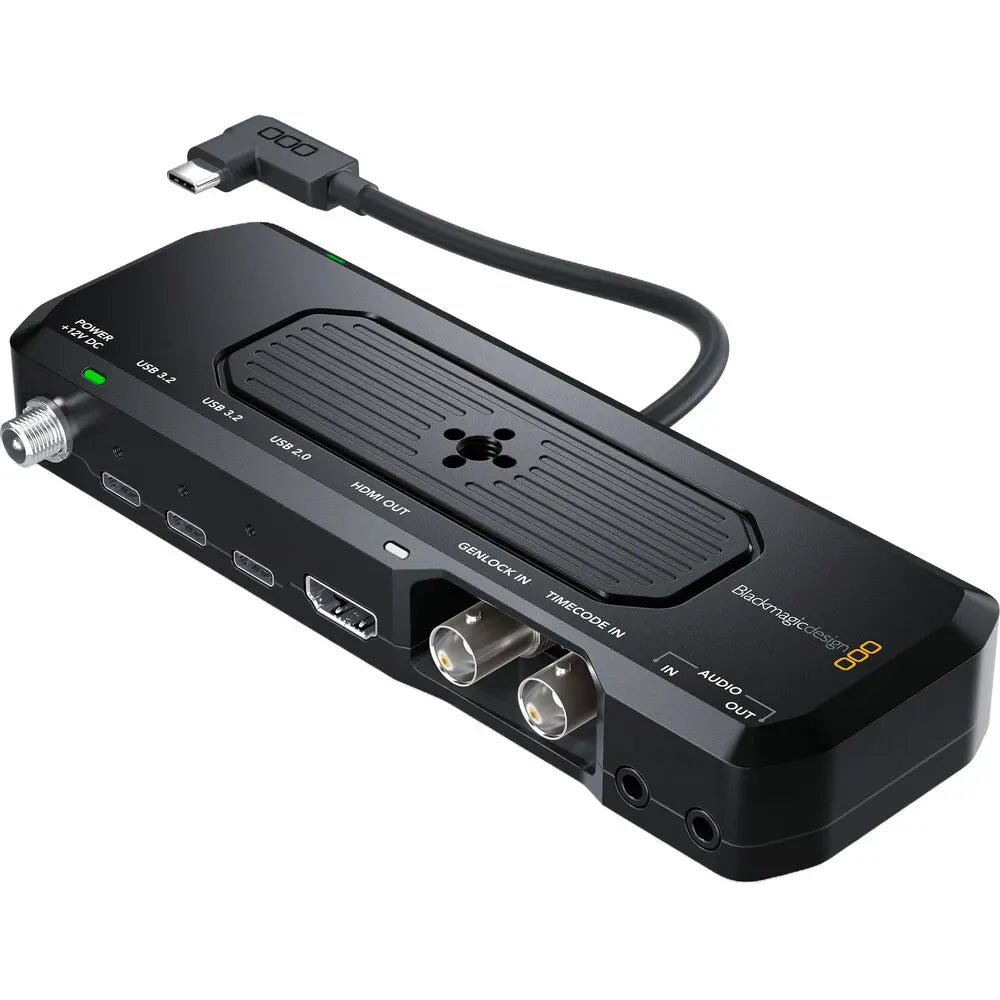

The Blackmagic Camera ProDock is a versatile iPhone-based camera docking system designed for professional video production. It combines extensive camera controls, high-speed connections, and media management, making it ideal for mobile filmmaking and multi-camera setups.

Key Features:

• Camera Controls: Full control over lens selection, frame rates (up to 120 fps), shutter speed/angle, ISO, white balance, focus, and exposure. Includes advanced monitoring guides such as zebra, false color, safe area, and frame guides. Supports stabilization modes and zoom adjustments.

• iOS Integration: Works seamlessly with the Blackmagic Camera for iOS app, allowing recording in ProRes, H.264, or HEVC formats, up to 4K resolution. Supports color spaces including Rec.709, Rec.2020, P3 D65, HDR10, and Apple Log. Timelapse and proxy recording capabilities streamline production workflows.

• Connectivity & Media: Equipped with HDMI 2.1 output, USB-C ports for external storage and accessories, audio input/output, BNC timecode and genlock inputs. Enables remote camera control and synchronization across multiple devices.

• Audio & Monitoring: Supports external microphones and headphones, with detailed audio metering and monitoring options.

• Power & Portability: Powered via 12–15V DC input, with USB-C power outputs for accessories. Compact and lightweight design for flexible placement on set.

• Software & Accessories: Includes free iOS app download, external power supply, mounting adapter, and QR code for quick setup. Supports remote control, Nucleus Wireless Lens Control, and Tentacle Sync E.

• Environmental & Warranty: Operates between 0–40°C with 0–90% humidity (non-condensing). Comes with a 1-year limited manufacturer’s warranty.

Use Cases:

• Mobile professional video production

• Multi-camera setups with synchronized recording

• On-set monitoring, focus, and exposure management

• Social media vertical video capture

• Quick setup and media management in field production

Blackmagic Camera ProDock – Connections & Specifications

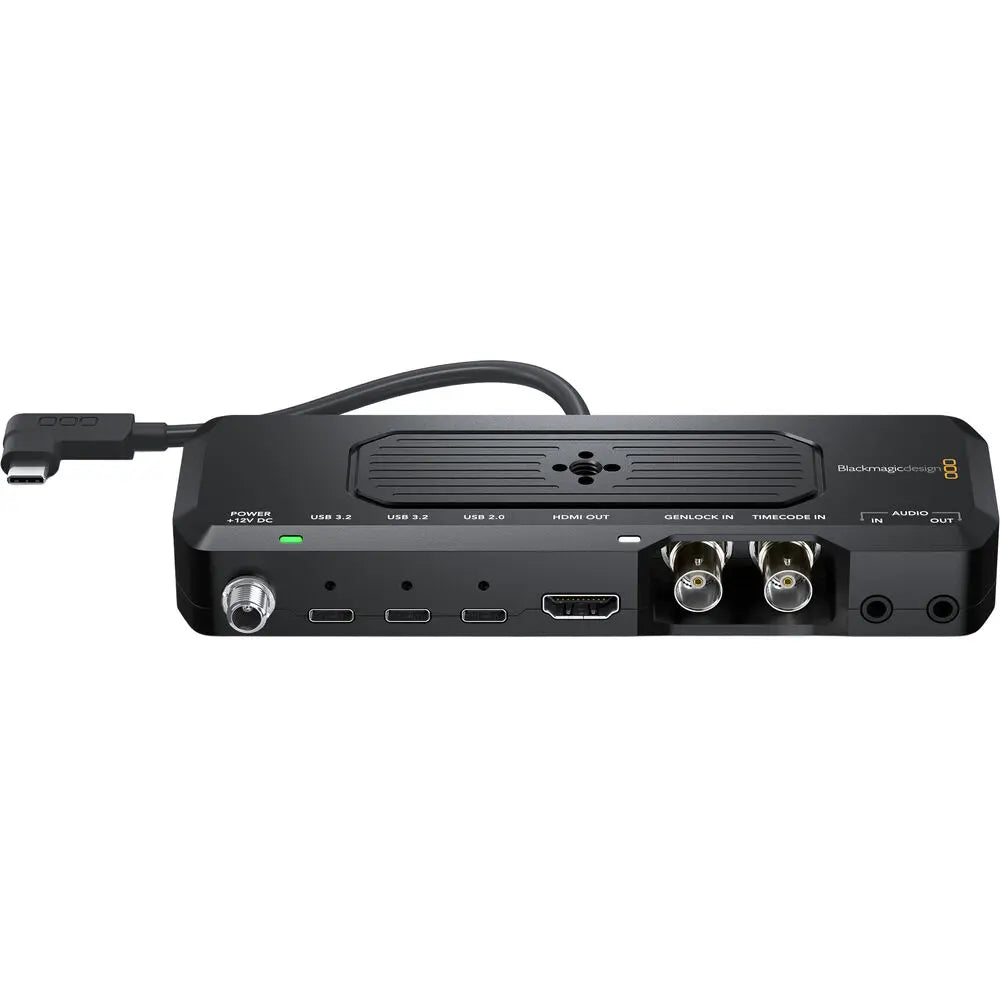

Connections

• HDMI Video Outputs: 1 × HDMI 2.1 (Type A). Resolution and frame rate set in Blackmagic Camera for iOS.
• Audio Inputs: 1 × 3.5mm stereo mini-jack.
• Audio Outputs: 1 × 3.5mm stereo mini-jack.
• Timecode Input: 1 × BNC, plus 1 × 3.5mm audio input (supports timecode in).
• Genlock Input: 1 × BNC, Tri-Sync or Black Burst.
• USB-C Ports: 2 × USB 3.2 high-speed for external media, 1 × USB 2.0 for accessories.
• Power Input: +12V to +15V DC via locking 5.5mm barrel connector.
• iPhone Connection: 1 × USB-C cable and plug.

Audio

• Microphone: Connect external microphones via 3.5mm stereo mini-jack or USB-C ports.
• Monitor: Connect headphones via 3.5mm stereo mini-jack output.

Media

• Record clips to internal iPhone storage or external storage connected via USB.

Display Indicators

• 1 × Power LED indicator
• 1 × Front tally LED indicator
• 1 × Genlock LED indicator

Software

• App: Blackmagic Camera for iOS (free download from App Store).
• Supported OS: iPhones running iOS 26 or later. Note: Some features depend on iPhone model.

Power

• Power Supply: 1 × External 12V DC 60W supply (included).
• Inputs: +12V to +15V DC via locking 5.5mm barrel connector.
• Outputs: 5V ⎓ 1.5A (7.5W max) per USB-C port.

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F).
• Storage Temperature: -20° to 45°C (-4° to 113°F).
• Relative Humidity: 0% to 90% non-condensing.

Warranty

• 1 Year Limited Manufacturer’s Warranty
