Blackmagic Design Videohub 10x10 12G Video Router

The Blackmagic Videohub 10x10 12G is a professional-grade, zero-latency video router engineered for streamlined signal management in compact broadcast, post-production, and AV environments. It offers 10 multi-rate 12G-SDI inputs and 10 12G-SDI outputs in a single 1RU frame, providing full support for any combination of SD, HD, Ultra HD, and DCI 4K video formats up to 60p.

Built with high-performance 12G-SDI architecture, the Videohub 10x10 enables clean switching of up to 10 independent video sources and destinations, all with automatic SDI re-clocking to maintain pristine signal quality across long cable runs. It supports professional color depths including 8-bit and 10-bit 4:2:2, as well as 12-bit 4:4:4 RGB for high-end post workflows.

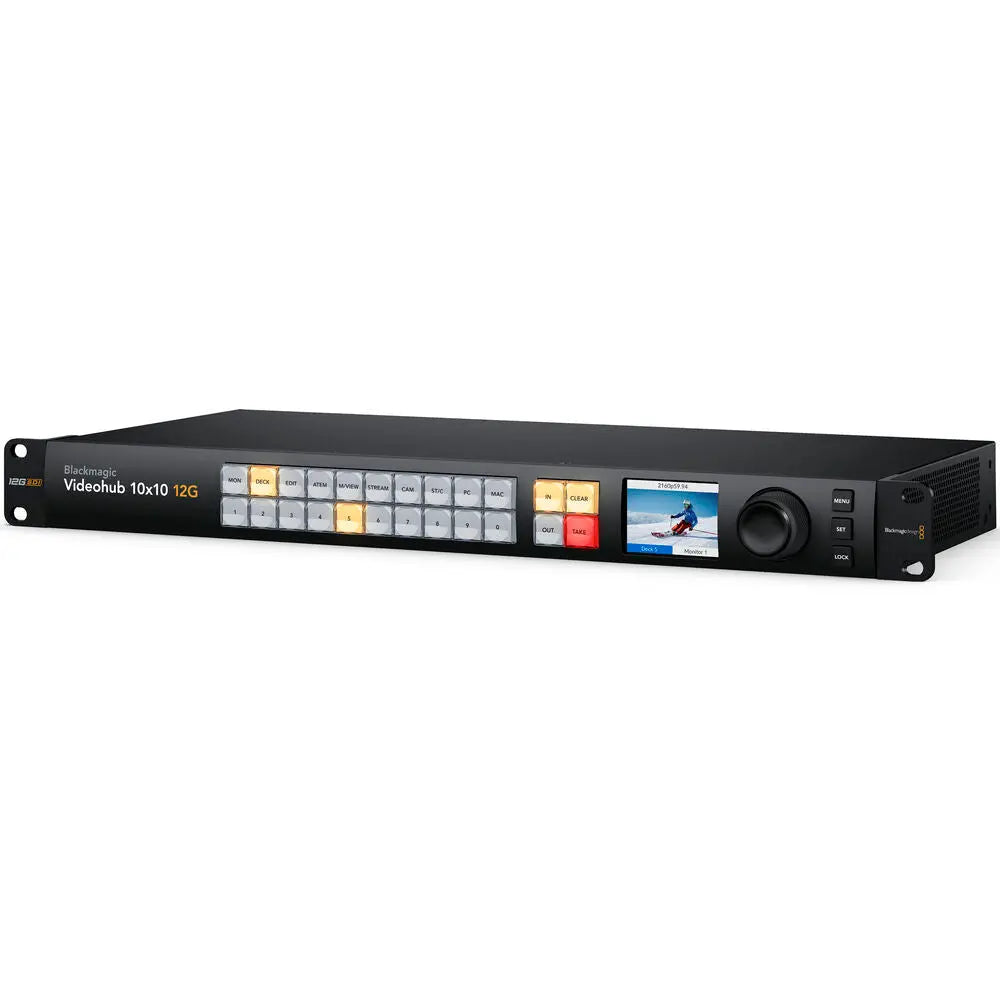

The front panel includes a 2.2" color LCD for live video preview, precision-machined spin knob with clutch, and customizable buttons for direct control—eliminating the need for separate monitors or control panels. Integration with Videohub software on macOS and Windows provides intuitive router control, while optional hardware panels are available for larger studio environments.

Perfect for tight racks, mobile OB setups, or smaller studios, the Videohub 10x10 12G offers a professional, space-saving routing solution with the flexibility and reliability needed for 4K broadcast infrastructures.

Blackmagic Videohub 10x10 12G – Specifications

Processing

• Switching Type: Pushbutton, Software
• Processing Resolution: DCI 4K at 60
• Color Processing:
  • 8-Bit 4:2:2
  • 10-Bit 4:2:2
  • 12-Bit 4:4:4
• Audio Processing: 48 kHz / 24-Bit

Input

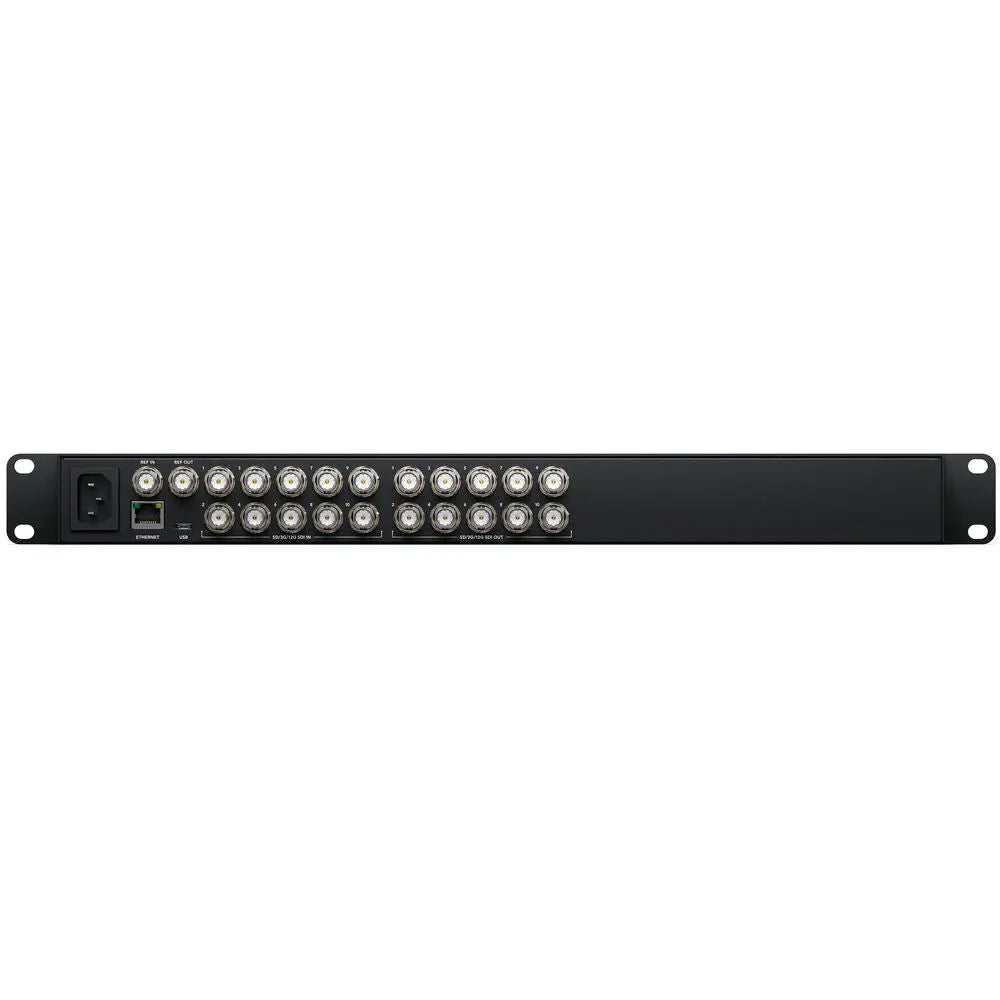

• Video Inputs: 10x BNC (12G-SDI)
• Input Video Formats:
  • SDI (10/12-Bit 4:4:4 RGB, YUV):
    • DCI 4K up to 30 fps
    • UHD 4K up to 30 fps
    • DCI 2K up to 60 fps
    • DCI 2KPsF up to 30 fps
    • 1080p up to 60 fps
    • 1080PsF up to 30 fps
    • 1080i up to 60 fps
  • SDI (10-Bit 4:2:2 RGB, YUV):
    • DCI 4K up to 60 fps
    • UHD 4K up to 60 fps
    • DCI 2K up to 60 fps
    • DCI 2KPsF up to 30 fps
    • 1080p up to 60 fps
    • 1080PsF up to 30 fps
    • 1080i up to 60 fps
    • 720p at 50/59.94/60 fps
    • 576i / 625 lines at 50 fps
    • 480i / 525 lines at 59.94 fps
• Embedded Audio Input: SDI

Output

• Video Outputs: 10x BNC (12G-SDI)
• Output Video Formats:
  • SDI (10/12-Bit 4:4:4 RGB, YUV):
    • DCI 4K up to 30 fps
    • UHD 4K up to 30 fps
    • DCI 2K up to 60 fps
    • DCI 2KPsF up to 30 fps
    • 1080p up to 60 fps
    • 1080PsF up to 30 fps
    • 1080i up to 60 fps
  • SDI (10-Bit 4:2:2 RGB, YUV):
    • DCI 4K up to 60 fps
    • UHD 4K up to 60 fps
    • DCI 2K up to 60 fps
    • DCI 2KPsF up to 30 fps
    • 1080p up to 60 fps
    • 1080PsF up to 30 fps
    • 1080i up to 60 fps
    • 720p at 50/59.94/60 fps
    • 576i / 625 lines at 50 fps
    • 480i / 525 lines at 59.94 fps
• Embedded Audio Output: SDI

Connectivity

• Other I/O: 1x RJ45 LAN, 1x USB-C
• Video Standard Compliance: SMPTE 259M, 292M, 296M, 372M, 424M, 425M-A/B, ST-2081-1/10, ST-2082-10; ITU-R BT.601, BT.656

Display

• Display Size: 2.2"

Hardware

• OS Compatibility: macOS 12 or Later, Windows 10 or Later
• Wireless: No

Power

• Power I/O: 1x IEC C14 (100 to 240 VAC Input)
• Power Consumption: 20.8 W

General

• Operating Conditions: 32 to 72°F / 0 to 40°C, up to 90% Humidity
• Storage Conditions: -4 to 140°F / -20 to 60°C
• Rack Form Factor: 1U
• Dimensions: 19 x 9.3 x 1.74 in / 48.3 x 23.6 x 4.42 cm
• Weight: 6.64 lb / 3.01 kg
