Datavideo PTC-150T HD/SD HDbase T PTZ Video Camera

Datavideo PTC-150T HD/SD HDbase T PTZ Video Camera

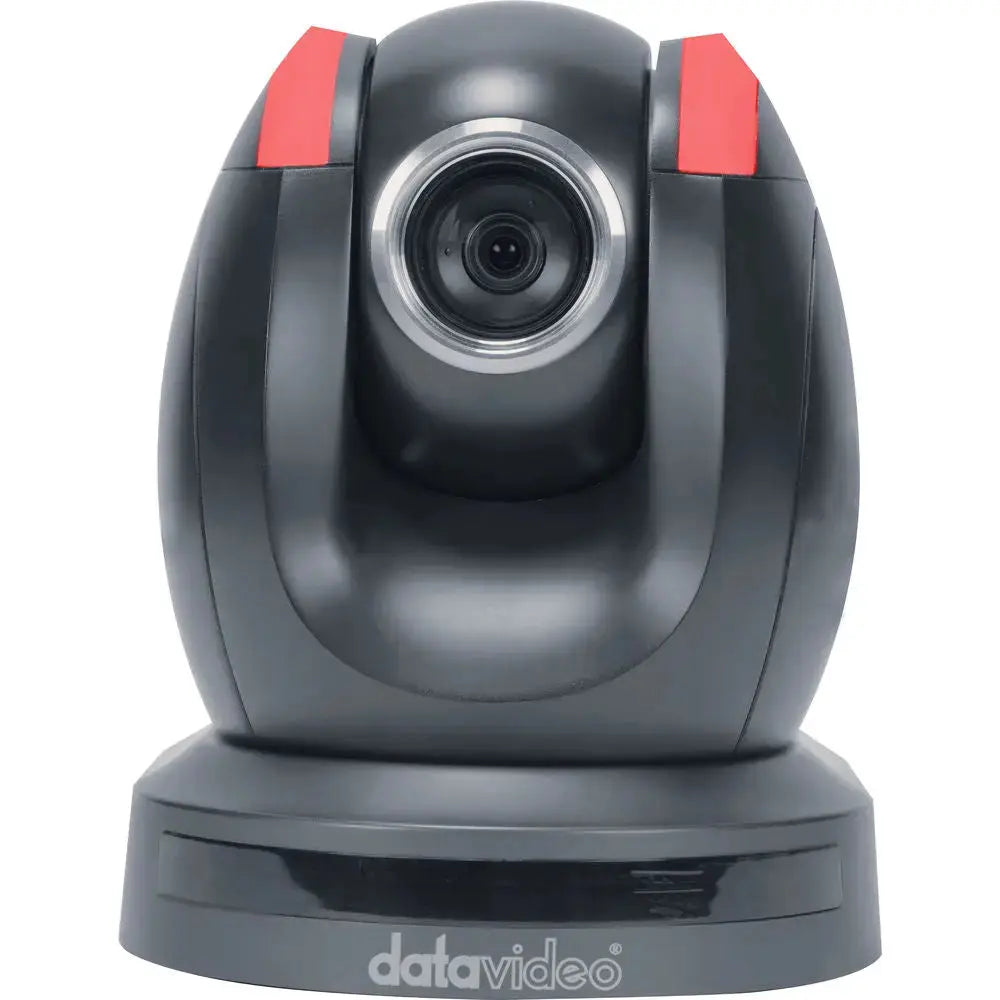

The black PTC-150T HD/SD HDBaseT PTZ Camera (with HDBaseT Receiver) from Datavideo captures up to 1080p HD video and features HDBaseT technology for remotely controlling the camera via Cat 6 or above cable. This camera unit includes the HBT-11 HDBaseT receiver box.

PTC-150T video capture functions include wide dynamic range, backlight compensation, and digital noise reduction for detailed imaging. Features include 30x optical zoom, 50 programmable presets, and an IR cut filter for optimal low-light performance. Adjust the camera to your choice of multiple mounting options with the help of the image mirror and rotation functions.

For multi-camera shoots, the built-in green/red tally light can be used to signal when the camera is active. Virtual studio applications benefit from the PTC-150T's support for real-time position reporting on a per frame basis. The PTC-150T camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ45 port.

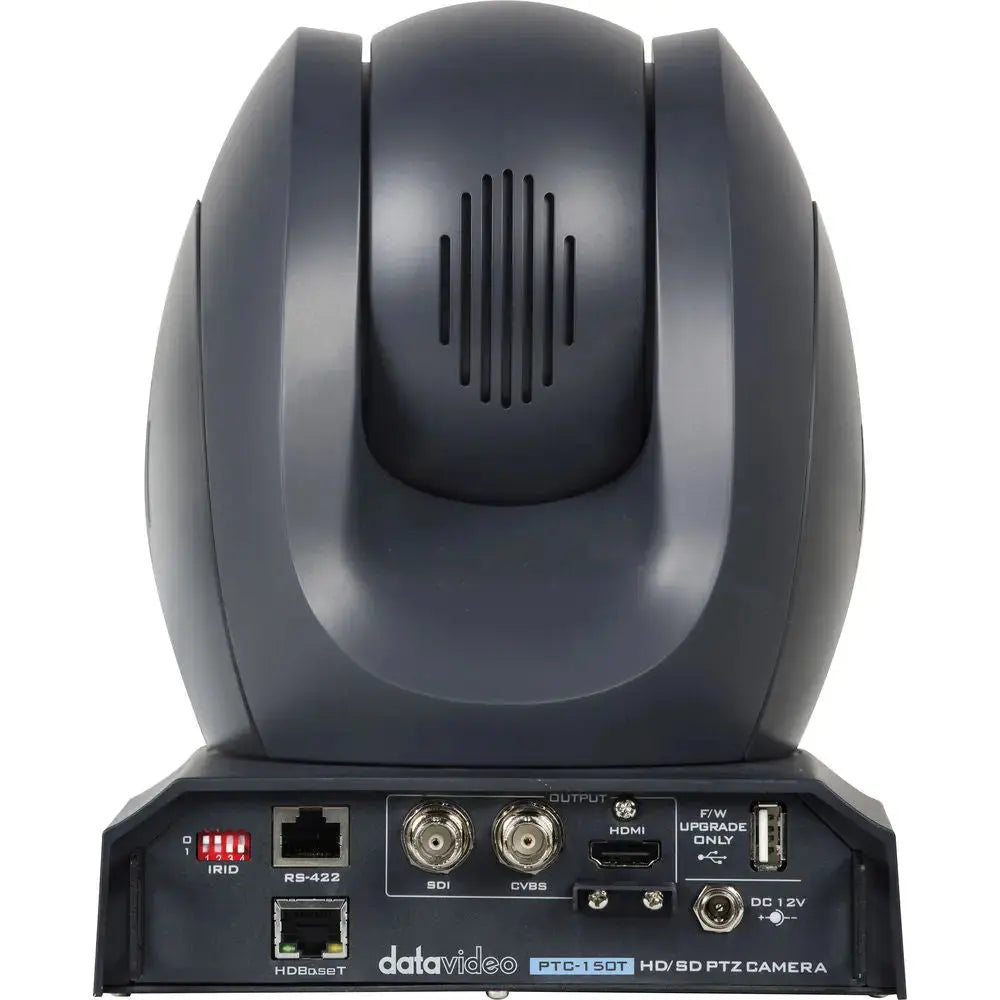

Interface

Video Outputs 3G/HD/SD-SDI: 1 x BNC Composite: 1 x BNC HDMI: 1 x HDMI type A (HDMI 1.3) HDBaseT: 1 x RJ45 Control: 1 x RS-422

Other Connectors USB: 1 x Type-A (updates only) DC In: 1 x barrel (12 V, 29 W)

Control 1 x RJ45, RS-422 1 x RJ45, DVIP

Video Capture

Supported Formats 1080p: 59.94/50/29.97/25 1080i: 59.94/50 720p: 59.94/50 480i, 576i: Via composite

Image Sensor 1/2.8" type CMOS sensor

Effective Pixels 2.14 MP

S/N Ratio 50 dB

Minimum Illumination Color: 0.4 lx Black/White: 0.03 lx (f/1.6, 1/30 sec, 50 IRE, high gain)

Electronic Shutter 1/25, 1/30, 1/50, 1/60, 1/75, 1/90 sec 1/100, 1/120, 1/125, 1/150, 1/180, 1/215, 1/250 sec 1/300, 1/350, 1/425, 1/500 sec 1/600, 1/725, 1/1000, 1/1250, 1/1500 sec

Gamma Off, Normal, Standard Modes 1-4

Iris Control Auto/Manual

Digital Noise Reduction (DNR) Yes

On Screen Display English

White Balance AWB / MWB / One-Push WB / Outdoor / Indoor / Fluorescent

Gain Control Auto/Manual Max. Gain Limit

Flip / Mirror Yes

Focus Modes Auto/Manual

Lens

Type 30x optical zoom

Focal Length 4.3 to 129mm

Aperture Range f/1.6 to 4.7

Field of View Horizontal, Wide: 63.7 to 2.3°

Filter Thread UV protection M52 x 0.75 thread

PTZ Control

Pan Range 270°

Tilt Range 90 to -20°

Pan/Tilt Speed Manual: 1 to 150°/sec Swing: 1 to 150°/sec

Preset 50 positions

Remote Control Distance Maximum: RS-422: 3281' / 1000 m HDBaseT (RJ45) / DVIP: 328' / 100 m

General

Dimensions (HxWxD) 8.6 x 6.8 x 1.8" / 218.9 x 173 x 46.6 mm

Weight Not specified by manufacturer

Packaging Info

Package Weight 12.6 lb

Box Dimensions (LxWxH) 13.4 x 12.0 x 10.9"
