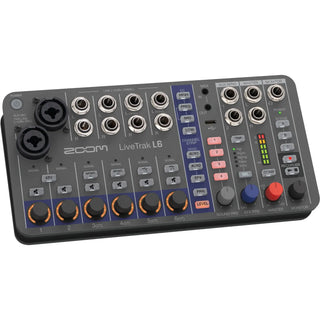

Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder

Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder

Explore the Features of Zoom LiveTrak L-6

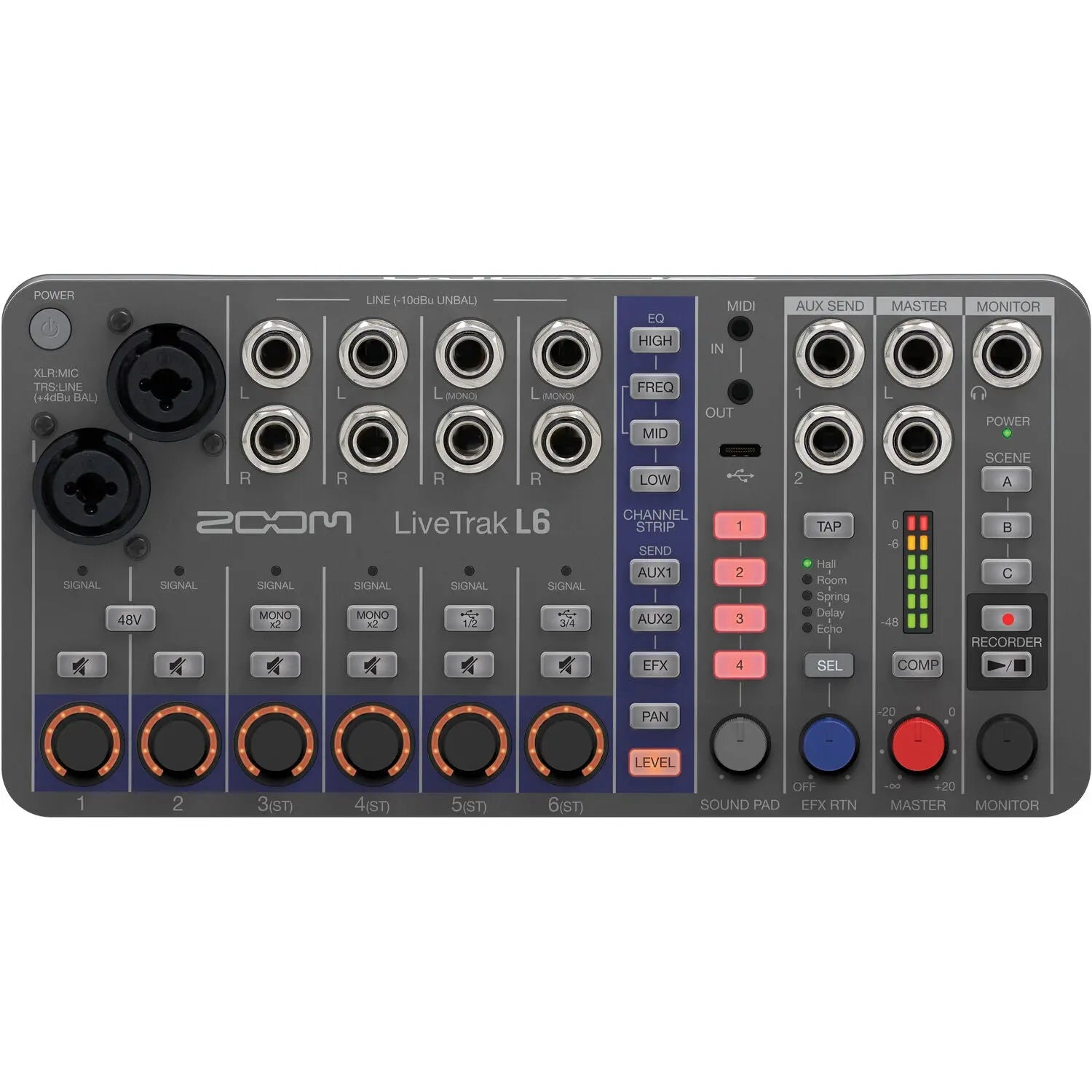

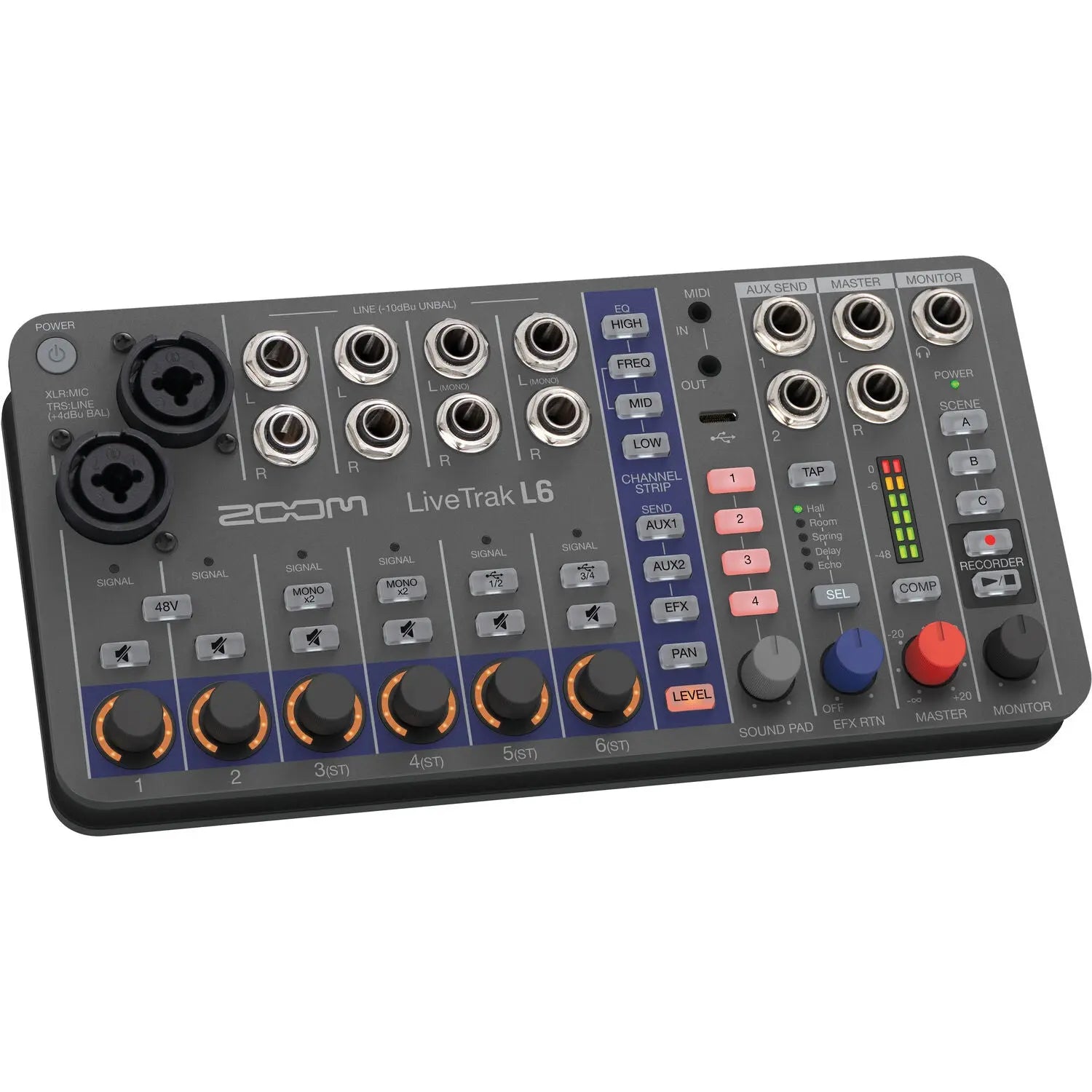

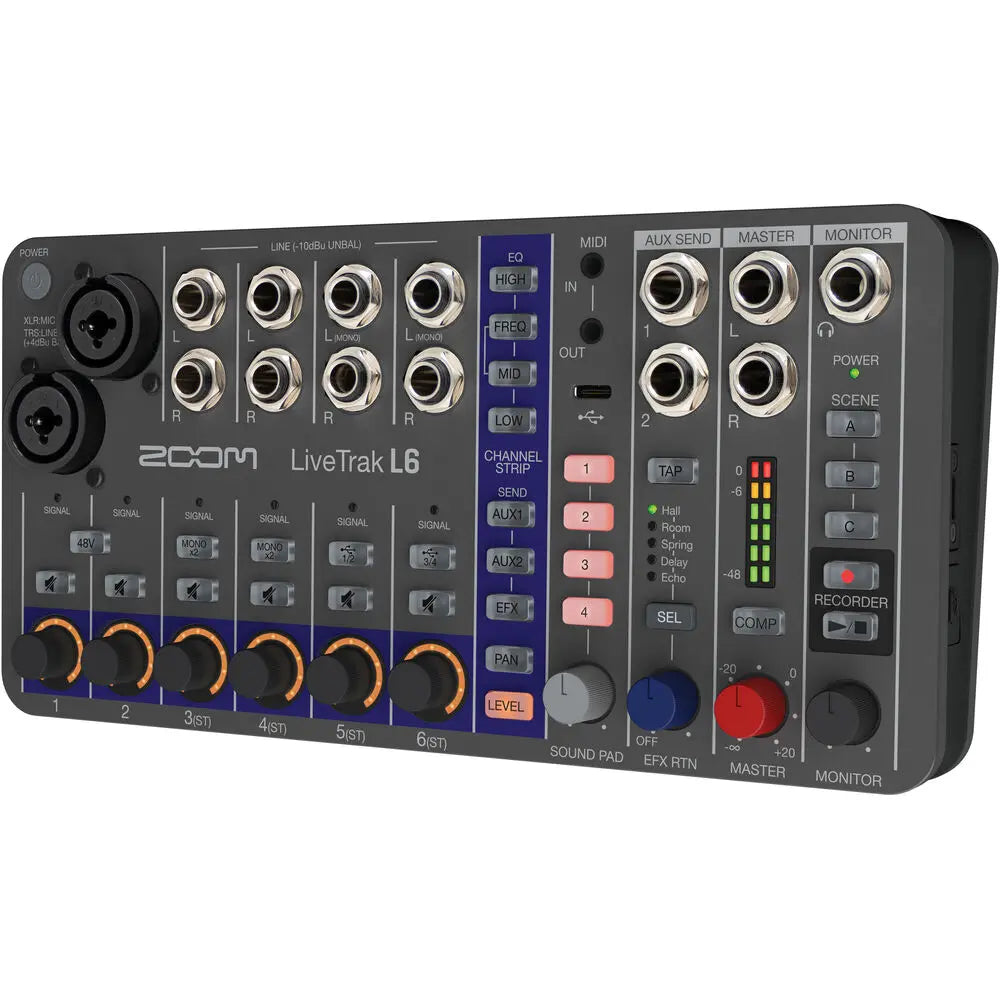

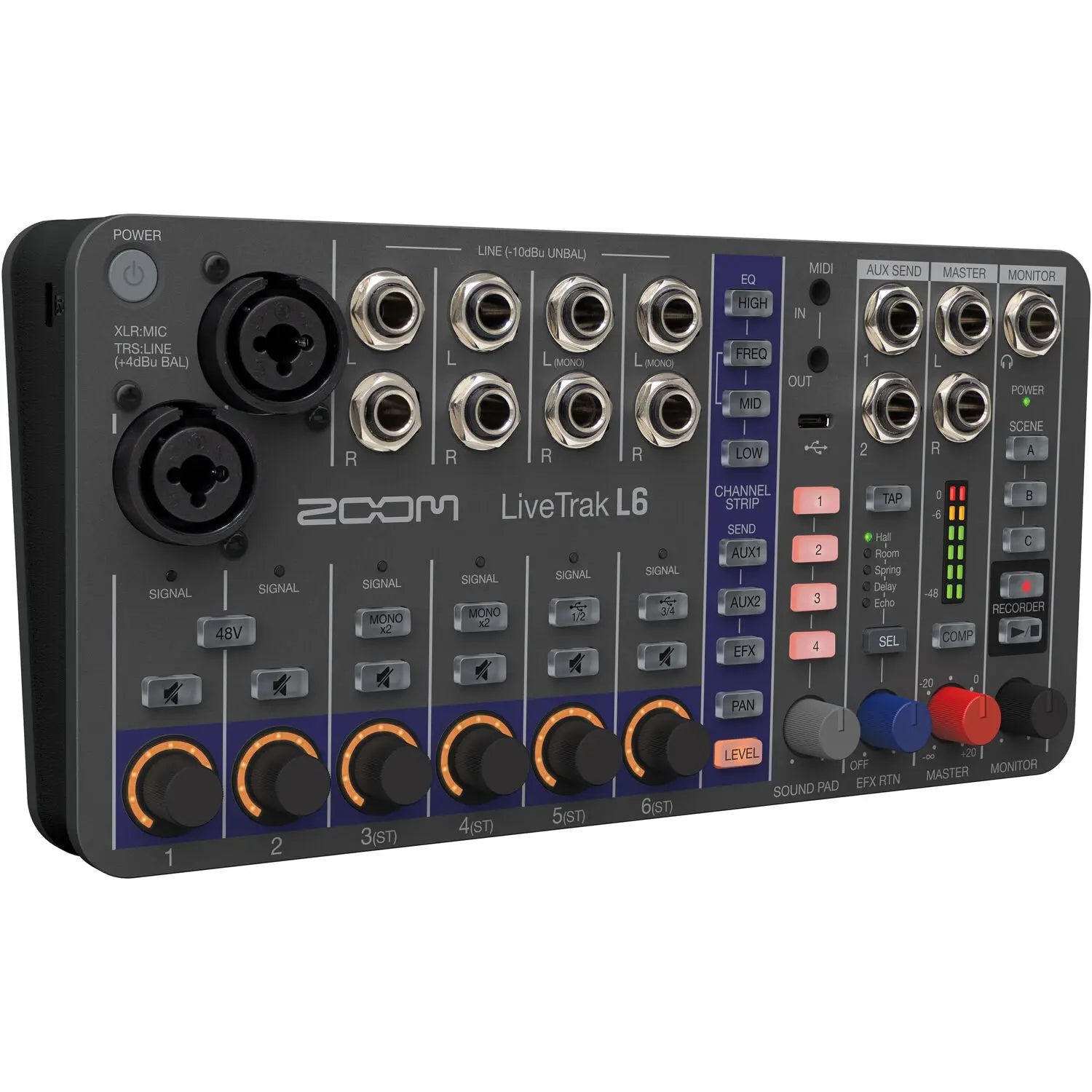

Zoom LiveTrak L-6 Portable Digital Mixer & Recorder

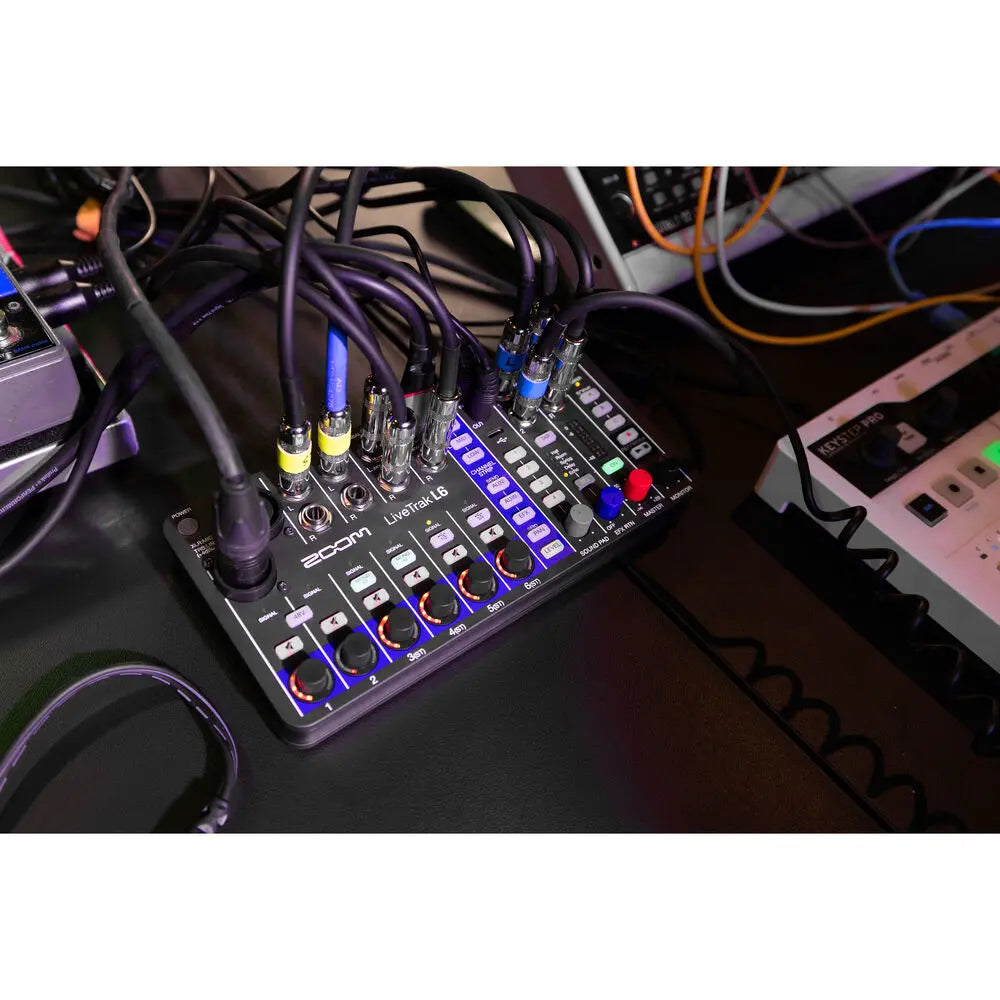

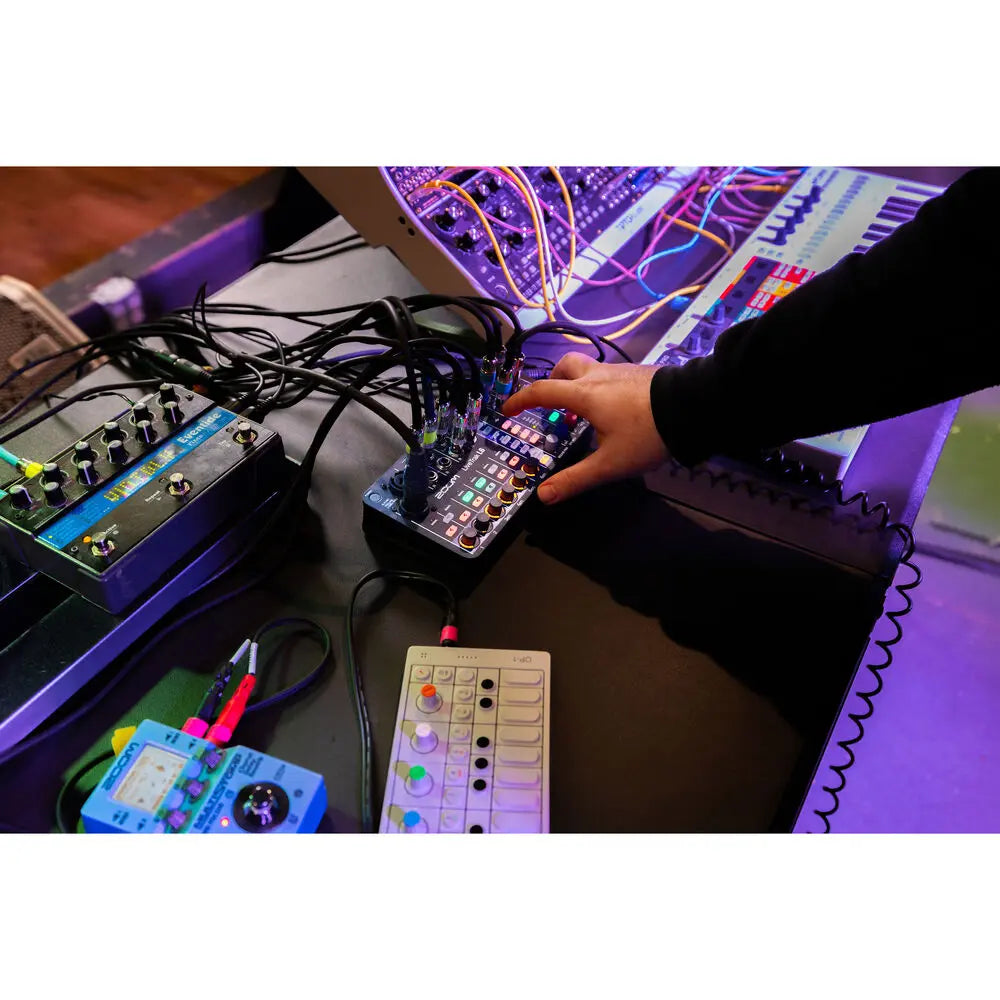

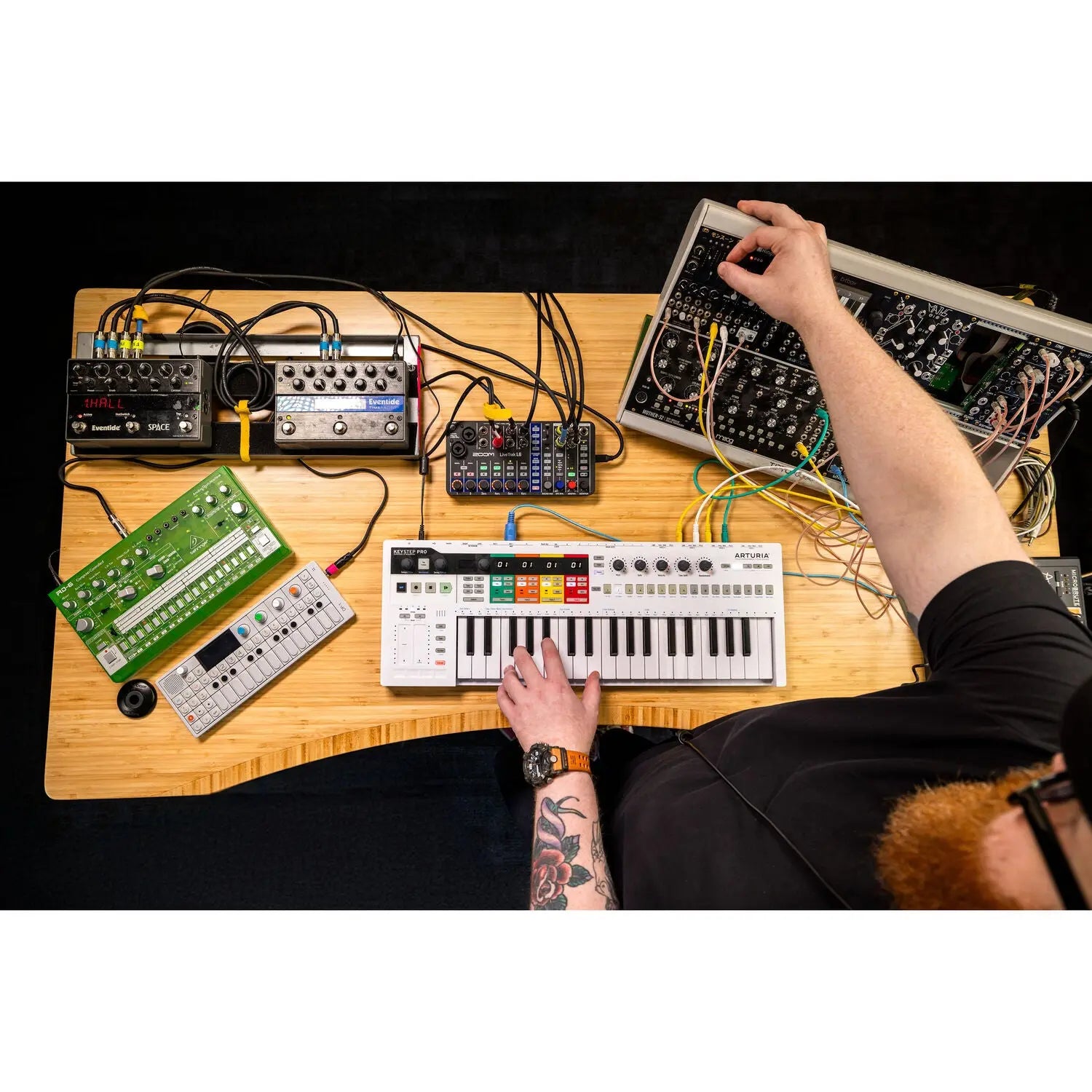

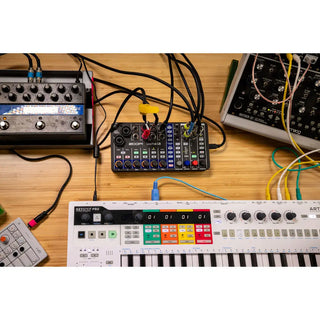

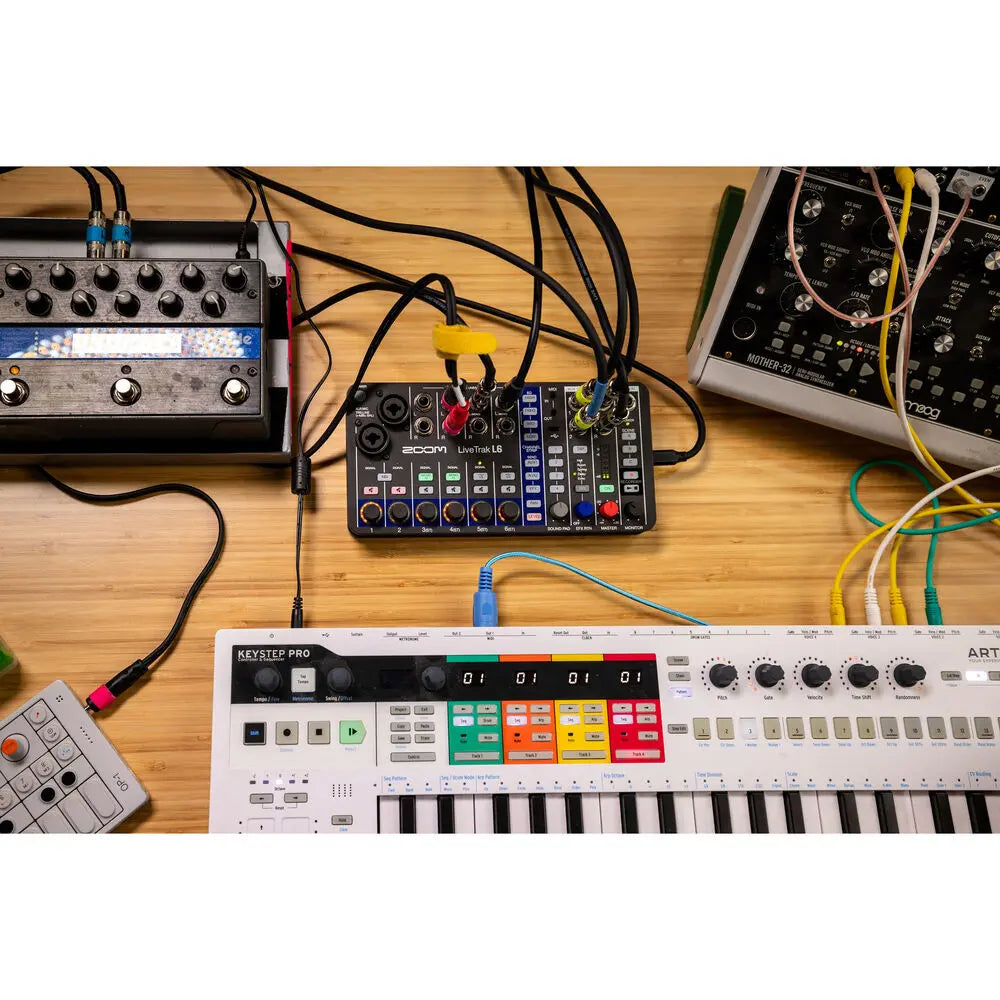

Perfect for keyboard and synth setups, the Zoom LiveTrak L-6 is a compact, battery-powered digital mixer and multitrack recorder designed to get you recording quickly and easily. With intuitive controls, flexible input options, and powerful features, the L-6 is ideal for live performance, home studio use, or on-the-go music production.

Record directly to an SD card, stream via USB to your computer or iOS device—or do both at once. The L-6 supports up to 10 inputs with 6-channel simultaneous multitrack recording.

Key Features:

• Ultra-compact 10-channel digital mixer
• 2 x XLR/TRS combo mic/line inputs + 4 stereo 1/4" line inputs
• 12-track simultaneous recording (including stereo master)
• 32-bit float multitrack recording to microSD card
• USB audio interface: 12-in / 4-out
• MIDI in/out for mixer control and USB MIDI interface
• 3-scene memory for storing custom mixer and tempo settings
• 4 assignable sound pads for triggering samples
• 3-band EQ with mid-frequency control on every channel

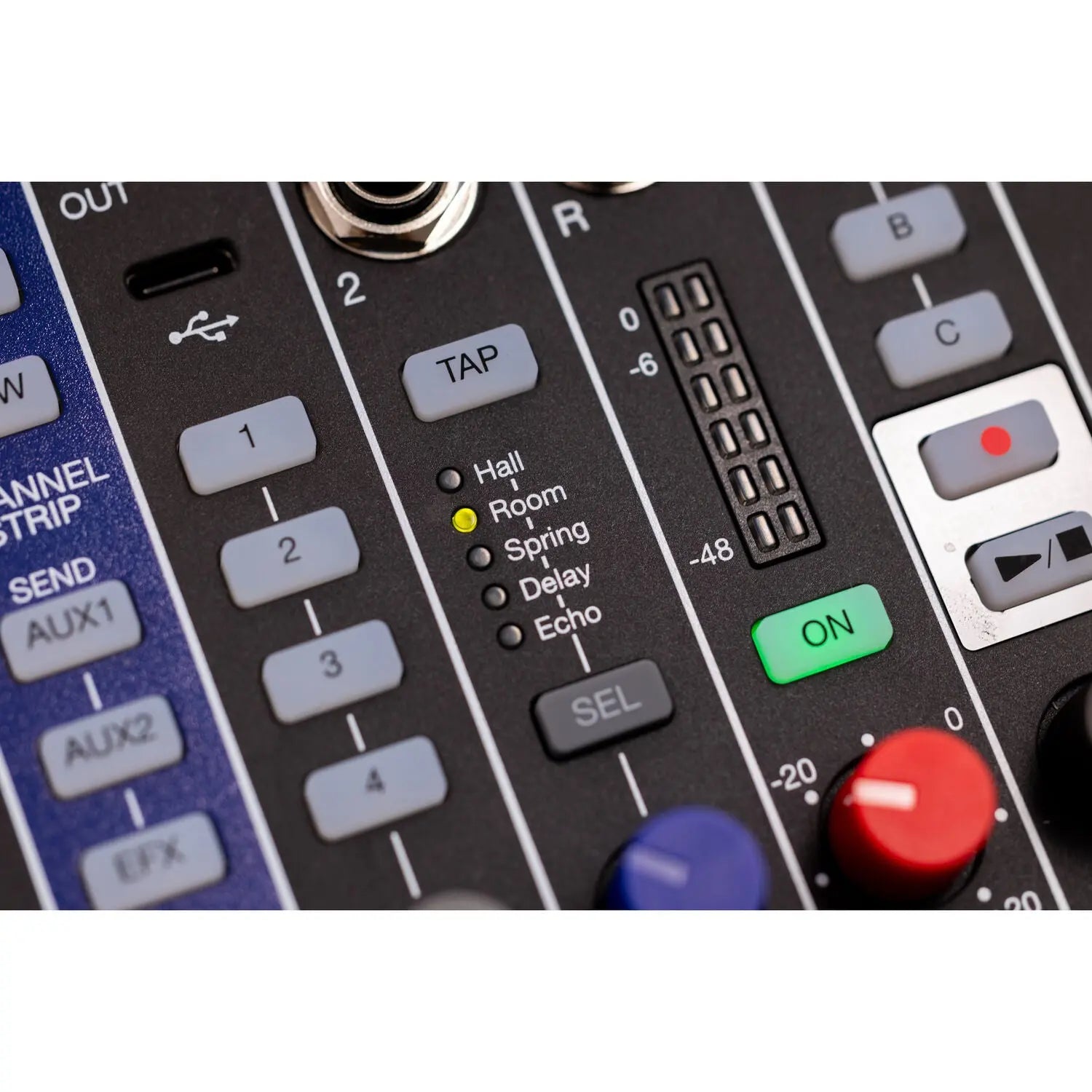

• Built-in effects with 5 internal send FX options
• 2 x aux sends, headphone out, and master output
• Powered by 4 x AA batteries or USB
• Eurorack-compatible form factor

Whether you're mixing live instruments, capturing multitrack sessions, or creating content for digital platforms, the Zoom LiveTrak L-6 delivers pro-level performance in a portable package.

Exceptional Versatility

The Zoom LiveTrak L-6 is not just any mixer; it serves both as a portable digital mixer and a multitrack recorder. Because of its six channels, it allows you to mix multiple audio sources precisely. Whether you're recording a band or a solo project, you can adjust each channel individually for optimal sound quality. This versatility makes it a suitable choice for musicians, podcasters, and audio engineers alike.

User-Friendly Interface

One of the standout features of the LiveTrak L-6 is its user-friendly interface. With a large, clear LCD screen, navigating through settings becomes straightforward. You can easily switch between recording and mixing modes without confusion. Because it is designed with user experience in mind, even those new to digital mixing will find it accessible and easy to use.

High-Quality Recording

The product ensures high-quality recording capabilities with professionally designed preamps and converters. You can record up to 12 tracks simultaneously, which is perfect for live performances and studio setups alike. Plus, it has built-in effects to enrich your sound. Therefore, you can achieve studio-quality audio with ease, whether you are at home or on stage.

Max I/O Capacity

• 6x Input / 6x Output

Analog Input

• 6 Channels (2 Mono / 4 Stereo)

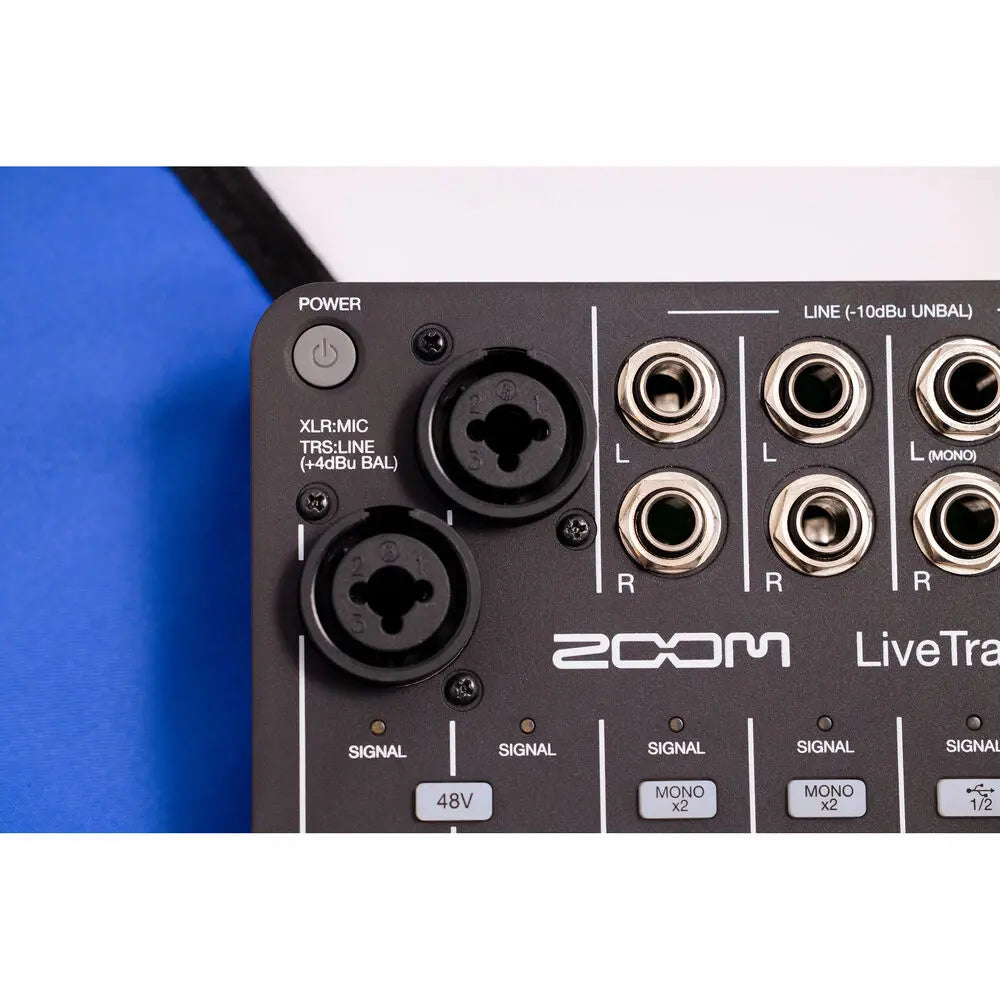

• 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
• 8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs)

Mic Preamps

• 2

Analog Output

• 4 Channels
• 2x 1/4" TRS Balanced/Unbalanced Aux Send
• 2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
• 1x 1/4" TRS Unbalanced Stereo Headphone Output

Faders & Level Adjustment

• 6 Channel Knob

Built-In Effects

• 5x Stereo Effects (Type Unspecified)

Digital I/O

• None

USB I/O

• 1x USB-C 2.0 (Host Connection)
• 12x Input / 4x Output Capacity

Wireless

• No

Rack Mountable

• Yes

Mix Routing

• 2x Mono Aux Send
• 1x Stereo Main LRC

Presets

• 3x Scene Memory

Meters

• 2x 6-Segment LED (Main Meter)

EQ

• 3-Band EQ

EQ Parameters

• HF Shelf: ±15 dB at 10 kHz
• MF Peak: ±15 dB from 100 Hz to 8 kHz
• LF Shelf: ±15 dB at 100 Hz

Graphic EQ

• No

Solo/Mute

• Mute per Input Channel

Audio Delay

• No

Automatic Mic Mixing

• No

Digital Audio

• Sample Rate: 48 kHz
• Bit Depth: Up to 32-bit

Performance

• Frequency Response: 20 Hz to 20 kHz (-1 dB)
• Max Input Level:
    - Combo XLR-1/4" Mic: +4 dB
    - Combo XLR-1/4" Line: +24 dB
    - 1/4" TS Line Input: +9 dB
• Headphone Output Power: 50 mW/channel into 63 Ohms (Max)

I/O Impedance

• XLR Line/Mic Input: 3.8 kΩ
• 1/4" TRS Line Input: 39 kΩ
• 1/4" TRS Aux/Main Output: 147 Ω
• 1/4" TRS Monitor Output: 14.7 Ω

Signal Generator

• No

Phantom Power

• +48 V

MIDI I/O

• No

Expansion Ports

• No

External Display I/O

• No

Recording

• Max Multitrack Recording: 12 Tracks
• Media Support: SDHC

Power

• Input Power: 5 VDC

Physical

• Dimensions: 8.8 x 1.8 x 4.5" / 22.3 x 4.6 x 11.4 cm
• Weight: 1.3 lb / 0.6 kg
