DJI Focus Pro Creator Combo

DJI Focus Pro Creator Combo

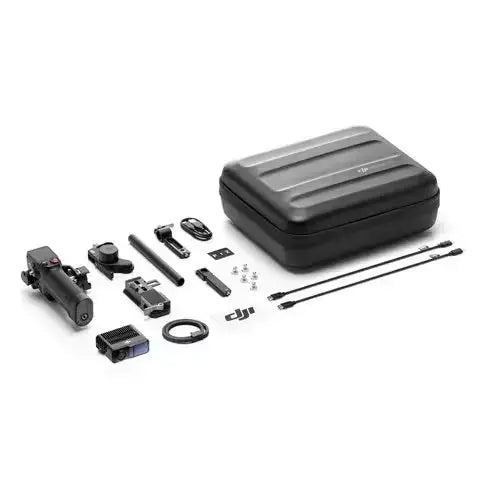

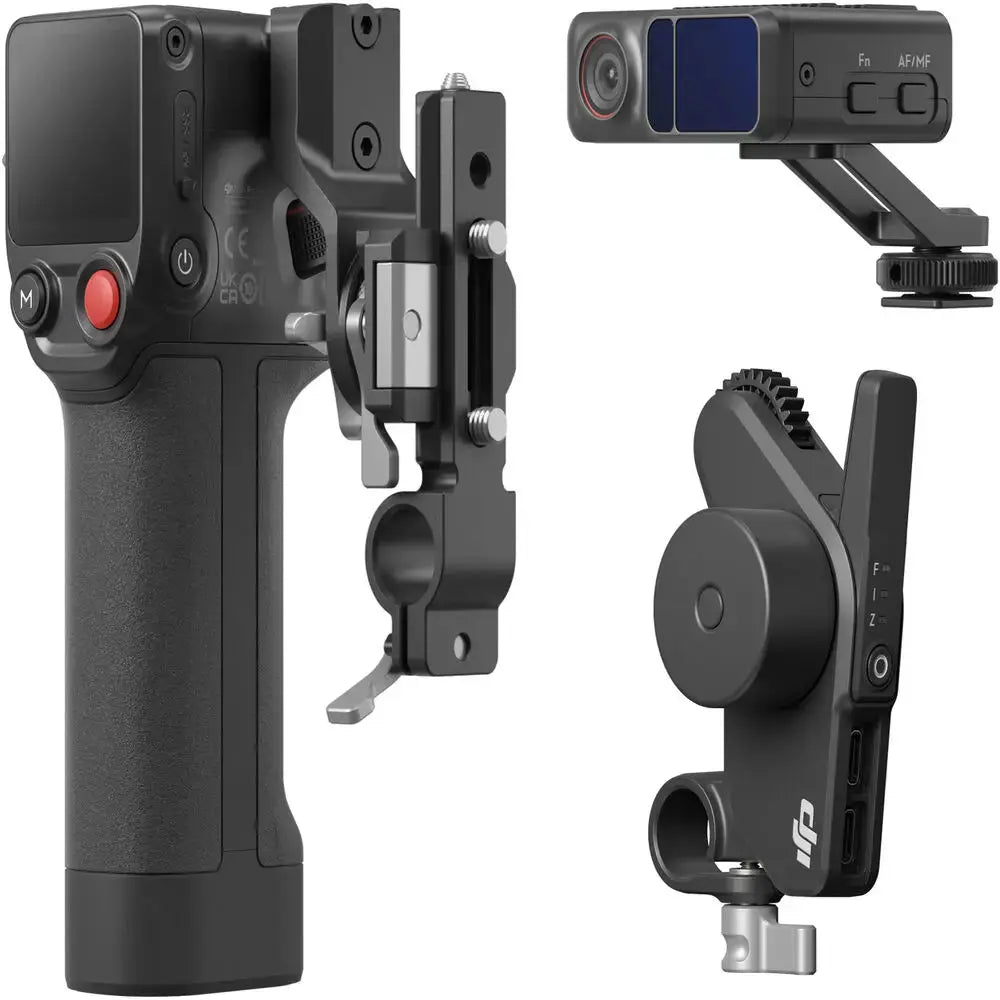

The Focus Pro Creator Combo from DJI equips you with all the tools you need to achieve precise FIZ control in single-shooter configurations. The combo includes a LiDAR unit, a Focus Pro Motor, and a Focus Pro Grip for more accurate, distant, and intelligent autofocus. A carrying case holds all the components for travel to your next shoot.

DJI Focus Pro LiDAR

Designed for both the RS 3 Pro and RS 4 Pro gimbal stabilizers, the DJI Focus Pro LiDAR unit makes achieving intelligent autofocus intuitive and easy for solo cinematographers. The rangefinder unit makes focusing on objects in motion a breeze thanks to its expanded 76,800 ranging points, 30 Hz refresh rate, and 65.6' maximum detection area. This allows it to support both wide-angle and telephoto lens configurations.

The unit features a built-in camera with an equivalent 30mm focal length and 70° field of view to ensure accurate focus. Toggle between wide-angle, telephoto, and focus spot modes depending on the needs of your shoot. ActiveTrack Pro is activated when paired with the RS 4 Pro gimbal for improved recognition and tracking performance with multiple subjects or subjects at a distance. It is compatible with the Focus Pro Motor to provide accurate cinema-style autofocus. The LiDAR unit mounts on your RS 3 or 4 Pro series gimbal or camera via cold shoe or 1/4"-20 thread, and it is powered via a USB-C power cable.

Autofocus

When paired with the Focus Pro Motor, the LiDAR unit can facilitate autofocus with compatible lenses. The unit's 76,800 ranging points can project within a 1.6 to 65.6' area. It also features a built-in camera with an equivalent focal length of 30mm and a wide FOV of 70°, catering to the focusing needs of most scenarios.

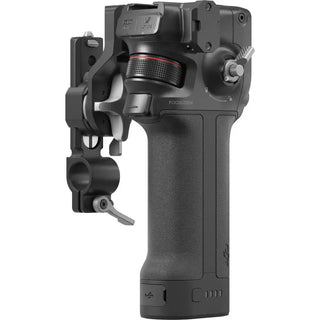

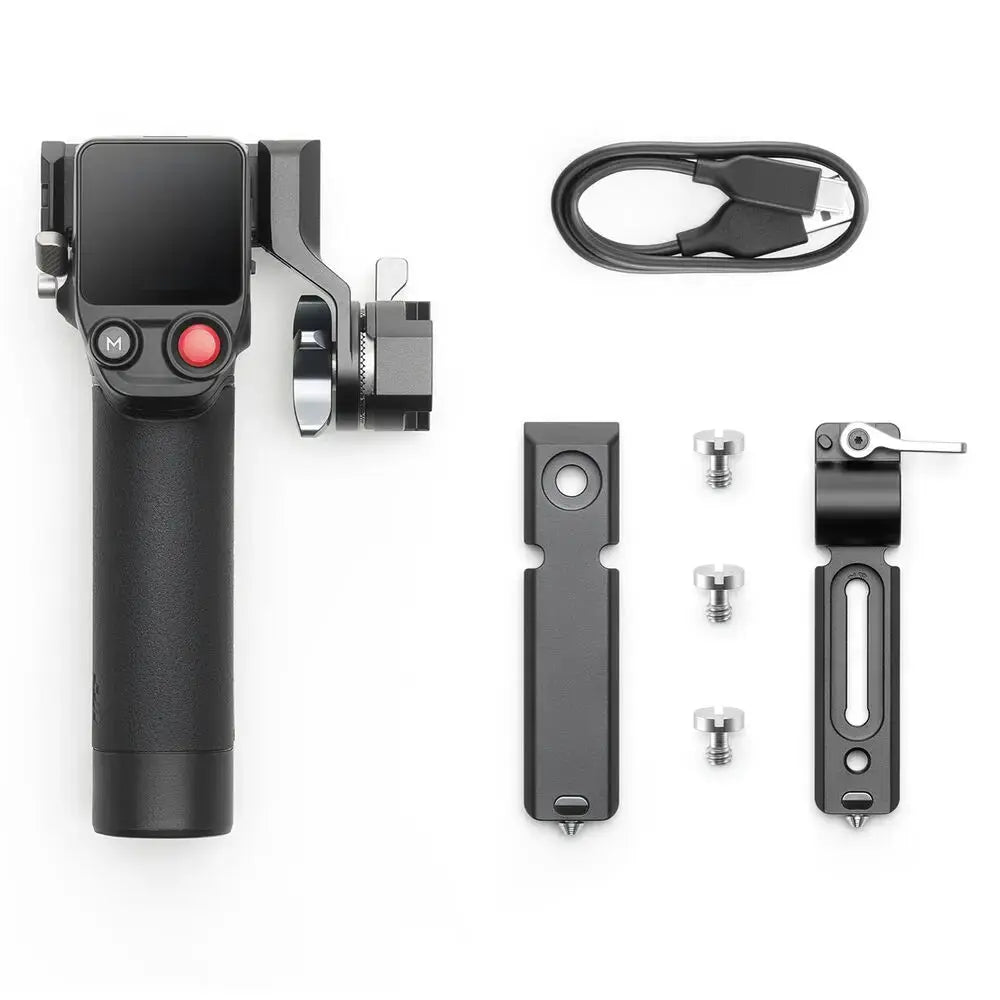

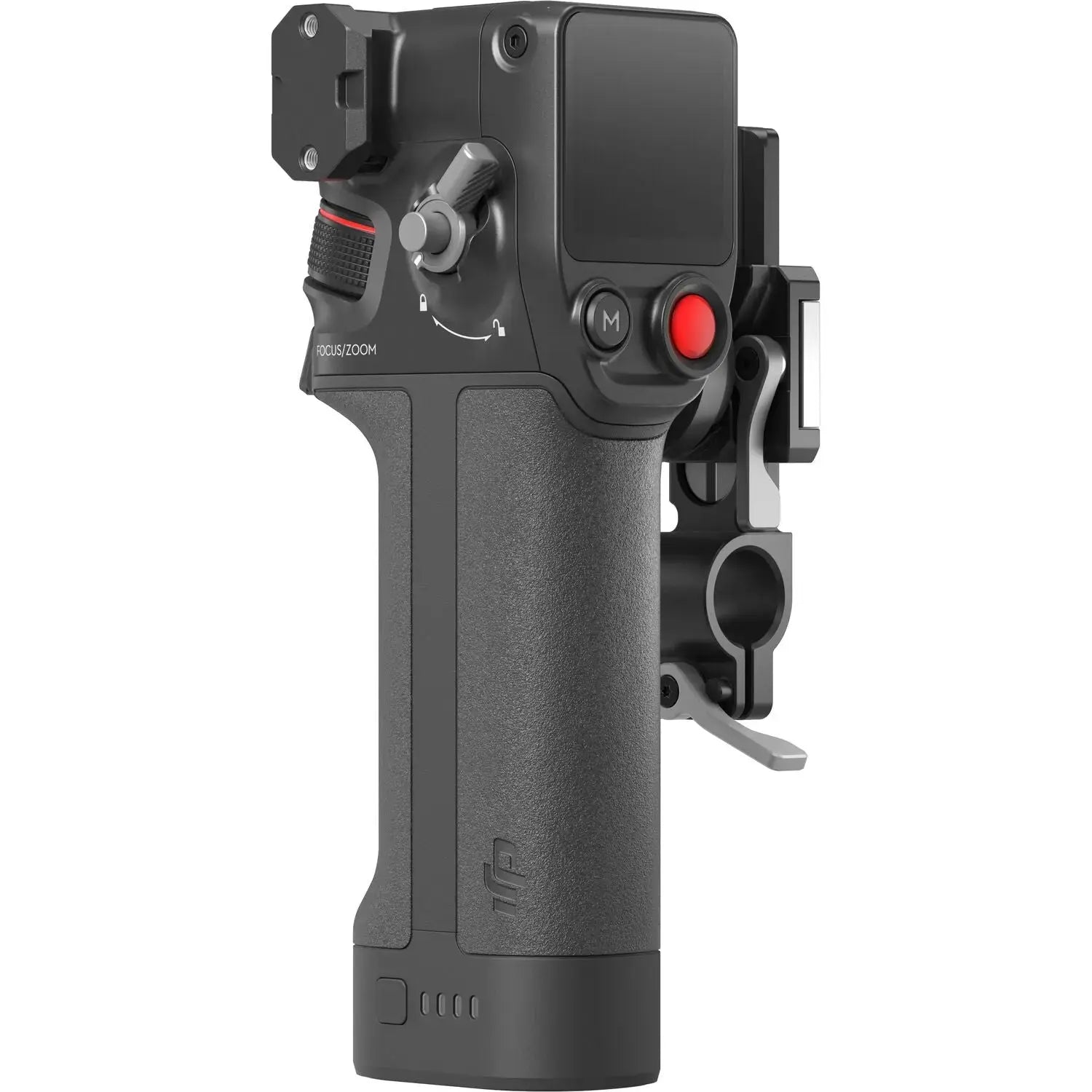

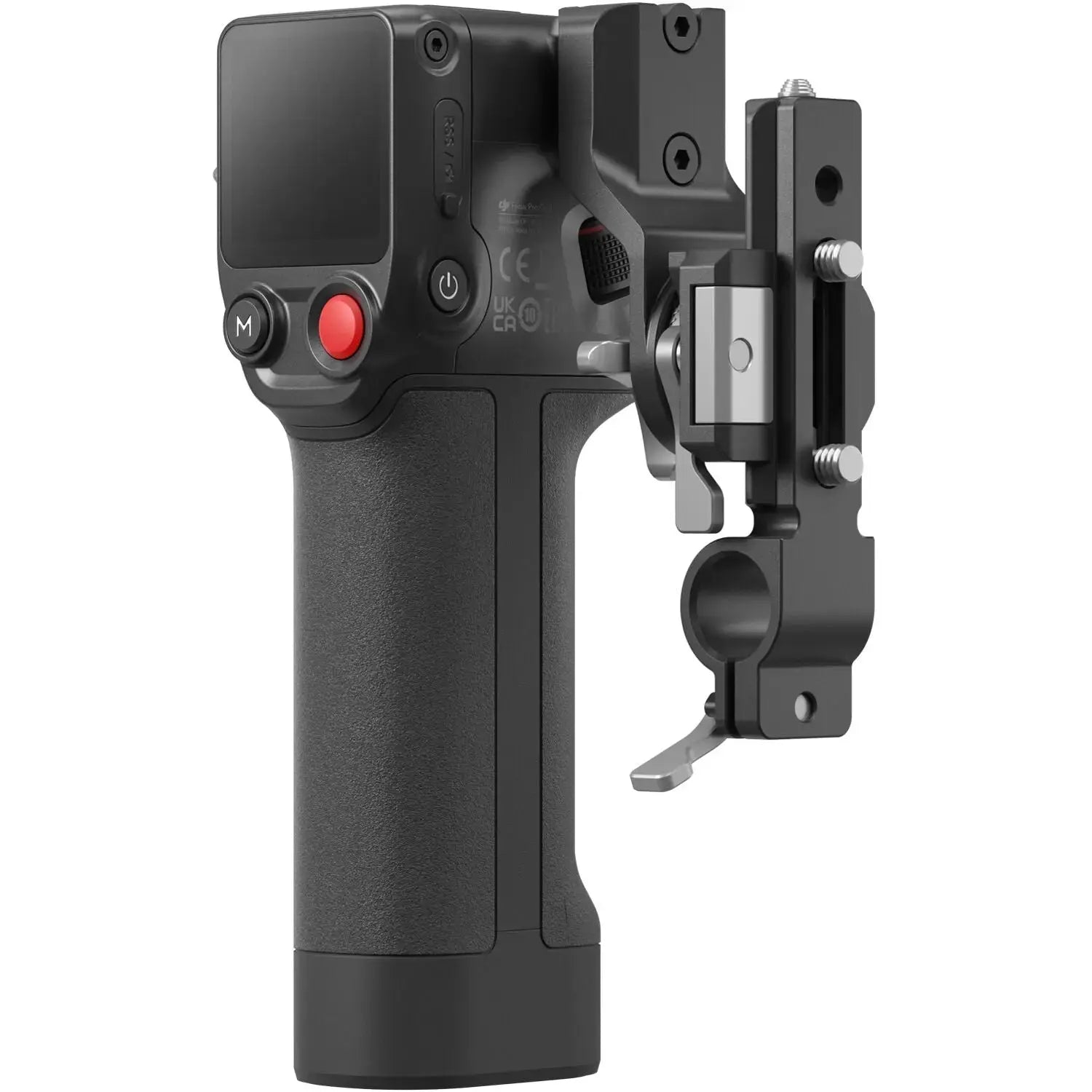

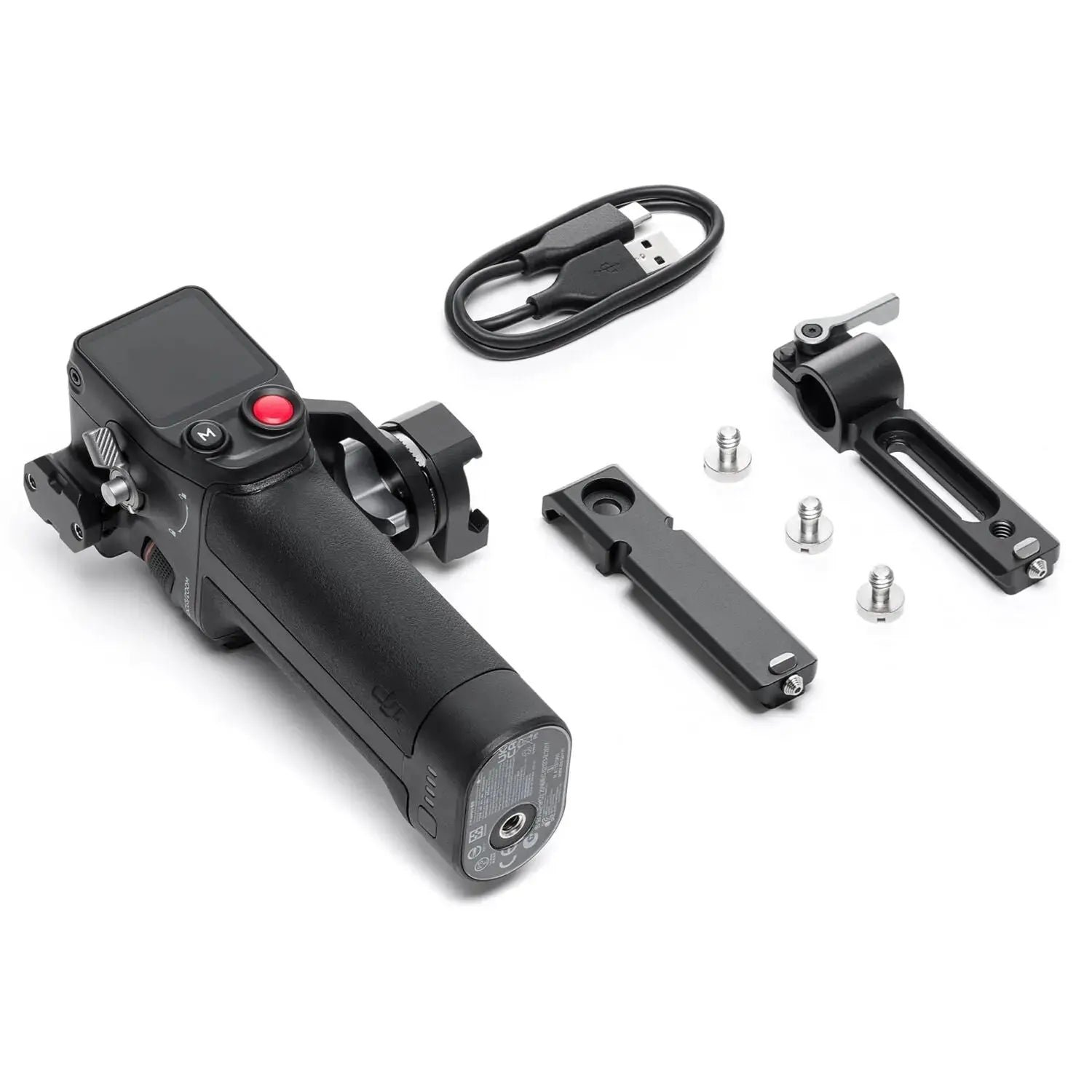

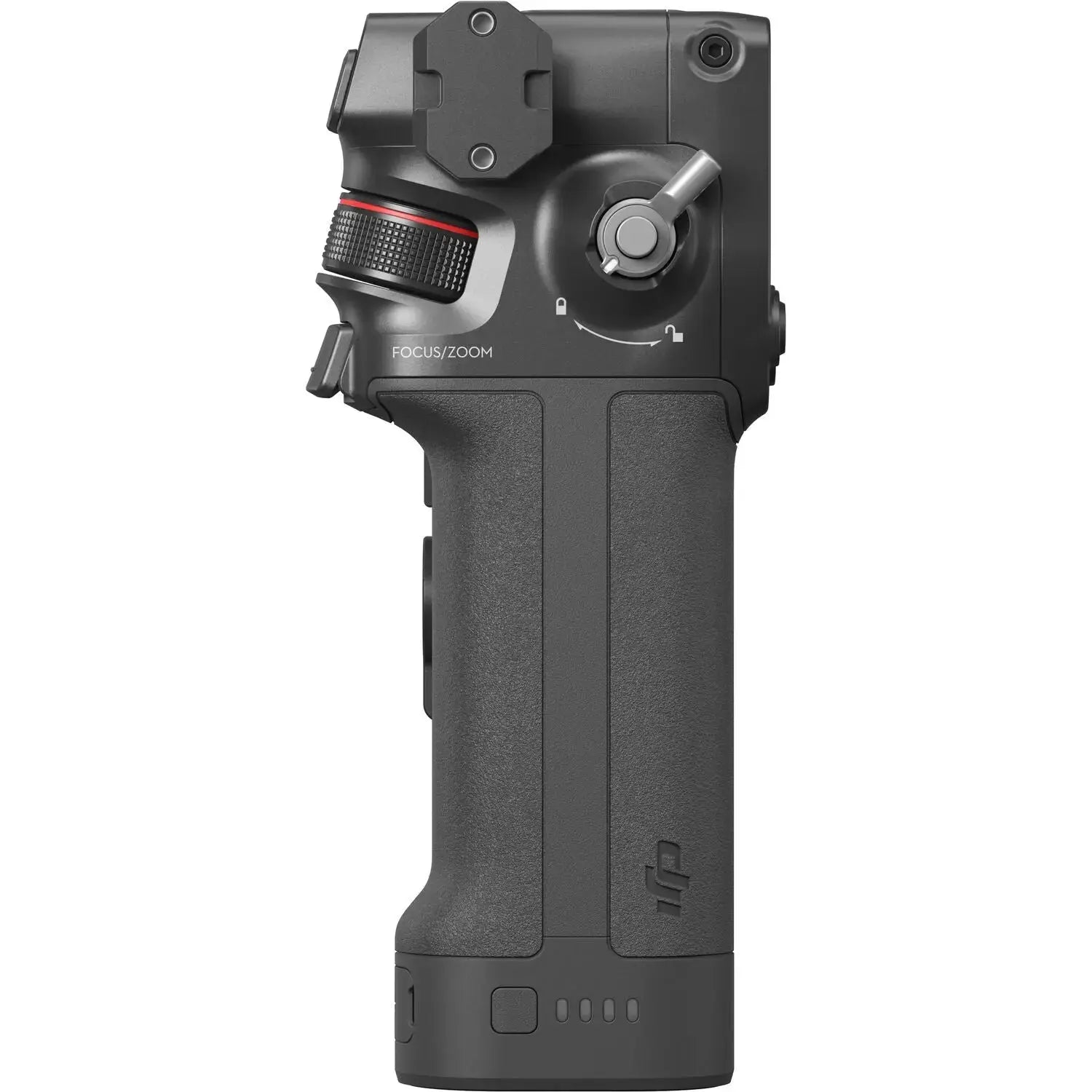

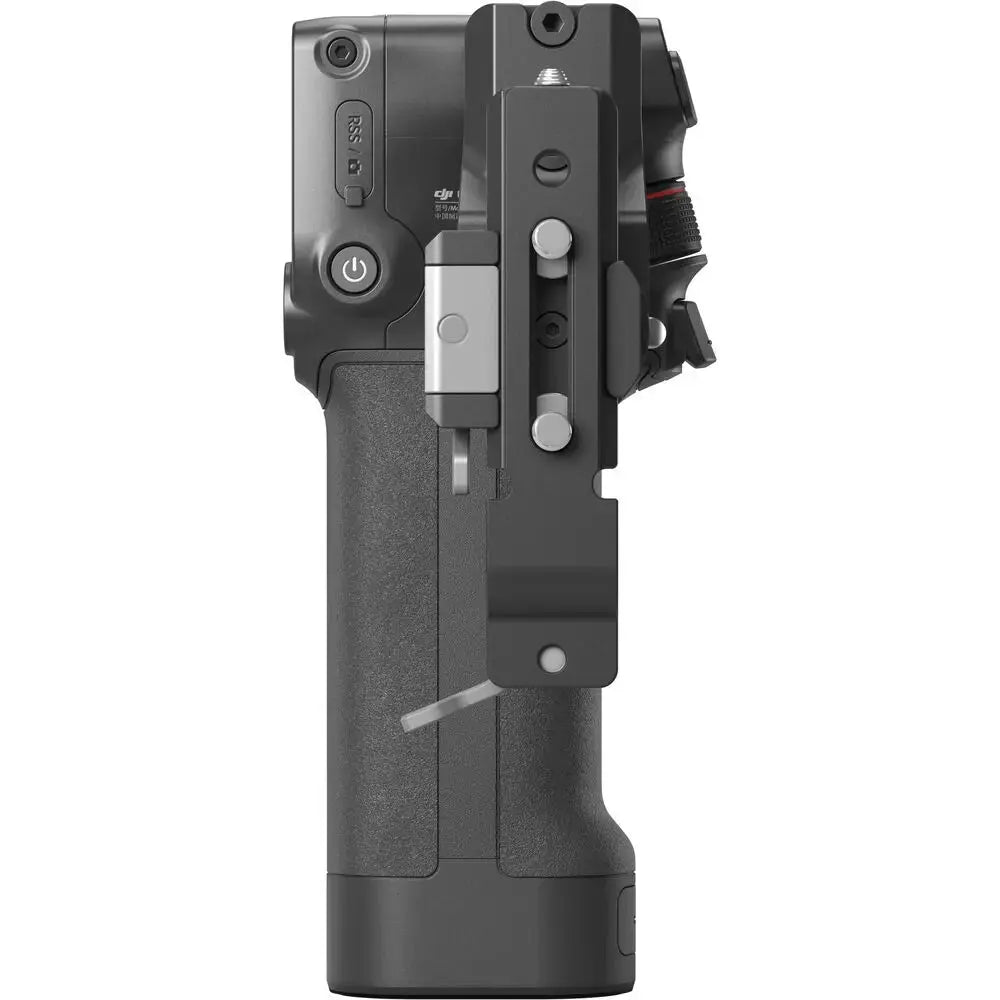

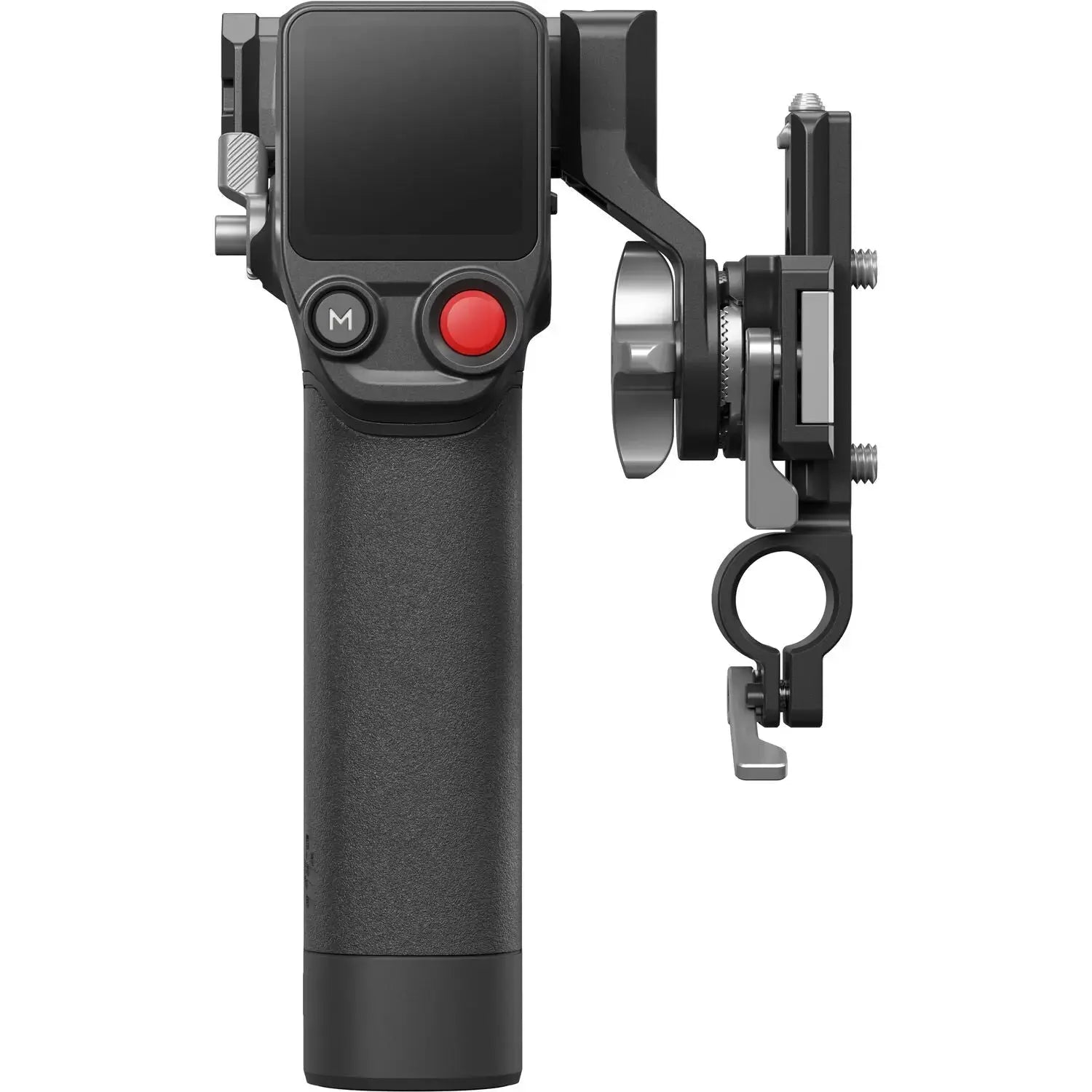

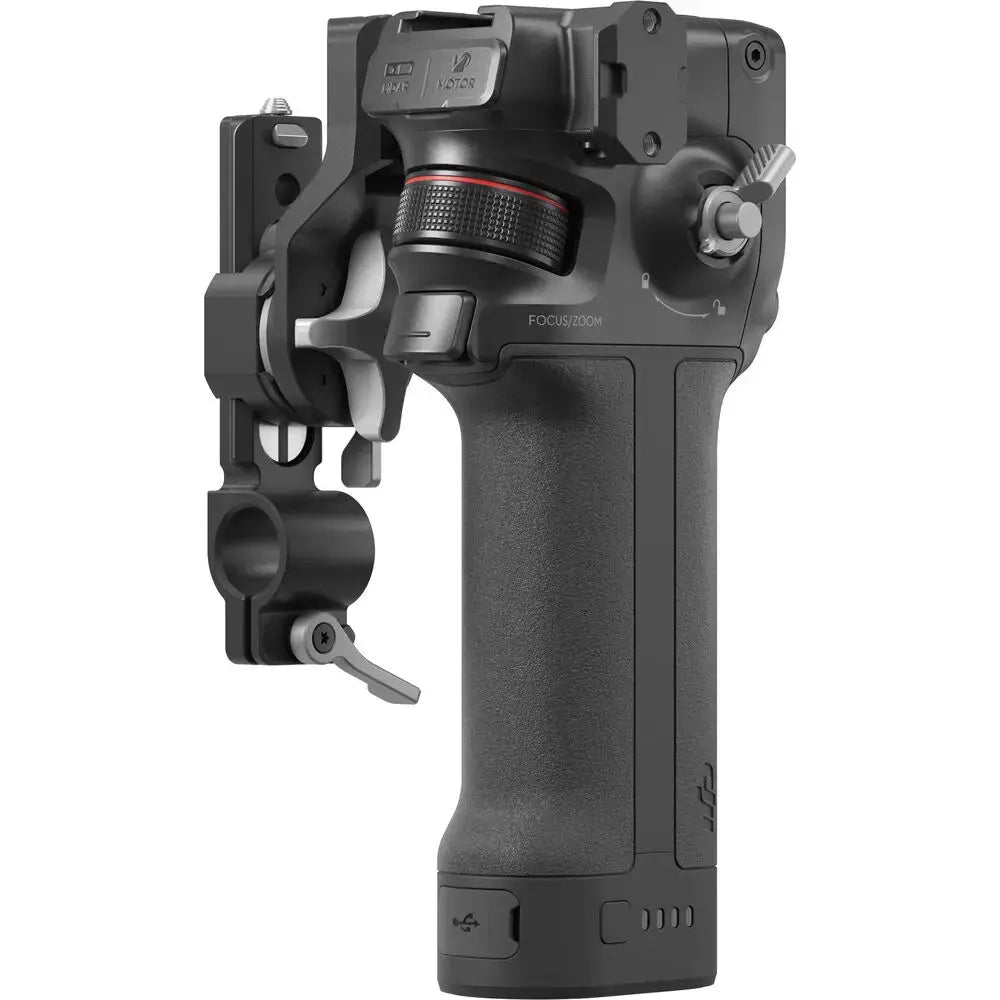

DJI Focus Pro Grip

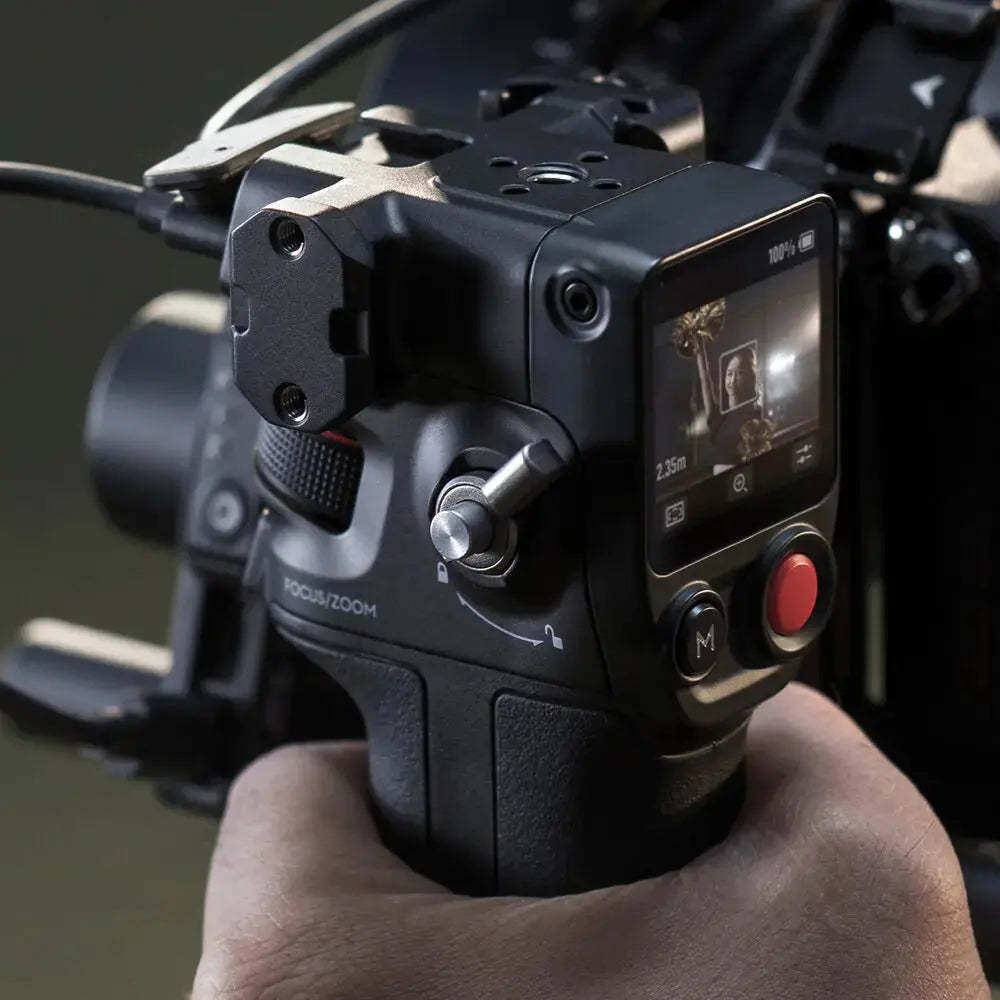

Attach this DJI Focus Pro Grip to either side of your DJI R3 Pro or RS 4 Pro gimbal and control your Focus Pro Motor configuration for precise FIZ. The grip has an integrated 1.8" touchscreen display, front dial, mode button, and record buttons for intuitive control over your camera and lens operations. Toggle AMF mode to engage autofocus, causing the front dial to rotate simultaneously and allowing cinematographers to visually observe the focus status on the monitor and via tactile feedback. Manual mode can then be engaged and disengaged intuitively.

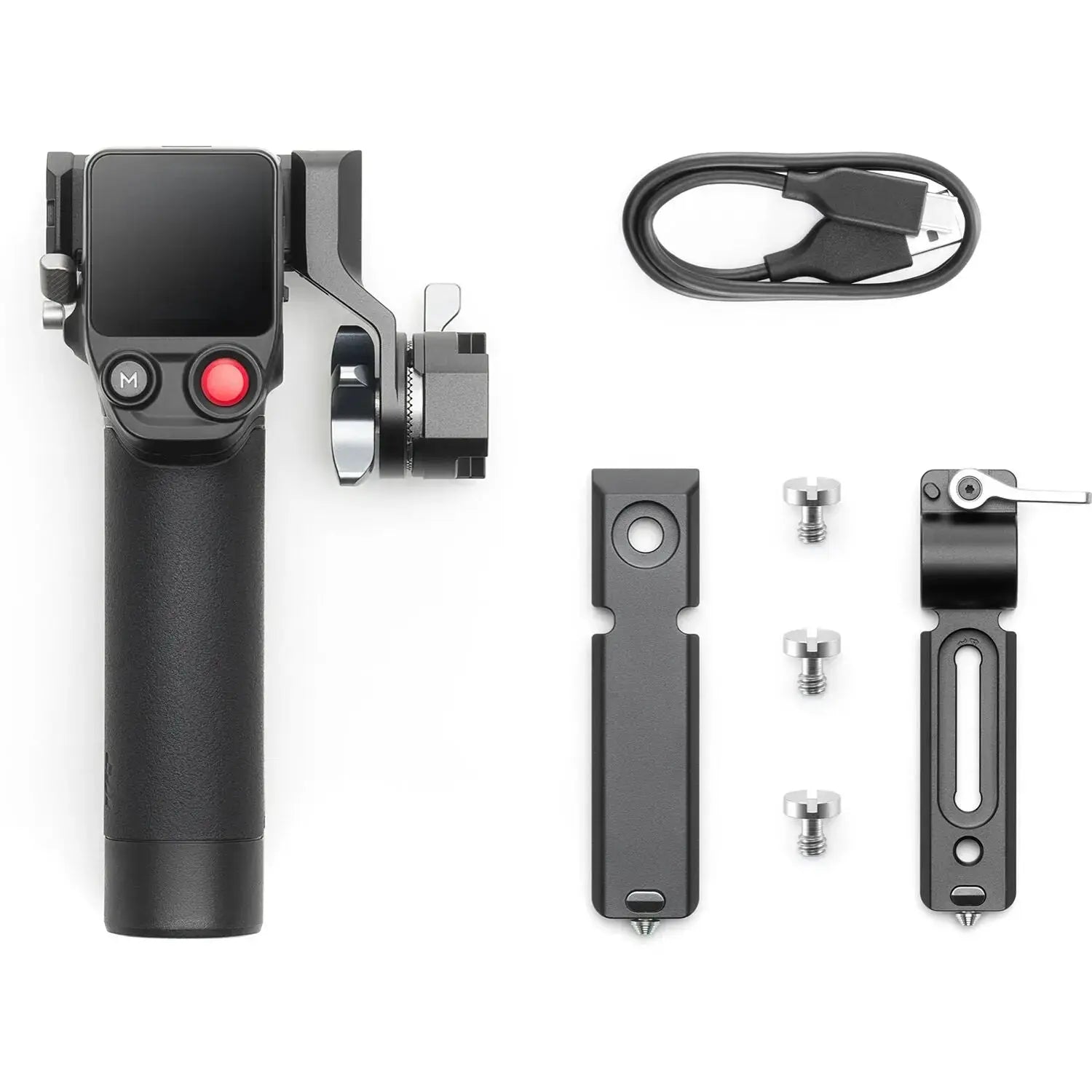

Three USB-C ports facilitate communication between the Focus Pro LiDAR unit, Focus Pro Motor, and your camera. 2.4 GHz and Bluetooth communication allow for wireless transmission. Use the built-in NATO clamp and included adapters to attach the grip to either side of your gimbal configuration. A built-in battery keeps the grip running for 2.5 hours at a time, and it can recharge via PD fast charging technology using the USB-C port.

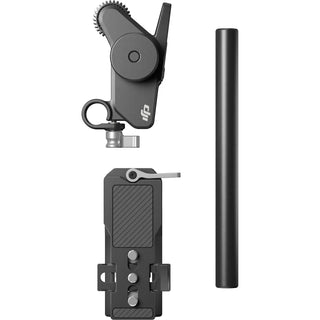

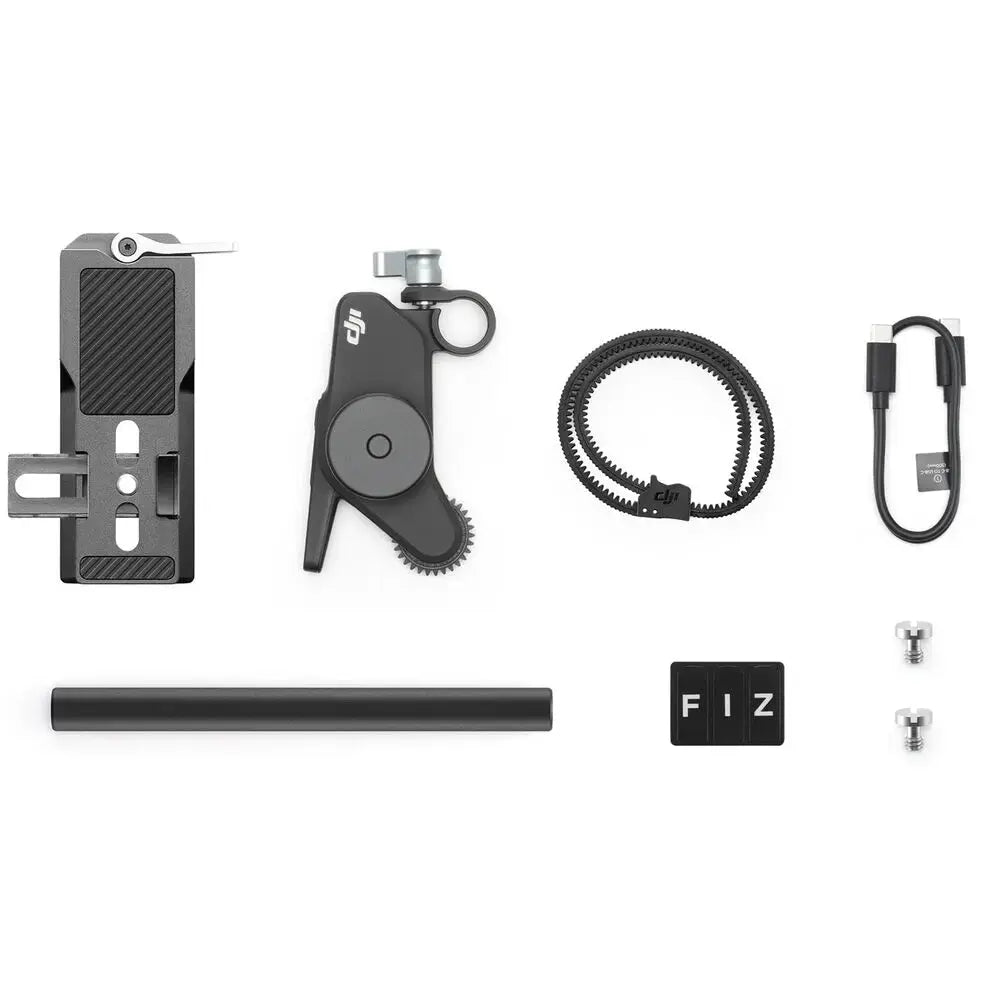

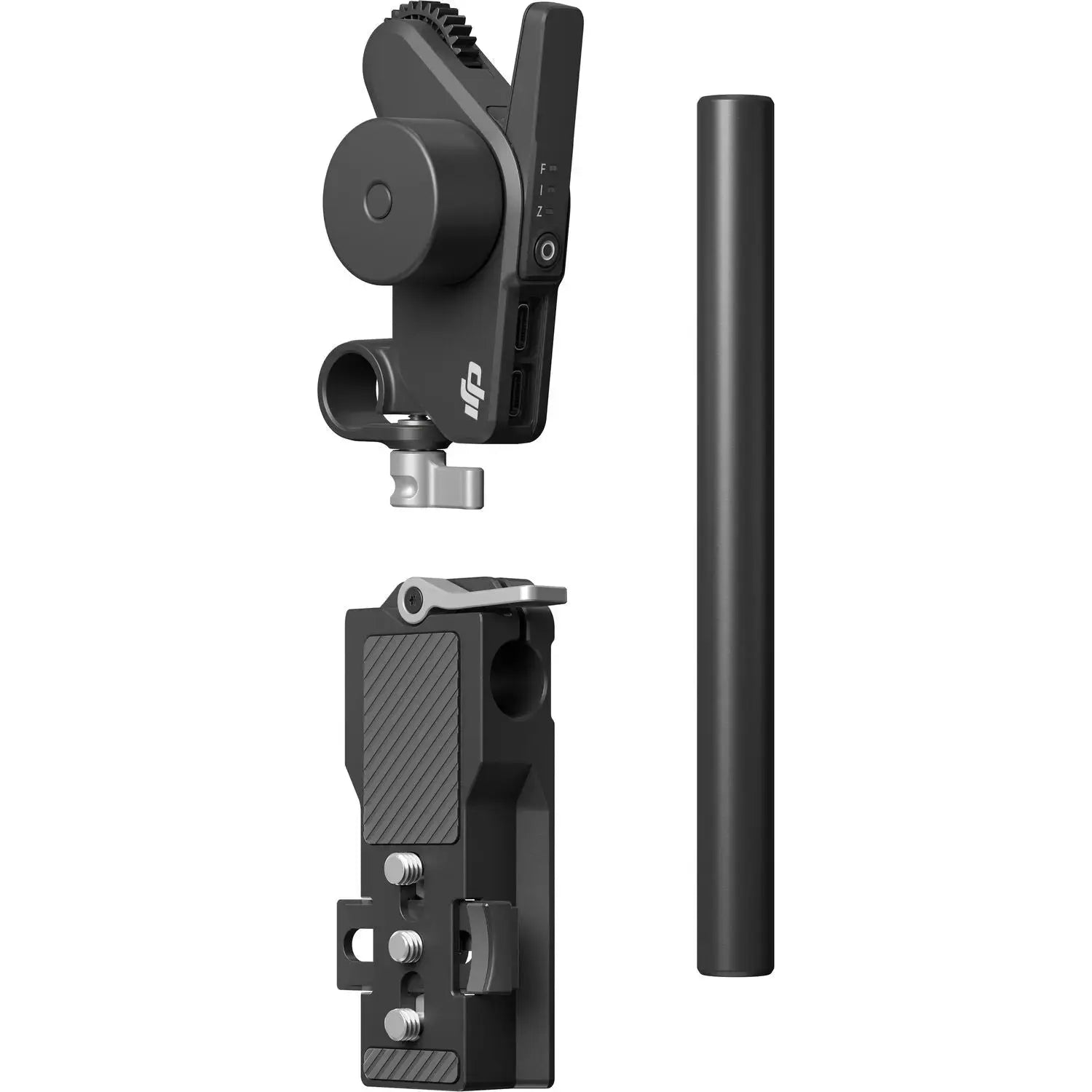

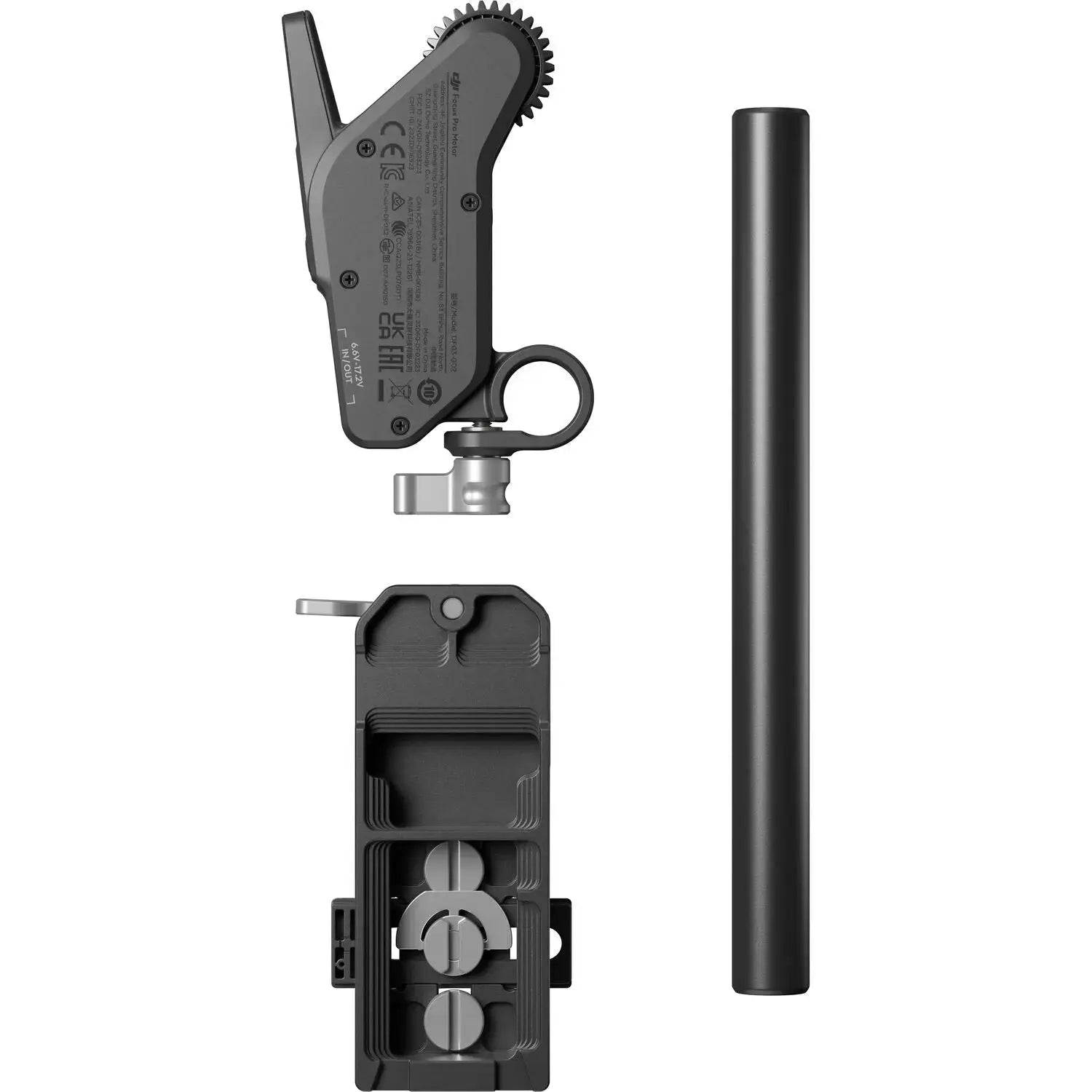

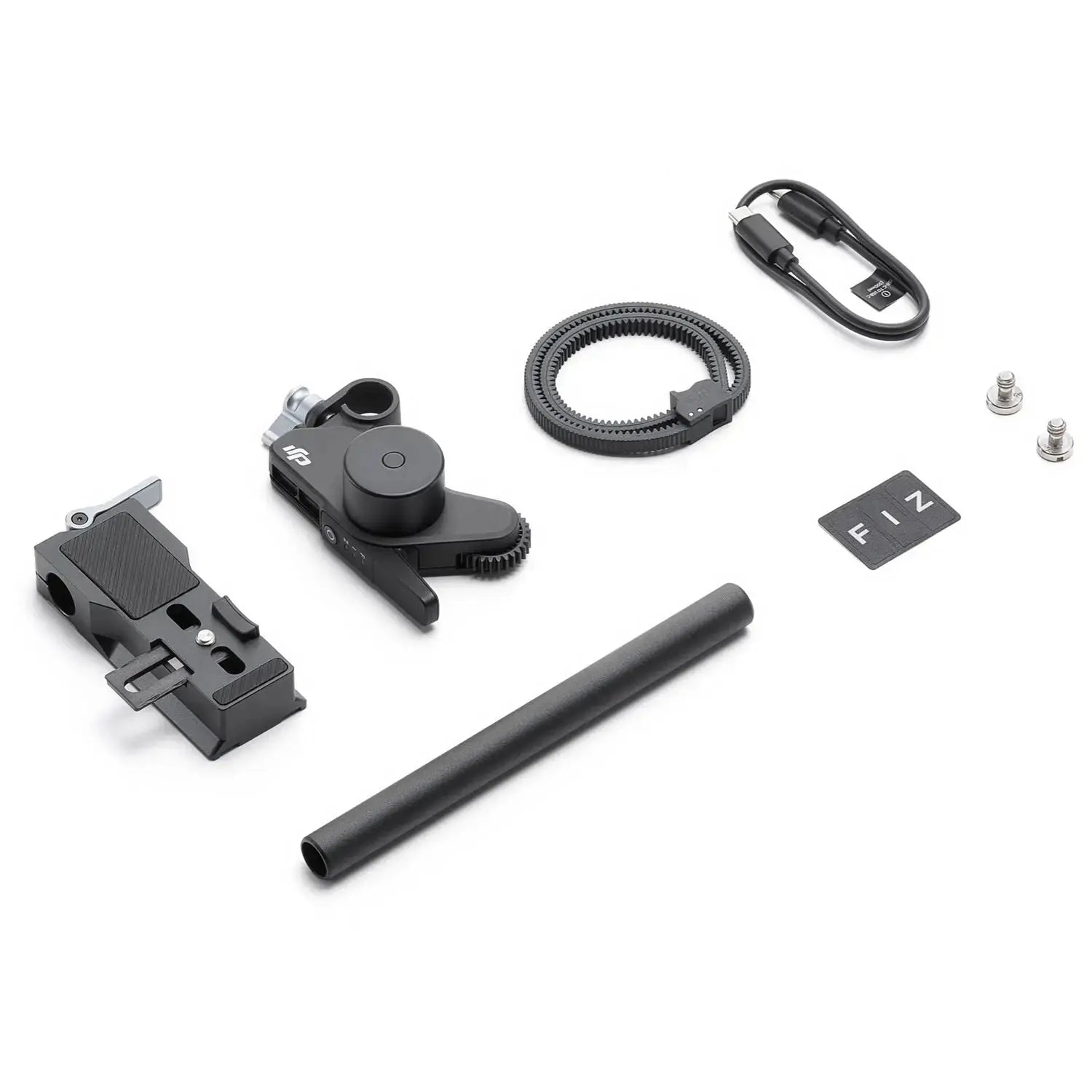

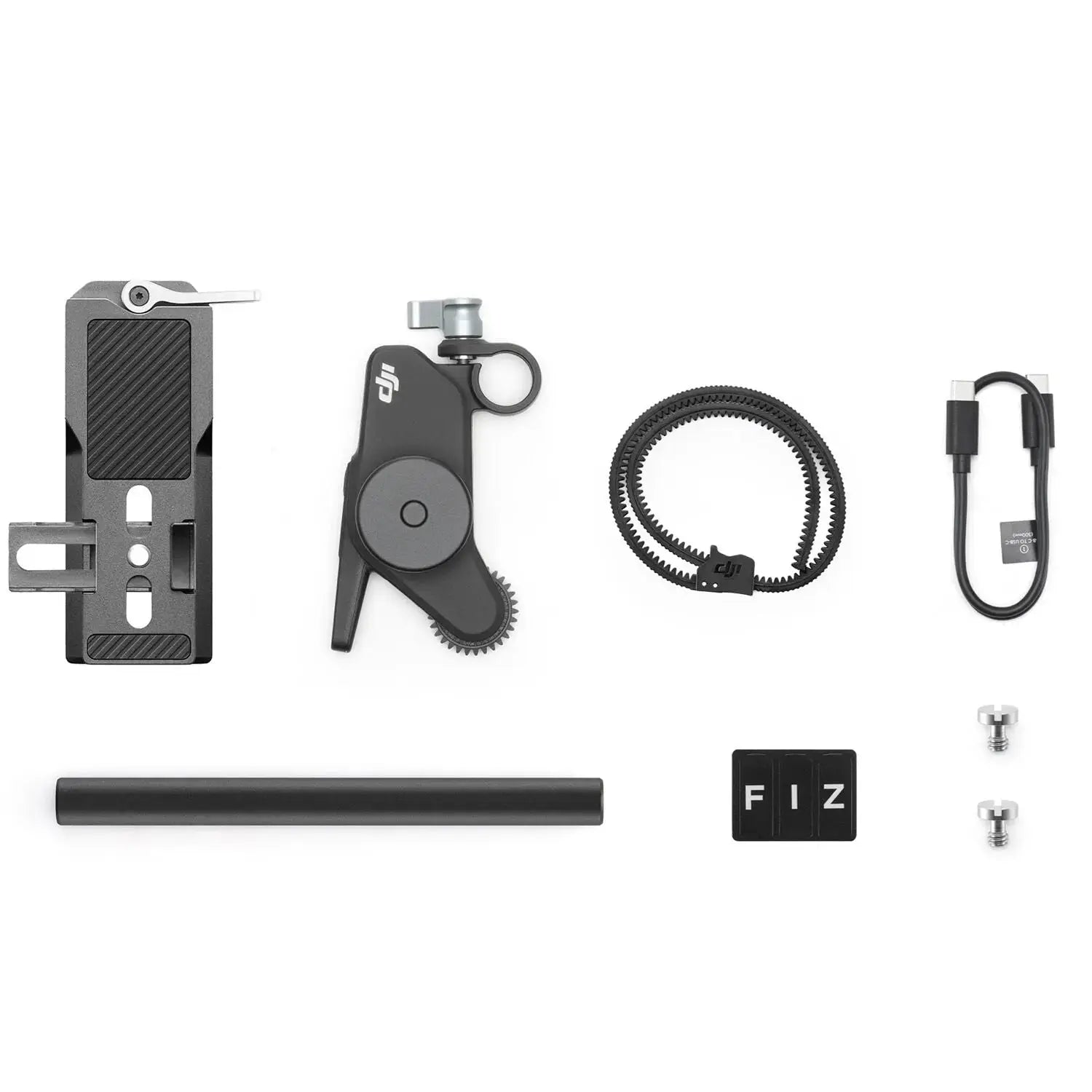

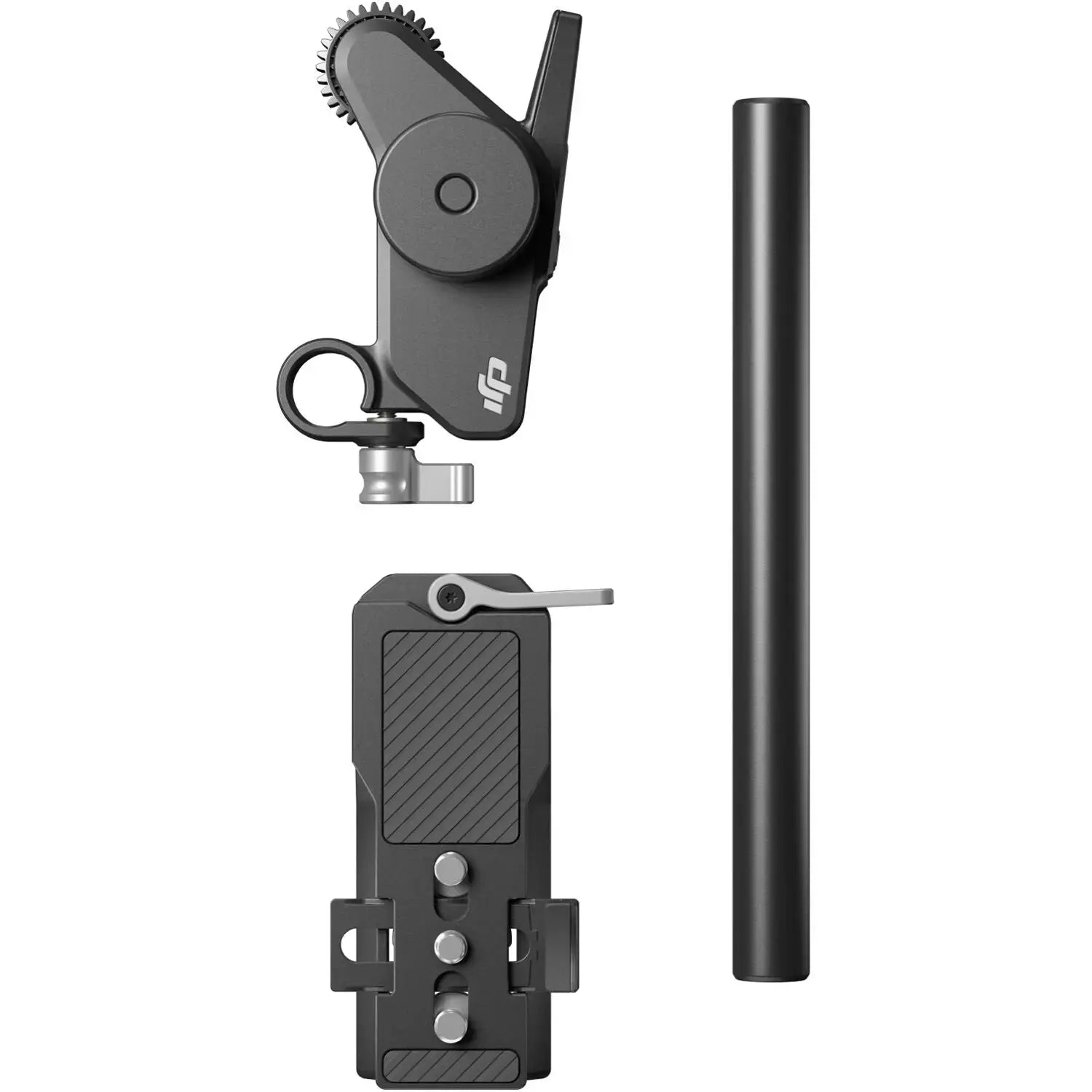

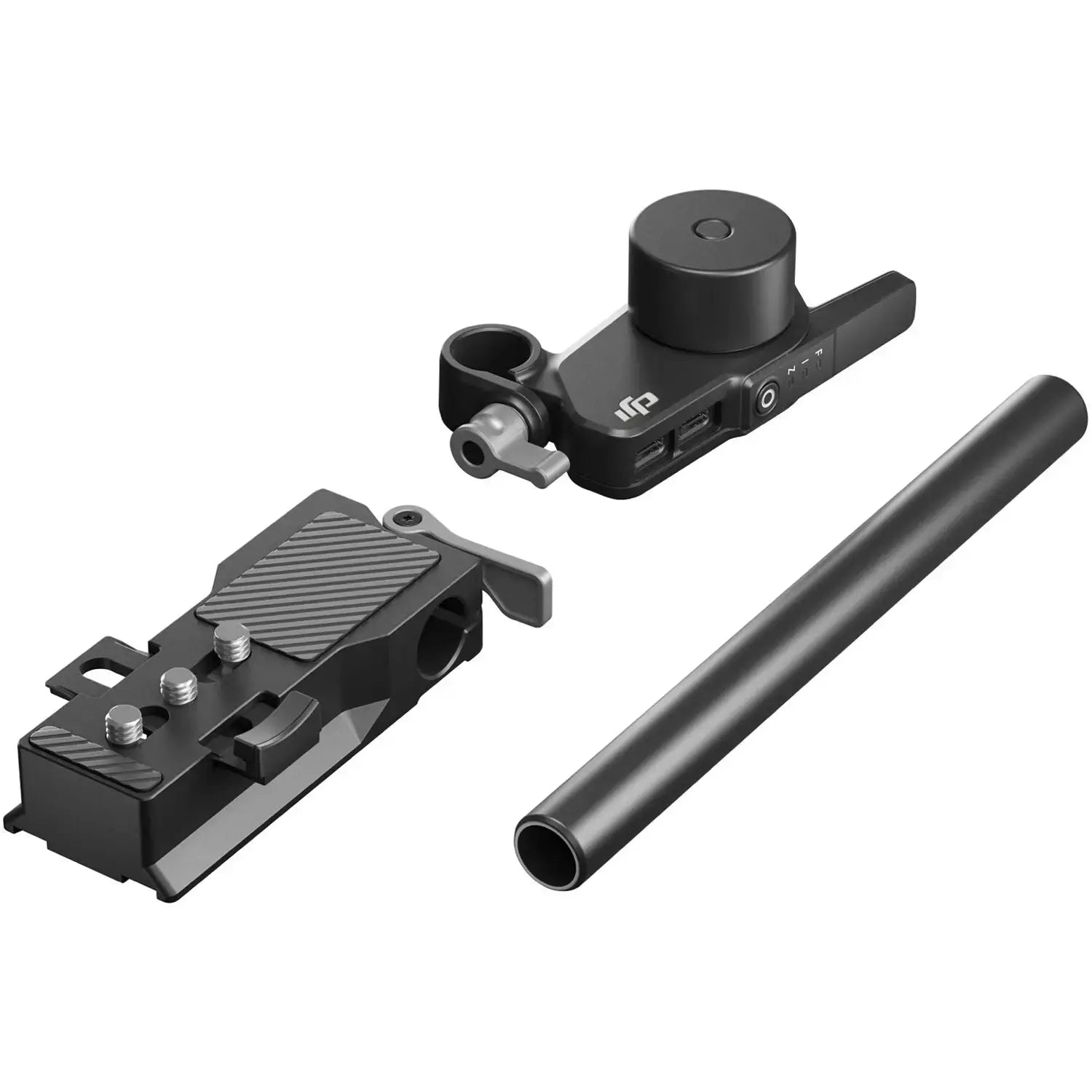

DJI Focus Pro Motor

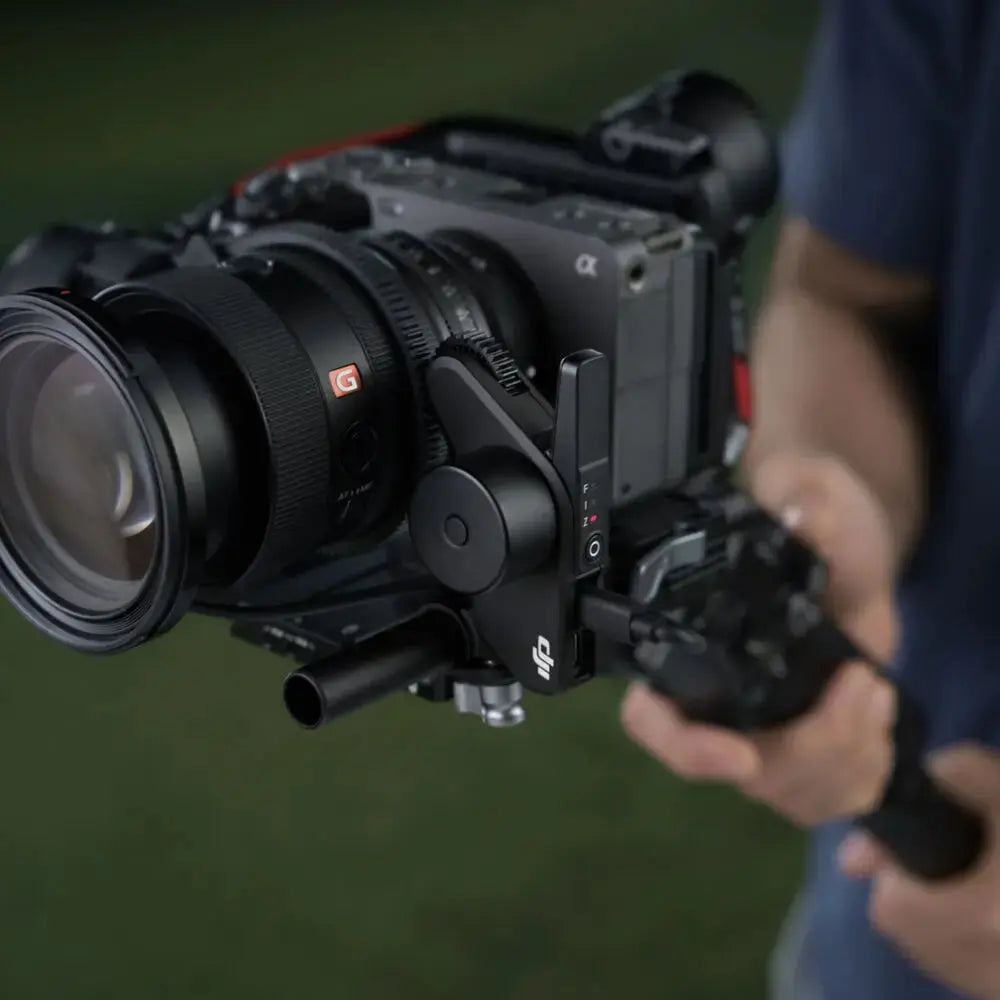

Add focus, iris, or zoom control to your camera when mounted on the select RS gimbal stabilizers with the DJI Focus Pro Motor. This updated motor features a 30% speed increase over the previous model with 300 gear teeth and 10ms low latency. Control the motor via 2.4 GHz transmission technology from up to 524.9' away.

When used in zoom control mode, the Focus Pro can perform Power Zoom for PZ lenses, Clear Image Zoom, and external focus motor zoom for precise focusing. Its updated 15mm rod mount makes it more universally compatible with camera mounting configurations. Pair two Focus Pro Motors with the DJI RS 4 Pro to adjust focus with the gimbal's onboard dial and zoom with the onboard joystick for efficient lens control.

DJI Focus Pro LiDAR Specs

General

Compatibility DJI RS 3 Pro / RS 4 Pro / Focus Pro Grip

Resolution 1920 x 1440

Frame Rate 30 fps

Field of View 57.4° (Horizontal) 44.6° (Vertical)

Range 1.6 to 65.6' / 0.5 to 20 m

Inputs / Outputs

USB I/O 2 x USB-C Female Input

Power

Power Source USB

DC Input Power 6.6 to 17.2 VDC

Power Consumption 6.3 W (Typical) 6.8 W (Maximum)

Environmental

Environmental Protection No

Operating Temperature -4 to 113°F / -20 to 45°C

Physical

Mounting 1x Cold Shoe 1x 1/4"-20 Thread

Color Black

Cable Length 11.8" / 30 cm

Dimensions 2.7 x 2.2 x 1" / 68 x 57 x 25 mm

Weight 4.9 oz / 140 g

DJI Focus Pro Grip Specs

General

Compatibility DJI Focus Pro Motor / RS 4 Pro Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer

Display

Display Size 1.8"

Touchscreen Yes

Inputs / Outputs

USB I/O 4 x USB-C Female Input

Wireless

Wireless 2.4 GHz Radio/RF / Bluetooth *Built-In

Power

Power Source Battery

Battery Type 1x Internal Rechargeable

DC Input Power 6.6 to 8.4 VDC

Environmental

Operating Temperature -4 to 113°F / -20 to 45°C

Physical

Mounting 1x NATO Clamp 2x NATO Rail 1x M4 Screw 1x 1/4"-20 Screw

Color Black

Cable Length 15.7" / 40 cm

Dimensions 6.4 x 2.9 x 2.3" / 162 x 73 x 59 mm

Weight 17 oz / 482 g

DJI Focus Pro Motor Specs

General

Compatibility DJI RS 3 Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex

Max Transmission Distance 524.9' / 160 m

Gear Specs 30 Teeth, 0.8 MOD

Max Torque 0.6 Nm

Speed 300 rpm (Max)

Inputs / Outputs

USB I/O 1 x USB-C Female Input

Wireless

Wireless 2.4 GHz Radio/RF *Built-In

Power

Power Source USB

DC Input Power 6.6 to 17.2 VDC

Environmental

Certifications CE, FCC

Operating Temperature -4 to 113°F / -20 to 45°C

Physical

Mounting 1x 15mm Rod 1x 1/4"-20 Screw 1x Rod Mount Kit

Cable Length 11.8" / 30 cm

Dimensions 3.9 x 2.4 x 1.3" / 100 x 61 x 34 mm

Weight 4.3 oz / 123 g
