IDX P-V212 ENDURA V-Mount Plate w/2 Pin D-Tap DC out & Digi-View

IDX P-V212 ENDURA V-Mount Plate w/2 Pin D-Tap DC out & Digi-View

IDX P-V212 ENDURA V-Mount Plate w/2 Pin D-Tap DC out & Digi-View

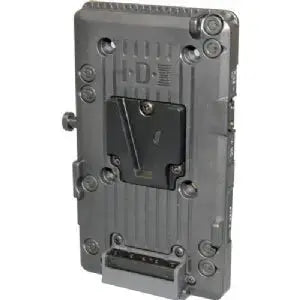

The IDX P-V212 Endura V-Mount Plate is a 2-pin D-tap DC Out and DigiView plate that is an enhanced variation of the P-V2 Plate series. Providing an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock, the plate offers precise DC power connectivity.

For camera systems compliant with DigiView, the remaining battery power can be displayed in the viewfinder. Providing 12VDC output, the plate uses one D-tap to convert voltage from the 12V IDX source to a regulated output of 5.3V, 7.3V, 8.4V, or 12V, depending on the V-Plate selected. The second D-tap offers unregulated battery throughput for equipment such as lights and HDD recorders.

You can use the Endura V-Mount Plate for a variety of cameras using the optional IDX cables specific to the camera models. The maximum power output available from the plate is 50W. It measures 3.25 x 5.59 x 0.47" and weighs 0.40 lb.

    Offers 2-pin D-tap DC Out and DigiView

    Enhanced P-V2 Plate series variation

    Provides an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock; the plate offers precise DC power connectivity

    Displays remaining battery power in the viewfinder for camera systems compliant with DigiView

    Provides total 12VDC output

    Uses one D-tap to convert voltage from the 12V IDX source to a regulated output of 5.3V, 7.3V, 8.4V, or 12V, depending on the V-Plate selected

    Second D-tap offers unregulated battery throughput for equipment such as lights and HDD recorders

    Supports a variety of cameras using the optional IDX cables specific to the camera models

    Offers a maximum power output of 50W

    Measures 3.25 x 5.59 x 0.47" and weighs 0.40 lb
