New

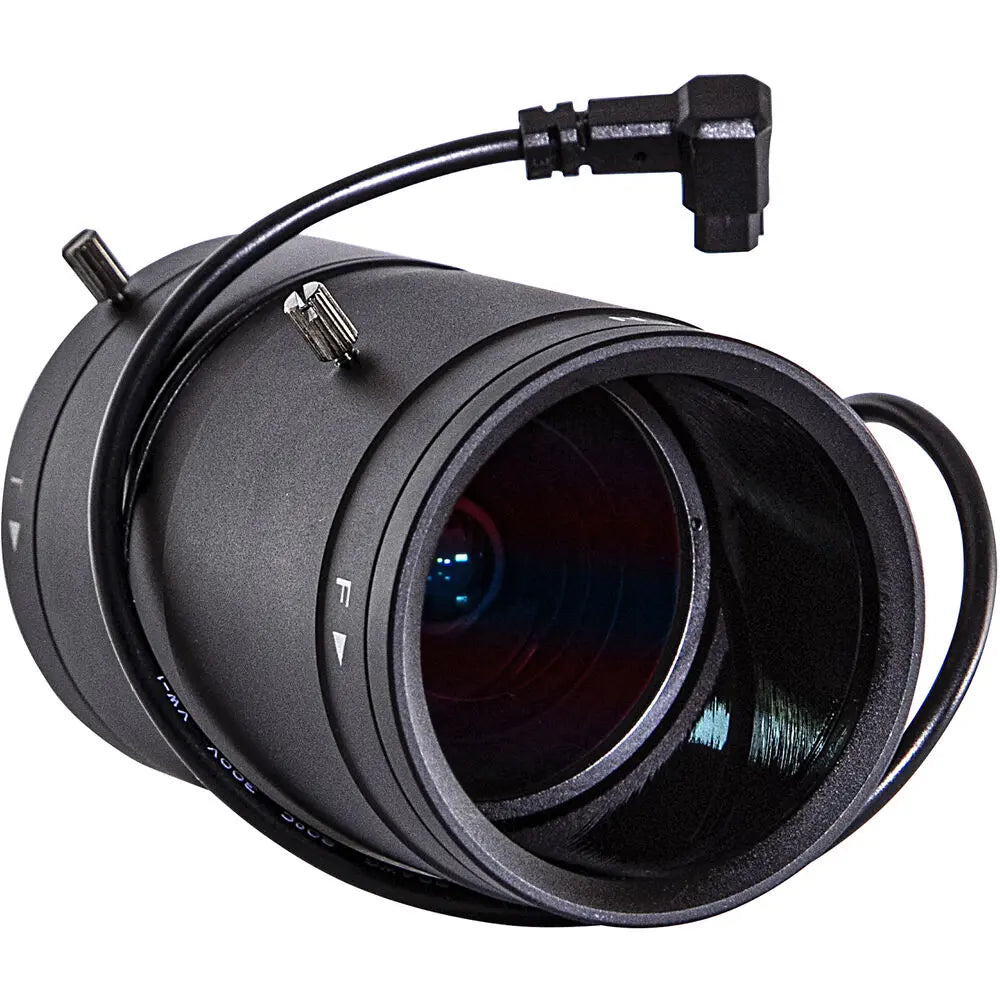

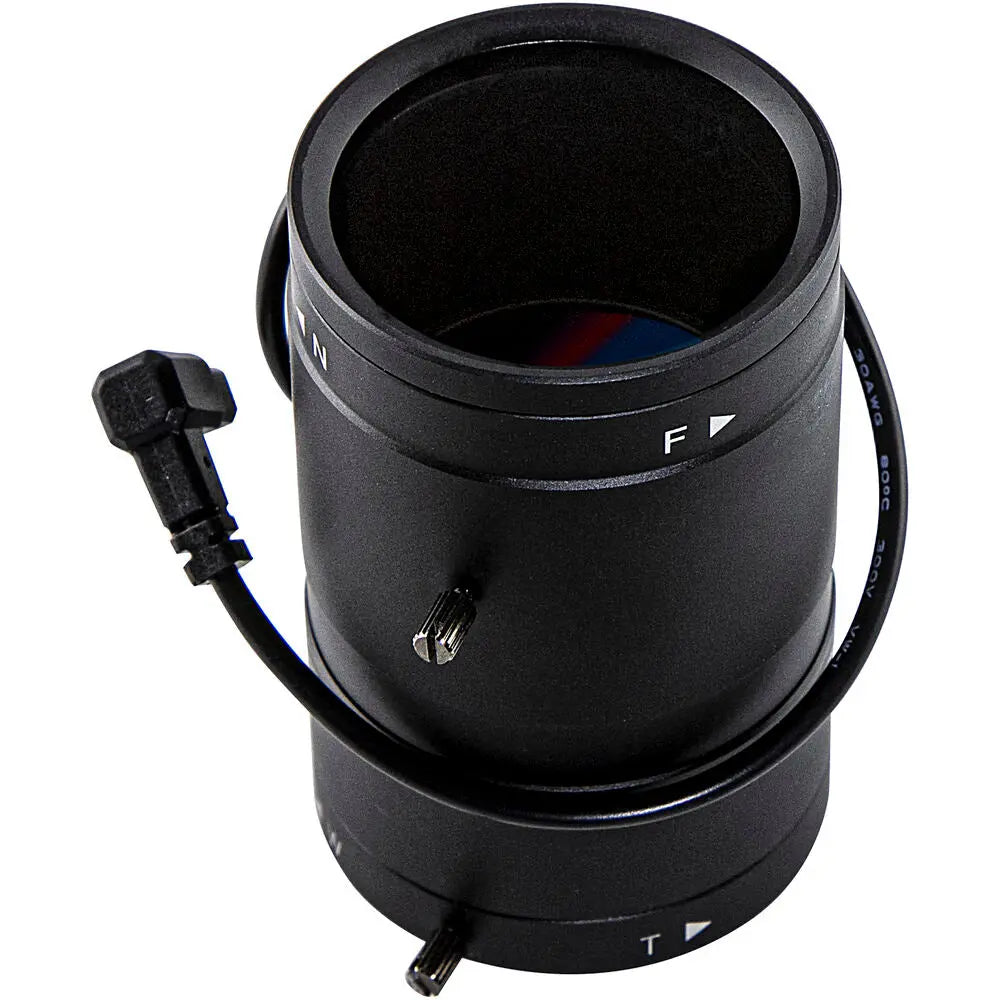

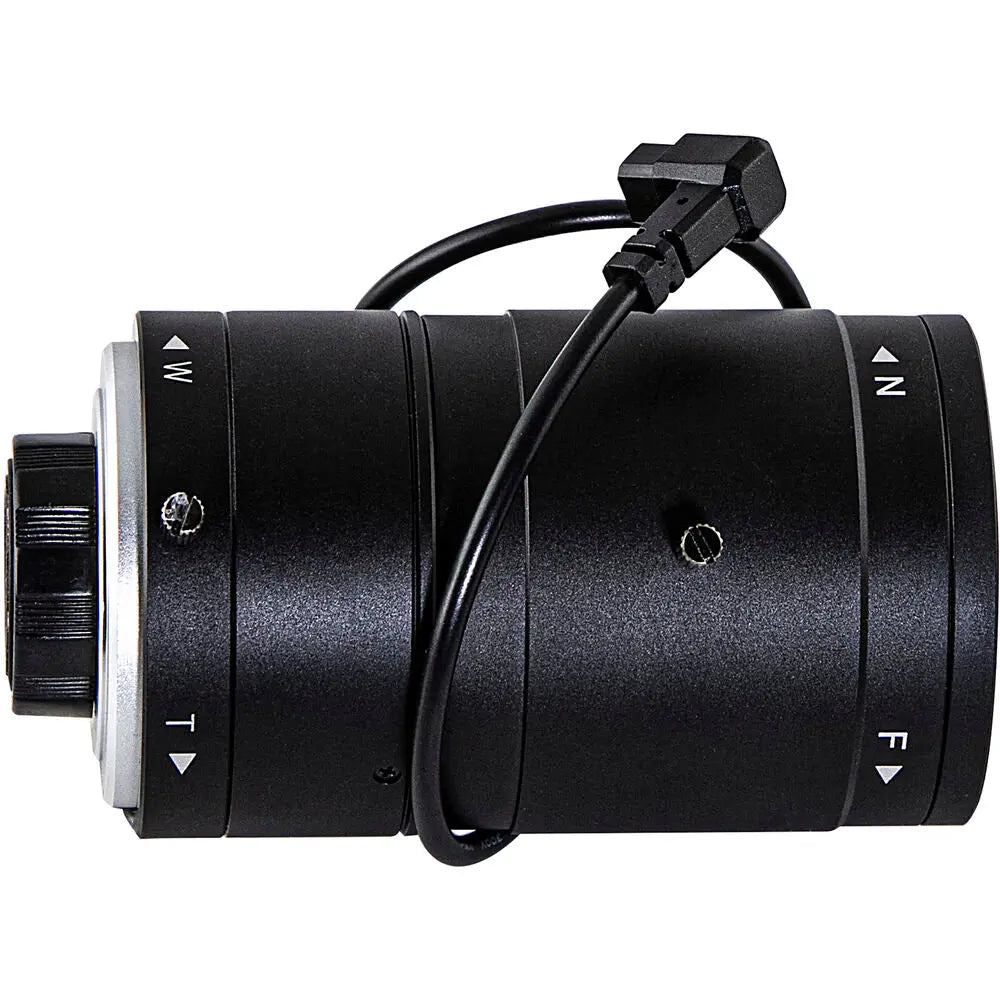

Marshall Electronics CS-3816-8MP-V2 8MP CS-Mount 3.8-16mm Varifocal Lens
SKU: CS-3816-8MP-V2
- Compatible with 8MP Cameras
- CS Mount, Improved Glass Elements
- Compatible with 1/1.7" Sensors
- 3.8-16mm Focal Length
- 148 to 35.8° Diagonal Field of View
- IR Corrected
- DC Auto Iris
- Manual Focus and Zoom with Lock Screws
The CS-3816-8MP-V2 CS-Mount 3.8–16mm Varifocal Lens from Marshall Electronics is engineered for high-resolution 8MP cameras using 1/1.7", 1/1.8", and 1/1.9" sensors, making it well suited to professional broadcast, PTZ, and AV imaging applications. This IR-corrected varifocal lens incorporates improved optical glass with eight...
More Details
New
Marshall Electronics CS-3816-8MP-V2 8MP CS-Mount 3.8-16mm Varifocal Lens
SKU: CS-3816-8MP-V2
Fast Shipping
Secure payment
Tax Included
Tax included.
Write a Review
Ask a Question
- Compatible with 8MP Cameras
- CS Mount, Improved Glass Elements
- Compatible with 1/1.7" Sensors
- 3.8-16mm Focal Length
- 148 to 35.8° Diagonal Field of View
- IR Corrected
- DC Auto Iris
- Manual Focus and Zoom with Lock Screws
The CS-3816-8MP-V2 CS-Mount 3.8–16mm Varifocal Lens from Marshall Electronics is engineered for high-resolution 8MP cameras using 1/1.7", 1/1.8", and 1/1.9" sensors, making it well suited to professional broadcast, PTZ, and AV imaging applications. This IR-corrected varifocal lens incorporates improved optical glass with eight...
More Details
-
Marshall Electronics CS-3816-8MP-V2 8MP CS-Mount 3.8-16mm Varifocal Lens
The CS-3816-8MP-V2 CS-Mount 3.8–16mm Varifocal Lens from Marshall Electronics is engineered for high-resolution 8MP cameras using 1/1.7", 1/1.8", and 1/1.9" sensors, making it well suited to professional broadcast, PTZ, and AV imaging applications. This IR-corrected varifocal lens incorporates improved optical glass with eight groups and 13 elements to deliver enhanced clarity, contrast, and color accuracy across the zoom range.
Covering a versatile 3.8–16mm focal length, the lens provides a wide 148° to 35.8° diagonal field of view on 1/1.7" sensors, allowing both wide-angle coverage and tighter framing from a single lens. A fast f/1.4 maximum aperture supports strong low-light performance, while the DC auto iris automatically adjusts exposure for changing lighting conditions. Manual focus and zoom controls with lock screws ensure precise setup and stable operation once positioned.
Designed for demanding imaging environments, the CS-3816-8MP-V2 offers a close-focus capability from 7.92" to infinity, a 7.9mm back focal length, and consistent optical performance thanks to controlled chief ray angles and high relative illumination. With strong spectral transmission across visible and IR wavelengths, this lens delivers reliable performance for both visible-light and IR-assisted camera systems.
Marshall Electronics CS-3816-8MP-V2 8MP CS-Mount 3.8-16mm Varifocal Lens
The CS-3816-8MP-V2 CS-Mount 3.8–16mm Varifocal Lens from Marshall Electronics is engineered for high-resolution 8MP cameras using 1/1.7", 1/1.8", and 1/1.9" sensors, making it well suited to professional broadcast, PTZ, and AV imaging applications. This IR-corrected varifocal lens incorporates improved optical glass with eight groups and 13 elements to deliver enhanced clarity, contrast, and color accuracy across the zoom range.
Covering a versatile 3.8–16mm focal length, the lens provides a wide 148° to 35.8° diagonal field of view on 1/1.7" sensors, allowing both wide-angle coverage and tighter framing from a single lens. A fast f/1.4 maximum aperture supports strong low-light performance, while the DC auto iris automatically adjusts exposure for changing lighting conditions. Manual focus and zoom controls with lock screws ensure precise setup and stable operation once positioned.
Designed for demanding imaging environments, the CS-3816-8MP-V2 offers a close-focus capability from 7.92" to infinity, a 7.9mm back focal length, and consistent optical performance thanks to controlled chief ray angles and high relative illumination. With strong spectral transmission across visible and IR wavelengths, this lens delivers reliable performance for both visible-light and IR-assisted camera systems.
