Lilliput BM150-4KS - 15.6" 4K monitor with 3D LUTS and HDR

Lilliput BM150-4KS - 15.6" 4K monitor with 3D LUTS and HDR

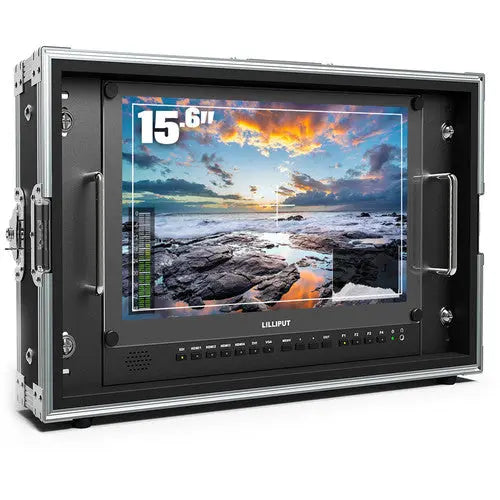

Built into a hard case, the Lilliput BM150-4KS Carry-On 4K Broadcast Monitor is a 15.6" native UHD 4K monitor with a Gold mount battery plate, useful for both studio and field situations. The full capacity of the 3840 x 2160 UHD resolution 8-bit panel can be driven at up to 30 fps by any of the three HDMI 1.4 inputs, via one HDMI 2.0 input with up to DCI 4K sources, or via SDI input with up to 1080p60 sources.

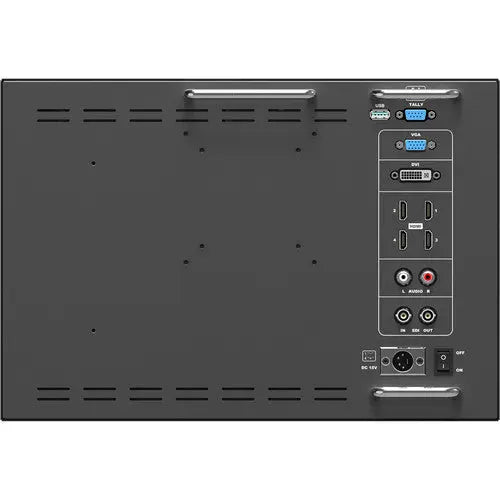

In addition to the four HDMI inputs available on the back panel, HD and SD sources include one 3G-SDI, one DVI, and one VGA port, and there is one loop-through SDI output. Video signals input via any of these ports will be properly scaled to fit the entire screen. Analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor's built-in speakers or the 3.5mm headphone output. There is a tally input, and a DB-9 tally adapter is included to utilize tally information on the monitor. The monitor also supports adjustable HDR colour spaces and you can choose built-in presets or load custom 3D LUTs via its USB port.

For power, this monitor accepts a wide range of voltages ranging from 12 to 24 VDC. In the studio, the included power supply plugs the BM150-4KS into the wall, and the 75/100mm VESA mount can be utilized for mounting on a stand. The included tally connector passes tally information through to the monitor when connected to a switcher. While in the field, the monitor will accept battery power via the built-in Gold mount plate. It can stand up vertically using the rubber feet built into the monitor's hard case, and a sunshade is included for increased visibility outdoors.

Display

Panel Type IPS-Type LCD

Display Size 15.6" / 39.6 cm

Screen Resolution 3840 x 2160

Aspect Ratio 16:9

Viewing Angle Horizontal: 176° Vertical: 176°

Touchscreen No

Maximum Brightness 330 cd/m2

Contrast Ratio 1000:1

Bit Depth / Colour Support 8-Bit+FRC (1.07 Billion Colours)

Real-Time LUT Monitoring HDR

Image Controls Check Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan

I/O

Video 1 x HDMI Type A (HDMI 2.0) Input 3 x HDMI Type A (HDMI 1.4) Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x DVI-I (Dual-Link DVI) Input 1 x DE-15/DB-15 (VGA) Input

Audio 1 x 2RCA Line Input 1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker 1

Power 1 x 4-Pin XLR Input

Other I/O 1 x Tally (DE-9/DB-9)

Card Slot None

Format Support

Video Format HDMI (8-Bit) DCI 4K UHD 4K 1080p 1080i 720p 480p SDI (8-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94

Power

DC Input Power 12 to 24 VDC at 1.2 A

Battery Type 1 x Gold Mount

Power Consumption 18 W

Mounting

Mounting-Hole Pattern 100 x 100 mm, 75 x 75 mm

Mounting None

Environmental

Operating Temperature 32 to 140°F / 0 to 60°C

Storage Temperature -4 to 140°F / -20 to 60°C

General

Dimensions 20.6 x 12 x 6.7" / 52.4 x 30.5 x 17 cm, Including Case 15.3 x 10.5 x 1.5" / 38.9 x 26.7 x 3.8 cm

Weight 26.46 lb / 12 kg, Including Case 7.50 lb / 3.4 kg
