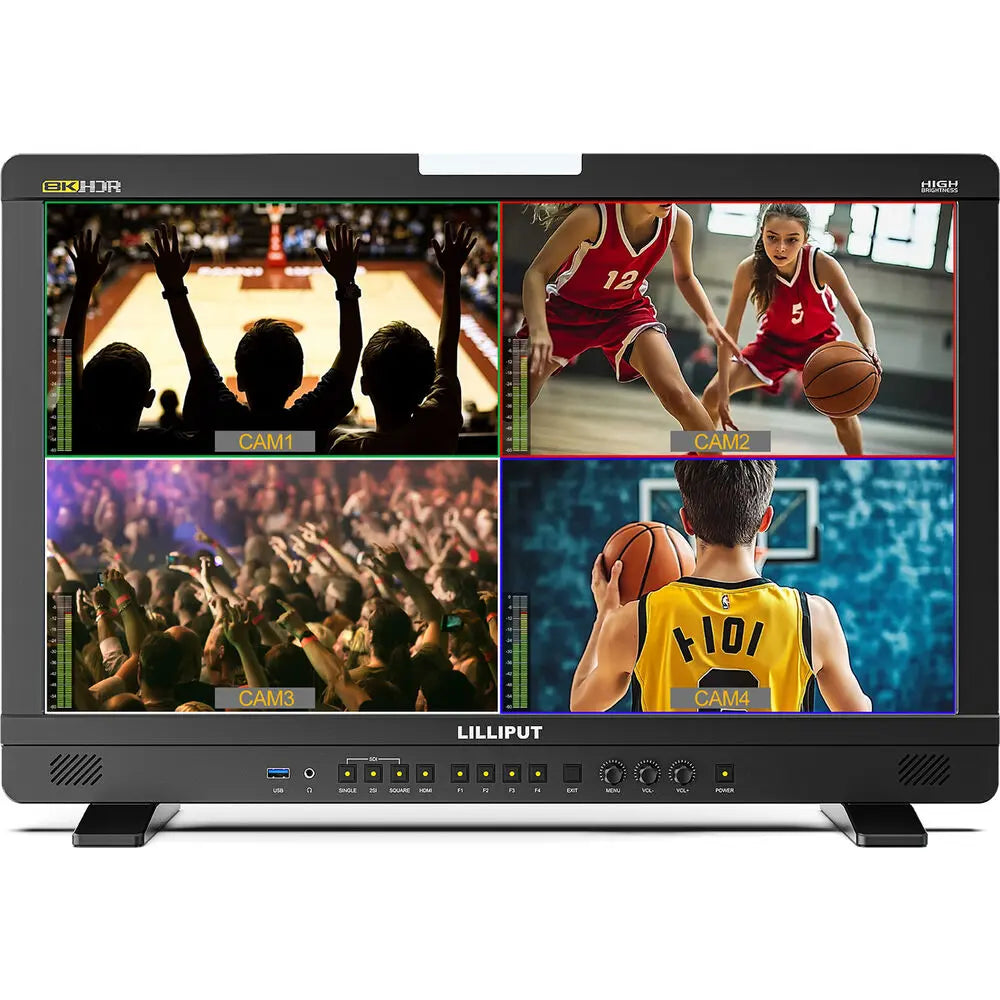

Lilliput UQ23 23.8" High-Brightnes Studio Production Monitor (V-Mount)

Lilliput UQ23 23.8" High-Brightnes Studio Production Monitor (V-Mount)

The Lilliput UQ23 is a professional 23.8-inch 4K HDR production monitor engineered for broadcast, live production, and high-end post workflows. Featuring a 3840 x 2160 native resolution with a 16:9 aspect ratio, it delivers razor-sharp UHD imagery with a 178° viewing angle and support for over 16.7 million colors. With an impressive 1200-nit brightness and 100% DCI-P3 coverage, the UQ23 provides exceptional color accuracy and visibility, even in bright production environments.

Supporting HDR with Hybrid Log Gamma (HLG) and built-in LUT support, the UQ23 ensures reliable color grading and exposure monitoring. Professional image control tools such as waveform, vectorscope, false color, histogram, check field, pixel-to-pixel zoom, and picture-in-picture allow precise monitoring for demanding productions.

Connectivity is a strong point, with quad 12G-SDI inputs/loop outputs, HDMI 2.1 I/O, and an SFP+ slot for fiber workflows, making the UQ23 highly adaptable for multi-camera broadcast and 8K/4K pipelines. Embedded audio is supported over both HDMI and SDI, complemented by a stereo speaker and a 3.5mm headphone output. Additional control and integration options include LAN, RS-422, GPI, and USB ports.

Power is flexible with 15–24 VDC XLR input and an included V-Mount battery plate, making it suitable for both studio and field applications. With VESA mounting patterns, 1/4"-20 and 3/8"-16 threads, it can be easily integrated into racks, carts, or tripods.

Built with a durable chassis, the monitor weighs 17 lb (7.7 kg) and is designed to operate in environments from 0 to 50°C, ensuring reliability on set or in the control room.

The Lilliput UQ23 combines high-brightness HDR performance, wide-gamut color reproduction, and extensive connectivity—making it a versatile choice for professional filmmakers, broadcasters, and live production crews demanding uncompromising monitoring quality.

Display

• Panel Type: LCD
• Display Size: 23.8" / 60.5 cm
• Native Resolution: 3840 x 2160
• Aspect Ratio: 16:9
• Viewing Angle: Horizontal: 178°, Vertical: 178°
• Touchscreen: No
• Maximum Brightness: 1200 nits / cd/m²
• Contrast Ratio: 1000:1
• Color Support: 16.7 Million Colors
• HDR Support: Yes (Hybrid Log Gamma)
• Color Gamut: 100% DCI-P3, 86% Adobe RGB
• LUT Support: Yes
• Image Controls: Check Field, Color Temperature Selection, False Color, H/V Delay, Histogram, Image Freeze, Picture-in-Picture, Pixel-to-Pixel Zoom, Vectorscope, Waveform

Inputs/Outputs

• Video I/O: 4x BNC (12G-SDI) Input, 4x BNC (12G-SDI) Loop Output, 1x HDMI 2.1 Input, 1x HDMI 2.1 Loop Output
• Embedded Audio: HDMI/SDI
• Audio I/O: 1x 1/8" (3.5 mm) Headphone Output
• Built-In Speaker: Stereo
• Power I/O: 1x XLR 4-Pin (24 VDC) Input
• Other I/O: 1x USB-A, 1x RJ45 (RS-422) Input, 1x RJ45 (RS-422) Output, 1x RJ45 (GPI), 1x RJ45 (LAN)
• Expansion Slots: 1x SFP+ Slot
• Media/Memory Card Slot: No

Wireless

• Wi-Fi: No
• Bluetooth: No
• Mobile App Compatible: No

Format Support

• HDMI/SDI: 8K (59.94/50/29.97/25/23.98), DCI 4K (59.94/50/29.97/25/23.98), 1080p (59.94/50/29.97/25/23.98), 1080i (59.94/50)
• Fiber: DCI 4K (59.94/50/30/29.97/25/23.98), 1080p (59.94/50/29.97/25/23.98), 1080PsF (29.97/25/23.98), 1080i (59.94/50), 720p (59.94/50)

Power

• Input Power: 15 to 24 VDC
• Battery: 1x V-Mount on Included, Interchangeable Plate
• Power Consumption: 90 W (Maximum)

Mounting

• VESA Mounting-Hole Pattern: 100 x 100 mm, 75 x 75 mm
• Tripod/Accessory Mounting: 1/4"-20 Female, 3/8"-16 Female

General

• Operating Conditions: 32 to 122°F / 0 to 50°C
• Storage Conditions: -4 to 140°F / -20 to 60°C
• Dimensions: 22.7 x 14.8 x 2.1" / 576.6 x 375.5 x 53.5 mm
• Weight: 17.0 lb / 7.7 kg
