Lilliput V7 7" 4K HDMI Voice Control Camera Monitor

Lilliput V7 7" 4K HDMI Voice Control Camera Monitor

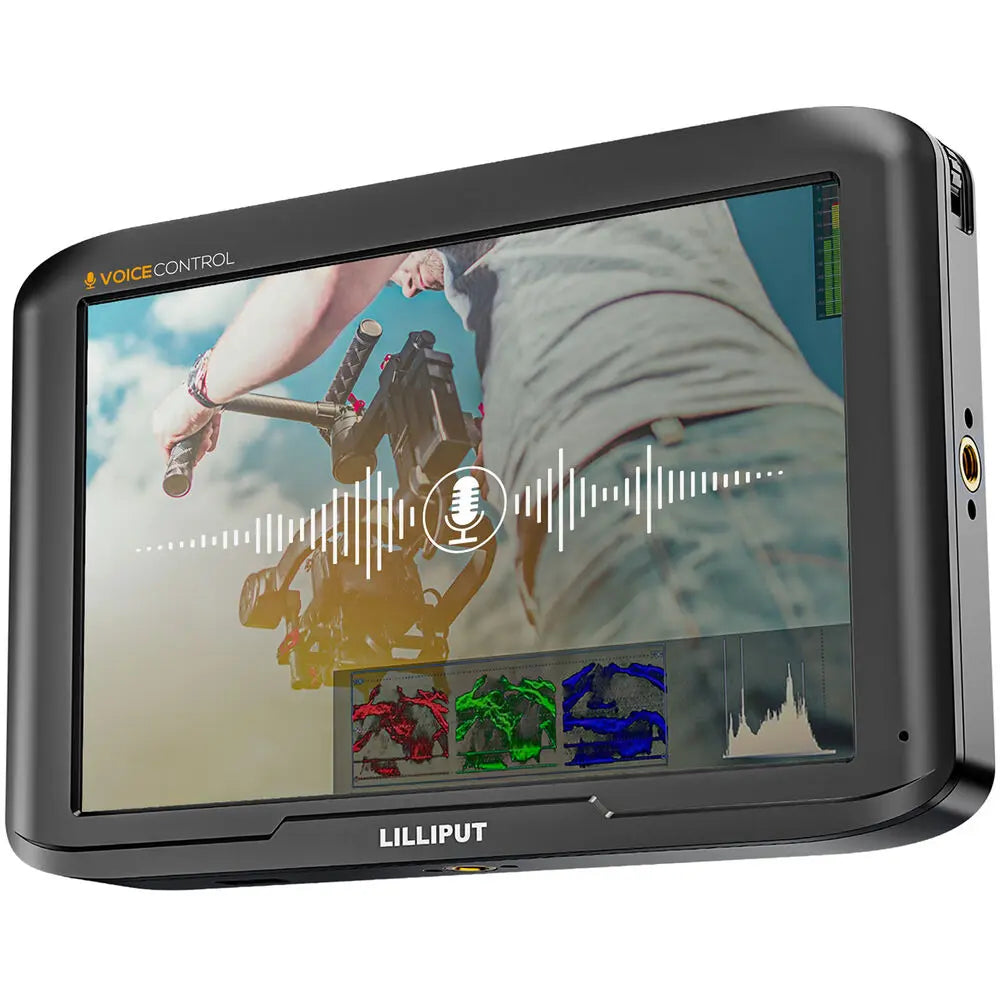

The Lilliput V7 7" Camera Monitor combines high-resolution monitoring with intuitive control for professional video production. Its HDMI 2.0 input and output support up to UHD 4K video, while the 1920 x 1200 LCD panel delivers crisp, detailed images with 450 cd/m² brightness and a 1200:1 contrast ratio.

Control the V7 easily using voice commands for functions like power on/off and image tool toggling, or navigate menus directly via the touchscreen interface. The monitor also includes a suite of professional image-monitoring tools, including waveform, histogram, and false colour, enabling precise exposure and colour management.

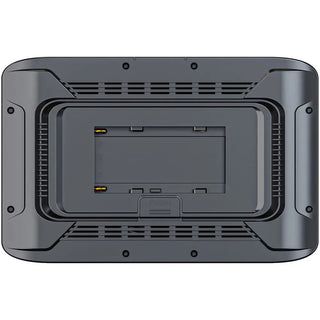

Power options are flexible: use the USB-C input with a compatible power adapter or power bank, the DC barrel input, or attach an L-series/NP-F battery via the built-in rear battery plate. The V7 is ideal for filmmakers, content creators, and videographers who need a compact, high-performance monitor with versatile control options.

Display

• Panel Type: LCD
• Display Size: 7.0" / 17.8 cm
• Native Resolution: 1920 x 1200
• Aspect Ratio: 16:10
• Viewing Angle: Horizontal: 160°, Vertical: 160°
• Touchscreen: Yes
• Maximum Brightness: 450 nits / cd/m²
• Contrast Ratio: 1200:1
• HDR Support: Yes
• Colour Gamut: 100% Rec. 709
• LUT Support: Yes
• Image Controls: Check Field, Colour Temperature Selection, False Colour, Focus Peaking, H/V Delay, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

Inputs/Outputs

• Video I/O: 1x HDMI 2.0 Input, 1x HDMI 2.0 Output
• Embedded Audio: HDMI
• Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
• Built-In Speaker: Mono
• Power I/O: 1x Barrel 2.5 mm (24 VDC) Input, 1x USB-C Input
• Other I/O: No
• Media/Memory Card Slot: No

Wireless

• Wi-Fi: No
• Bluetooth: No
• Mobile App Compatible: No

Format Support

• Video Format: HDMI
• UHD 4K: 60/50/30/25/24
• 1080p: 60/50/30/25/24
• 1080PsF: 30/25/24
• 1080i: 60/50

Power

• Input Power: 7 to 24 VDC
• Battery: No
• Power Consumption: 10 W

Mounting

• Tripod/Accessory Mounting: Bottom: 1x 1/4"-20 Female, Left: 1x 1/4"-20 Female

General

• Operating Conditions: 0 to 50°C / 32 to 122°F
• Storage Conditions: -20 to 60°C / -4 to 140°F
• Dimensions: 186.2 x 121 x 25 mm / 7.3 x 4.8 x 1"
• Weight: 320 g / 11.3 oz
