Marshall Electronics CV355-10X 2.1MP 3G/HD-SDI/HDMI Compact Camera with 10x Zoom

Marshall Electronics CV355-10X 2.1MP 3G/HD-SDI/HDMI Compact Camera with 10x Zoom

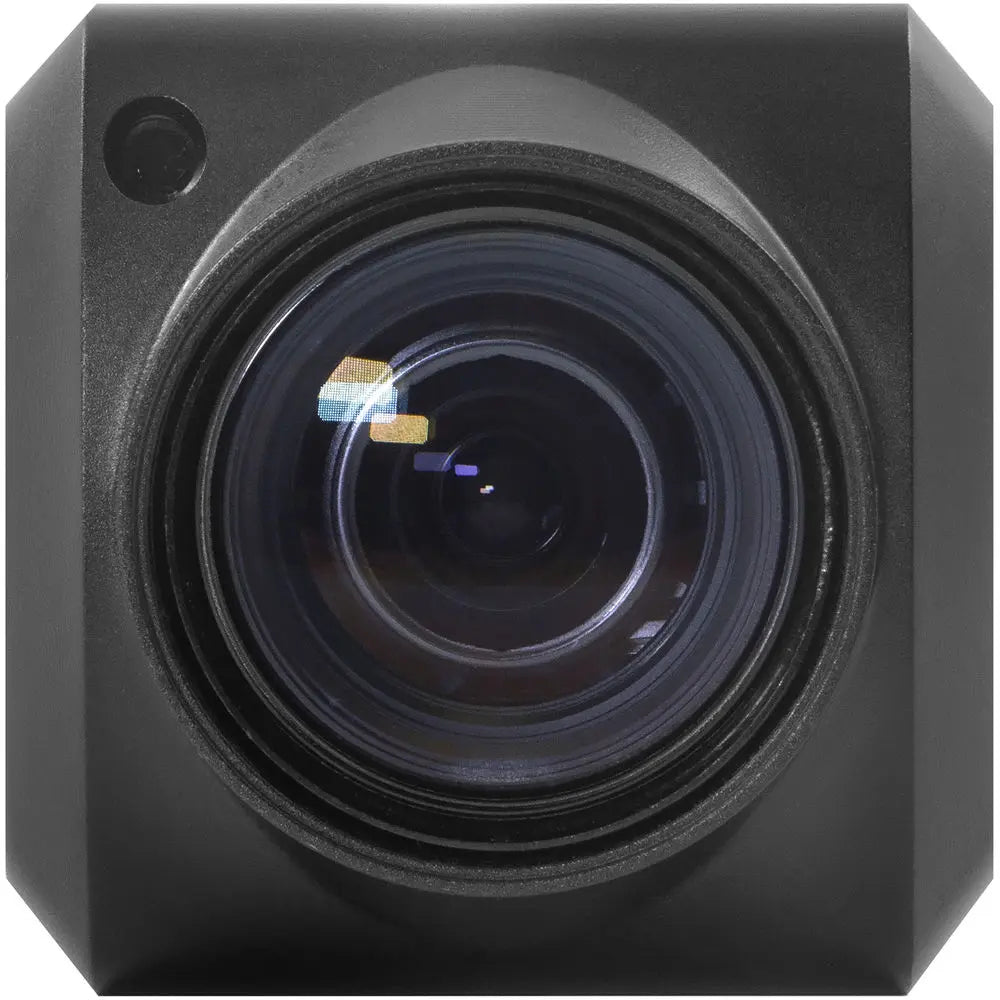

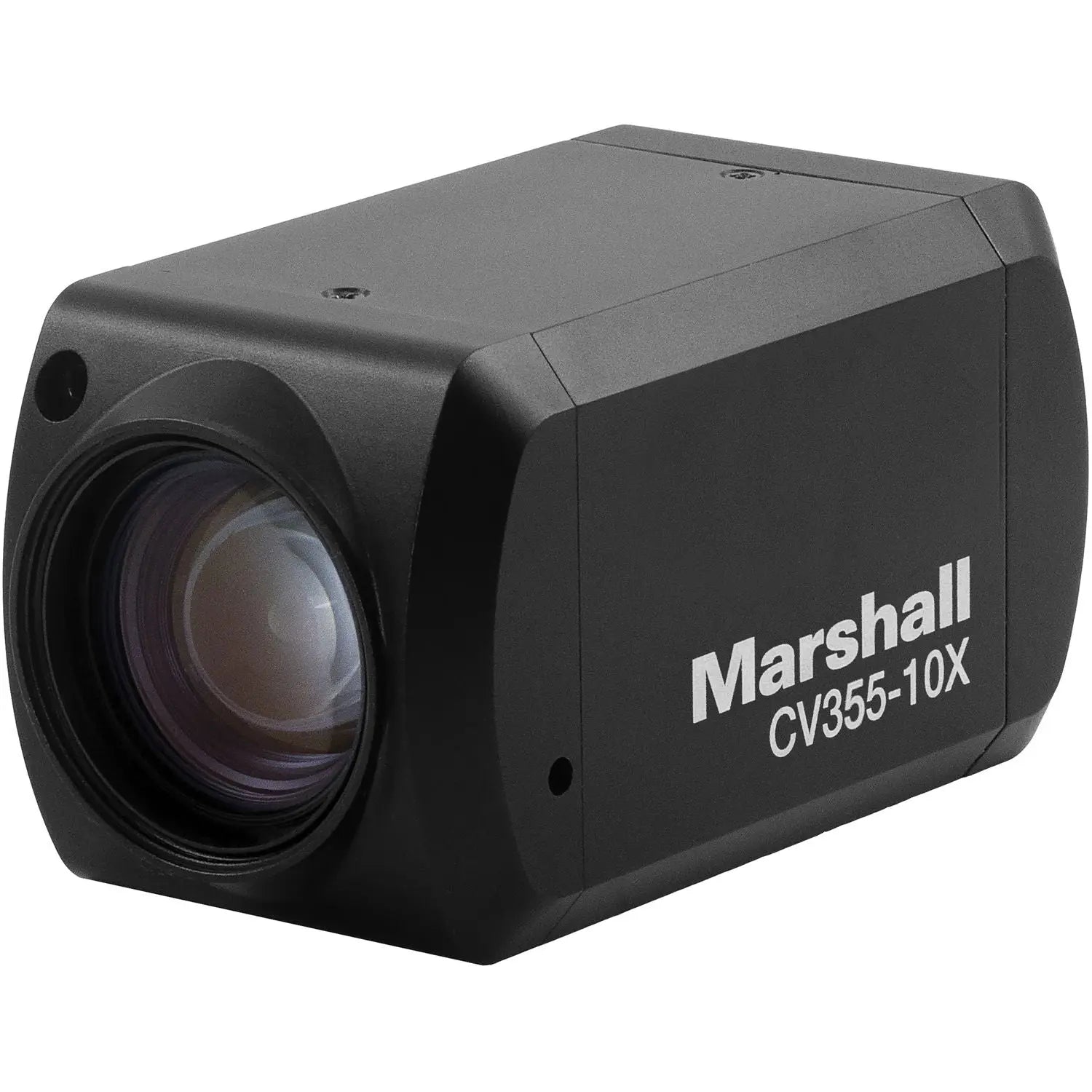

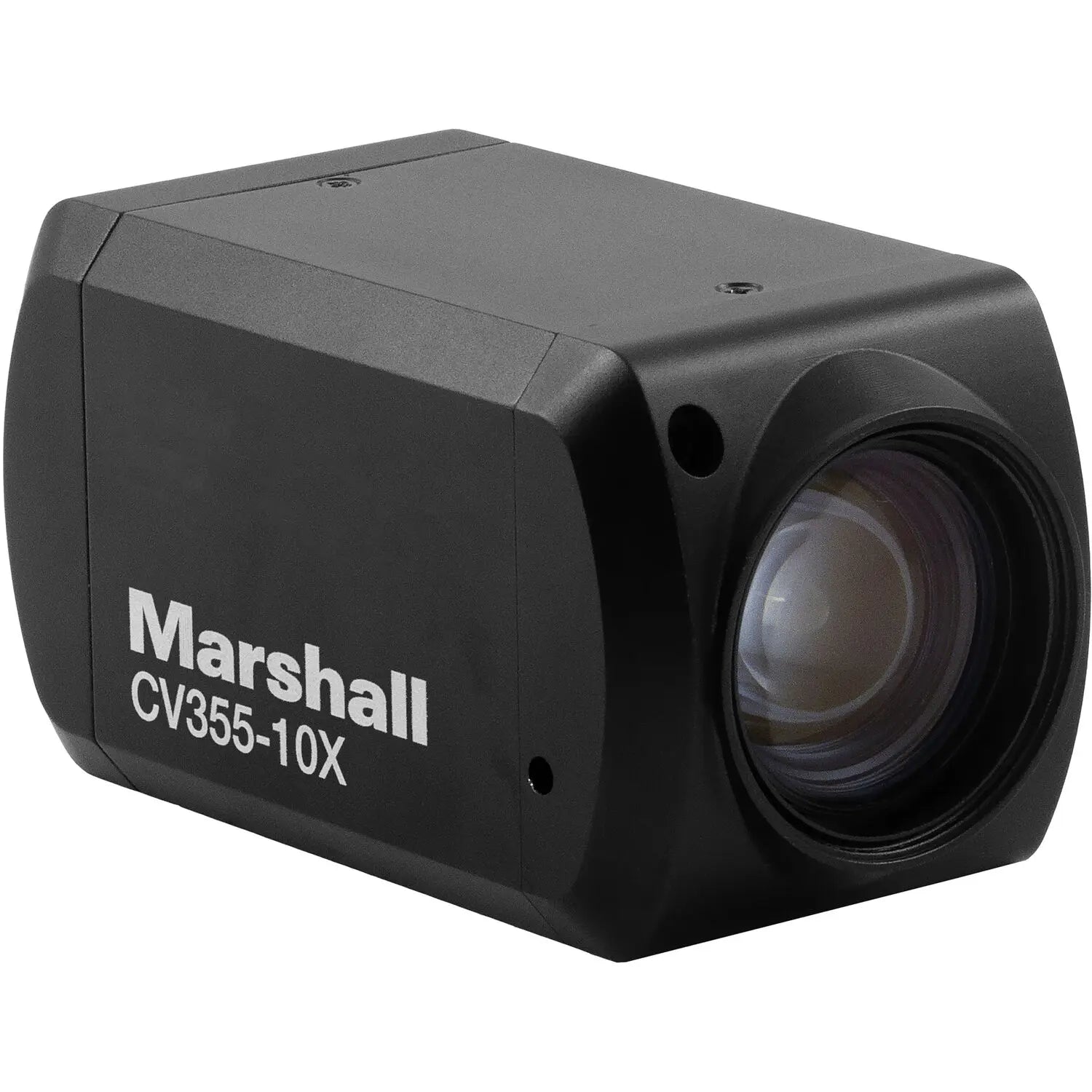

The Marshall CV355-10X 2.1MP 3G/HD-SDI/HDMI Compact Camera provides HD video capture in a small form factor suitable for broadcast, live events, sports, educational, and house-of-worship applications. This versatile camera features a 1/2.8" CMOS sensor, a built-in 10x optical zoom lens, stereo audio embedding, and simultaneous 3G/HD-SDI and HDMI output. HD video is captured at rates up to 1080p 60/59.94/50/30/25/24/23.98 and 1080i 60/59.94/50 via SDI or HDMI.

With a minimum illumination of 0.1 lux in day/color or 0.01 lux in night/B&W mode, the CV355-10X camera can function as a security camera, or it can be used in teleconferencing in low-light situations. It features 3D-DNR (digital noise reduction), digital image stabilization, motion detection, and privacy masking, which make this camera a flexible option for capturing intrusions into sensitive areas. The auto white balance function helps deliver normal-looking video under changing conditions. Menu settings are available via an OSD that is actuated by a joystick on the back of the camera. Zoom, focus, and iris can all be adjusted and matched remotely via the RS-485 connector using Sony-VISCA, and Pelco-P/D protocols.

General Overview

• 2.1MP, 1/2.8" CMOS sensor
• 0.1 lux in color, 0.01 lux in B/W

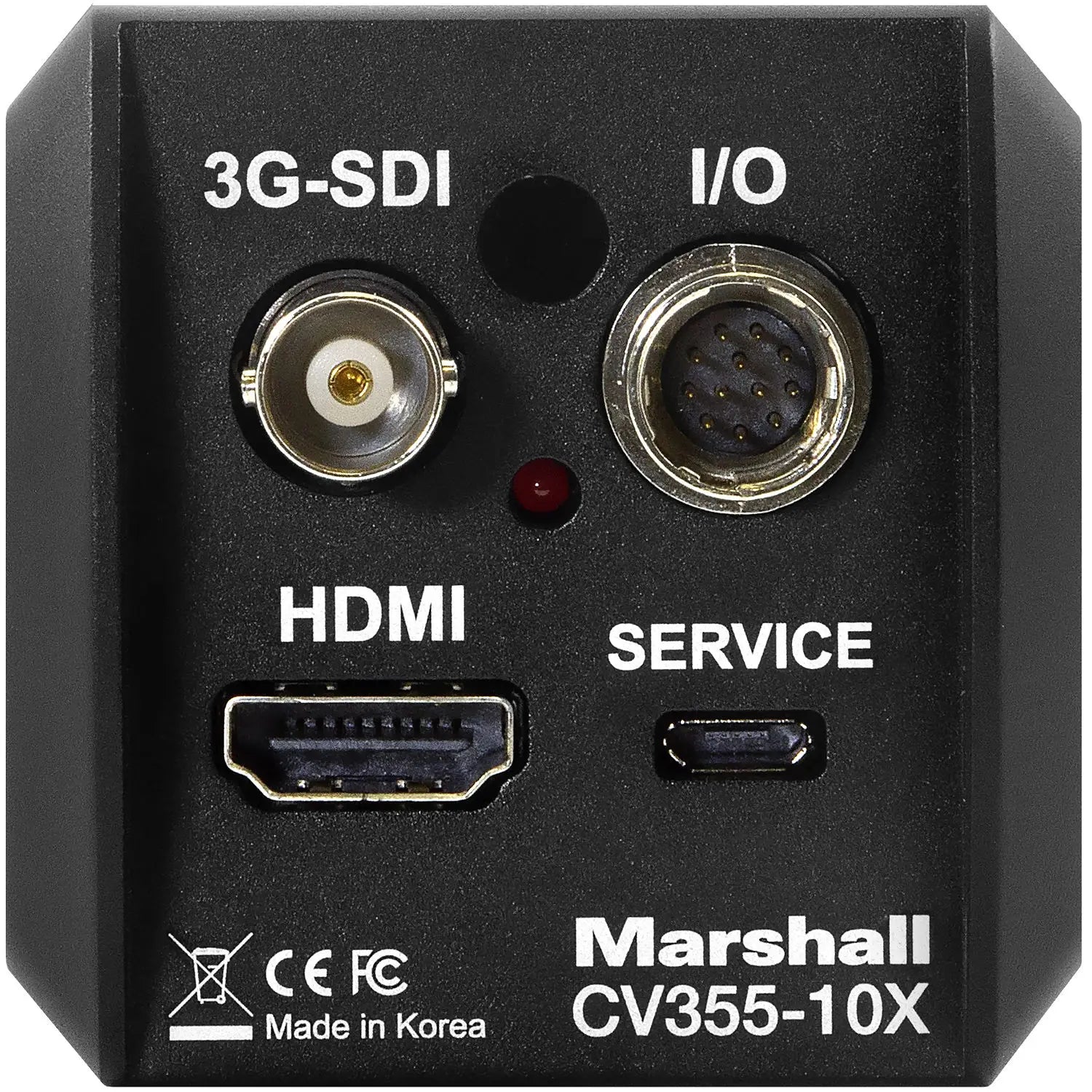

• Simultaneous 3G/HD-SDI and HDMI output
• Stereo audio embedding
• Durable aluminum camera housing

Marshall Electronics CV355 Specs

Sensor

Sensor 1/2.8" 2.1 MP CMOS

Effective Resolution 1920 x 1080

Pixel Size 2.9 x 2.9 μm

Minimum Illumination Day/Color: 0.1 Lux Night/B&W: 0.01 Lux DSS On: 0.001 Lux

Optics

Lens 4.7 to 47mm f/1.6 to f/3.0

Zoom Optical: 10x Digital: 12x

Horizontal Angle of View Wide: 60° Telephoto: 6°

Minimum Working Distance Wide: 3.9" / 100 mm Telephoto: 35.4" / 900 mm

Functions

Focus Auto, Manual

Exposure Auto, Shutter Priority, Iris Priority, AGC Priority, Manual, Bright

White Balance Auto: 3000 ~ 8000° K ATW: 1900 ~ 11,000° K Indoor, Outdoor, One Push, Manual

Light Modes Day: Color Night: B&W Auto Switch

Electronic Shutter NTSC: 1/30 ~ 1/10000 PAL: 1/25 ~ 1/10000

Adjustable Functions Pedestal (Black Level), White Level, Privacy Mask Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction Edge Enhance, Defog, DIS (Digital Image Stabilizer), Gamma Correct

Video Output

HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50

HD/SDI Video Output 1080i: 60/59.94/50 720p: 60/59.94/50

3G-SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98

Audio

Audio Input 3.5 mm TRS Stereo Audio Jack over I/O Cable (Mic/Line)

Audio Sample Rate 16/24/32 Bits

Control Interface

RS485 Sony-VISCA, Pelco-P/D Protocols

General

Operating Temperature 14 to 122°F / -10 to 50°C

Power Input 12 VDC (7 to 15 VDC)

Power Consumption (Maximum) 4.5 W

Dimensions 4.12 x 2.2 x 2.2" / 104.5 x 56 x 56 mm

Mass Camera Only: 12.8 oz / 363 With Breakout Cable: 1.02 lb / 463 g
