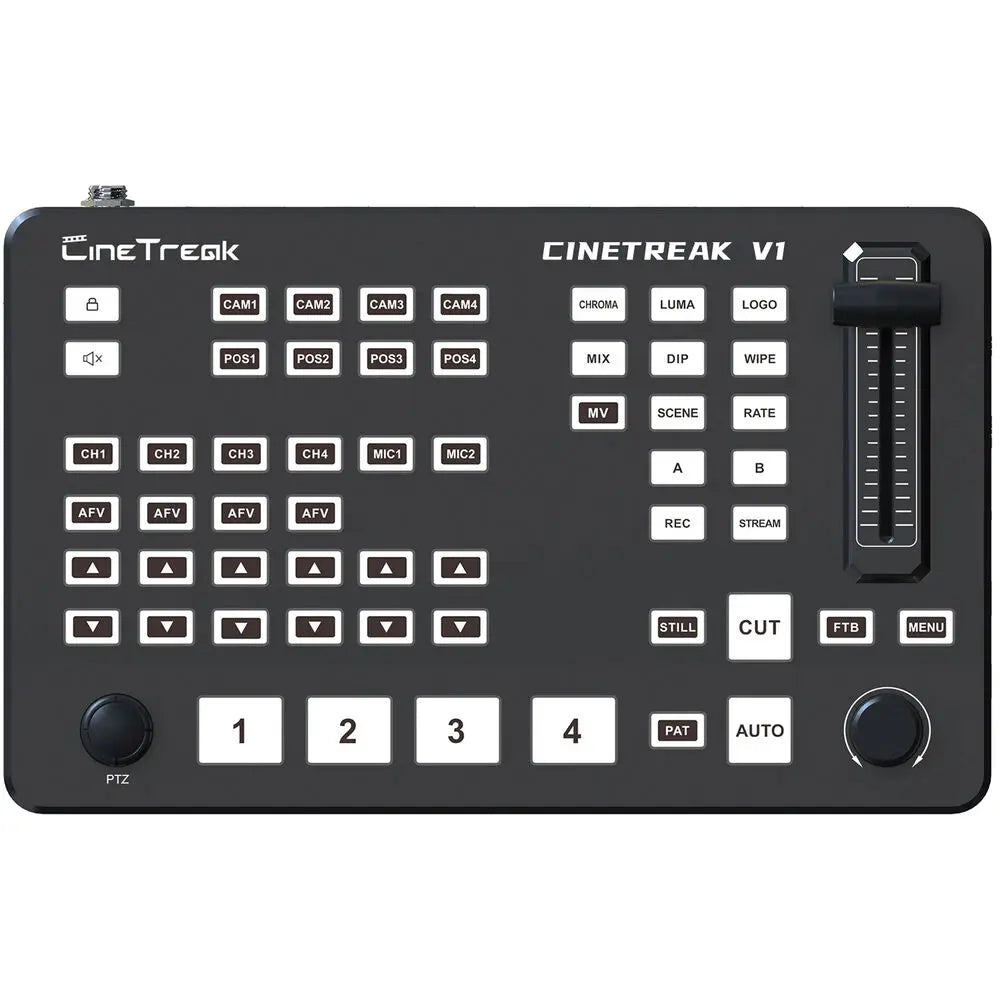

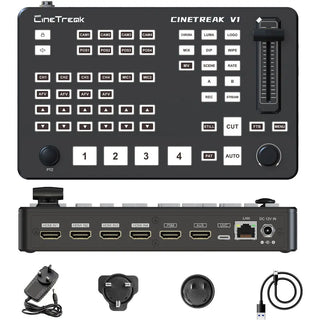

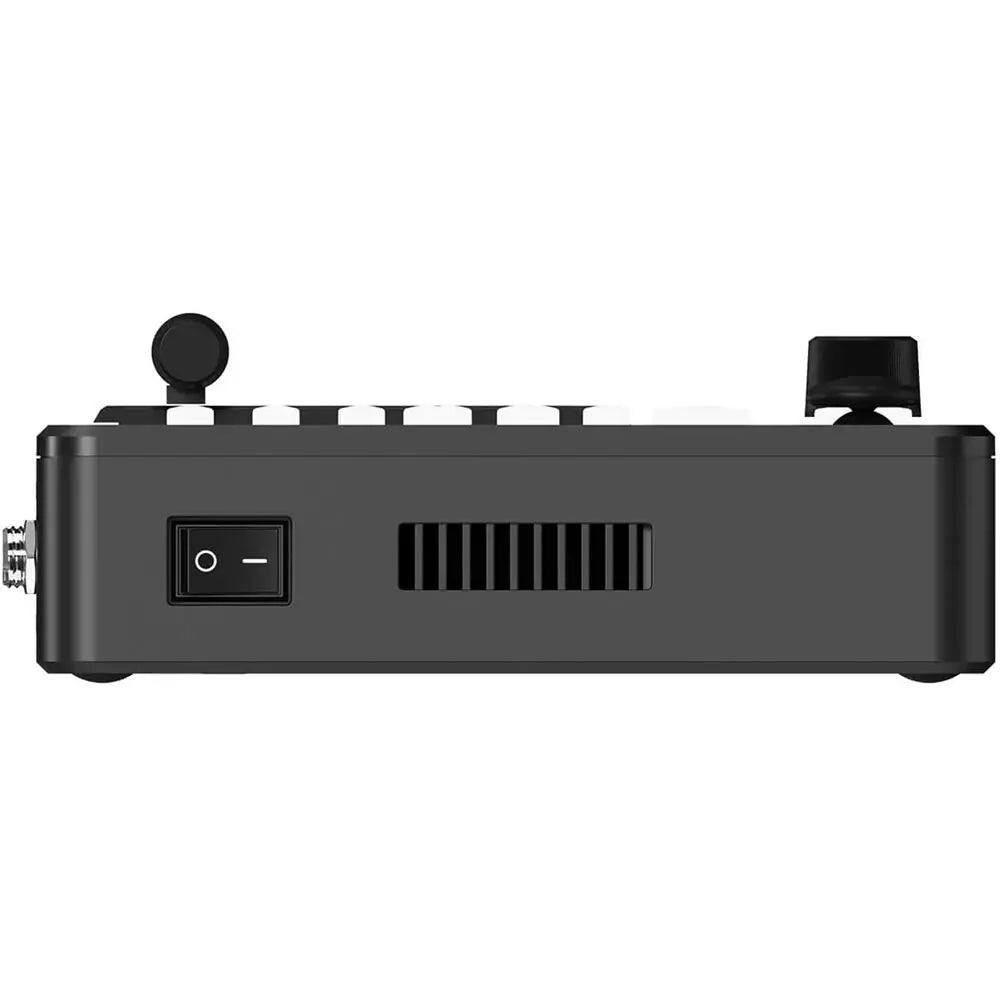

CineTreak V1 4-Channel HDMI Video Switcher with Vertical Live Streaming
SKU: CT-CL-V1
Main Features
- 4 x HDMI Inputs, up to 1080p60 Video
- HDMI Program & Preview Outputs
- Vertical & Horizontal Streaming
- Multi RTMP Livestreaming via USB-C & LAN
- Vertical & Horizontal Preview/Multiview
- Luma & Chromakey, LOGO, PiP and PoP
- H.264 Encoding with 2-Ch Audio
- VISCA Control for up to 4 x PTZ Cameras
- USB-A Recording
- 2 x 3.5mm Mic/Line Audio Inputs
The CineTreak V1 4-Channel HDMI Video Switcher is a portable, professional solution designed for live production, streaming, and content creation. Ideal for sports, houses of worship, virtual studios, gaming, meetings, and telemedicine applications, the V1 supports up to four channels of...
More Details
CineTreak V1 4-Channel HDMI Video Switcher with Vertical Live Streaming
SKU: CT-CL-V1
Fast Shipping
Secure payment
Tax Included
Tax included.

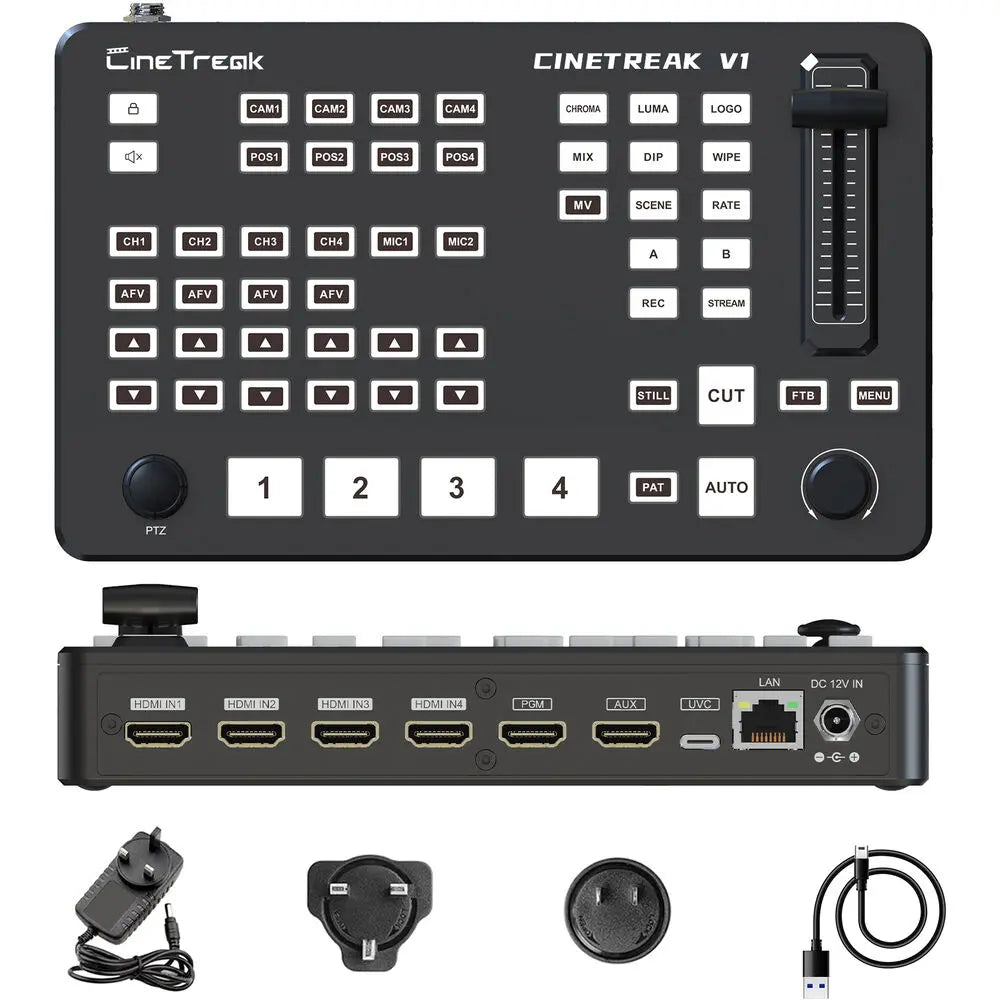

What's in the box
- 12 VDC, 2A Power Adapter
- Limited 1-Year Manufacturer Warranty
Write a Review
Ask a Question
Main Features
- 4 x HDMI Inputs, up to 1080p60 Video
- HDMI Program & Preview Outputs
- Vertical & Horizontal Streaming
- Multi RTMP Livestreaming via USB-C & LAN
- Vertical & Horizontal Preview/Multiview
- Luma & Chromakey, LOGO, PiP and PoP
- H.264 Encoding with 2-Ch Audio
- VISCA Control for up to 4 x PTZ Cameras
- USB-A Recording
- 2 x 3.5mm Mic/Line Audio Inputs
The CineTreak V1 4-Channel HDMI Video Switcher is a portable, professional solution designed for live production, streaming, and content creation. Ideal for sports, houses of worship, virtual studios, gaming, meetings, and telemedicine applications, the V1 supports up to four channels of...
More Details
-
CineTreak V1 4-Channel HDMI Video Switcher with Vertical Live Streaming

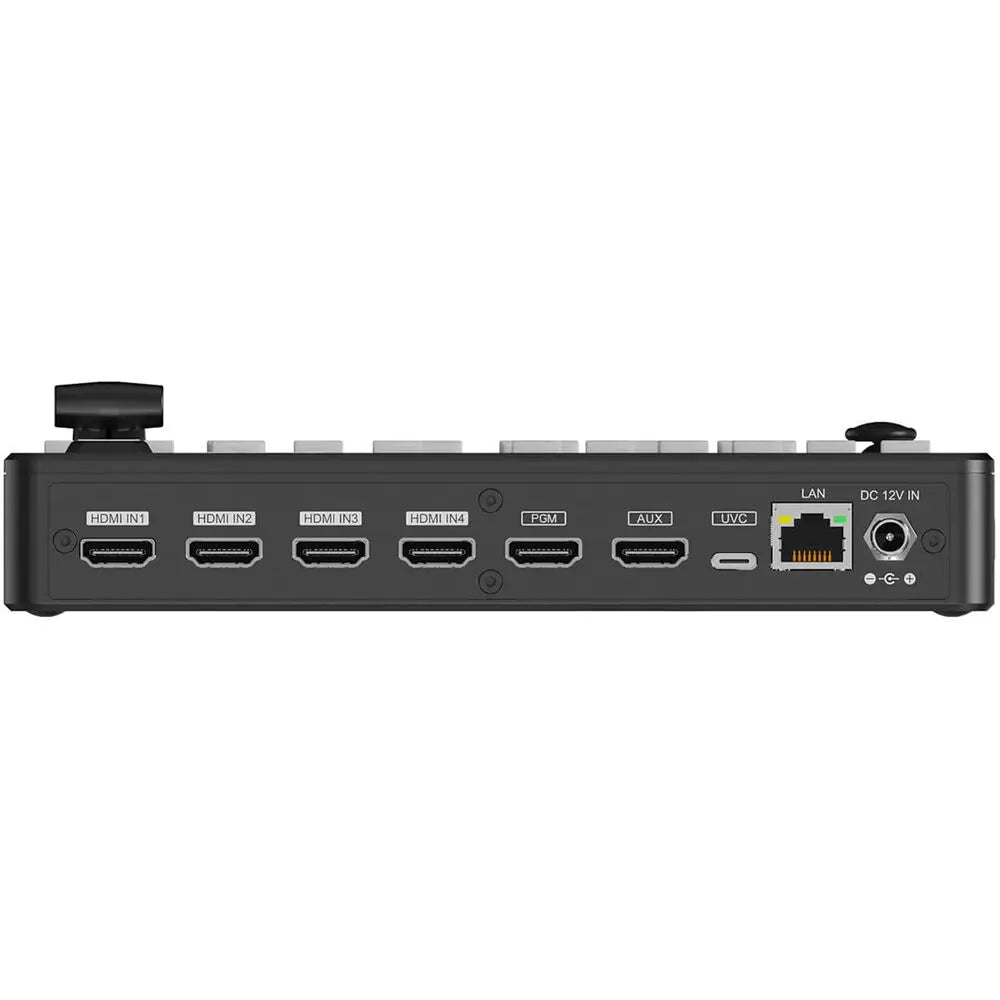

The CineTreak V1 4-Channel HDMI Video Switcher is a portable, professional solution designed for live production, streaming, and content creation. Ideal for sports, houses of worship, virtual studios, gaming, meetings, and telemedicine applications, the V1 supports up to four channels of 1080p60 video with two channels of embedded audio per input. Its flexible connectivity includes four HDMI inputs, two HDMI program/preview outputs, one USB-C UVC output, one LAN port, and two 3.5mm audio inputs, as well as external USB-A recording capability.
With support for horizontal and vertical streaming, the V1 allows content creators to stream in the standard 16:9 format or the social media-friendly 9:16 format. The switcher also offers horizontal and vertical multiview layouts, enabling users to monitor multiple sources simultaneously. Built-in H.264 encoding and VISCA control for up to four PTZ cameras give precise control over camera positioning, focus, and colour.
The V1 includes advanced visual effects such as luma and chroma keying, 32 transition effects, Picture-in-Picture (PiP), Picture-over-Picture (PoP), and logo overlays. Pushbutton, T-bar, web browser, and mobile control options make switching intuitive, while 1-key recording and streaming functions allow users to record the program output to an external USB-A disk or SSD and simultaneously stream to two RTMP addresses.

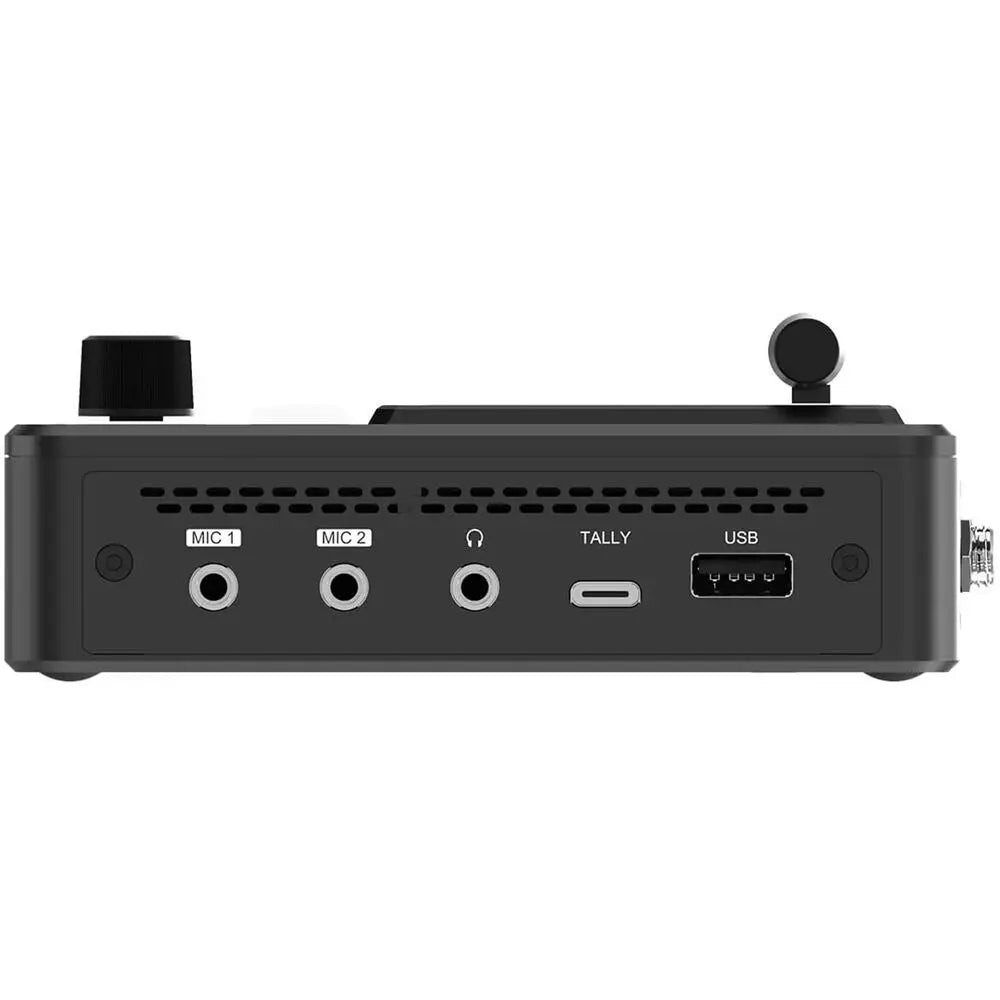

Audio management is robust, supporting up to 4 HDMI audio channels, 2 additional 3.5mm mic/line inputs, and separate level, mix delay, and HDMI AFV (audio follow video) controls. This ensures professional-quality audio integration alongside video production.
The CineTreak V1 Switcher combines versatile multicamera control, simultaneous dual-streaming, and professional audio-video management in a compact, portable package—perfect for live production, hybrid events, and content creation for any platform or device.
CineTreak V1 4-Channel HDMI Video Switcher with Vertical Live Streaming
The CineTreak V1 4-Channel HDMI Video Switcher is a portable, professional solution designed for live production, streaming, and content creation. Ideal for sports, houses of worship, virtual studios, gaming, meetings, and telemedicine applications, the V1 supports up to four channels of 1080p60 video with two channels of embedded audio per input. Its flexible connectivity includes four HDMI inputs, two HDMI program/preview outputs, one USB-C UVC output, one LAN port, and two 3.5mm audio inputs, as well as external USB-A recording capability.
With support for horizontal and vertical streaming, the V1 allows content creators to stream in the standard 16:9 format or the social media-friendly 9:16 format. The switcher also offers horizontal and vertical multiview layouts, enabling users to monitor multiple sources simultaneously. Built-in H.264 encoding and VISCA control for up to four PTZ cameras give precise control over camera positioning, focus, and colour.
The V1 includes advanced visual effects such as luma and chroma keying, 32 transition effects, Picture-in-Picture (PiP), Picture-over-Picture (PoP), and logo overlays. Pushbutton, T-bar, web browser, and mobile control options make switching intuitive, while 1-key recording and streaming functions allow users to record the program output to an external USB-A disk or SSD and simultaneously stream to two RTMP addresses.
Audio management is robust, supporting up to 4 HDMI audio channels, 2 additional 3.5mm mic/line inputs, and separate level, mix delay, and HDMI AFV (audio follow video) controls. This ensures professional-quality audio integration alongside video production.
The CineTreak V1 Switcher combines versatile multicamera control, simultaneous dual-streaming, and professional audio-video management in a compact, portable package—perfect for live production, hybrid events, and content creation for any platform or device.
