Shure GLXD1+ Dual-Band Wireless Bodypack Transmitter (Z3: 2.4, 5.8 GHz)

The Shure GLXD1+ is a digital bodypack wireless microphone transmitter designed for seamless compatibility with GLX-D+ receivers. Built with a lightweight yet durable metal housing, it delivers reliable wireless performance in a compact form factor. Powered by the included Shure SB904 rechargeable lithium-ion battery, the transmitter provides up to 12 hours of continuous operation, making it ideal for extended presentations, performances, and live events.

Ready to Connect

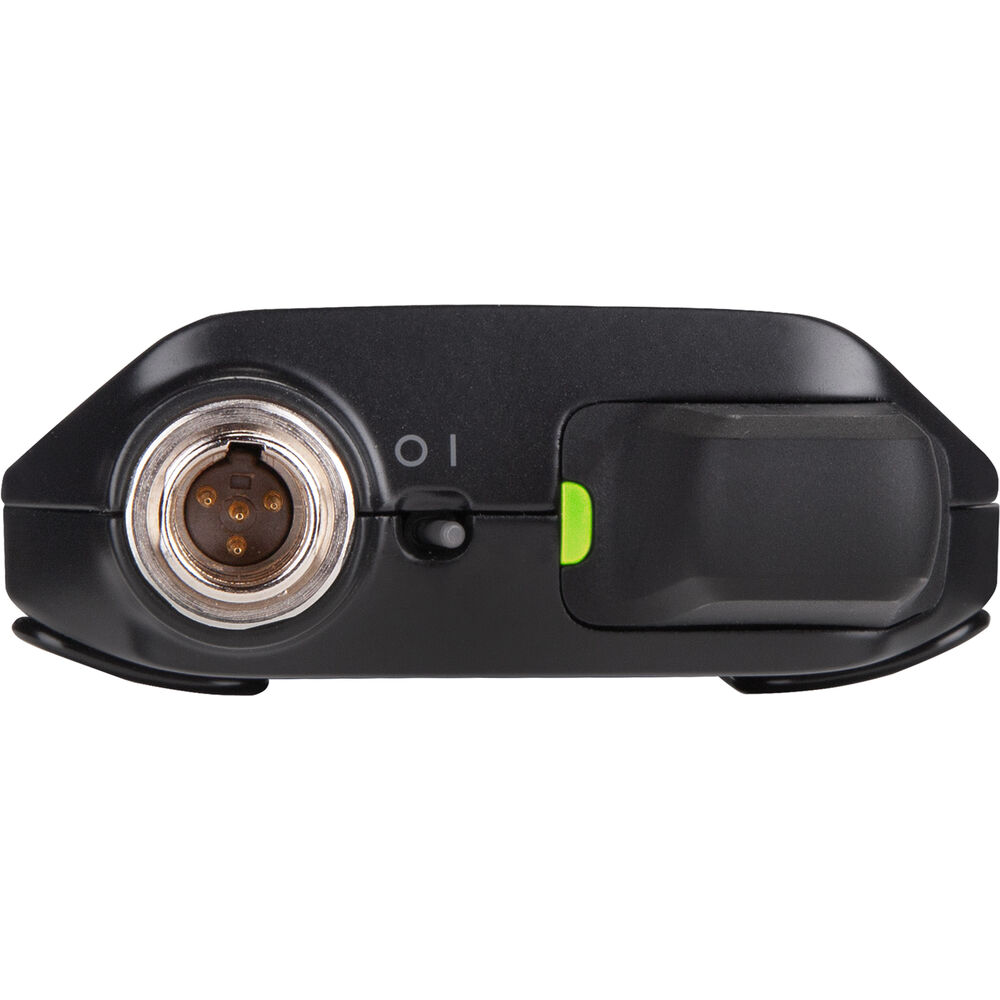

The GLXD1+ features a TA4M connector, allowing direct compatibility with a wide range of professional microphones and instrument cables for maximum versatility.

• Presenters / Performers:
  • WL185 lavalier microphone provides natural vocal reproduction for presenters, clergy, lecturers, and performers in high-volume environments.
  • WL93 omnidirectional lavalier microphone ensures consistent pickup even when the user turns away.
  • MX153 earset microphone offers discreet design and exceptional clarity for spoken word applications.
  • Headset options include the PGA31 for general use, SM31 Fitness, and SM35 Performance models for active presentations.
• Guitarists:
  • WA302, WA304, and WA305 guitar cables enable direct connection of electric guitar or bass to the bodypack transmitter.
• Instrumentalists:
  • WB98H/C flexible gooseneck microphone attaches securely to brass, woodwind, and percussion instruments for live performance applications.

Dependable Wireless Performance

The GLX-D+ Dual Band Digital Wireless system operates across both 2.4 GHz and 5.8 GHz frequency bands, automatically scanning and selecting the clearest available channel for optimal signal integrity. True digital diversity technology uses dual antennas and independent receiver modules to significantly reduce RF dropouts and maintain stable performance.

The system continuously transmits on its primary frequency while simultaneously maintaining two backup frequencies. If interference is detected, it automatically switches to a clean backup frequency without interrupting audio, ensuring uninterrupted performance in demanding RF environments.

Intelligent Rechargeable Power System

The GLXD1+ is powered by the intelligent SB904 rechargeable lithium-ion battery, delivering up to 12 hours of runtime on a full charge. The battery can be charged in multiple ways, including directly in the GLXD4+ receiver’s front-panel charging bay, which also supports charging a spare battery while the system is in use.

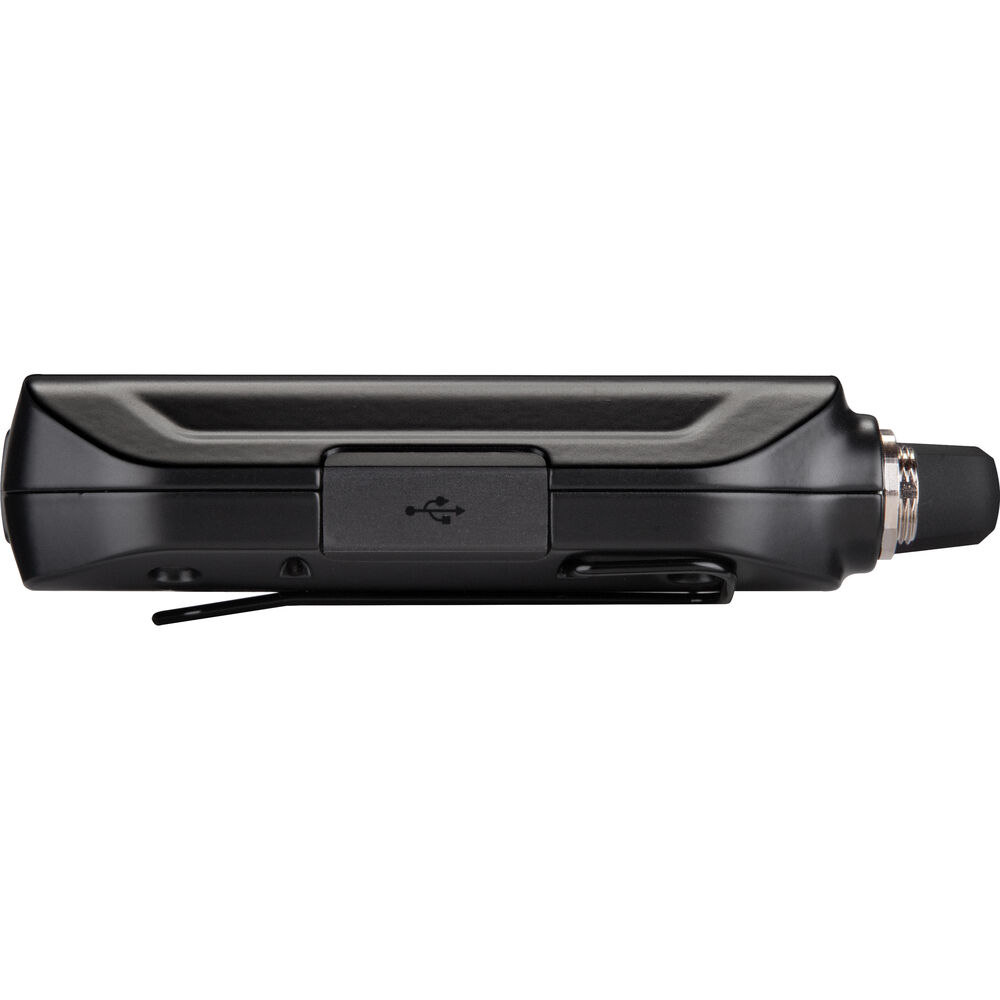

• A USB charging cable allows the SB904 to be recharged while installed in the transmitter.
• A 15-minute quick charge provides up to 1.5 hours of operating time.
• Remaining battery life is displayed in hours and minutes on the receiver’s front panel for easy monitoring.

Shure GLXD1+ Bodypack Transmitter – Specifications

System

• Wireless Technology: Digital 2.4 / 5.8 GHz
• RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
• Max Operating Range: 100' / 30.5 m
• Max Transmitters per Band: 8
• Encryption: No
• Built-In Recorder: No
• Timecode Support: No
• Mobile App Compatible: No

Transmitter

• Included Transmitters: 1x Bodypack
• RF Output Power: 10 mW
• Antenna: Fixed External
• Input Level: Microphone
• Audio I/O: 1x TA4M / Mini-XLR 4-Pin Male Input
• Bias/Plug-In Power: Yes (Voltage Unspecified)
• Phantom Power: Not Supported
• USB I/O: No
• Muting: Off / On Switch
• Auto-Level/Gain: No
• Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
• Sync Method: Proprietary
• Display: Single-LED Indicators

Microphone

• Microphone Type: No Microphone Included

Power

• Battery Type: 1x Shure SB904 (2420 mAh, Included)
• Battery Life: Up to 12 Hours
• Charging Time: 0.25 to 3 Hours
• Charging Case: Not Included
• AC/DC Power Adapter: Not Included

Physical

• Environmental Resistance: No
• Housing: Metal, Plastic
• Dimensions: 4.5 x 2.6 x 1.1" (115 x 67 x 28.5 mm)
• Weight: 5.4 oz / 153 g (without battery)
