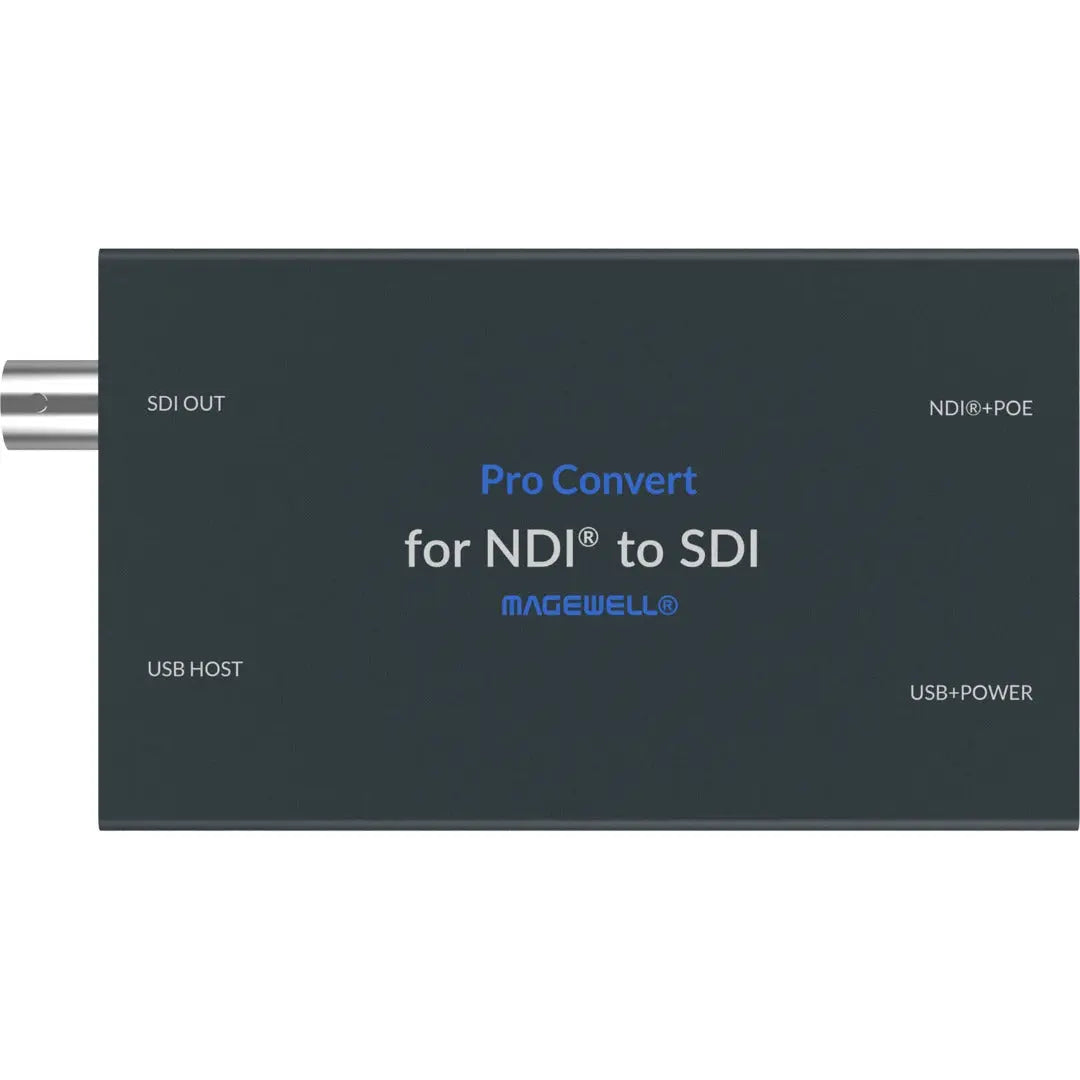

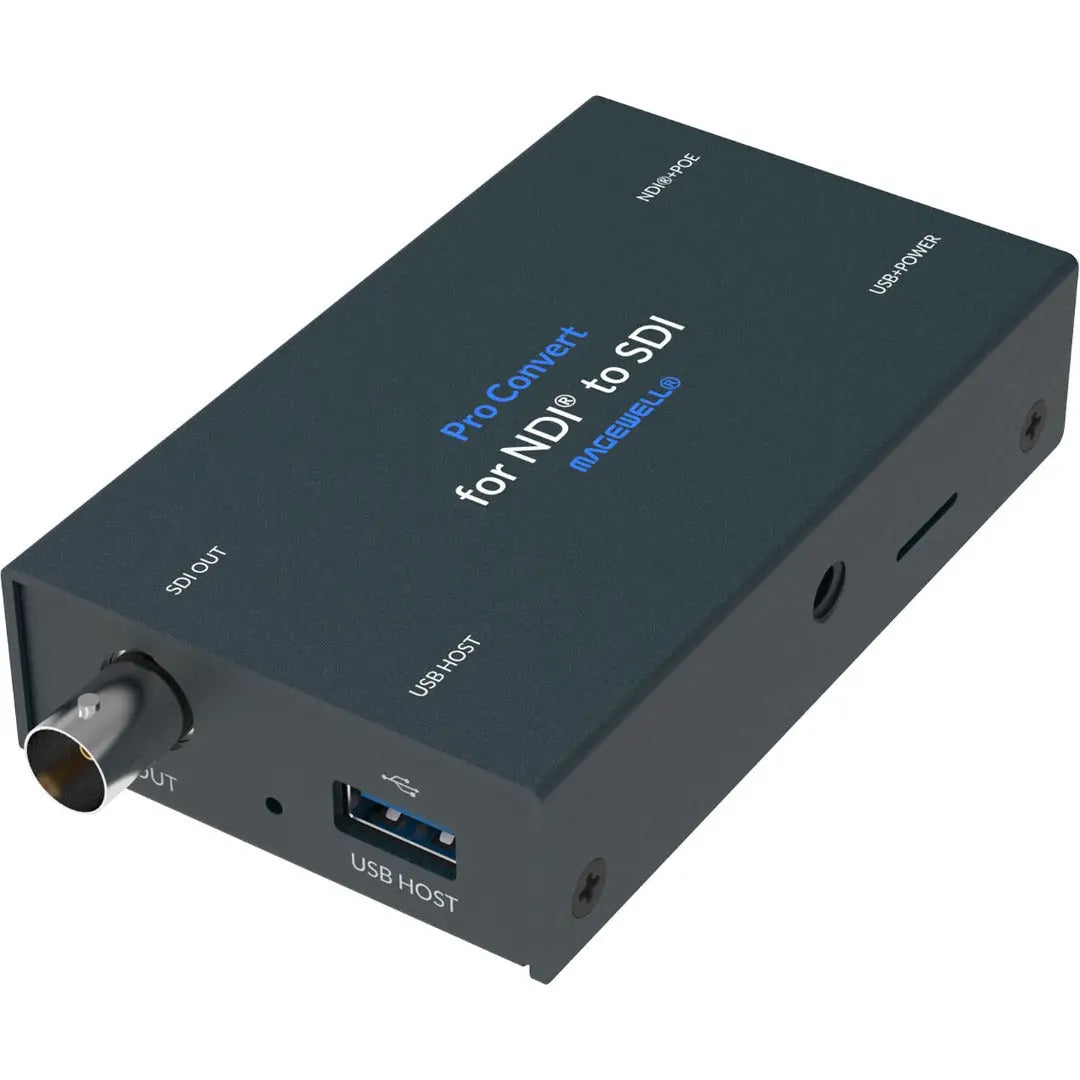

Magewell Pro Convert for NDI to SDI

Magewell Pro Convert for NDI to SDI

Use the Pro Convert for NDI to SDI Decoder from Magewell to convert an NDI stream with embedded audio to an SDI output signal. This converter supports resolutions up to 2K60 via NDI input and decodes at resolutions up to 1080p60 for 3G-SDI output. Designed to link baseband equipment to IP-based media networks, this component supports full-bandwidth NDI and high-efficiency NDI|HX modes up to NDI|HX3. Supported streaming protocols include SRT, RTSP, RTMP, UDP, RTP, HLS, and HTTP.

Configurable Web UI

The Pro Convert Web UI is compatible with a wide variety of web browsers and enables web configuration for settings such as the device name, source name, NDI and EDID identifiers, and other settings.

Decoding Features

• Decodes NDI streams up to 2K60 including NDI, NDI|HX3, and NDI 4.5
• Up to 1080p60 3G-SDI output signals
• Supports YUV BT.601 and YUV BT.709 color
• 16-bit, 8-channel audio streams
• Supports AAC/MP3 audio decoders
• Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP

Onboard Controls

• Menu and Select buttons
• 16-position rotary DIP switch: set board index from 0 to F

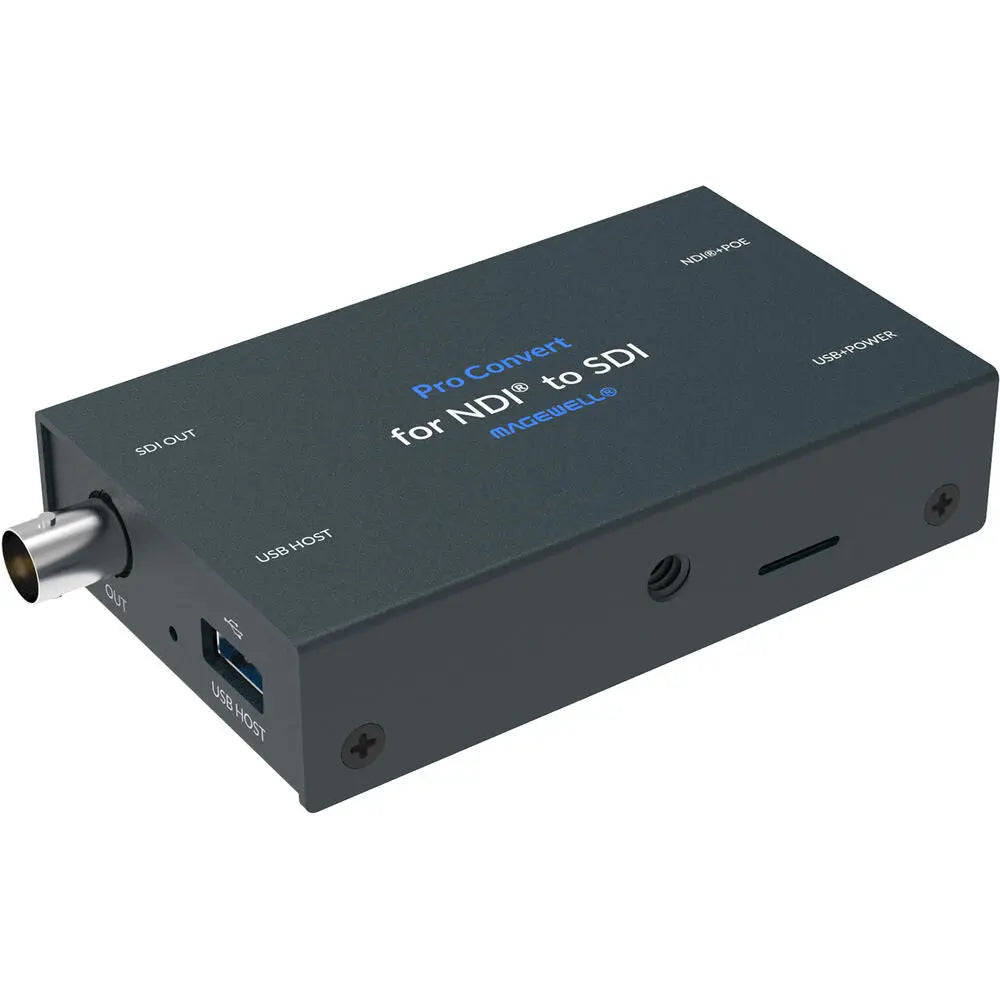

• Incorporates a 1/4"-20 mounting thread

Supported Web Browsers

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

Magewell Pro Convert Specs

Inputs/Outputs

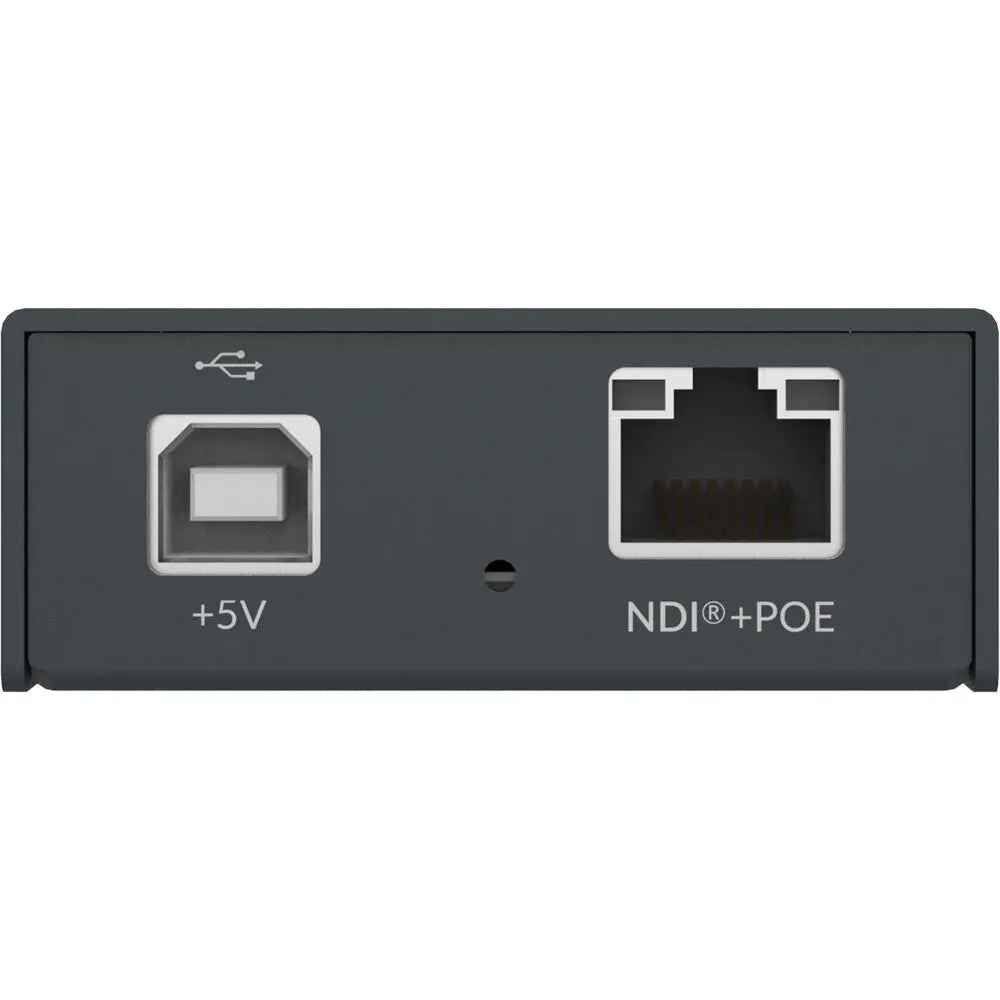

Video Inputs 1x RJ45 (NDI) Female

Audio Inputs No

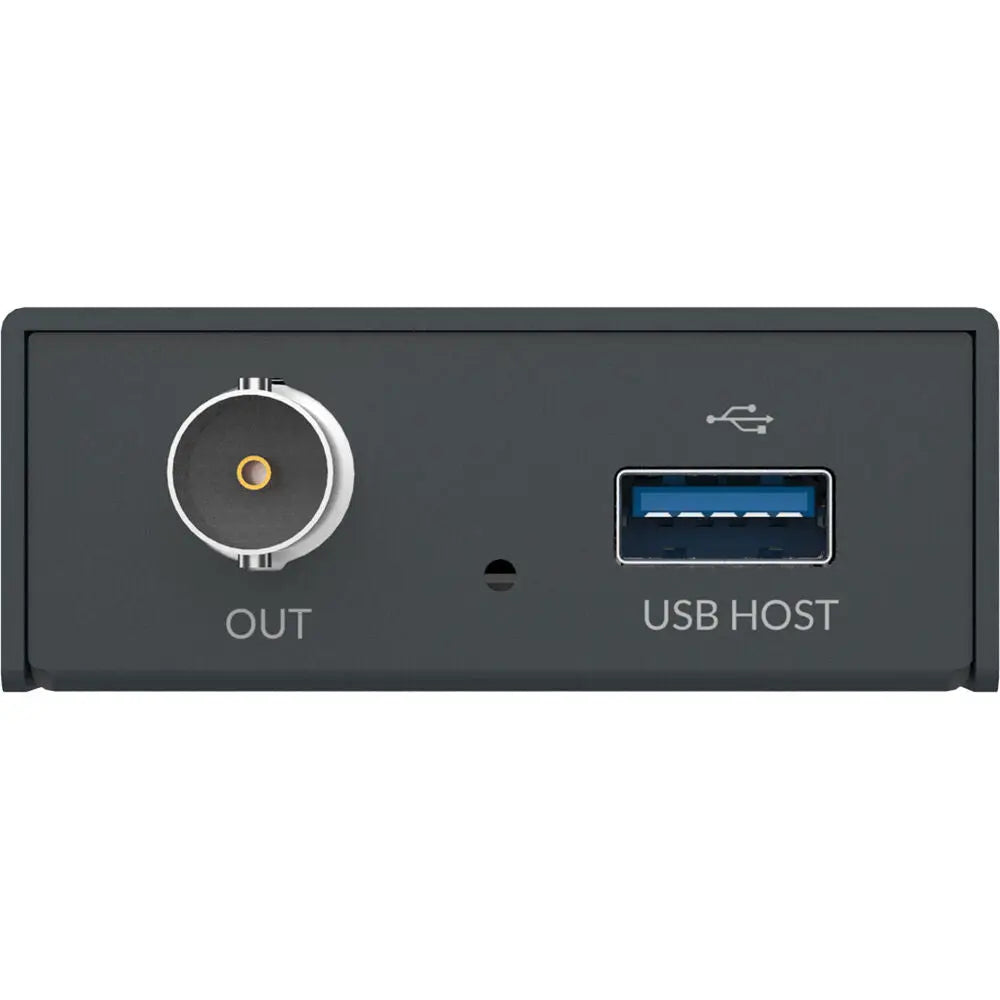

Video Outputs 1x BNC (3G-SDI)

Audio Outputs No

Other I/O 1x USB-B Control Input (Shared Power) 1x USB-A Control Input

Expansion Slots No

Format Support

Input Video Format RJ45 DCI 2K up to 60 fps

Output Video Format

SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps

720p at 23.98/24/25/29.97/30/50/59.94/60 fps

576i / 625 lines at 50 fps

480i / 525 lines at 50 fps

Embedded Audio LAN (RJ45)/SDI: 8-Channel

Standards

HDR Support Not Specified by Manufacturer

IP Streaming

Video IP Decoding H.264, H.265, NDI|HX2, NDI|HX3, RTMP, RTP, RTSP, UDP: 720 x 480 to 1920 x 1080 at 60p

Audio IP Decoding AAC

Hardware

Tally Light Yes

Wireless No

Power

Power I/O 1x USB-B (5 VDC at 2.1 A) Input

PoE Support PoE 802.3af

Power Consumption Device: 1.05 A 5.5 W

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Storage Temperature -4 to 158°F / -20 to 70°C

Operating Humidity 5 to 90%

General

Dimensions 4 x 2.4 x 0.9" / 100.9 x 60.2 x 23.3 mm
