SmallRig 6108 Nano72 Power Bank with 1/4"-20 Threaded Hole

SmallRig 6108 Nano72 Power Bank with 1/4"-20 Threaded Hole Overview

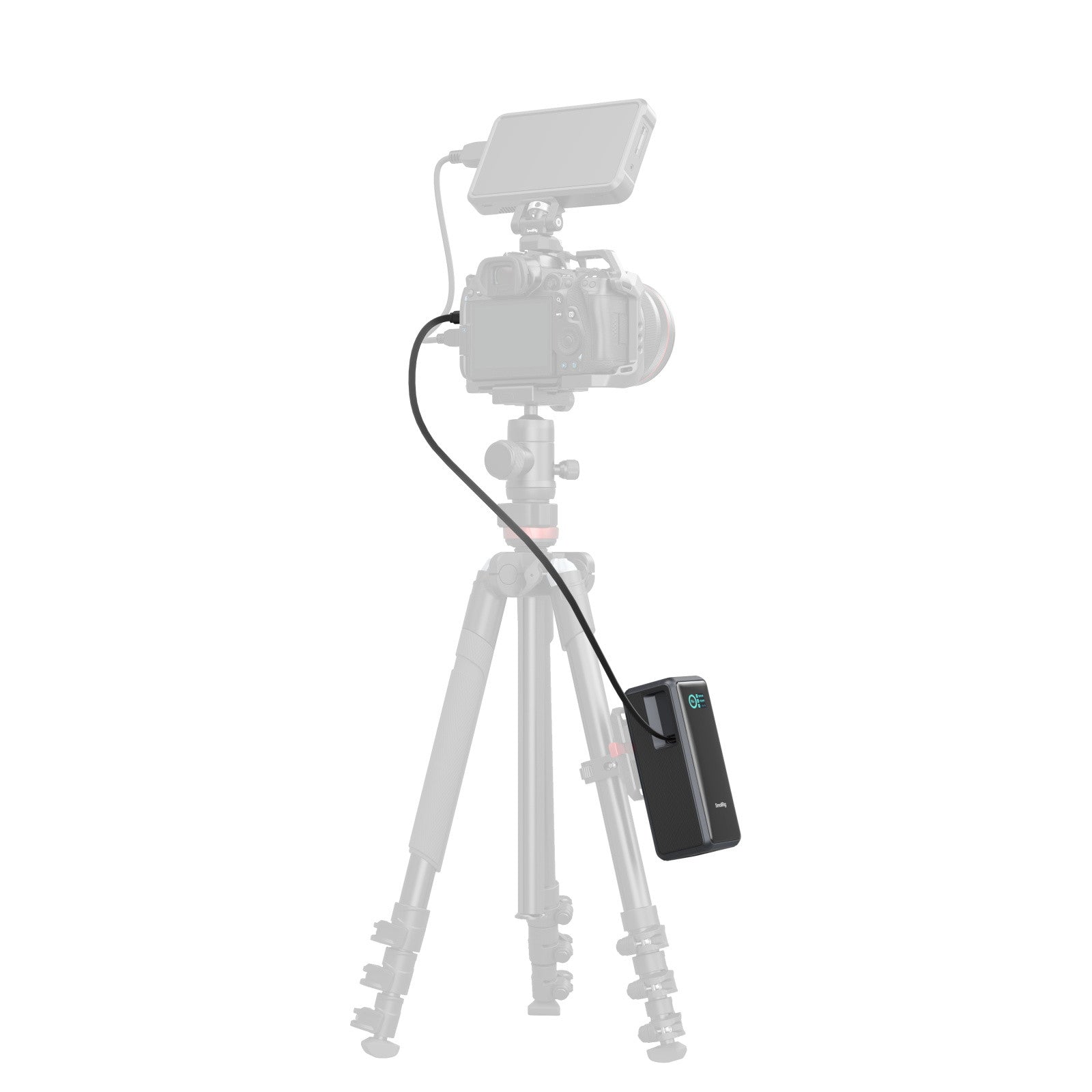

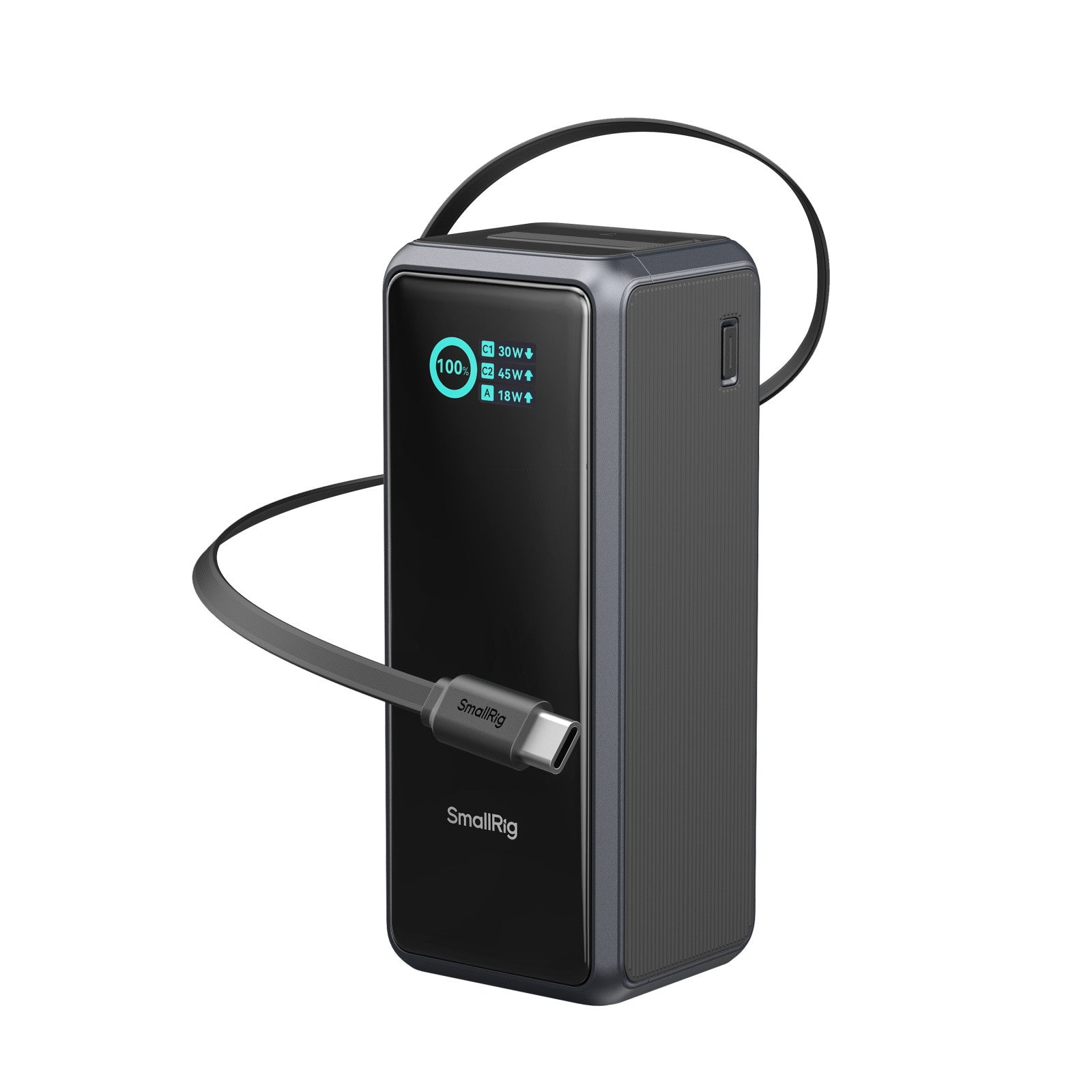

The SmallRig Nano72 Power Bank 6108 is a compact 73Wh portable power source for filmmakers, photographers and content creators, delivering up to 100W through its USB-C connection for cameras, phones and production accessories. A retractable 70cm cable keeps setups tidy, while the detachable V-mount plate and 1/4"-20 mounting point suit both rigged and standalone use. Its TFT display provides clear battery and power information.

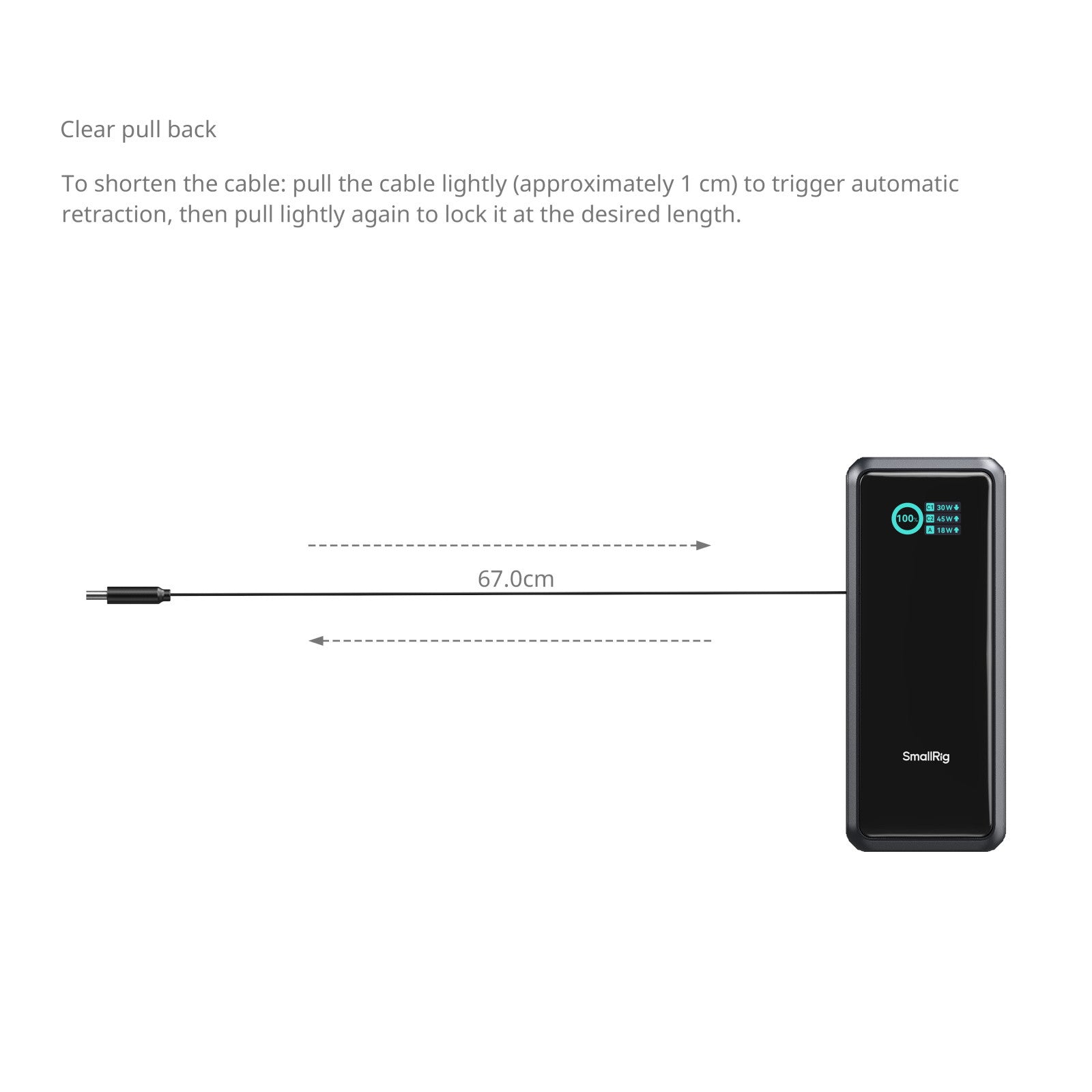

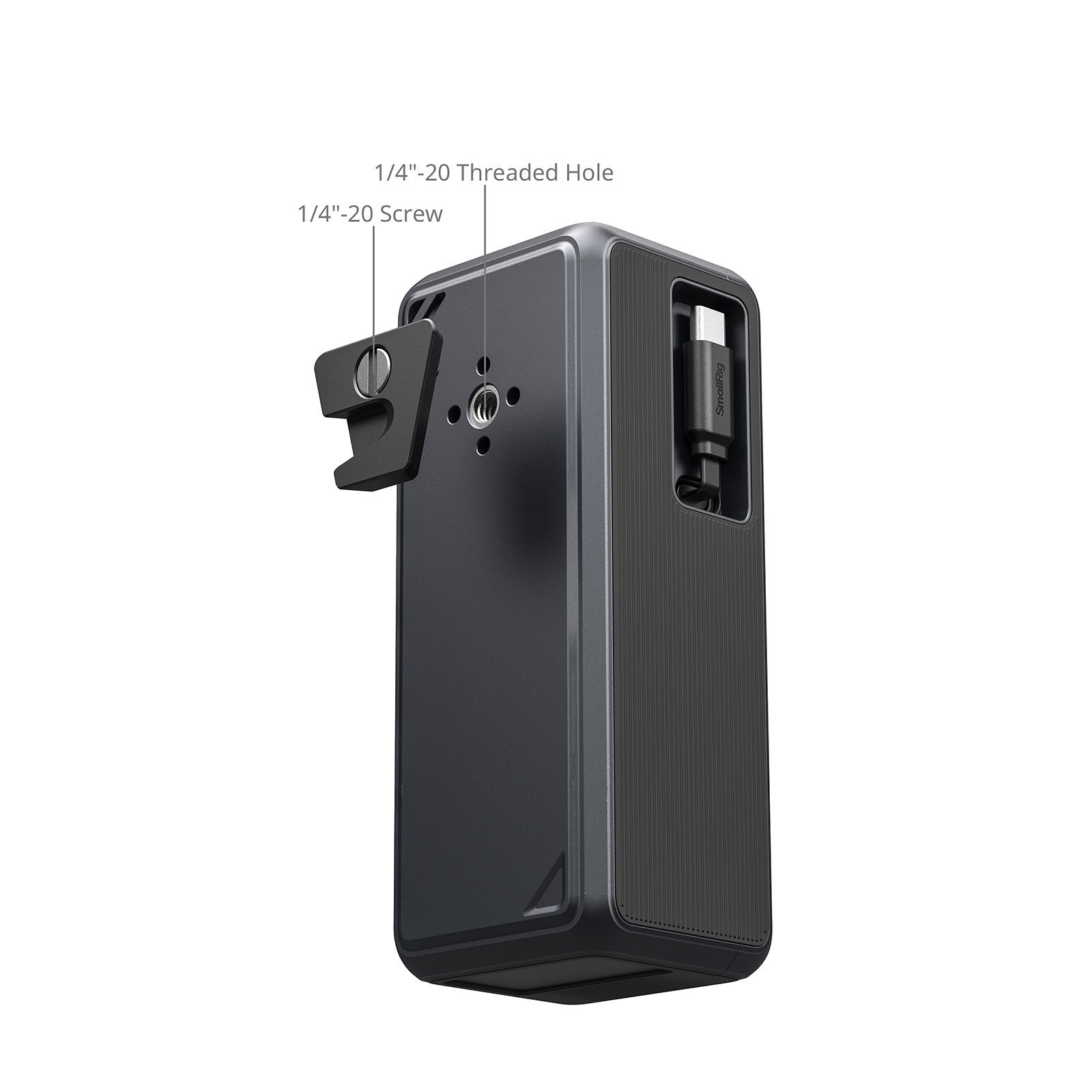

Designed for convenience, the Nano72 features a built-in 70cm retractable cable that extends when needed and automatically retracts for neat, clutter-free storage. Its detachable V-mount plate provides the flexibility to use it as part of a professional camera rig or as a standalone power bank. A rear 1/4"-20 threaded hole and locating hole also allow for secure mounting with compatible accessories.

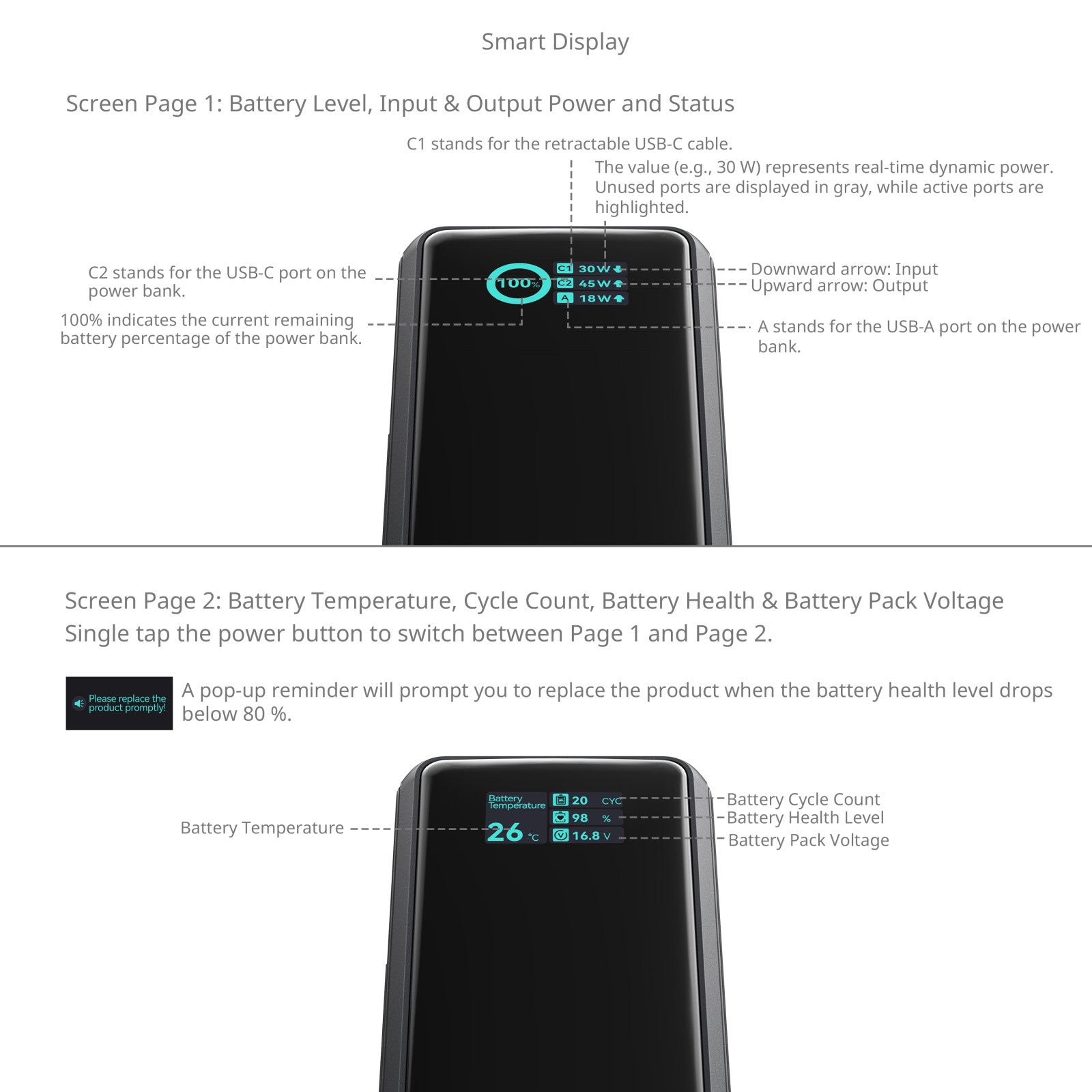

An integrated TFT colour display provides real-time information on battery level and input/output power across each port. With a simple button press, users can also access detailed battery information, including health status, cycle count, remaining cycle life and temperature. Despite its impressive capacity, the Nano72 maintains a compact form factor, standing at a similar height to a conventional V-mount battery while occupying approximately half the space.

Built for dependable performance, the Nano72 incorporates multiple safety protections against short circuits, overcurrent, overheating, overvoltage and undervoltage. Its broad compatibility makes it ideal for powering devices such as iPhones, Apple Watches, AirPods, DJI Osmo Action and Pocket cameras, DJI Osmo 360, Insta360 cameras, Canon EOS R5 II, Blackmagic Pocket Cinema Camera 6K Pro, Nikon Z6 and Panasonic GH6.

Certifications: FCC / CE / PSE / RCM / ISED

Technical Data

• Cell Capacity: 20000mAh (5000mAh × 4, four cells in series)
• Lithium Battery Capacity: 5000mAh / 14.6V / 73.0Wh

Input

• USB-C Cable / USB-C Port: 5.0V⎓3.0A; 9.0V⎓3.0A; 12.0V⎓3.0A; 15.0V⎓3.0A; 20.0V⎓5.0A (100.0W Max)

Output – Single Port in Use

• USB-C Cable / USB-C Port: 5.0V⎓3.0A; 9.0V⎓3.0A; 12.0V⎓3.0A; 15.0V⎓3.0A; 20.0V⎓5.0A (100.0W Max)
• USB-A Port: 5.0V⎓3.0A; 9.0V⎓2.0A; 10.0V⎓2.25A; 12.0V⎓1.5A (22.5W Max)

Output – Two Ports in Use

• USB-C Cable + USB-C Port: 10.0W + 10.0W
• USB-C Cable / USB-C Port + USB-A Port: 10.0W + 10.0W

Output – Three Ports in Use

• USB-C Cable + USB-C Port + USB-A Port: 7.0W + 7.0W + 6.0W
• Total Output (Multiple Ports): 5.0V⎓4.0A (20.0W Max)

USB-A Low-Current Mode

• Default Low-Current Mode: When the load current on the USB-A port is below 100.0mA, the display and output turn off after 2.0 hours and the unit enters sleep mode.

Physical Specifications

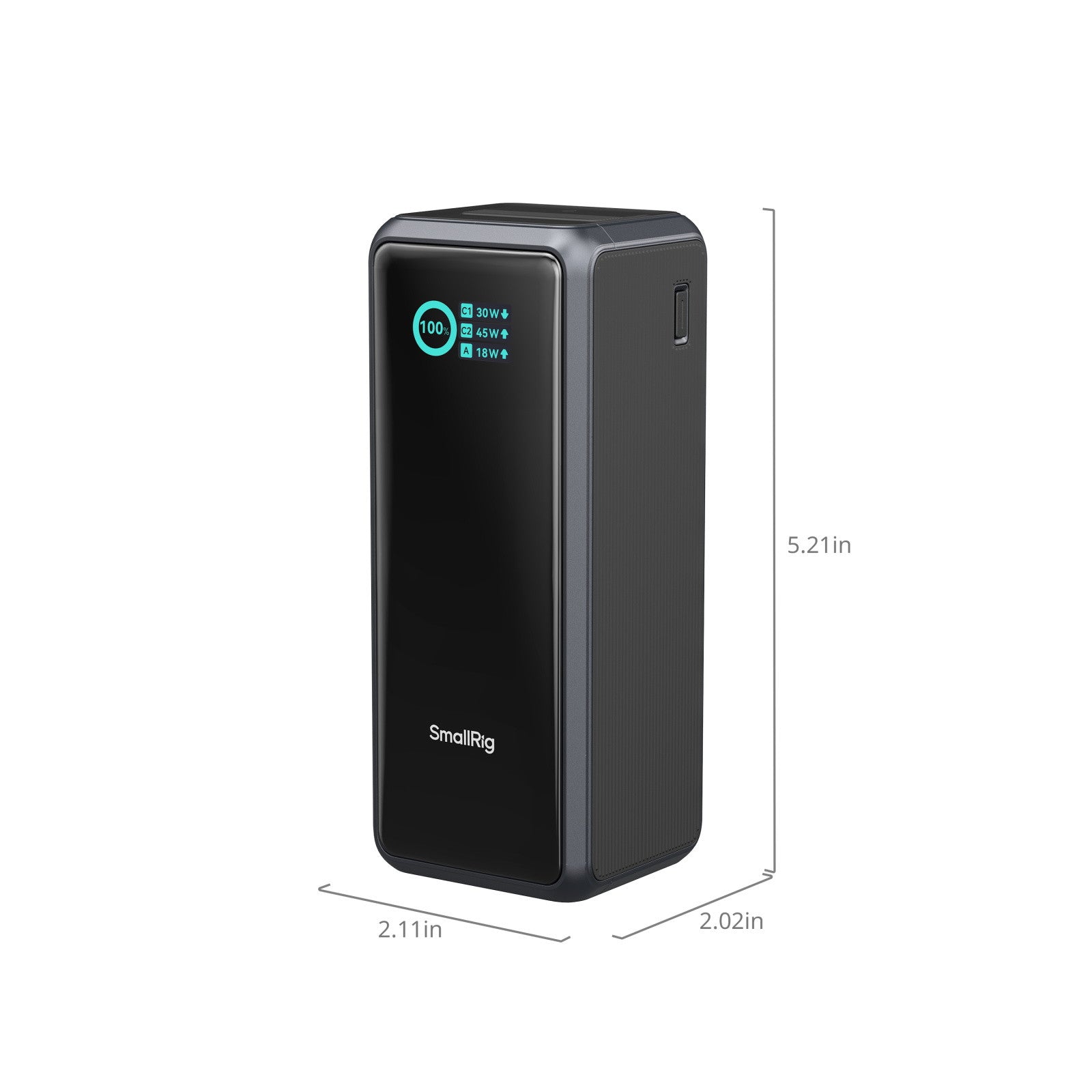

• Product Dimensions: 53.7 × 132.5 × 51.5mm / 2.1 × 5.2 × 2.0in
• Product Weight: 512.0 ± 10.0g / 18.1 ± 0.4oz
• Main Material: Aluminium Alloy, Silicone, TPU, PC V0
• Mounting: 1/4"-20 Threaded Hole
