Teradek Bolt 6 XT 750 12G TX/RX Deluxe Set V Mount Kit

Teradek Bolt 6 XT 750 12G TX/RX Deluxe Set V Mount Kit

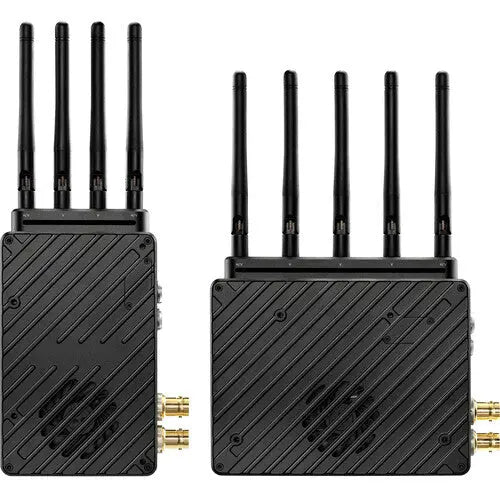

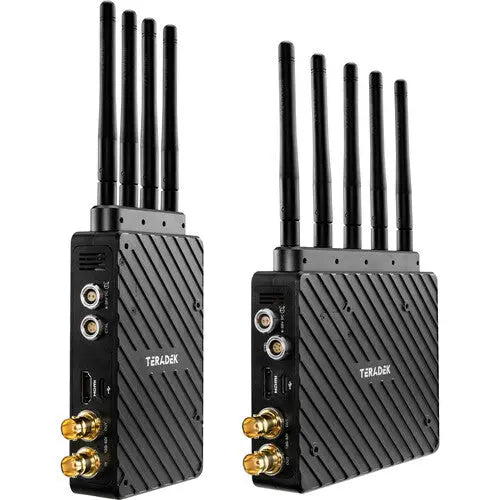

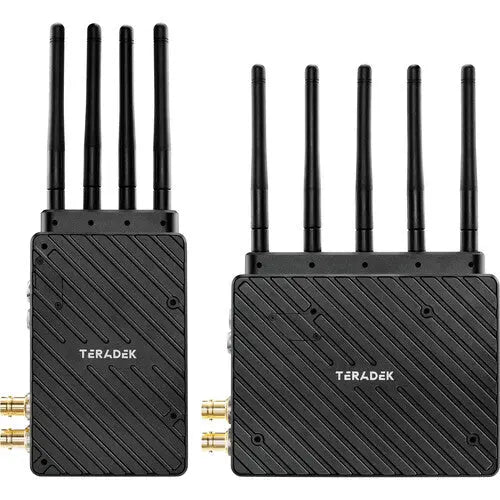

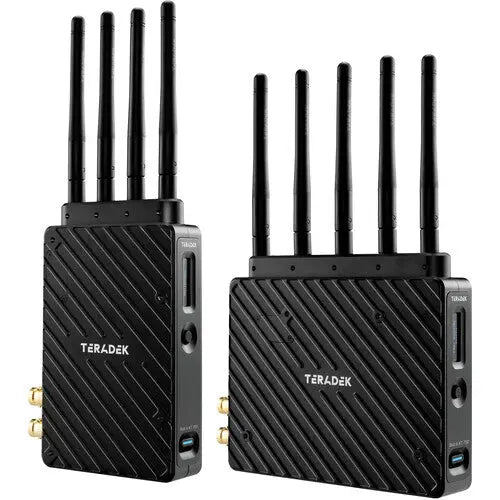

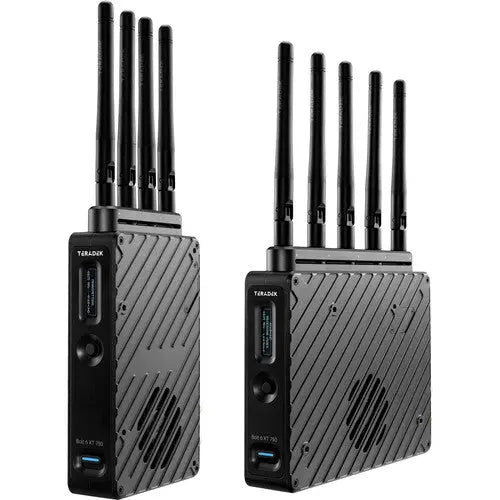

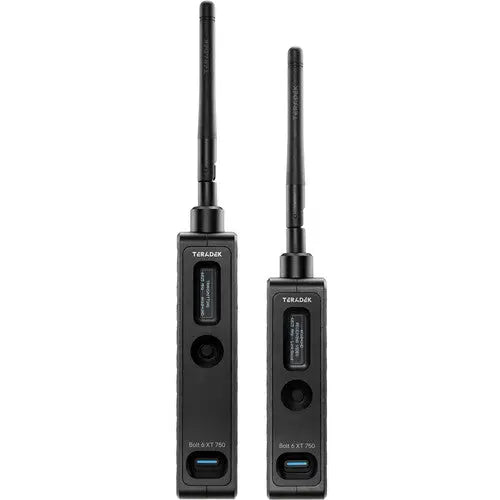

Transmit and receive lossless HD video from up to 750'(228m) line of sight with the Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The transmitter sends up to 4K60 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT units are all cross-compatible, so you can transmit to different Bolt 6 or 4K series receiver models. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.

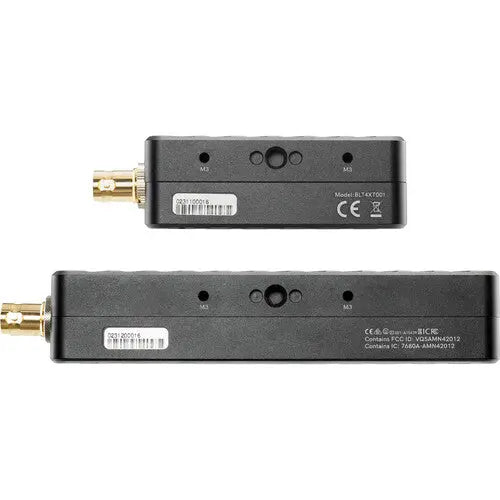

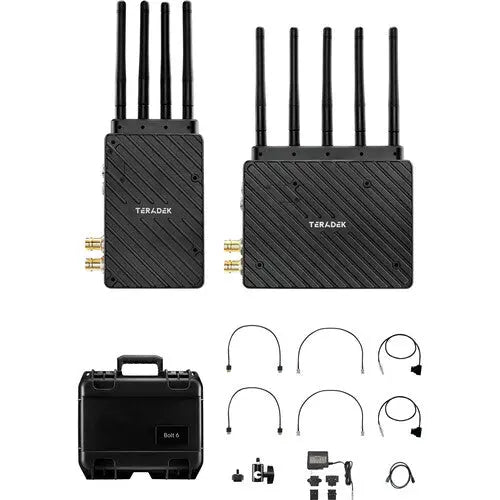

The transmitter module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20, 3/8"-16, and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system, as well as additional cables and mounting options.

Key Features

• Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
• Smaller, lighter, and 50% quieter than previous models
• Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
• Transmitter inputs via 12G-SDI and HDMI transmits up to DCI 4K60 video, and has a 12G-SDI loop output; receiver outputs via 12G-SDI and HDMI
• SDI Eye Pattern Tool to check SDI cable integrity
• Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
• Improved "long-range" mode
• Transmit to up to six Bolt 4K or Bolt 6 series receivers
• AES-256 encryption support
• Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Inputs / Outputs

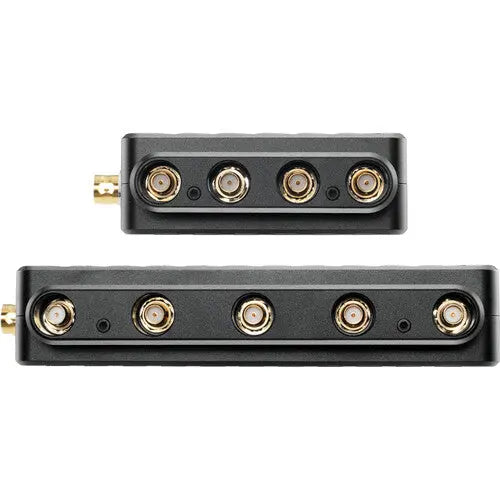

Antenna Ports Transmitter: 4 x RP-SMA Female Receiver: 5 x RP-SMA Female

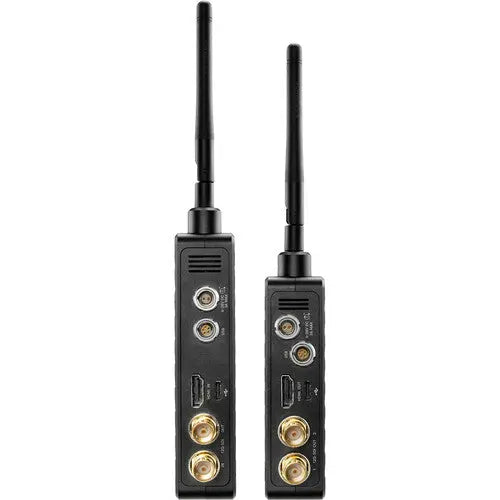

Video I/O Transmitter: 1 x HDMI 2.0 Input Transmitter: 1 x BNC (12G-SDI) Input Transmitter: 1 x BNC (12G-SDI) Loop Output Receiver: 1 x HDMI 2.0 Output Receiver: 1 x BNC (12G-SDI) Output

Embedded Audio HDMI: 2-Channel SDI

Audio I/O None

Power Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input

Other I/O Transmitter/Receiver: 1 x USB-C 2.0 Input Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output

Encryption 256-Bit AES

Wireless

Wireless Range 750' / 228.6 m (Line-of-Sight)

Channel Bandwidth 40 MHz

Frequency Range Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz

Latency < 0.01 ms

RF Power 23 dBm

Wi-Fi None

Bluetooth Yes

Format Support

Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94

Audio Format 2-Channel 24-Bit 48 kHz

Timecode Support Yes

Power

DC Input Power 6 to 28 VDC

Power Consumption Transmitter: 20 W Receiver: 18 W

Environmental

IP Rating None

Operating Temperature 32 to 72°F / 0 to 40°C

General

Material of Construction Aluminum, Polycarbonate

Dimensions Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm

Weight Transmitter: 12.1 oz / 344 g Receiver: 15.2 oz / 430 g
