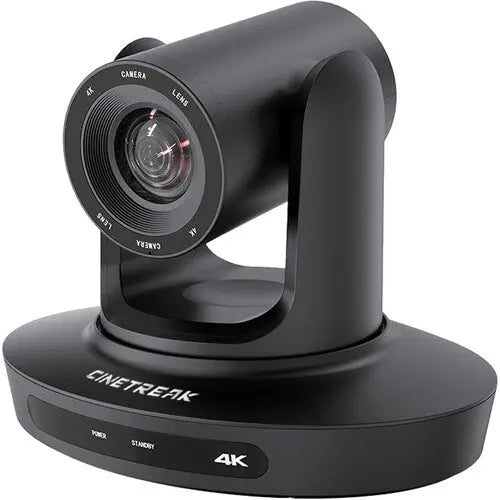

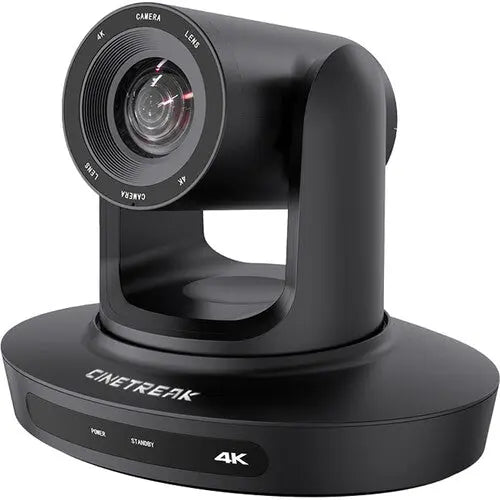

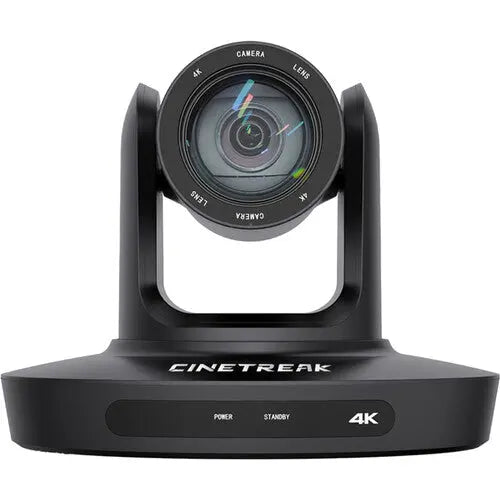

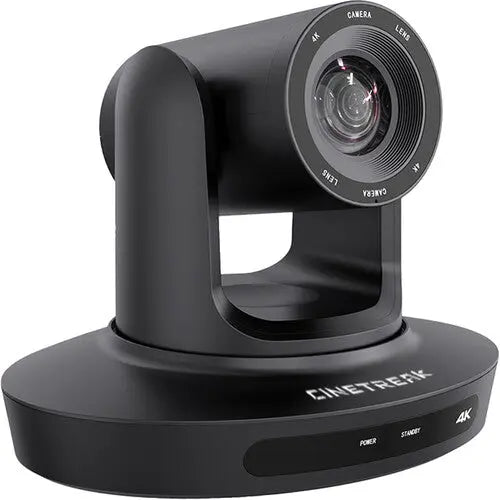

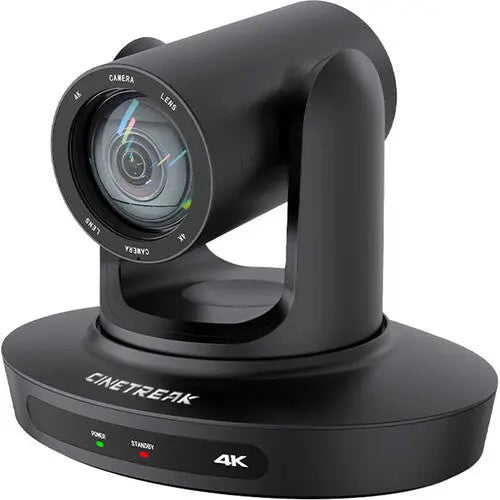

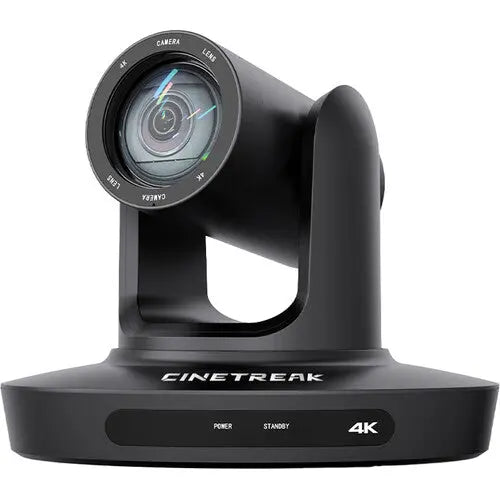

CineTreak CT-P20H USB/HDMI/IP Live Stream 4K PTZ Camera with 20x Optical Zoom

CineTreak CT-P20H USB/HDMI/IP Live Stream 4K PTZ Camera with 20x Optical Zoom

Enhance your educational, corporate, or live production workflow with the CineTreak CT-PT20H USB/HDMI/IP 4K PTZ Camera with 20x Optical Zoom. Designed for professional streaming and broadcast environments, this versatile PTZ camera features a 1/2.8" HD CMOS sensor and delivers video up to UHD 4K at 30fps. Simultaneous HDMI, USB 3.0, and IP output ensures seamless integration into live streaming setups, video conferencing systems, and hybrid event productions.

The powerful 20x optical zoom lens enables both wide-angle coverage and detailed close-ups with precise focus and accurate colour reproduction. Integrated 2D and 3D noise reduction enhances image clarity, even in challenging lighting conditions, delivering stable and professional-grade video quality.

A standout feature of the CT-PT20H is its advanced AI human tracking capability. The intelligent tracking system automatically detects and follows subjects, ensuring the presenter or speaker remains centred in frame without manual camera adjustments. This makes it ideal for classrooms, lecture halls, conference rooms, and houses of worship.

For flexible streaming and system integration, the camera supports RTMP, RTSP, RTMPS, ONVIF, and SRT protocols, making it compatible with most modern streaming platforms and NDI/IP-based workflows. It also offers extensive control options, including RS-232, RS-422, and RS-485 serial communication, and supports ONVIF, VISCA, VISCA over IP, Pelco-D, and Pelco-P protocols. The camera can store up to 200 preset positions for quick recall during live productions.

Connectivity includes HDMI, USB 3.0 (UVC 1.1 and UAC 1.0 compliant), IP streaming, and a 3.5mm stereo line input. The USB interface supports YUY2, MJPEG, H.264, and H.265 video formats for broad compatibility with streaming software and hardware encoders. Power is supplied via the included 12V DC adapter or PoE (Power over Ethernet), providing clean, flexible installation options.

The CineTreak CT-PT20H combines professional 4K imaging, intelligent AI tracking, extensive protocol support, and flexible connectivity in a reliable PTZ solution—perfect for education, conferencing, live streaming, and broadcast production environments.

Imaging

• Image Sensor: 1/2.8"-Type CMOS
• Focus Control: Autofocus, Manual Focus
• Shutter Speed: 1/10000 to 1/25 Second
• Signal-to-Noise Ratio: 55 dB
• Minimum Illumination: 0.5 Lux at f/1.8
• White Balance: Auto, Indoors, Manual, One-Touch, Outdoors

Lens

• Focal Length: 5.2 to 104mm
• Maximum Optical Zoom: 20x
• Field of View:
  • Horizontal: 58.7° to 3.2°
  • Vertical: 33° to 1.8°

Video Capture

• Video Output: RJ45 (IP), USB, HDMI
• Resolutions:
  • 3840 x 2160 up to 30 fps
  • 1920 x 1080p up to 59.94/60/50/29.97/30/25 fps
  • 1920 x 1080i up to 59.94/60/50 fps
  • 1280 x 720 up to 59.94/60/50 fps
• Embedded Audio: HDMI / IP / USB
• Internal Recording: No
• Broadcast Output: NTSC
• IP Streaming Resolution: 1280 x 720 to 3840 x 2160

Control

• Preset Positions: 200
• Pan/Tilt Range:
  • Pan: 170°
  • Tilt: 120° (-30° to 90°)

Networking

• Wireless: No

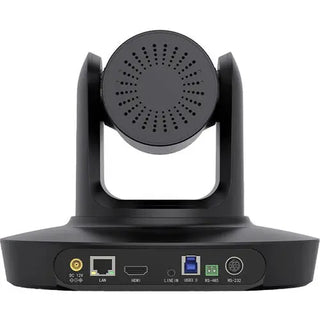

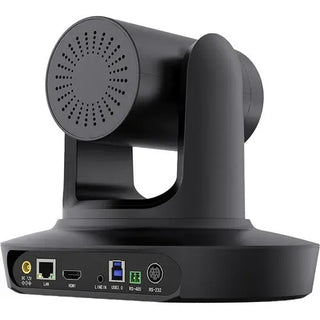

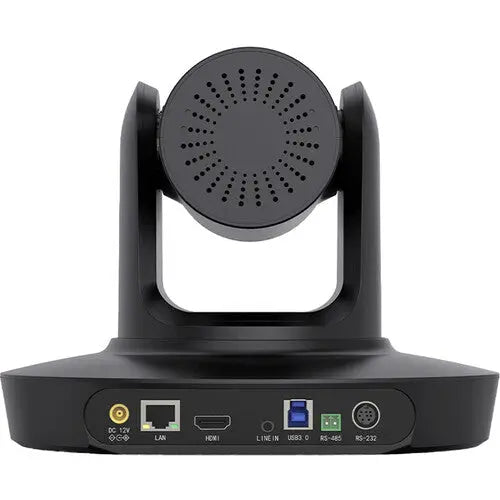

Interface

• Video I/O:
  • 1x HDMI 1.4 Output
  • 1x USB-B 3.0 / 3.1 / 3.2 Gen 1 Output
  • 1x RJ45 LAN Output
• Audio I/O: 1x 3.5mm TRS Stereo Line Input
• Other I/O:
  • 1x DIN 8-Pin (RS-232) Input
  • 1x DIN 8-Pin (RS-232) Output
• Built-In Microphone: No

Power

• PoE Support: Yes (Proprietary)
• Power Input: 1x Barrel (12VDC at 1A)
• Power Consumption: 12 W

Environmental

• Operating Conditions: 32 to 104°F / 0 to 40°C
• Storage Conditions: 14 to 140°F / -10 to 60°C

General

• Dimensions (W x H x D): 7.1 x 6.3 x 5.2" / 181 x 161 x 133 mm
• Weight: 2.6 lb / 1.2 kg (Body Only)
