CineTreak CT-PT20 NDI PTZ Camera with 20x Optical Zoom

CineTreak CT-PT20 NDI PTZ Camera with 20x Optical Zoom

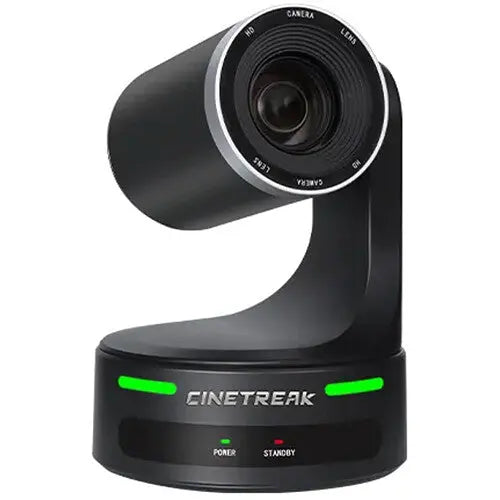

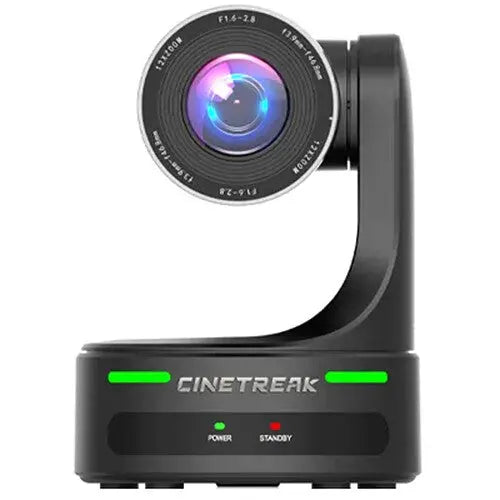

Enhance your professional video workflow with the CineTreak CT-PT20 NDI PTZ Camera, a Full HD production solution designed for education, corporate conferencing, houses of worship, and live broadcast environments. Featuring a powerful 20x optical zoom lens and a Sony 1/2.8" STARVIS CMOS sensor, the CT-PT20 NDI captures crisp, detailed video up to 1080p60 resolution. It delivers simultaneous Full HD output via HDMI, 3G-SDI, and IP, ensuring seamless integration into multi-camera broadcast and streaming systems.

With built-in NDI|HX2 support, the camera integrates directly into IP-based production workflows, enabling low-latency, high-quality video transmission over standard Ethernet networks. In addition to NDI|HX2, it supports RTMP, RTSP, RTMPS, ONVIF, and SRT streaming protocols for flexible deployment across a wide range of platforms and infrastructure.

The 20x optical zoom provides smooth transitions from wide-angle room coverage to detailed close-ups while maintaining precise focus and accurate colour reproduction. Integrated 2D and 3D noise reduction enhances clarity in challenging lighting conditions, delivering clean and professional imagery.

Advanced AI human tracking intelligently detects and automatically follows subjects, ensuring presenters remain centred in frame without manual adjustments. This automated tracking functionality reduces the need for a dedicated camera operator while maintaining stable, high-quality footage.

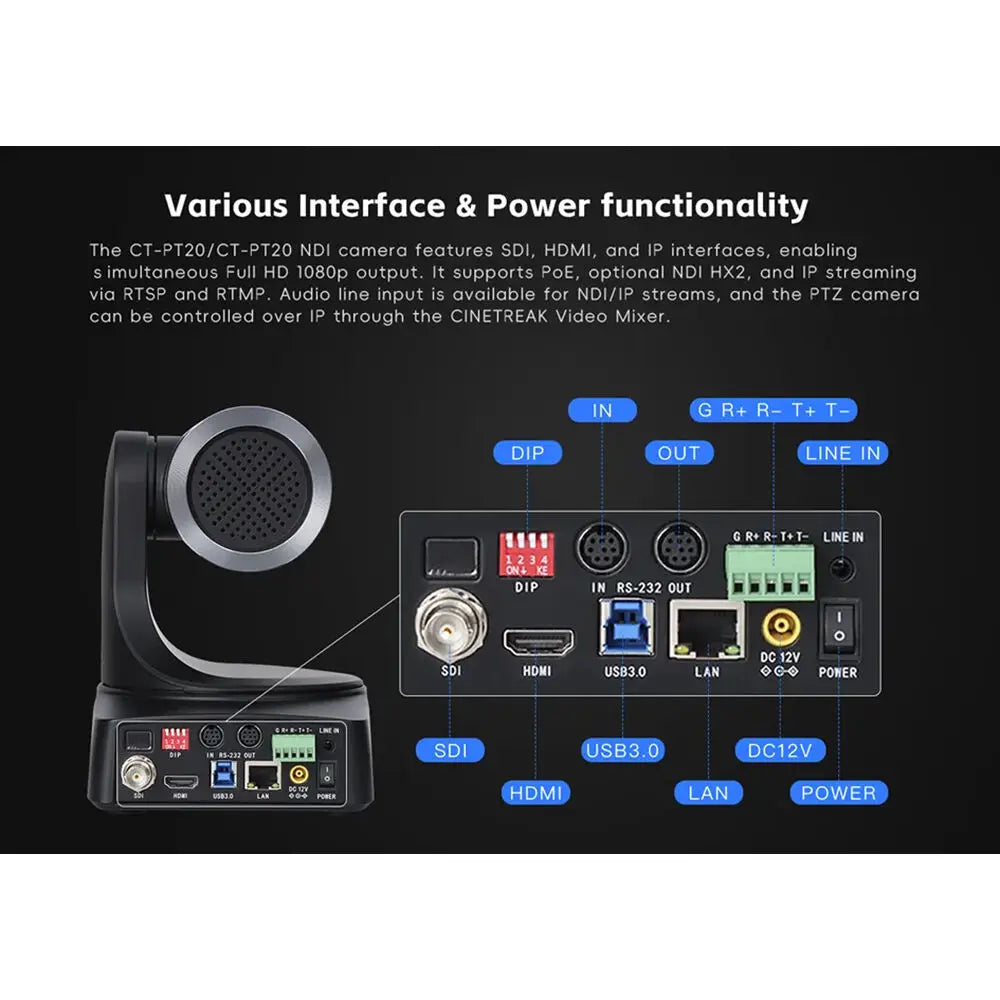

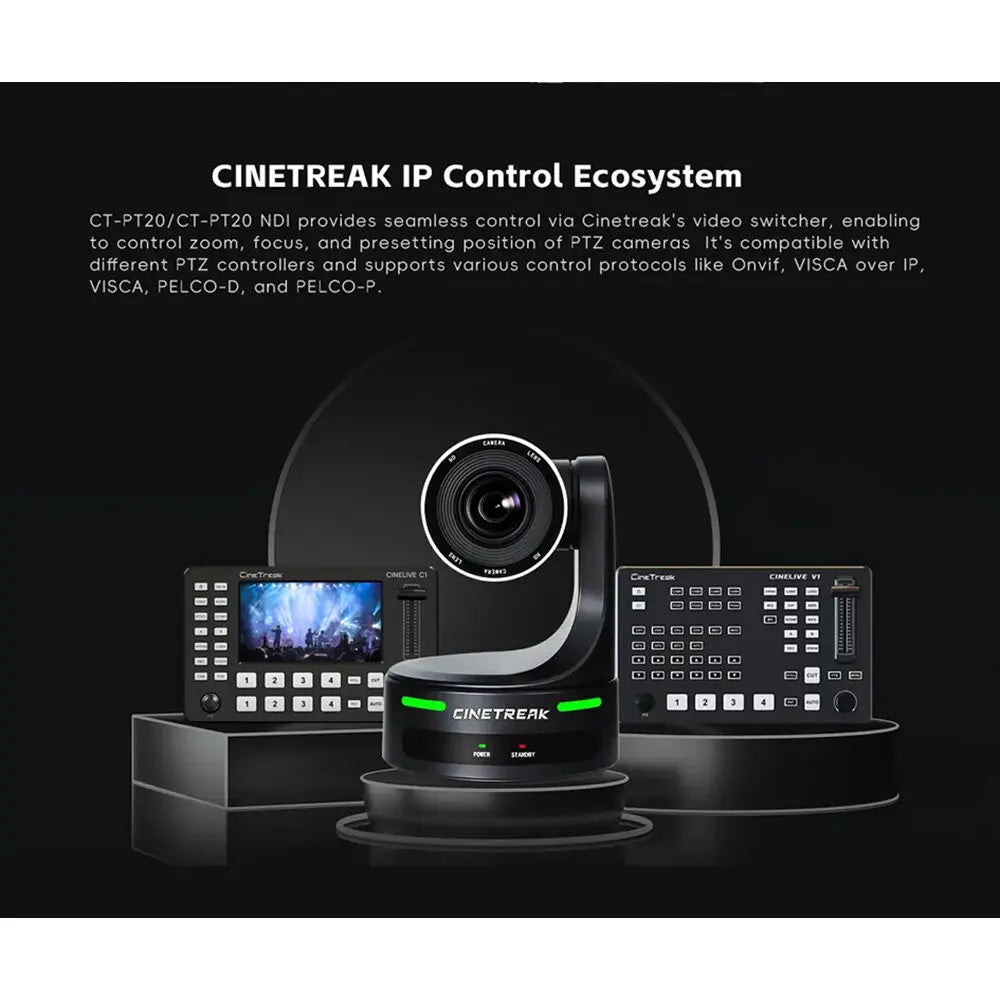

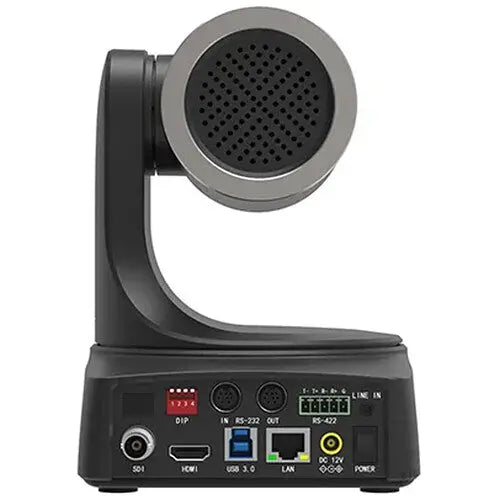

Designed for comprehensive control, the CT-PT20 NDI supports ONVIF, VISCA, VISCA over IP, Pelco-D, and Pelco-P protocols. It can store up to 200 preset positions for quick recall during live productions. Connectivity includes HDMI, SDI, IP output, USB-B 3.0 (UVC 1.1 and UAC 1.0 compliant), and a 3.5mm stereo line input. The USB interface supports YUY2, MJPEG, H.264, and H.265 formats for broad compatibility with streaming software and conferencing platforms. Additional control options are available via RS-232, RS-422, and RS-485 connections.

Power is supplied via the included 12V DC adapter or PoE (Power over Ethernet), offering flexible installation options with simplified cabling.

The CineTreak CT-PT20 NDI combines professional Full HD imaging, intelligent AI tracking, NDI integration, and broadcast-ready connectivity in a versatile PTZ camera built for demanding live production environments.
