Manfrotto 504X Fluid Video Head with Flat Base

Manfrotto 504X Fluid Video Head with Flat Base

The 504X Fluid Video Head with Flat Base from Manfrotto features an open bridge design that provides a stable, smooth performance while reducing weight. The head's patented bridge technology allows for a wider top surface and longer sliding plate that add stability and balance. The head features a flat base with a 3/8"-16 female mounting thread that allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.

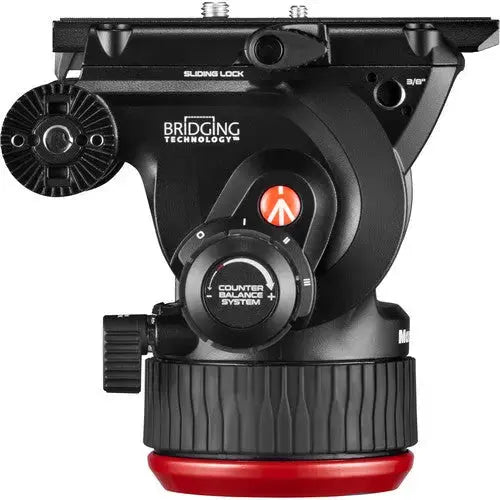

With its ability to support up to 26.5 lb, the 504X can be used with a variety of video and photo cameras and rigs. The pan and tilt counterbalance system includes four presets from 0 to 4.8 to 9.7 to 14.3 lb, enabling proper balance no matter what the camera's size or weight.

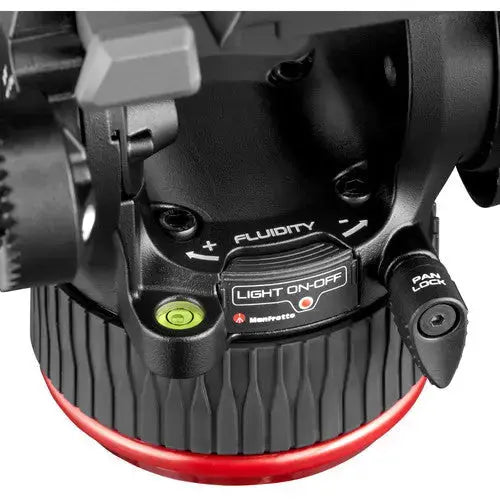

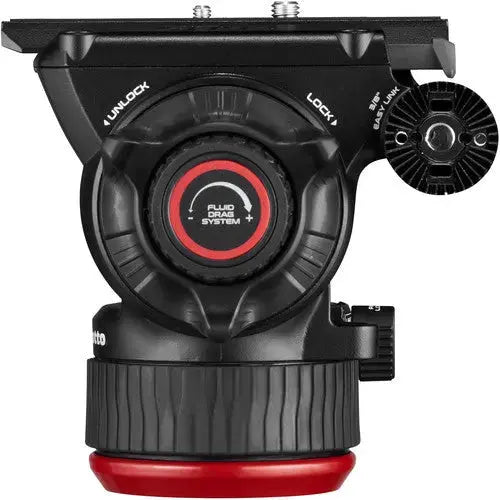

At the same time, variable friction components with clearly marked degree scales and vibration-free movement bring new levels of fine-tuning to your tilts and pans. A levelling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.

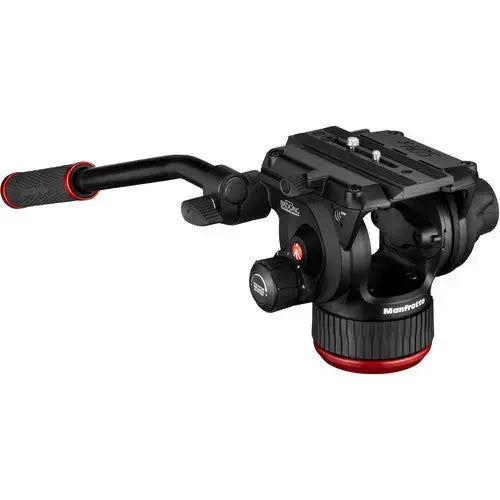

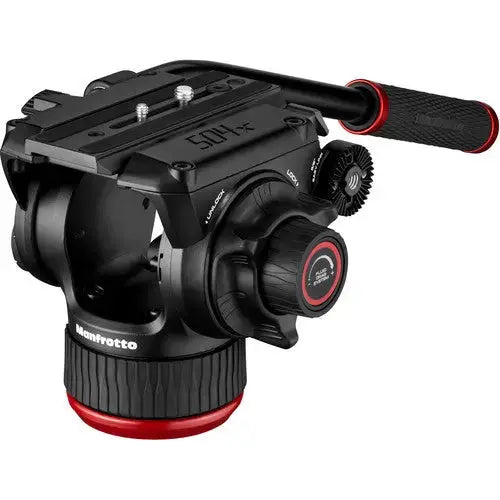

Whether you're using a pro camcorder or an accessorized DSLR, the 504X provides a 504PLONGR-1 sliding quick release plate with 1/4"-20 and 3/8"-16 threads to balance the camera properly on your rig. The head is made from durable aluminium and includes a pan bar that can be attached via rosettes on either the right or left side to help create smooth pan-and-tilt movements.

Camera Plate

Camera Plate Features Quick Release, Sliding Balance Plate

Camera Plate Type 504PLONG

Camera Mounting Screw 1 x 1/4"-20 Male 1 x 3/8"-16 Male

Tripod Platform

Base Mount 3/8"-16 Female

Pan & Tilt

Drag Control Tilt: Continuous Pan: Continuous

Drag Type Fluid

Vertical Tilt None

Panning Range 360°

Independent Pan Lock Yes

Independent Tilt Lock Yes

Physical

Material Aluminium

Load Capacity 26.46 lb / 12 kg

Counter Balance Incremental 4-Step Plus 0 (0 to 14.3 lb / )

Bubble Level 1

Dimensions 5.86" / 14.88 cm

Weight 4.41 lb / 2 kg
