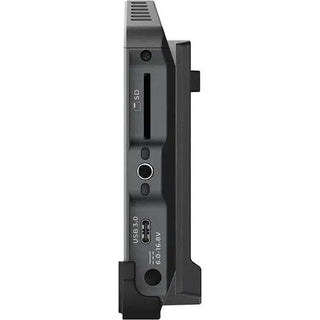

Accsoon CineView M7 7" Recording Monitor

Accsoon CineView M7 7" Recording Monitor

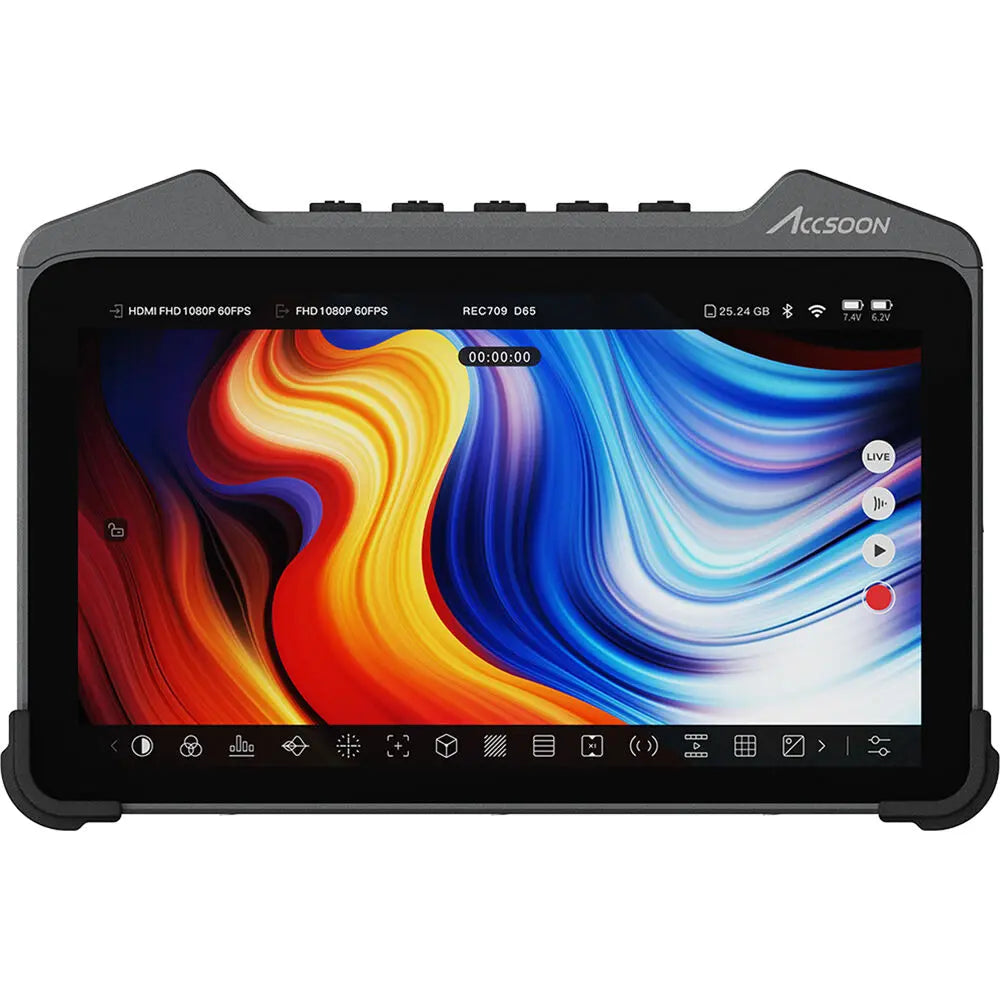

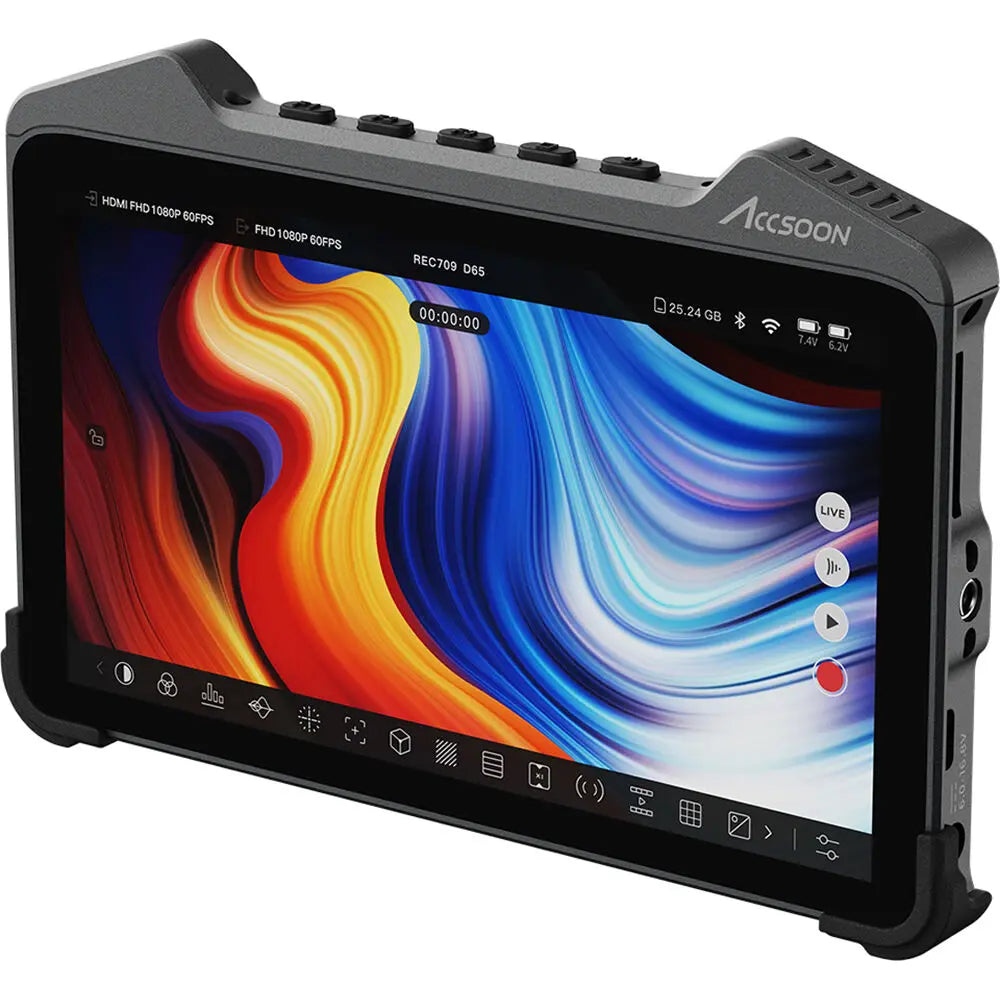

Enhance your on-set workflow with the Accsoon CineView M7 7" Monitor, a bright, cinema-grade on-camera display designed to give filmmakers the confidence and precision required for professional production. Featuring a sharp 1920 × 1080 touchscreen panel with 1000 cd/m² brightness, wide 176° viewing angles and factory-calibrated 100% Rec.709 accuracy, the CineView M7 provides true-to-life colour monitoring whether you're shooting indoors, outdoors or in challenging lighting conditions.

The CineView M7 offers an impressive range of input and output options, making it suitable for any camera system. Its HDMI 2.0 ports support up to DCI 4K60 video, while the 3G-SDI input and loop output handle up to 1080p60, ensuring compatibility with both cinema and broadcast workflows. A 3.5 mm microphone input allows you to embed audio directly into your video feed, and a dedicated headphone output with source selection provides accurate, real-time audio monitoring.

Powered by Accsoon’s intuitive SmartOS interface, the monitor is equipped with an extensive suite of professional imaging tools. These include 3D LUT support, waveforms, histograms, vectorscope, zebra, colour management, gamma controls, device status readouts and more—giving you complete control over exposure, colour and focus on set. The M7 also features built-in recording via SD card or external USB storage, capturing up to 4K60 from HDMI or 1080p60 via SDI. You can choose H.264 or H.265 compression, use constant- or variable-bit-rate settings, and even bake in LUTs for quick previews or client delivery.

For power flexibility, the CineView M7 is designed to fit seamlessly into any rig. It can run from dual NP-F batteries, a 16.8 V barrel input, or USB-C PD (9 V, 3 A). A 5 V USB-C output lets you power small accessories or even your camera, reducing clutter in your setup. The aircraft-grade aluminium chassis, anti-reflective coating, passive and fan-assisted cooling, and multiple 1/4"-20 mounting points ensure durability, ease of rigging and reliable operation in demanding environments.

Crafted for cinematographers, videographers and creators who need robust monitoring in the field, the Accsoon CineView M7 combines professional features, rugged construction and flexible connectivity in a compact 7" package.

Display

• Panel type: LCD
• Display size: 7.0" / 17.8 cm
• Native resolution: 1920 × 1080
• Aspect ratio: 16:9
• Viewing angle: 176° horizontal, 176° vertical
• Touchscreen: Yes
• Maximum brightness: 1000 nits / cd/m²
• Contrast ratio: 1000:1
• HDR support: Yes
• Colour gamut: 100% Rec.709
• LUT support: Yes
• Image controls: Anamorphic de-squeeze, false colour, focus peaking, histogram, image flip, image freeze, pixel zoom, screen markers, vectorscope, waveform, zebra

Inputs/Outputs

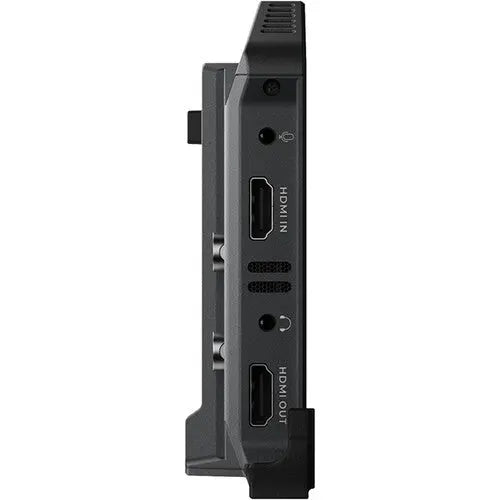

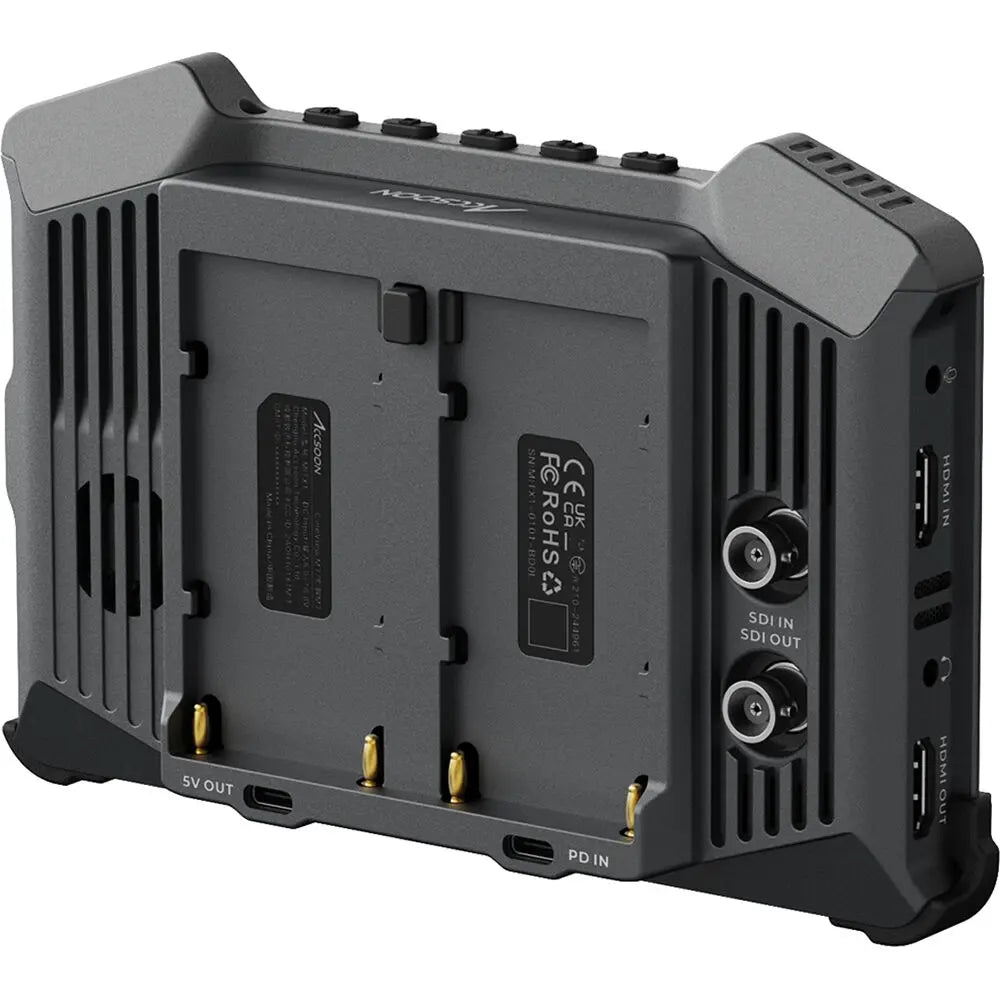

• Video I/O: 1 × BNC (3G-SDI) input, 1 × BNC (3G-SDI) output, 1 × HDMI 2.0 input, 1 × HDMI 2.0 output
• Embedded audio: HDMI/SDI
• Audio I/O: 1 × 3.5 mm mic input, 1 × 3.5 mm headphone output
• Built-in speaker: No
• Power I/O: 1 × 2.1 mm barrel (16.8 VDC) input, 1 × USB-C (9 VDC / 3 A) input, 1 × USB-C (5 VDC / 2 A) output

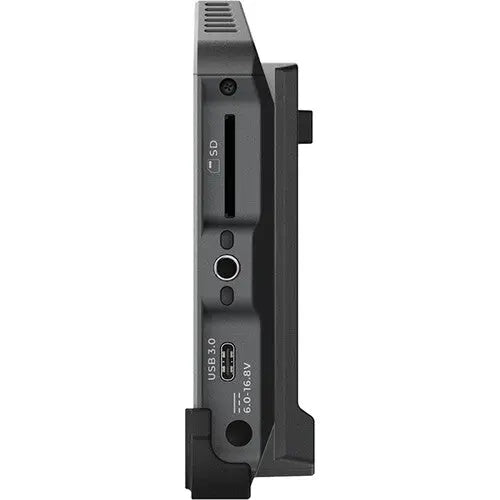

• Media slot: 1 × SD card slot (record/LUT/firmware)

Wireless

• Wi-Fi: No
• Bluetooth: No
• Mobile app compatible: No

Format Support

• HDMI formats: DCI 4K 60/59.94/50/30/29.97/25/24/23.98,
  UHD 4K 60/59.94/50/30/29.97/25/24/23.98,
  1080p 60/59.94/50/30/29.97/25/24/23.98,
  1080i 60/59.94/50,
  720p 60/59.94/50
• SDI formats: 1080p 60/59.94/50/30/29.97/25/24/23.98,
  1080i 60/59.94/50
• Video signal conversion: SDI → HDMI, HDMI → SDI
• Timecode support: No

Recording

• Pulldown conversion: No
• Camera trigger: No
• Pre-roll record: No
• Encoding formats: H.264 up to 4096 × 2160, H.265 up to 4096 × 2160
• Maximum audio tracks: 2

Power

• Input power: 6–16.8 VDC; 9–15 VDC at 3 A

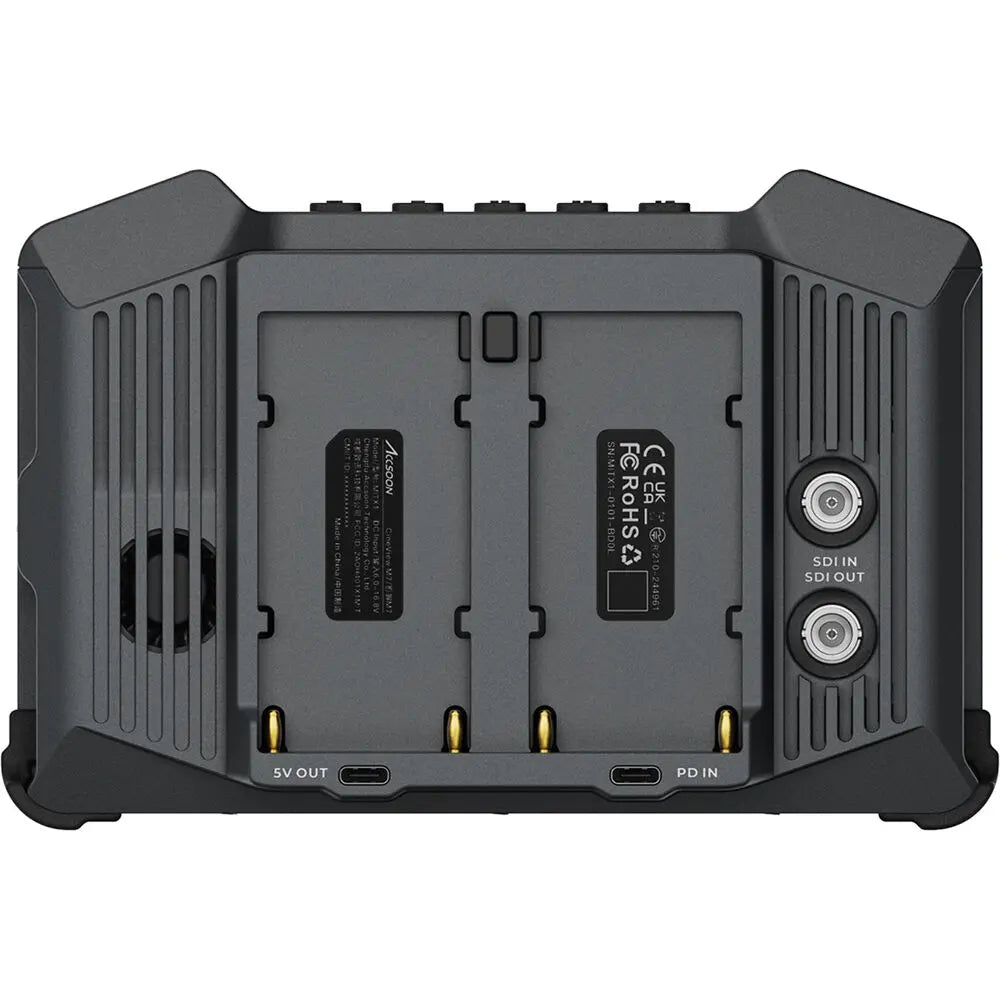

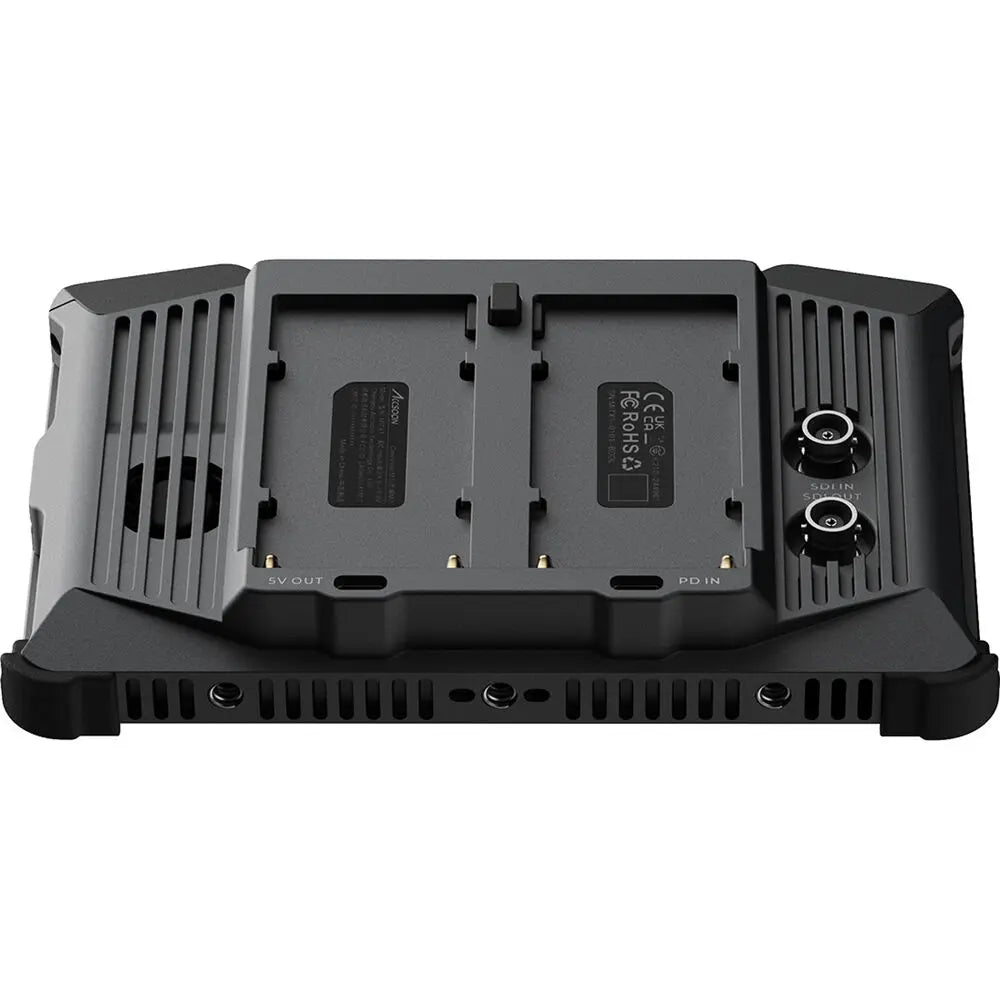

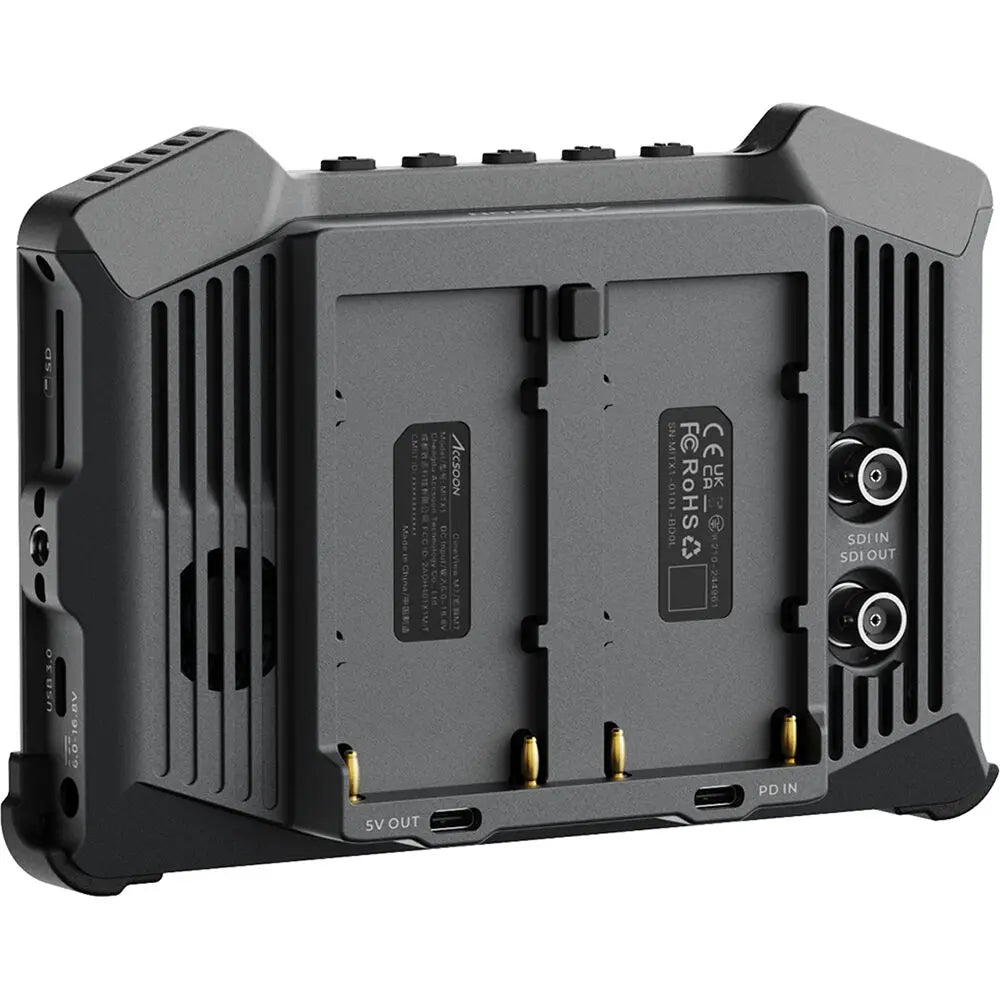

• Battery: Dual NP-F (L-Series) mounts
• Power consumption: 12 W (typical), 28 W (maximum)

Mounting

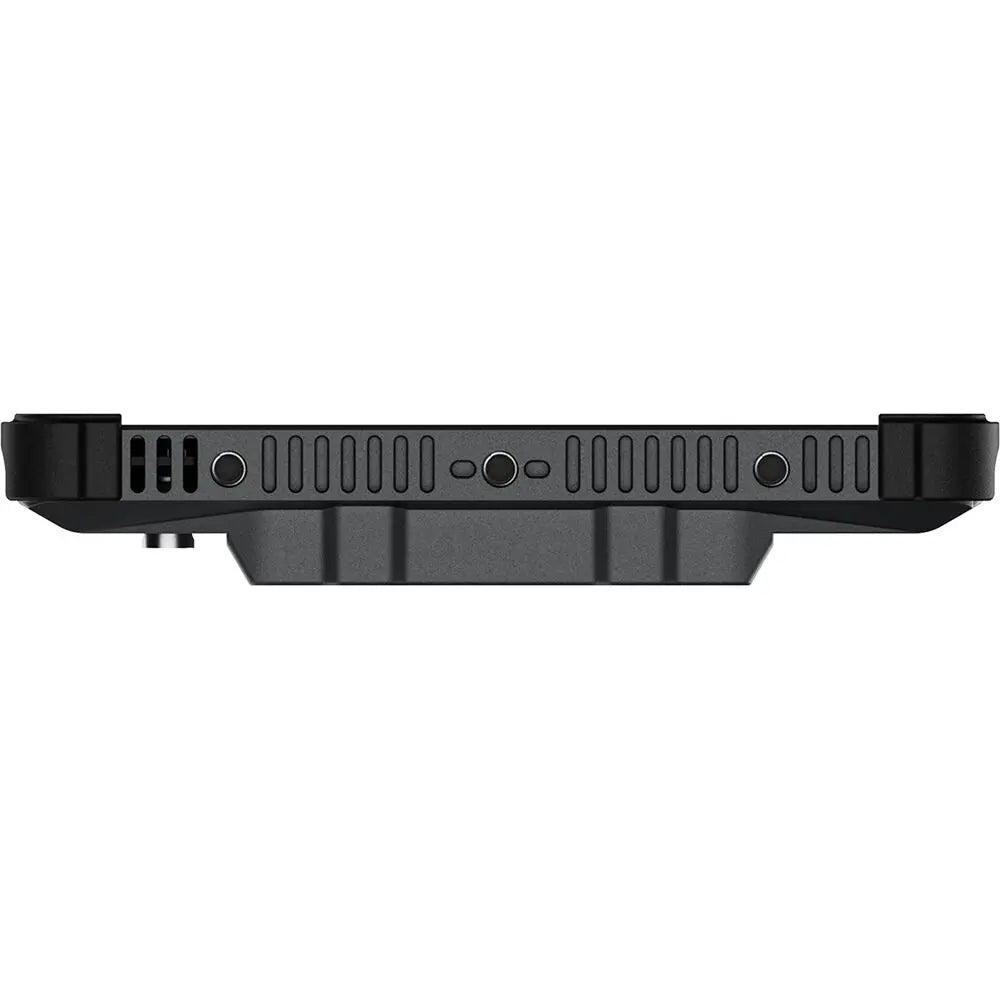

• Accessory mounting: 2 × 1/4"-20 female threads

General

• Operating conditions: −10 to 40°C (14 to 104°F)
• Material: Aluminium
• Dimensions: 182.2 × 120.7 × 31.5 mm (7.2 × 4.8 × 1.2")
• Weight: 494.3 g / 1.1 lb
