Lilliput FA1019C 10.1" High Brightness 1500 cd/m² Monitor (Non-Touchscreen)

Lilliput FA1019C 10.1" High Brightness 1500 cd/m² Monitor (Non-Touchscreen) Overview

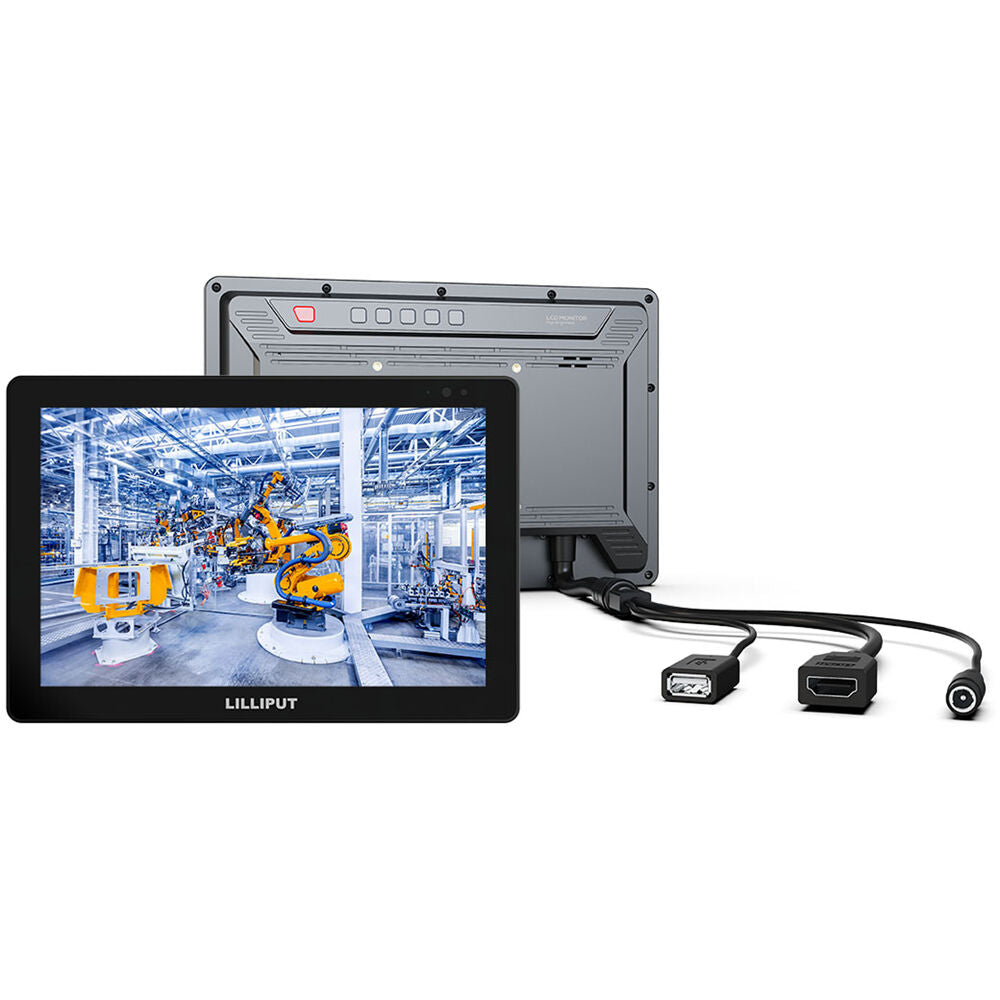

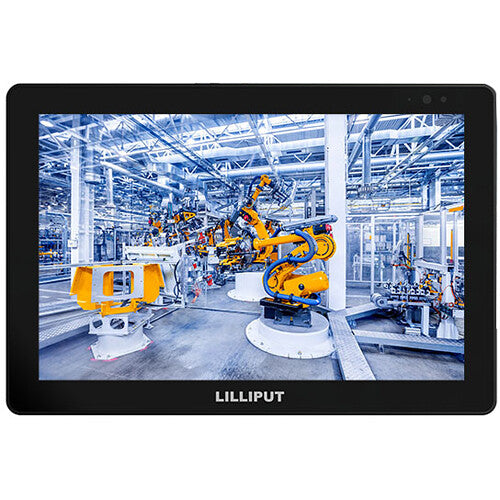

The Lilliput FA1019C is a 10.1" high-brightness industrial monitor designed for outdoor and demanding commercial environments. Featuring a 1920 × 1200 resolution IPS LCD display and an impressive 1500 cd/m² brightness, it delivers clear, detailed images in bright ambient lighting. With IP65 protection, the monitor is suited to applications where resistance to dust and water is essential.

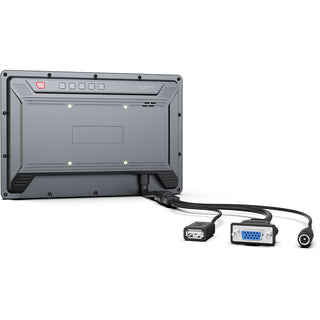

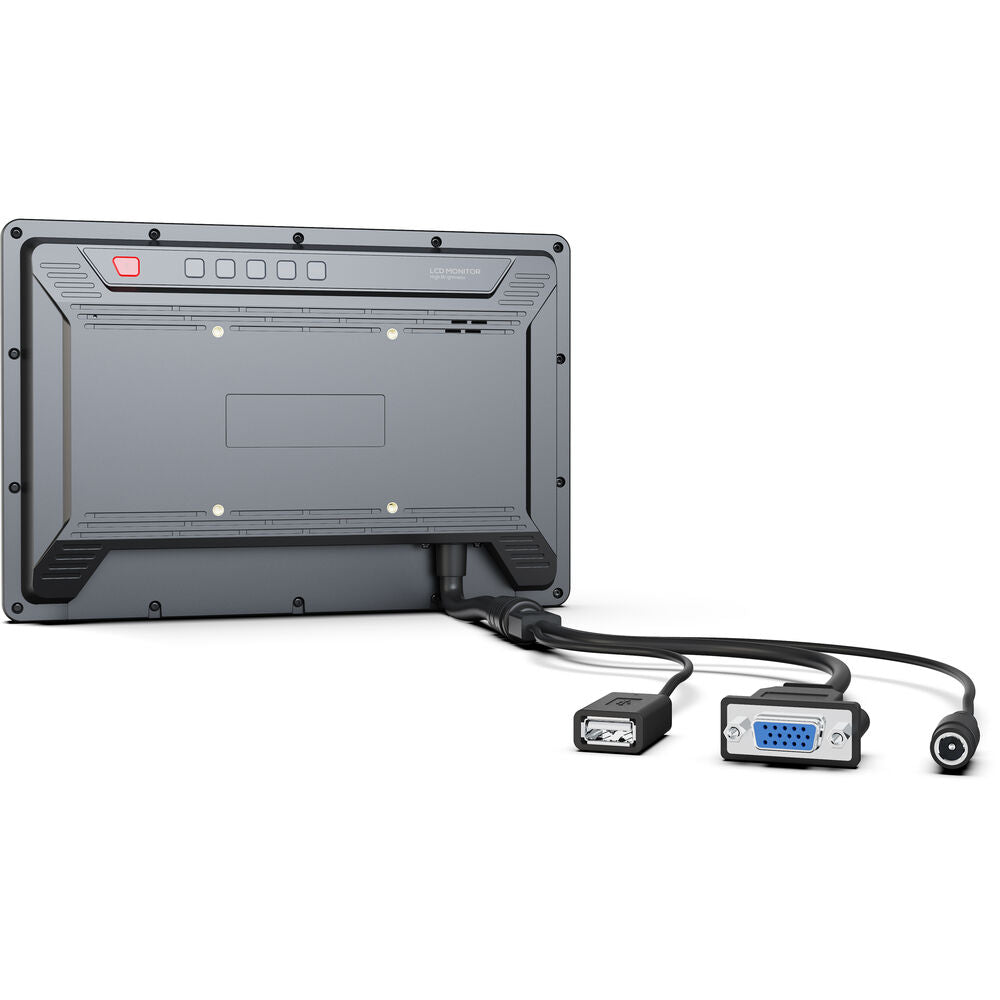

To maintain its IP65 protection, the FA1019C uses a pigtail cable for video connectivity, with a VGA input rather than conventional native video connectors on the monitor housing. Its versatile installation options make it suitable for a wide range of applications, including point-of-information (POI) and point-of-sale (POS) systems, kiosks, industrial control centres and production-line consoles. It can also be integrated into home PC setups and home automation systems, including Home Assistant, making it a flexible display solution for both commercial and residential environments.

Display Specifications

• Display Type: 10.1" IPS LCD
• Resolution: 1920 × 1200
• Aspect Ratio: 16:10
• Brightness: 1500 cd/m² (nits)
• Contrast Ratio: 1000:1
• Viewing Angle: 178° horizontal / 178° vertical
• Touchscreen: Non-touchscreen

Connectivity & Inputs

• HDMI Input: Supports up to 4K UHD at 30 Hz
• VGA Input: Yes
• USB Type-C: Supports power-on functionality
• Audio Output: 3.5 mm audio jack

Power & Environmental Specifications

• Input Voltage: DC 12–24 V
• Power Consumption: ≤ 19 W (at 12 V)
• Operating Temperature: -20°C to 60°C
• Ingress Protection: IP65 protection may be available depending on the frame and extension cable configuration

Physical Specifications

• Dimensions: Approx. 264 × 183 × 35.6 mm (configuration dependent)
• Weight: Approx. 1.31 kg
• Housing Material: Metal
• Mounting: VESA 75 × 75 mm compatible; desktop stand and console panel mounting options
